Vivo STAND-V012TW User manual

White Dual Vertical Monitor Extra Tall Desk Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v012t

SKU: STAND-V012TW

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

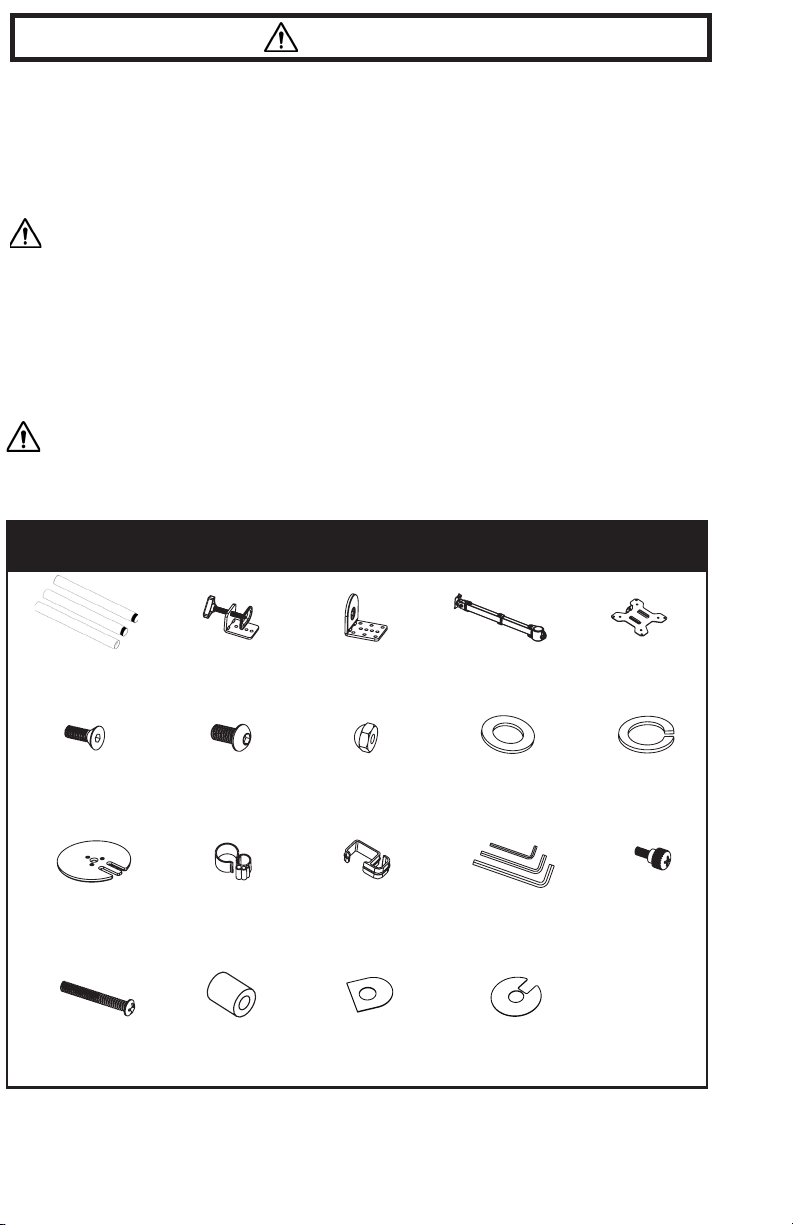

PACKAGE CONTENTS

A (x1)

Pole Set

B(x1)

Clamp

C(x1)

Clamp Brace

I(x1)

M10 Washer

L1 (x3)

Wire Clip

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

M(x1)

Allen

Wrench Set

L2 (x4)

Wire Clip

D(x2)

Swivel Arm

E(x2)

VESA Plate

F (x3)

M5x14

G(x2)

M8x12

H (x2)

Nut

K (x1)

Grommet

Base Plate

J(x1)

Spring Washer

O(x8)

M4x30

P (x8)

M4 Spacer

N (x8)

M4x12

Thumbscrew

Q1 (x1)

So Pad

Q2 (x1)

So Pad

TOOLS NEEDED

22 lbs

(10 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

Phillips

Screwdriver

ASSEMBLY STEPS

STEP 1

ASSEMBLE POLE SET

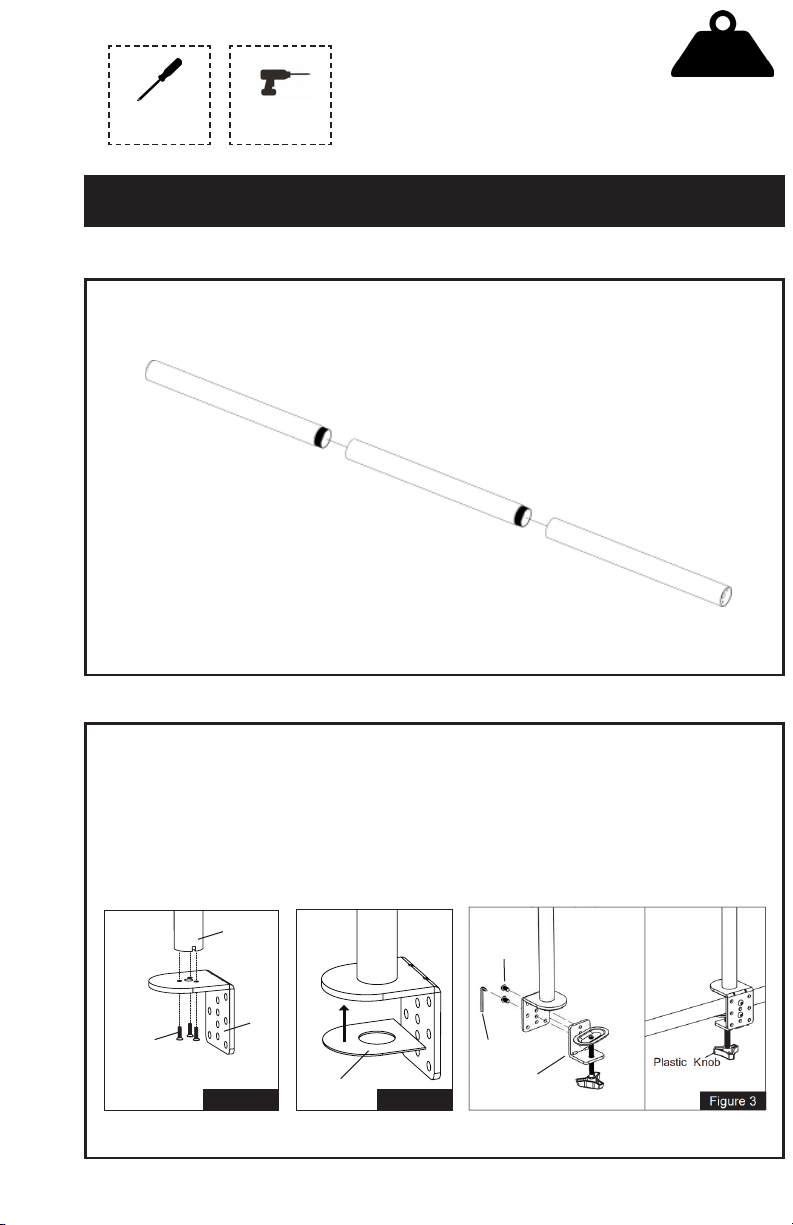

Thread the Pole Set (A) together as shown below.

PER ARM

Option A: Desk Clamp Install

1. Install the clamp brace (C) to the pole (A) using x3 M5x14 bolts (F). See Figure 1.

2. Attach so pad (Q1) to the clamp brace (C) , see Figure 2.

3. Install the clamp (B) to the pole assembly according to the thickness of the desktop. The

thickness can be changed to 3 positions. Connect using x2 M8x12 bolts (G) and tighten using the

Allen key (M). Tighten the clamp to the desktop using the plastic knob. See Figure 3.

Figure 1 Figure 2

Drill

STEP 1 (Continued)

Install the swivel arms (D) to the pole (A). Fasten the bolts with the 6mm Allen wrench (M). Attach the

wire clips (L1, L2) to the pole (A) and swivel arms (D).

STEP 2

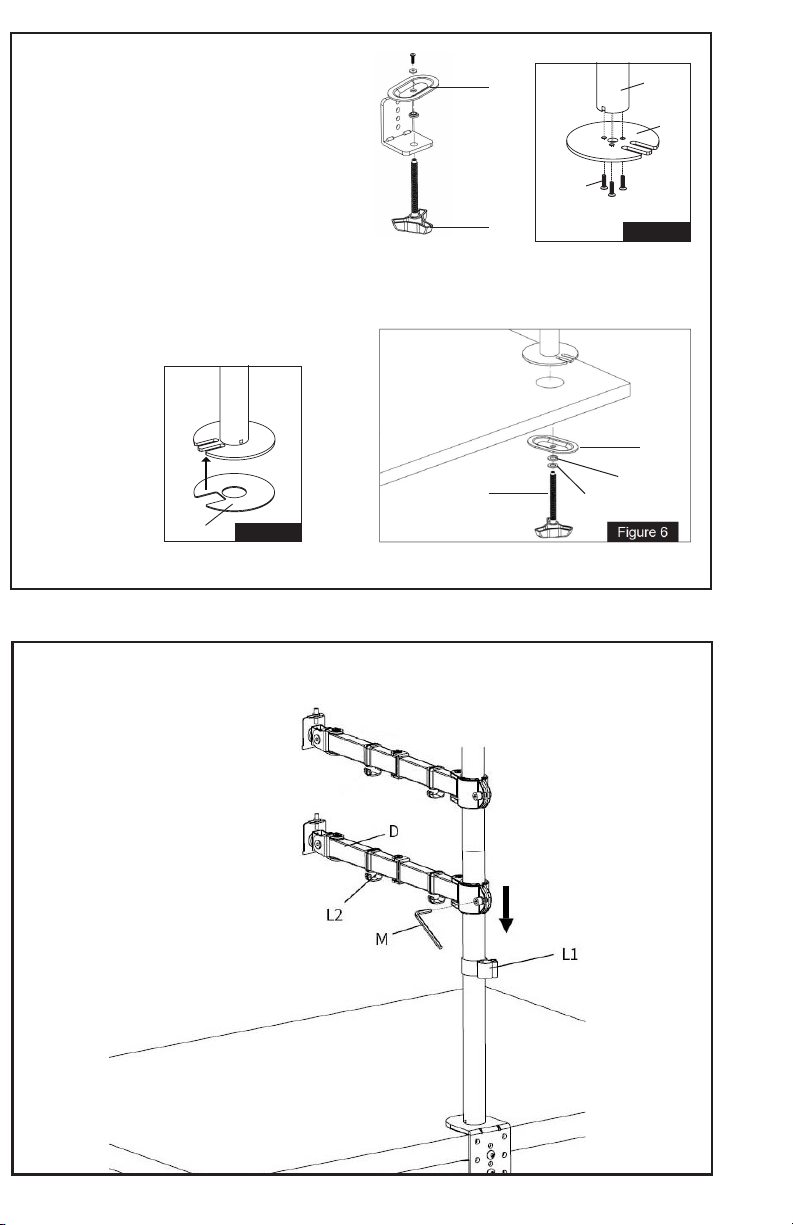

Option B: Grommet Install

1. If desk does not have an existing grommet

hole, drill a 3/8” (10mm) diameter hole at the

desired position through the mounting surface.

2. Completely disassemble clamp (B) into

individual parts. Set knob (B1) and clamp

plate (B2) aside for later use. The L bracket,

bolt, washer and bushing will not be used.

3. Install grommet base plate (K) to the pole (A)

using x3 M5x14 bolts (F). See Figure 4.

4. Attach so pad (Q2) to the grommet base plate

(K), see Figure 5.

5. Position pole (A) on the mounting surface

and secure using the clamp plate (B2), spring

washer (J), M10 washer (I) and knob (B1). See

Figure 6.

Figure 4

t2 Figure 5

Figure 4

t2 Figure 5

STEP 3

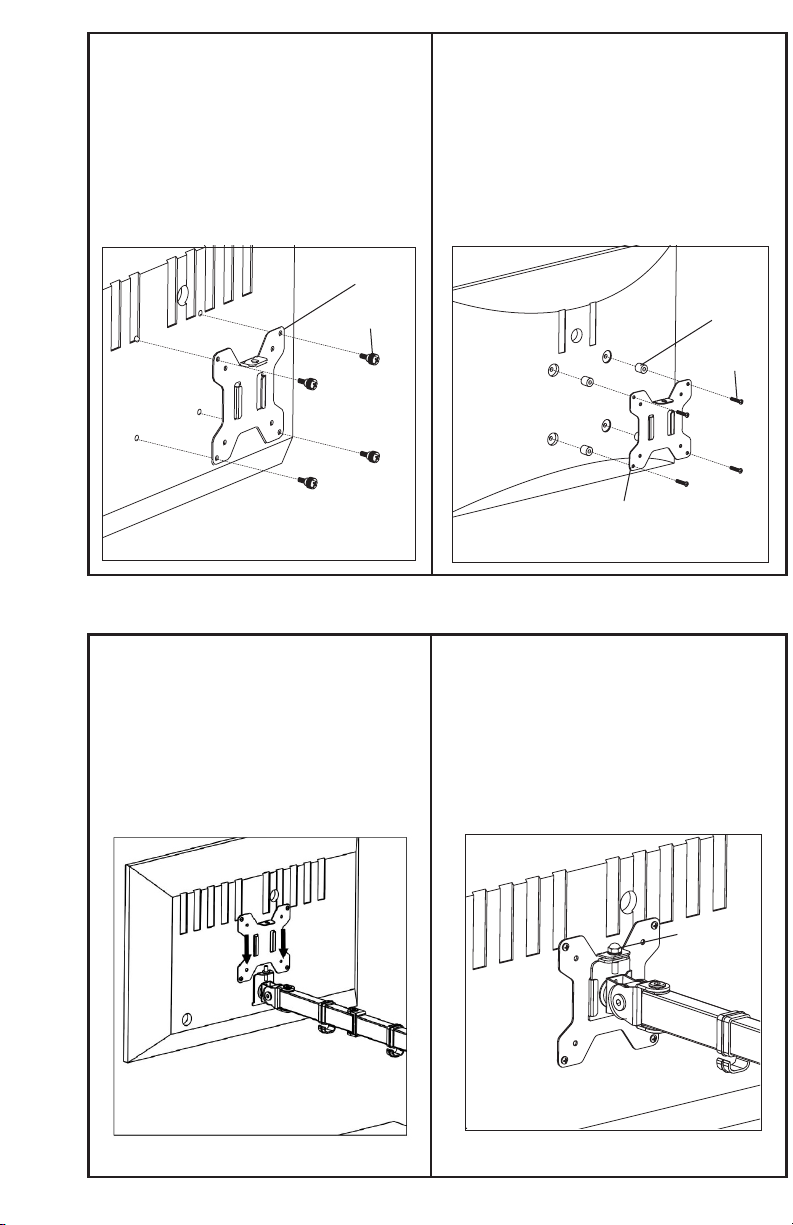

OPTION A: Flat Back Monitor

Attach the VESA plates (E) to the monitors with

M4x12 thumb bolts (N).

NOTE: Hand tighten screws to avoid stripping

plastic screw heads.

Slide the monitors onto the heads of

swivel arms (D).

OPTION B: Curved Back Monitor

Attach the VESA plates (E) to the monitors with

M4x30 bolts (O) and M4 spacers (P).

NOTE: Gently tighten with a screwdriver.

STEP 4

Install the security nuts (H). Make sure the security

nuts are installed before you rotate the monitors.

STEP 5

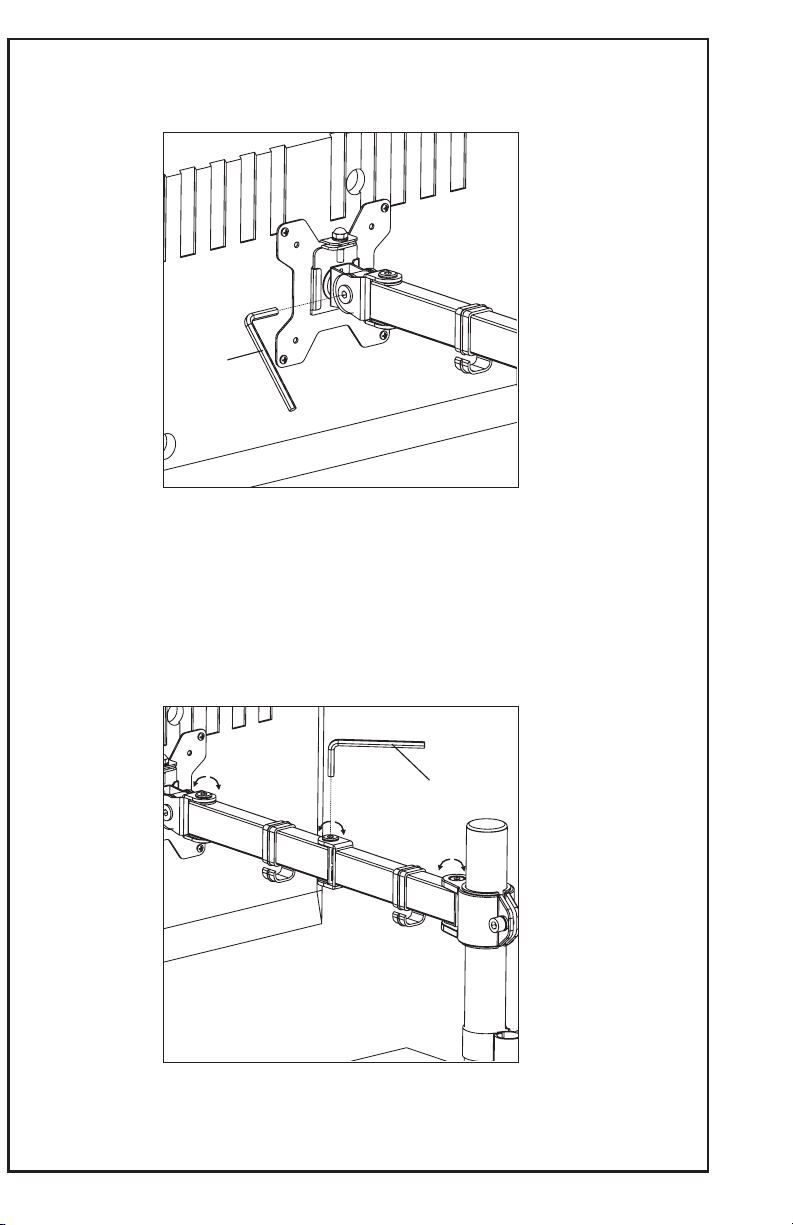

Tighten the bolt on the side of the tilt joint with the 5mm Allen wrench (M) to fix the tilt angle.

Adjust the swivel joints by tightening or loosening the top bolts using the 5mm Allen wrench (M).

STEP 6

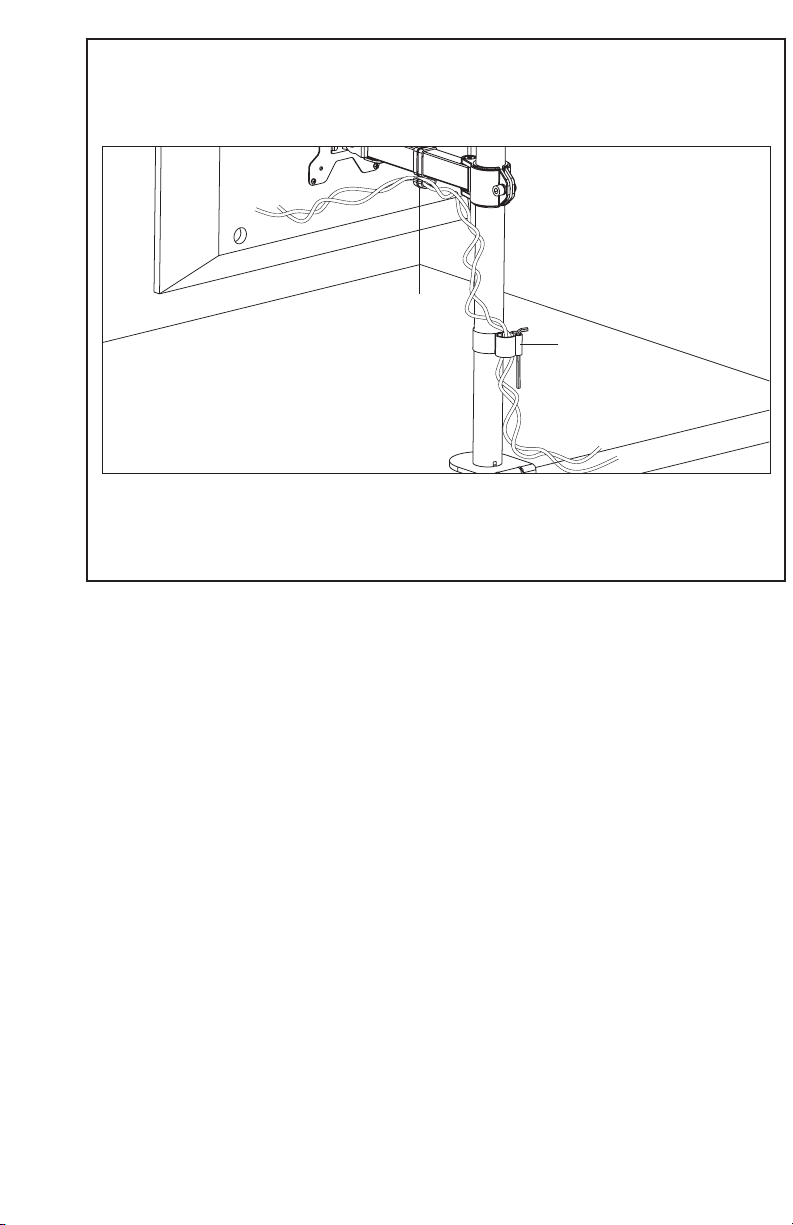

Manage cables and store Allen wrenches (M) in wire clip (L1) for future use.

LAST UPDATED: 06/07/2022

REV1

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
