Vivo STAND-V003FG User manual
Triple Monitor Desk Stand
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-v003fg
SKU: STAND-V003FG
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2

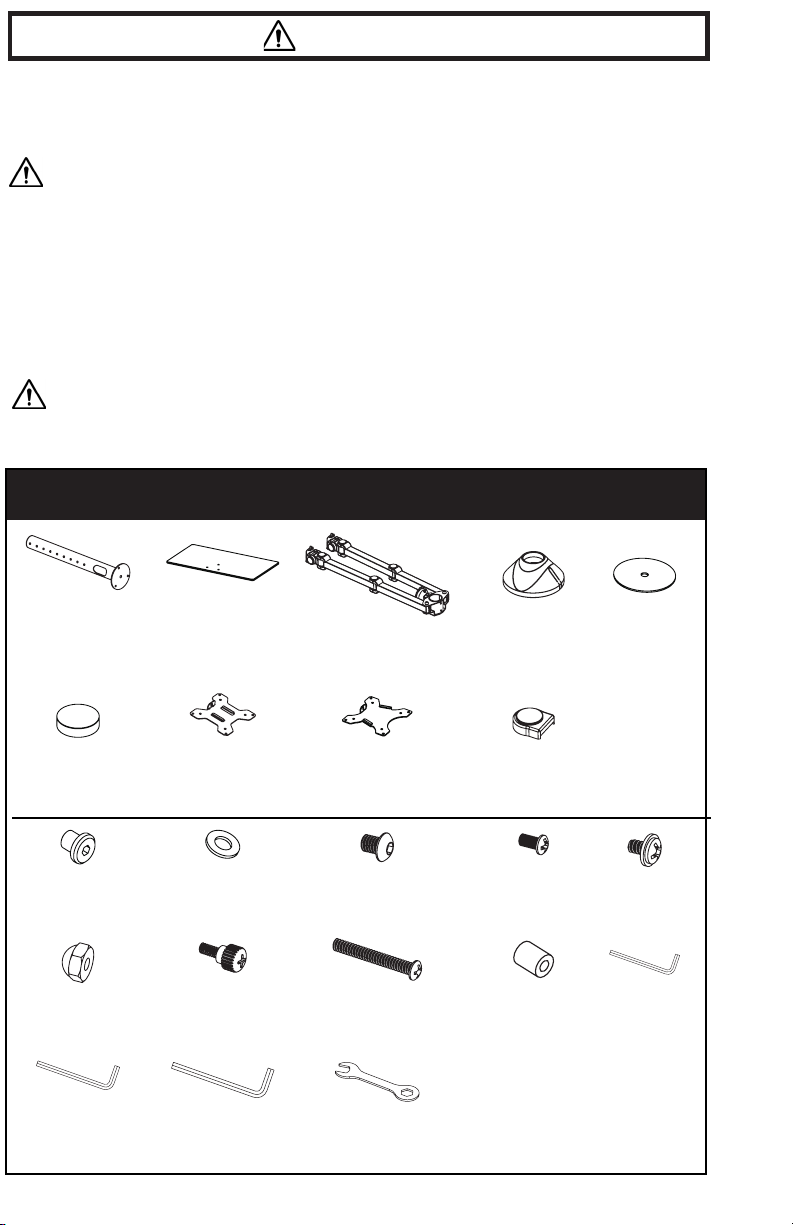

PACKAGE CONTENTS
A (x1)
Pole
B(x1)
Glass Base
C(x1)
Arm
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
D(x1)
Decorative
Cover
S-D (x3)
M6x10mm
Screw
S-A (x3)
M8x8mm
Screw
S-B (x3)
M8 Washer
S-C (x2)
M8x10mm
Screw
F (x4)
Rubber Feet
E(x1)
So Pad
T-D (x1)
Wrench
M-A (x12)
M4x12mm
Screw
M-B (x12)
M4x30mm
Screw
M-C (x12)
M4 Spacer
T-A (x1)
3mm Allen
Wrench
T-B (x1)
5mm Allen
Wrench
T-C (x1)
6mm Allen
Wrench
I(x2)
Spare Plastic
Cover
G (x2)
Side VESA
Plate
H (x1)
Center VESA
Plate
S-F (x2)
Security Nut
S-E (x1)
M4x6mm
Screw
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a
qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may
cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. Do
not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly
or inappropriate use.
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT
TIPOVER:
• TO PREVENT TIPPING, PLEASE BE CAREFUL NOT TO EXTEND THE ARMS TOO FAR
FORWARD OR BACKWARD.
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF
MONITOR OR STAND.
• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF
TIPOVER.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
3

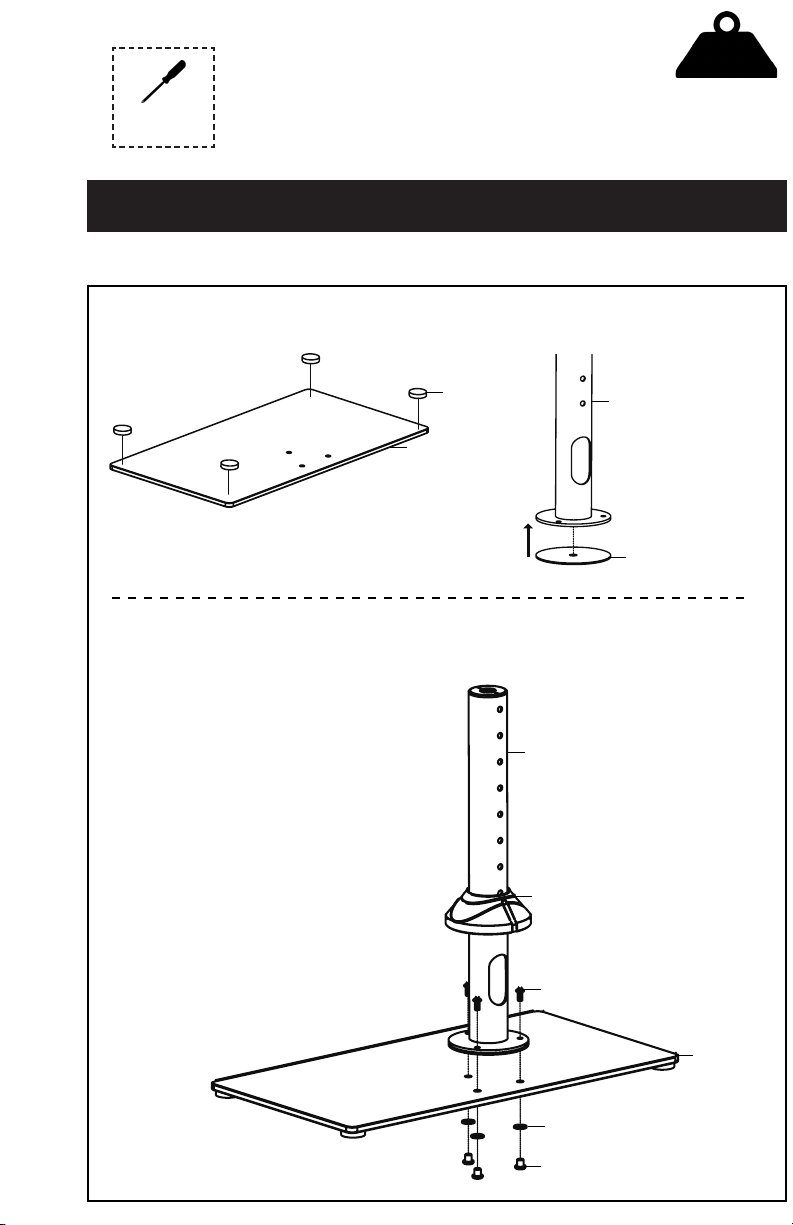

Attach Rubber Feet (F) to the underside of the Glass Base (B). Attach So Pad (E) to the Pole (A).
Use a screwdriver to poke holes for screws through the Pad.
Install Pole (A) to Glass Base (B) using M6x10mm Screws (S-D), M8x8mm Screws (S-A), M8
Washers (S-B), 5mm Allen Wrench (T-B), and a Phillips screwdriver. Slide Decorative Cover (D)
over the Pole.
ASSEMBLY STEPS
STEP 1
22 lbs
(10 kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
PER ARM
TOOLS NEEDED
Phillips
Screwdriver
F
B
A
E
A
D
S-D
S-A
S-B
B
4
Center VESA Plate (K) Installation
STEP 2

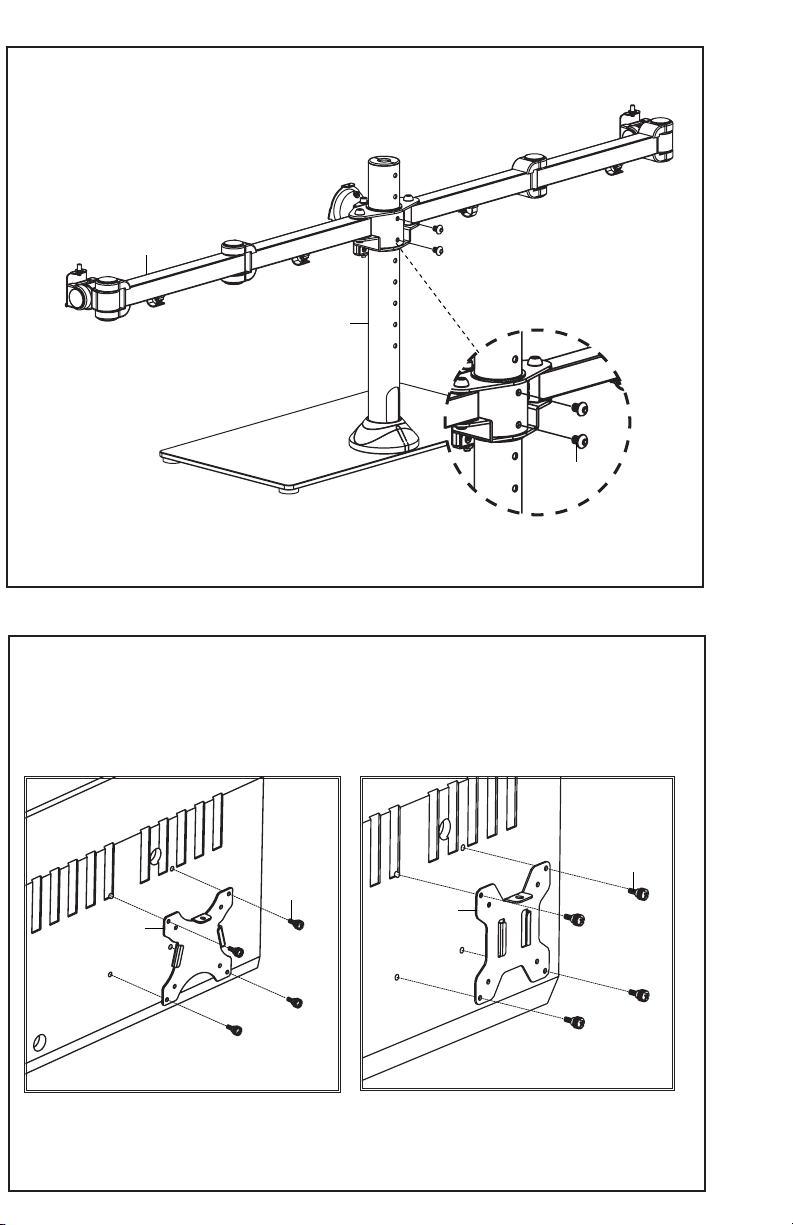

Install Arm (C) to the Pole (A). Secure using M8x10mm Screws (S-C) with a Phillips screwdriver.
STEP 3a - Flat Back Monitors
Side VESA Plate (J) Installation
OPTION A: Flat Back Monitor
Attach the Center VESA Plates (K) to the monitors you intend to mount in the center of the mount.
Attach Side VESA Plates (J) to remaining monitors. Secure using M4x12mm Screws (M-A).
NOTE: Hand tighten screws to avoid stripping the plastic screw heads.
C
S-C
M-A
M-A
A
J
K
5

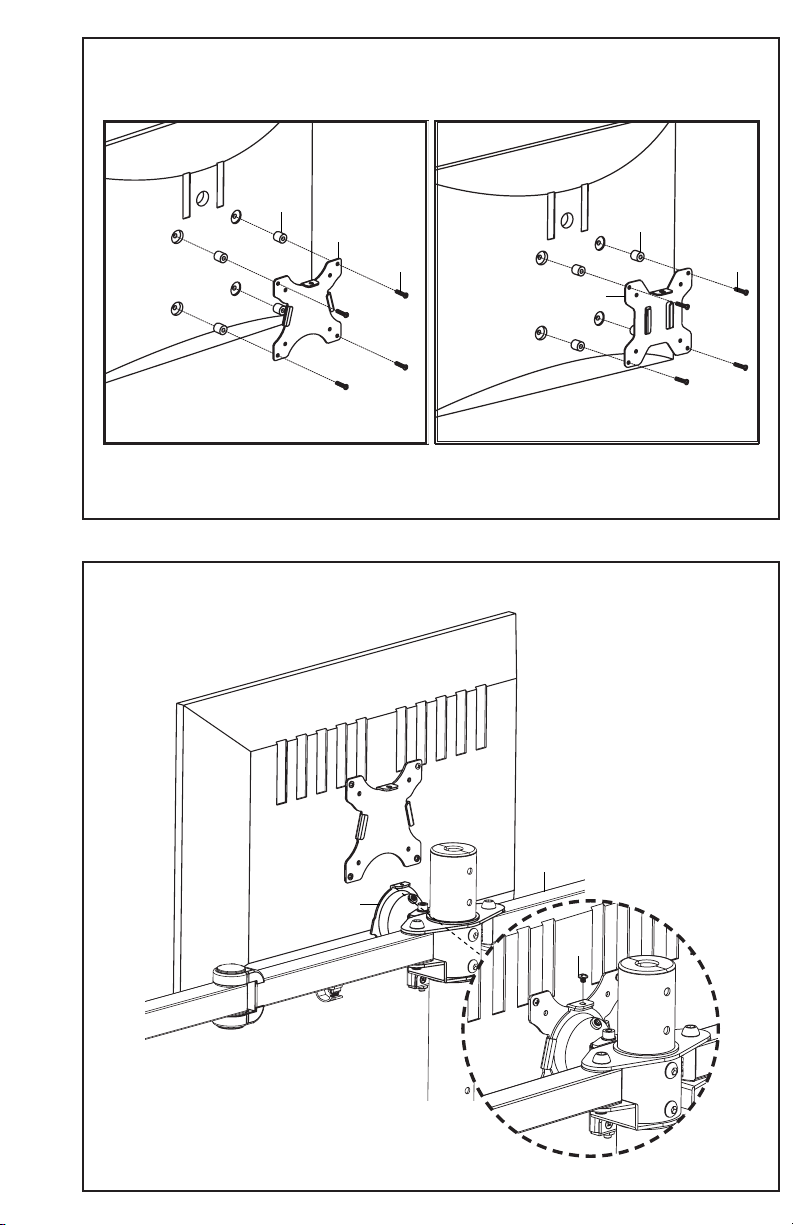

STEP 3b - Curved/Recessed Back Monitors
STEP 4
Attach the Center VESA Plates (K) to the monitors you intend to mount in the center of the mount.
Attach Side VESA Plates (J) to remaining monitors. Secure using M4 Spacers (M-C), M4x30mm
Screws (M-B) and a Phillips screwdriver.
Slide the center monitor onto the Center Head (C1) of Monitor Arm (C). Install the M4x6mm (S-E) to
secure the monitor.
Center VESA Plate (K) Installation Side VESA Plate (J) Installation
M-BM-B
K
M-C
M-C
J
C1
C
S-E
6

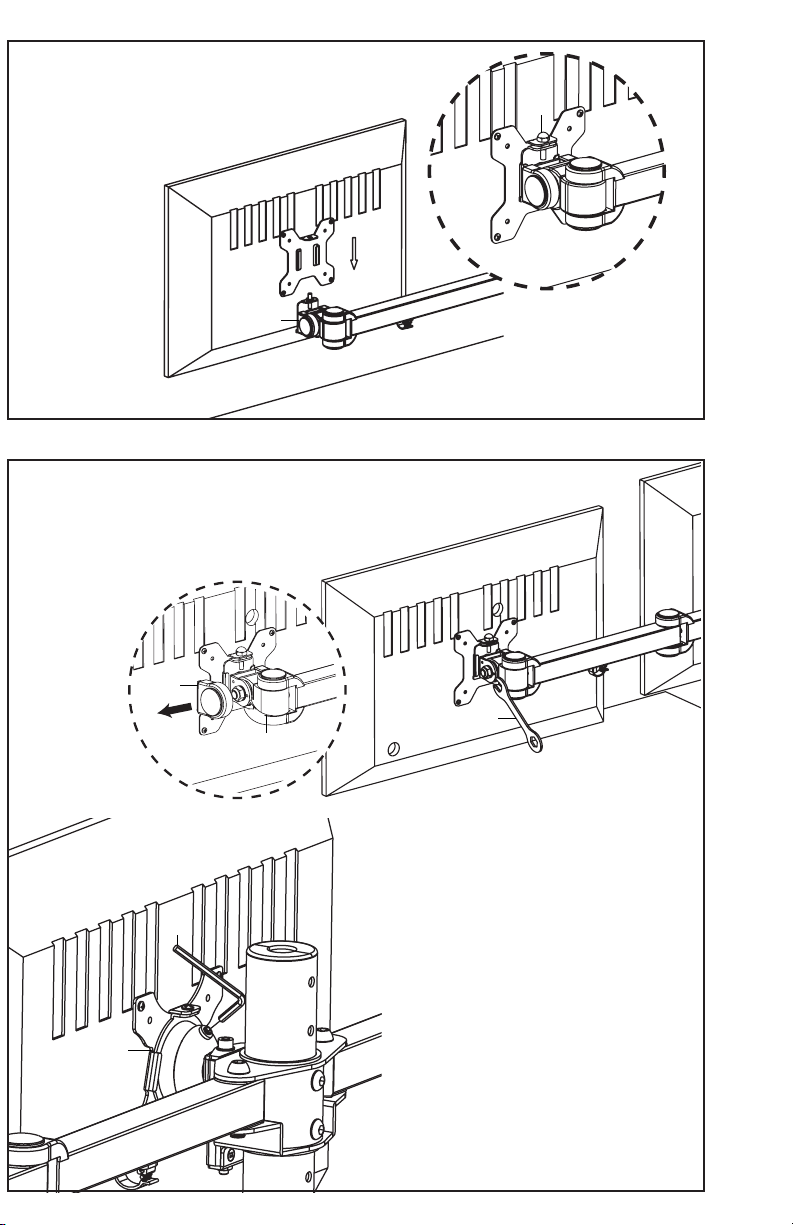

Adjust Monitor Tilt
Pry o Plastic Covers (C3) from the Outer
VESA Heads (C2). The exposed nut on the
side is used to adjust the tilt. Tighten the
nut using Wrench (T-D) to adjust. Replace
Plastic Covers (C3).
To adjust center monitor swivel or tilt, use
3mm Allen Wrench (T-A) to loosen center
set screw on the Center Head (C1), as
shown at le.
STEP 4
Slide the outer monitors onto Outer VESA Heads (C2). Secure
with Security Nut (S-D).
C2
S-D
C3
T-D
C2
T-A
C1
7

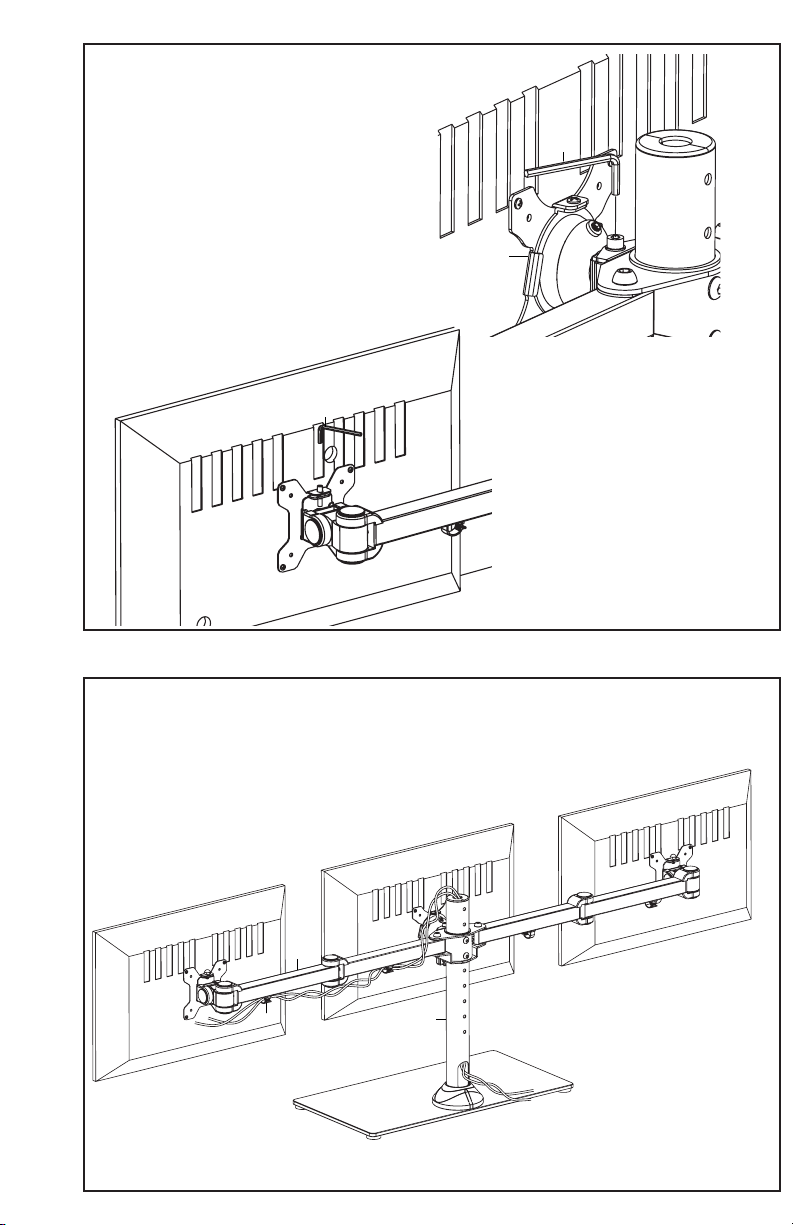

Adjust Monitor Height
Cable Management
To adjust center monitor height, turn the
screw behind Center Head (C1) using the
5mm Allen Wrench (T-B).
To level the side monitors, remove
the Security Nut (S-F) and turn
the inner bolt with the 3mm Allen
Wrench (T-A) to raise or lower the
monitor. Replace Nut aer the
adjustment.
Manage cables using Wire Clips (C4) on Arm (C). Remove the split cap from the Pole (A) and feed
cables through, pulling ends out from the opening in back. Replace the split cap when finished.
T-A
C1
T-A
C
C4 A
LAST UPDATED: 05/23/2023
REV2
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
