Vivo MOUNT-REC01 User manual

Recessed TV Wall Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-rec01

SKU: MOUNT-REC01

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

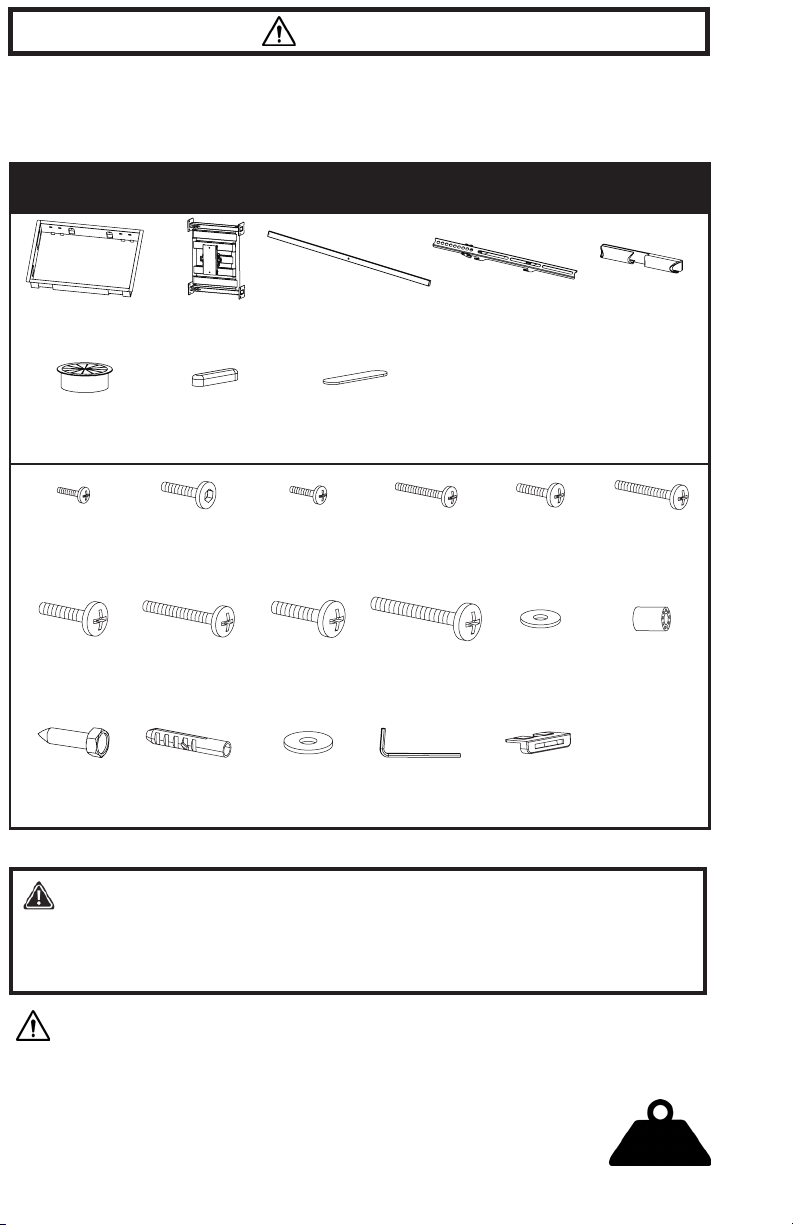

PACKAGE CONTENTS

110lbs

(50kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

A (x1)

Mount

B (x1)

Arm

C (x2)

Bracket Rail

If you do not understand these directions, or if you have any doubts about the safety of the installation,

please call a qualified technician. Check carefully to make sure there are no missing or defective parts.

Improper installation may cause damage or serious injury. Do not use this product for any purpose that is

not explicitly specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or

injury caused by improper mounting, incorrect assembly or inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

D (x2)

VESA Bracket

E (x4)

Cable Management

Clip

F (x2)

Cable Grommet

T-B (x1)

Bubble Level

G (x4)

Spacer Block

T-A (x1)

4mm Allen Wrench

S-A (x4)

M4x6mm Screw

S-B (x2)

M6x12mm Screw

M-A (x4)

M4x12mm Screw

M-B (x4)

M4x30mm Screw

M-C (x4)

M5x12mm Screw

M-D (x4)

M5x30mm Screw

M-E (x4)

M6x12mm Screw

M-F (x4)

M6x30mm Screw

W-A (x12)

M8x30mm Screw

W-B (x12)

Concrete Anchor

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO

MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.

com, email at [email protected]om, or call us at 309-278-5303.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

H (x4)

Adhesive Pad

M-G (x4)

M8x16mm Screw

M-H (x4)

M8x30mm Screw

M-I (x4)

M6 Washer

M-J (x4)

M8 Spacer

W-C (x12)

M8 Washer

ASSEMBLY STEPS

STEP 1 (Option A)

Wood Stud Installation

Find stud locations using a stud finder and mark the edge of each stud. Hold the mount up between two

studs at the desired height with the back side touching the wall and trace the perimeter using a pencil.

Cut and remove the drywall section. Place Mount (A) in the wall and mark all six of the mounting

holes on the le stud using a pencil. The mount can be removed prior to drilling the marked holes.

Using a 3mm (1/8”) drill bit, drill marked holes approximately 30mm (1.2”) deep. Install Mount (A) to

the le stud in the two center mounting holes using M8x30mm Screws (W-A), M8 Washers (W-C), and a

13mm socket wrench. Install Cable Grommets (F) to top and bottom of Mount (A).

TOOLS NEEDED

Stud Finder

Tape Measure Drill

Phillips

Screwdriver

Pencil

3mm Drill

Bit

10mm Drill

Bit 13mm Socket

Drywall Saw

3mm

30mm(1.2)

(0.12)

W-A

W-CW-C F

T-B

STEP 1 (Option B)

Concrete/Brick Installation

Find the edges the concrete/brick pillar. If covered in drywall, hold Mount (A) with Bubble Level (T-B) up

to the desired mounting location with the back side touching the wall and trace the perimeter using a

pencil. Cut and remove the drywall section. Mark all six of the mounting holes on the le pillar using

a marker then remove mount from from the wall. Using a 10 mm (3/8”) drill bit, drill mounting holes

approximately 60mm (2.4”) deep. Insert Concrete Anchors (W-B) into all of the drilled holes. Place

Mount (A) back into the wall and install to the le pillar using the two center mounting holes, M8x30mm

Screws (W-A), M8 Washers (W-C), and a 13mm socket wrench. Install Cable Grommets (F) to top and

bottom of Mount (A).

10mm

60mm(2.4)

(0.39)

STEP 2 (Option A)

W-B

W-A

W-CW-C F

W-CW-C

W-A

T-A

T-B

Wood Stud Installation

Slide the tabs on the le side of Arm (B) into the slots on Mount (A). Loosen the screws on Arm (B) using

4mm Allen Wrench (T-A). Extend the arms until it reaches the right stud. Make sure the arm is level then

tighten screws. Mark all 4 of the mounting holes on the right stud using a pencil. The mount can be

removed prior to drilling the marked holes. Using a 3mm (1/8”) drill bit, drill mounting holes

approximately 30mm (1.2”) deep. Secure Arm (B) to both pillars

using M8x30mm Screws (W-A), M8 Washers

(W-C), and a 13mm socket wrench.

STEP 3 (Optional)

Power Receptacle Installation

If installing a power receptacle, remove the square plate by bending the metal back and forth. Attach

Adhesive Pads (H) to Spacer Blocks (G) and then onto Mount (A) oset from the cutout. We recommend

using a recessed outlet receptacle to provide more space for device plugs.

STEP 2 (Option B)

W-CW-C

W-A

T-A

Concrete/Brick Installation

Slide the tabs on the le side of Arm (B) into the slots on Mount (A). Loosen the screws on Arm (B) using

4mm Allen Wrench (T-A). Extend the arms until it reaches the right pillar. Make sure the arm is level then

tighten screws. Mark all 4 mounting holes on right pillar using a marker. Loosen the screws on Arm (B)

and remove Arm (B) from Mount (A). Using a 10 mm (3/8”) drill bit, drill mounting holes approximately

60mm (2.4”) deep. Insert Concrete Anchors (W-B) into all of the drilled holes. Reinstall Arm (B) to Mount

(A) and tighten screws on Arm (B) using 4mm Allen Wrench (T-A).

Secure Arm (B) to both pillars using M8x30mm

Screws (W-A), M8 Washers (W-C), and a

13mm socket wrench.

STEP 5 (Option A)

Flat Back Monitor

Attach VESA Brackets (D) to the back of the TV using combination of Screws (M-A through M-H) and M6

Washers (M-I). Spacers (M-J) may be required. Tighten with a Phillips screwdriver.

TVTV TV

M-A

Through

M-H

M-I

M-A

Through

M-H

M-I

M-J

STEP 4

Secure Bracket Rails (C) to Arm (B) using M6x12mm Screws (S-B) and 4mm Allen Wrench (T-A). Insert

M4x6mm Screws (S-A) into the back of Bracket Rails (C) using a Phillips screwdriver.

S-B

S-A

T-A

OROR

STEP 6

Hang the TV with VESA Brackets (D) onto Bracket Rails (C).

STEP 7

Flip the latch on the underside of VESA Brackets (D) and tighten the security screws using a Phillips

screwdriver to secure them in place. Install Cable Managment Clips (E) onto Arm (B) and route cables

through the clips and Cable Grommets (F).

LAST UPDATED: 01/31/2023

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.
