Vivo MOUNT-VW02 User manual

Table of contents

Popular Rack & Stand manuals by other brands

Salamander

Salamander Acadia AC/W/L400/WH Assembly instructions

Fohhn

Fohhn VAT-09 Mounting instruction

ricoo

ricoo FS0522 quick start guide

AMSOIL

AMSOIL BMK-22 Installation and service instructions

Kargo Master

Kargo Master 48220 installation guide

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 installation instructions

ricoo

ricoo S1222 installation instructions

Ready-Set-Mount

Ready-Set-Mount RSMCM602 instruction manual

VidaBox

VidaBox VB MNT FFS2 installation guide

Welch Allyn

Welch Allyn 48960 Assembly instructions

Arkon

Arkon CM035-ST-2 installation instructions

PROEL

PROEL PLWIN60C user manual

Agilent Technologies

Agilent Technologies E2609B installation guide

Mustang

Mustang MV-ARM4 installation guide

Mounting Solutions

Mounting Solutions WRM-320 manual

Pyle

Pyle PMKSPAD1 manual

ShelterIt

ShelterIt 21208 installation instructions

SPL

SPL RackPack?4 1040 manual

TV and Computer Wall Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-vw02

[email protected]om www.vivo-us.com 1-800-371-5654

SKU: MOUNT-VW02

2 3

PACKAGE CONTENTS

TOOLS NEEDED

110lbs

(49.90

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

B(x1)

Bracket

C(x2)

Allen Wrench

W-A (x4)

Screw

M-A (x4)

M5x14

M-B (x4)

M6x14

M-C (x4)

M6x30

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualied technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

W-C (x4)

Washer

W-B (x4)

Anchor

Drill

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO

MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.

com, email at [email protected], or call us at 1-800-371-5654.

A (x1)

Mount

M-D (x4)

M8x30

M-E (x4)

M8x50

M-F (x4)

Plate

M-G (x8)

Small

Spacer

M-H (x8)

Large

Spacer

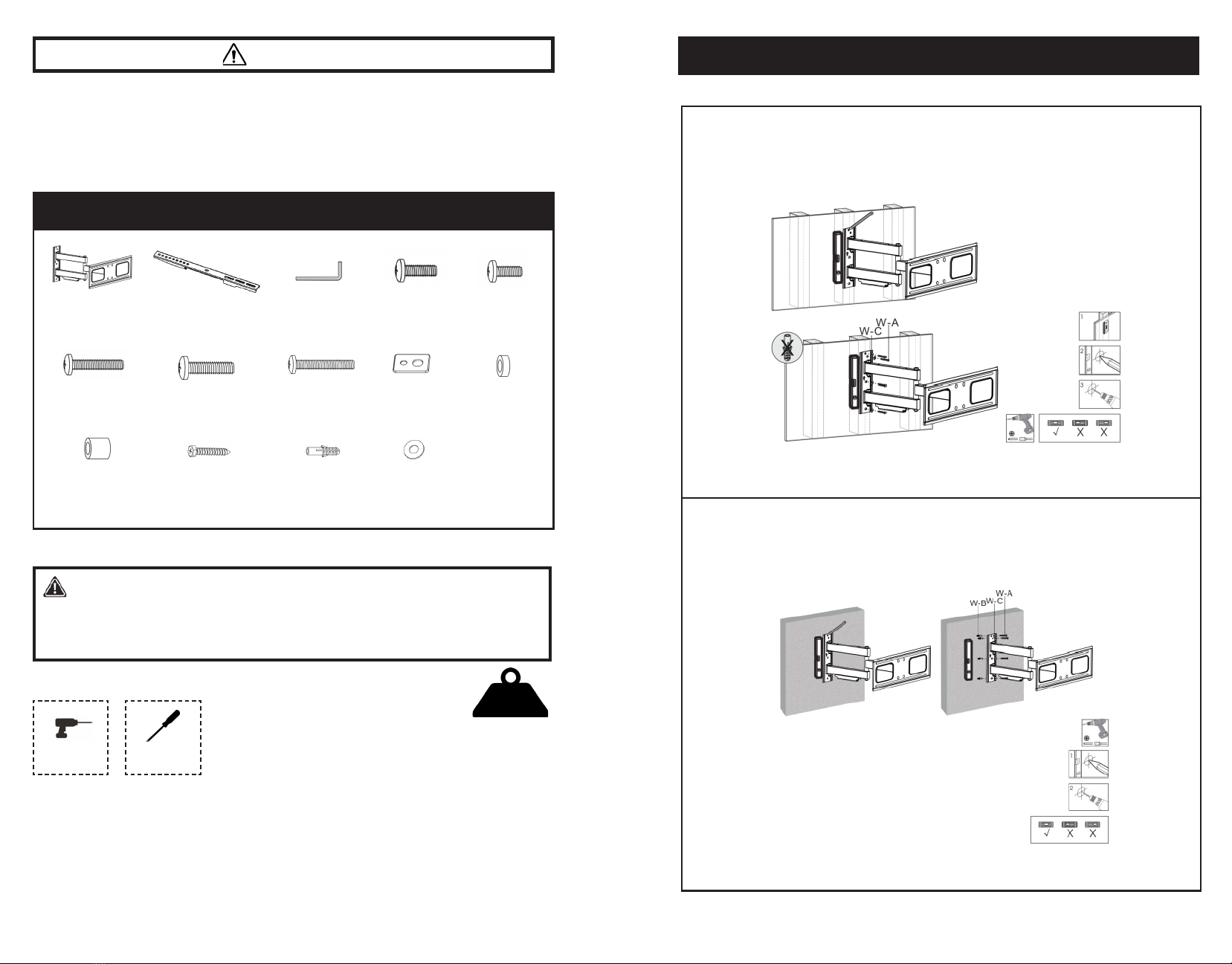

ASSEMBLY STEPS

STEP 1

OPTION A: Wood Wall

Hold mount (A) up to mounting surface and mark drill holes with a pencil. Drill 2.2” (55mm) deep holes

using a 3/16” (4.5mm) drill bit. Attach mount (A) with screws (W-A) and washers (W-C).

OPTION B: Concrete/Brick Wall

Hold mount (A) up to mounting surface and mark drill holes with a pencil. Drill 2.4” (60mm) deep holes

using a 3/8” (10mm) drill bit. Insert anchors (W-B). Attach mount (A) with screws (W-A) and washers

(W-C).

4 5

STEP 2

OPTION A: Flat Back TV

Attach bracket (B) to TV with screws (M-A or M-B) and plates (M-F).

STEP 4

STEP 3

Li TV onto mount (A).

Tighten screws on brackets (B) to secure TV to mount (A).

OPTION B: Curved Back TV

Attach bracket (B) to TV with screws (M-C, M-D, or M-E), plates (M-F), and spacers (M-G or M-H).

6 7

STEP 5

Manage wires.

STEP 6

Adjust tilt joint using Allen wrench (C). Adjust TV as desired.

Last Updated: 10/01/2018

If any parts are received damaged or defective, please contact us. We are happy to

replace parts to ensure you have a fully functioning product.

For more VIVO products, check out our website at:

www.vivo-us.com.

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected]om www.vivo-us.com 1-800-371-5654
