Vivo STAND-SIT2D User manual
Sit to Stand Dual Monitor Desk Mount Workstation
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-sit2d
SKU: STAND-SIT2D
2
PACKAGE CONTENTS
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
A (x1)
Arm
B(x1)
Crossarm
C(x1)
Pole
J (x2)
Screw
D(x1)
Tray Pole
E(x1)
Upper Tray
F (x1)
Lower Tray
G(x1)
Bumper
H (x2)
VESA Plate
I (x2)
Thumbscrew
M-B (x8)
M4x16
M-D (x8)
M5x16
M-C (x8)
M5x12
O (x1)
Grommet
Base
K (x1)
Support Plate
L(x1)
Decorative
Cover
M (x1)
“C” Clamp
N (x1)
Protective Pad
P (x1)
Holder
Q (x1)
Top Cable Clip
R (x2)
Bracket
U (x3)
Flat Head Bolt
S (x1)
Lower Cable
Clip
T (x15)
Bolt
V (x2)
Nut
W (x2)
Steel Washer
X (x2)
Plastic Washer
A1 (x1)
Wrench
Y (x2)
Washer
Z (x2)
Rubber Pad
B1 (x1)
4mm Allen
Wrench
C1 (x1)
6mm Allen
Wrench
M-A (x8)
M4x12
M-E (x8)
D5 Washer
M-F (x8)
Spacer
3
OPTION A: Clamp Installation
Loosen clamp bolts in clamp (M) using 6mm Allen wrench (C1). Slide decorative cover (L) onto pole
(C). Attach pole to clamp using flat head bolts (U) and tighten with 4mm Allen wrench (B1), then slide
decorative cover down onto clamp. Apply protective pad (N) to bottom of clamp base. Place support
plate (K) onto clamp bolts, place clamp with pole onto desk, and tighten clamp bolts evenly using
6mm Allen wrench. Attach cable management clip (S) to pole.
OPTION B: Grommet Installation
Attach grommet base (O) to pole (C) using flat head bolts (U) and tighten with 4mm Allen wrench
(B1). Cut end from protective pad (N), and apply remaining circular pad to bottom of grommet base.
Remove one bolt from the clamp (M), then use bolt with support plate (K) to secure base with pole to
desktop and tighten with 6mm Allen wrench (C1). Attach cable management clip (S) to pole.
TOOLS NEEDED
Phillips
Screwdriver
13.2 lbs
(6 kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury. 4.4 lbs
(2 kg)
PER ARM TRAY
ASSEMBLY STEPS
STEP 1
C1
S
N
U
B1
L
C
K
C1
M
B1
U
O
1
2
3
N
C1
0mm-55mm
S
K
C1
23-27mm
4
STEP 2
Attach upper tray (E) and brackets (R) to tray pole
(D) using bolts (T) and tighten with 4mm Allen
wrench (B1).
STEP 4
Slide arm (A) onto pole (C). Adjust stopper height
with 4mm allen wrench (B1).
STEP 5
STEP 3
Apply rubber pads (Z) to brackets (R)
as shown.
A
B1
Z
R
B1
T
E
D
Y
10mm
A1
X
W
V
Place large washers (Y) over screws on back of tray pole (D). Attach tray pole to mount on arm (A) using
nuts (V) with steel washers (W) and plastic washers (X) as shown in diagram, and tighten with wrench
(A1).
5
Attach lower tray (F) to plate on tray pole (D) using bolts (T) and 4mm Allen wrench (B1). Mount
release handle and cable management clip (Q) to preferred side of tray using bolts (T) and 4mm Allen
wrench, then use the clip to secure the black tube.

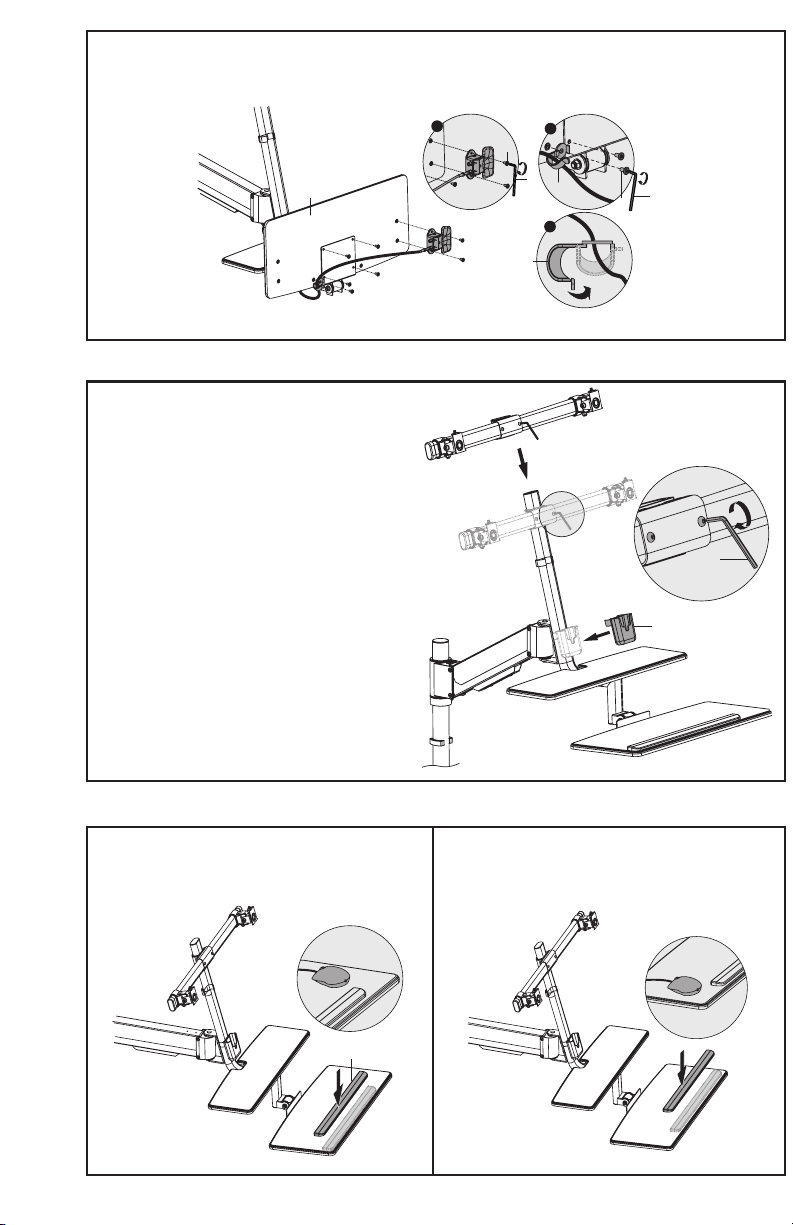

STEP 6
Attach cross-arm (B) to pole (D) using 4mm allen
wrench (B1). Clip on holder (P) to pole (D) as
shown.
STEP 7
OPTION A: Right Hand
Apply bumper (G) on le side if you use mouse
with your right hand.
STEP 8
OPTION B: Le Hand
Apply bumper (G) on right side if you use mouse
with your le hand.
B1
T
Q
3
1
FQ
TB1
2
B1
P
G
6
STEP 9
OPTION A: Flat Back Monitor
Attach VESA plate (H) to monitor. For flat back
monitors use screws (M-A or M-C) and washers
(M-E).
STEP 10
Slide monitors onto mounts of cross-arm (B). Secure with thumbs (I) and screws (J). Adjust tightness
of mounts using 6mm allen wrench (C1). Allen wrenches (B1,C1) can be stored in cable management
clip on pole (D).
STEP 11
Adjust gas spring tension using the 6mm Allen wrench (C1).
Turn counter-clockwise to increase li, and clockwise to
decrease. To adjust height of mount, li release handle, then
raise or lower mount to desired height.
OPTION B: Curved Back Monitor
Attach VESA plate (H) to monitor. For curved
back monitors use screws (M-B or M-D),
washers (M-E), and spacers (M-F).
H
M- E M- A
M- C
HM- B
M- D
M- E
M- F
2
B1 C1
1I
J
C1
ON
OFF
C1
NOTE: use a large flat-blade
screwdriver to tighten the socket
set screw if the joint makes a
popping noise.
7
STEP 12
Loosen two screws holding cable cover to arm, then slide cover forward to remove.
STEP 13
Insert cables into cover and reattach cover to arm.
Adjust as Desired
1
2
3
2
1
±90 °
+45°
-45°
360 °
±90 °
