Vivo MOUNT-M-FD27 User manual

Flip Down Ceiling TV and Monitor Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-m-fd27

SKU: MOUNT-M-FD27

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

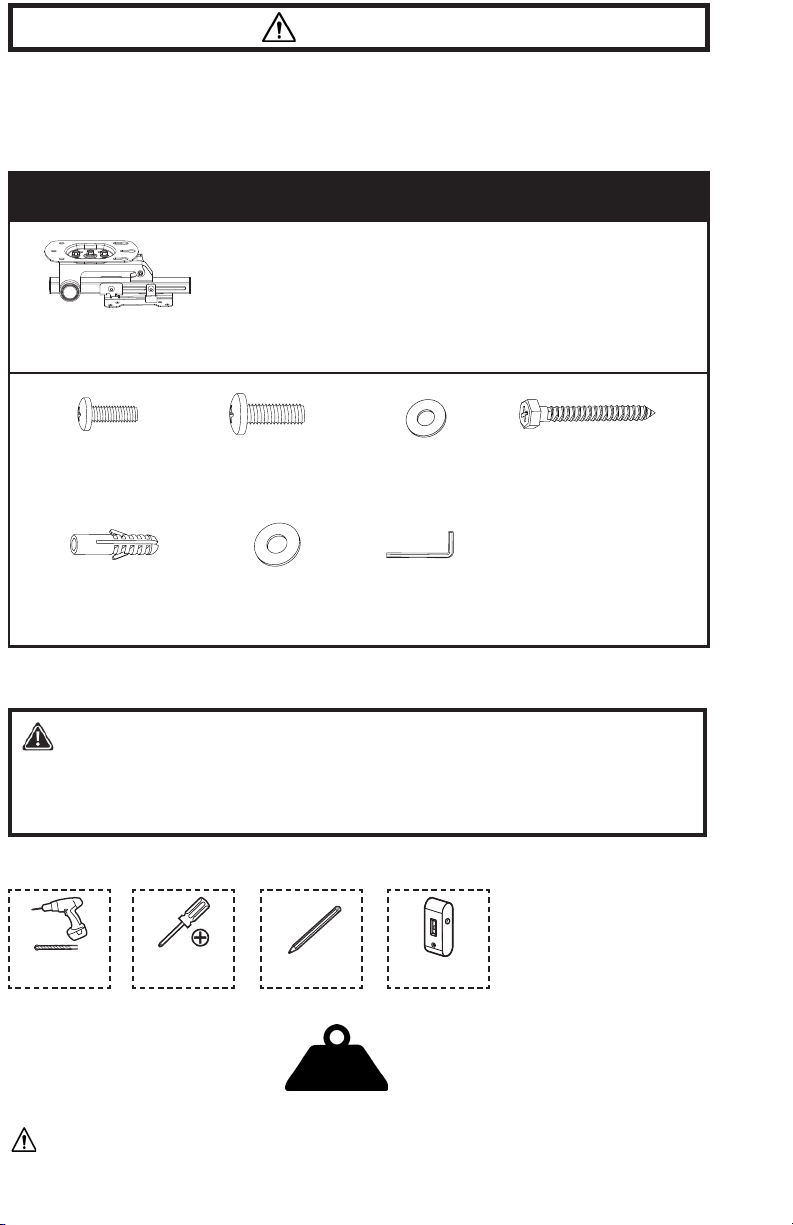

TOOLS NEEDED

44lbs

(20kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

If you do not understand these directions, or if you have any doubts about the safety of the installation,

please call a qualied technician. Check carefully to make sure there are no missing or defective parts.

Improper installation may cause damage or serious injury. Do not use this product for any purpose that is

not explicitly specied in this manual. Do not exceed weight capacity. We cannot be liable for damage or

injury caused by improper mounting, incorrect assembly or inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

Drill

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR CEILING CONSTRUCTION. USE WOOD STUDS

TO MOUNT. We include mounting for concrete ceilings as well. If unsure, please contact us at vivo-us.

com, email at [email protected]om, or call us at 309-278-5303.

Pencil

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

Studfinder

PACKAGE CONTENTS

A (x1)

Mount

T-A (x1)

4mm Allen Wrench

W-A (x4)

ST6.3x55mm Screw

M-A (x4)

M4x14mm Screw

M-B (x4)

M5x14mm Screw

M-C (x4)

M5 Washer

W-C (x2)

M6 Washer

W-B (x4)

concrete Anchor

ASSEMBLY STEPS

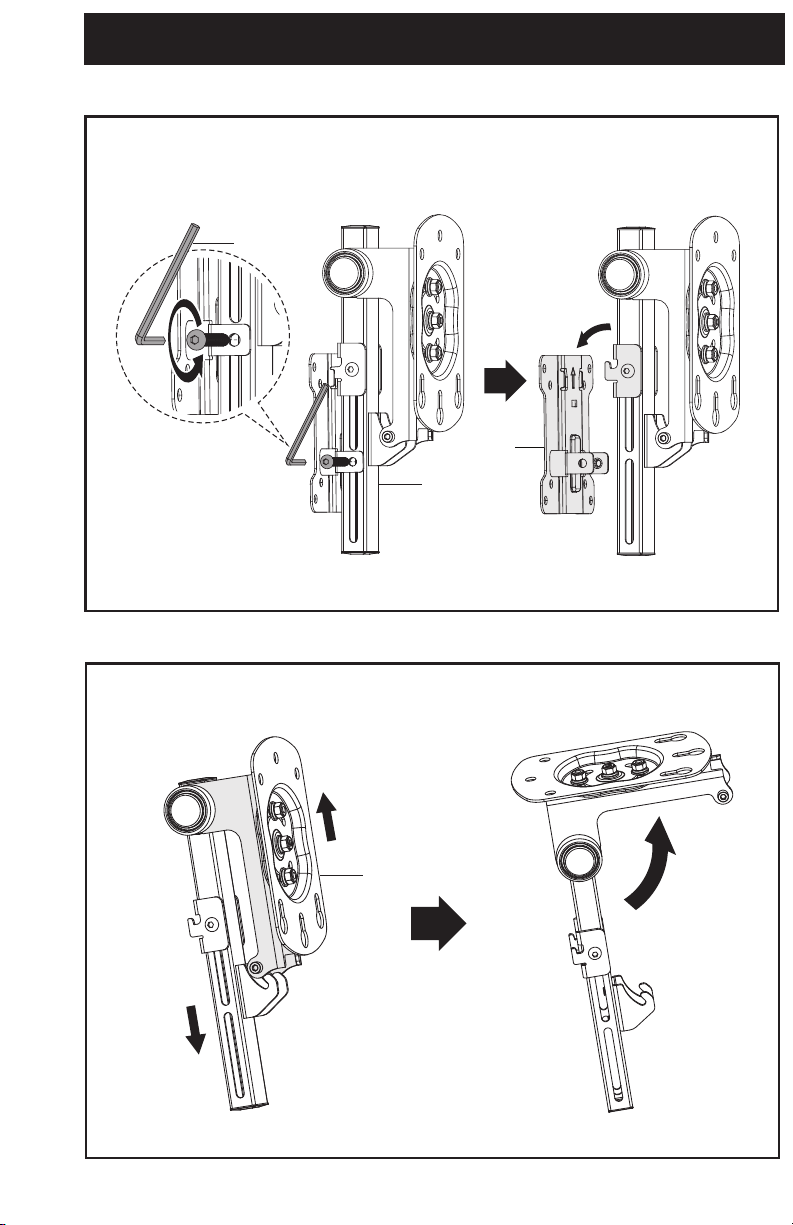

STEP 1

Remove screws connecting VESA Plate (A1) to Mount (A) using 4mm Allen Wrench (T-A).

Slide the arm on Mount (A) down to release the lock, and unfold Mount (A).

STEP 2

T-A

STEP 3

OPTION B: Concrete Ceiling

Hold Mount (A) to mounting surface and mark

pilot holes with a pencil. Drill 2.4” (60mm) deep

holes using a 3/8” (10mm) drill bit. Insert Concrete

Anchors (W-B). Insert ST6.3x55mm Screws

(W-A) into front two holes, leaving 4mm of thread

exposed.

OPTION A: Wood Beam Ceiling

Rotate Mount (A) to expose the front and back

mounting holes. Hold it in place along the stud

(use of a stud nder is recommended) and mark

pilot holes with a pencil. Drill 2.2” (55mm) deep

holes using a 3/16” (4.5mm) drill bit. Insert

ST6.3x55mm Screw (W-A) into the front hole,

leaving 4mm of thread exposed.

W-B

W-A

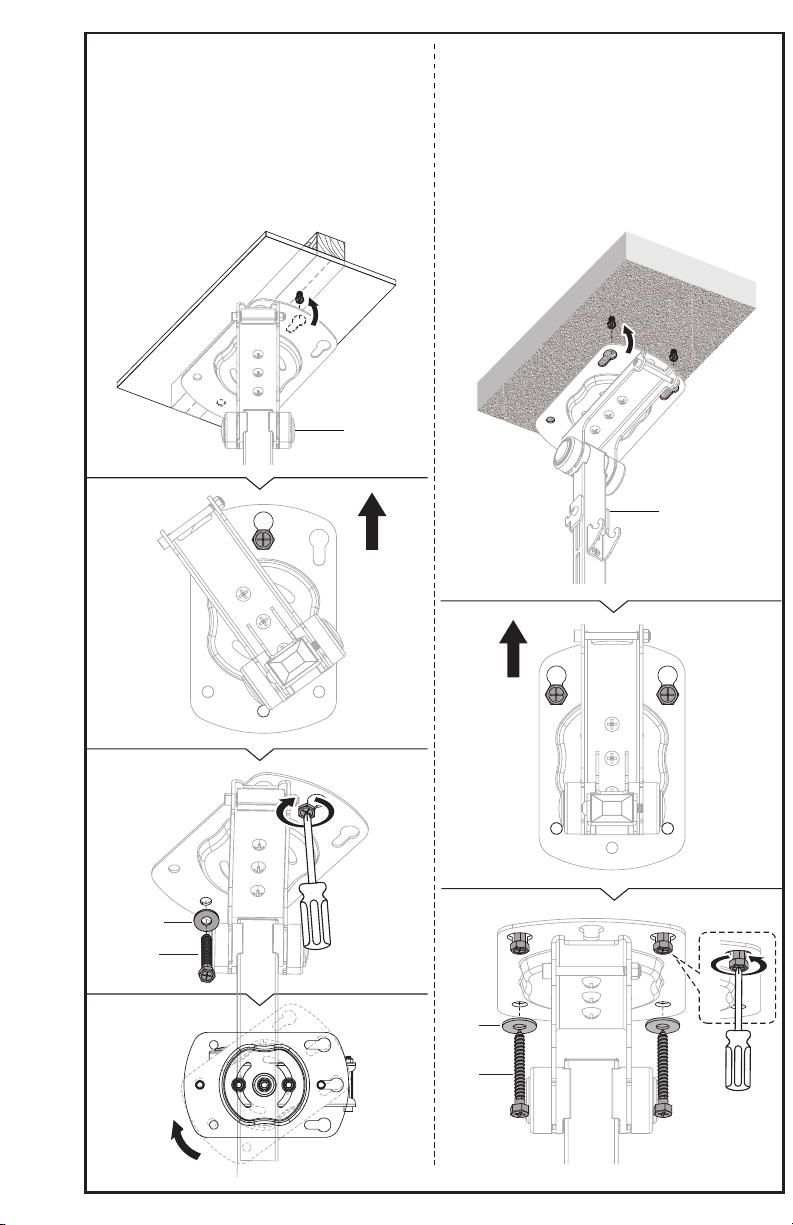

STEP 4

OPTION A: Wood Beam Ceiling

Slide Mount (A) onto ST6.3x55mm Screw (W-A).

Insert ST6.3x55mm Screw (W-A) with M6 Washer

(W-C) into the back hole. Tighten both screws with

a Phillips screwdriver, and swivel Mount (A) back

into place.

OPTION B: Concrete Ceiling

Slide Mount (A) onto front two ST6.3x55mm

Screws. Insert ST6.3x55mm Screws (W-A) with M6

Washers (W-C) into back two holes. Tighten all

screws with a Phillips screwdriver.

W-A

W-C

W-A

STEP 5

Loosen the screws on the sides of Mount (A) using 4mm Allen Wrench (T-A) to adjust the height, then

retighten. Hang VESA Plate (A1) with TV on Mount (A).

With TV laying face down on a at surface, place VESA Plate (A1) on back. Make sure arrow is pointing

towards the top of the TV. Secure VESA Plate (A1) in place using Screws (M-A or M-B) and M5 Washers

(M-C). Tighten using a Philips screwdriver.

STEP 6

T-A

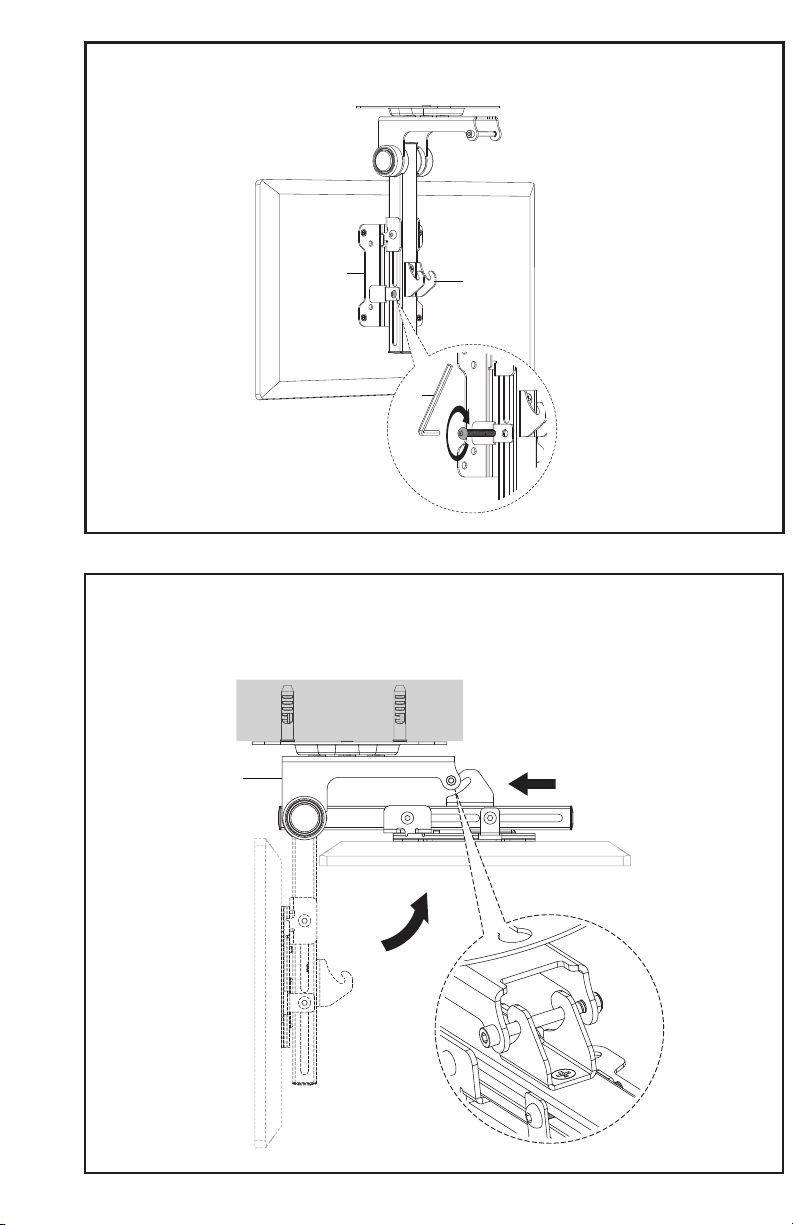

STEP 7

STEP 8

Secure VESA Plate (A1) to Mount (A) using the previously removed screws from STEP 1 and tighten

using 4mm Allen Wrench (T-A).

A1 A

T-A

Fold the arm on Mount (A) up an slide the TV forward to lock it into place. Reverse this process to

unlock and lower the TV.

LAST UPDATED: 06/09/2022

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
