TYAN S8032 User manual
http://www.tyan.com
1
S8032
Version 1.0a
Copyright
Copyright © 2020 MiTAC International Corporation. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
MiTAC International Corporation.
Trademark
All registered and unregistered trademarks and company names contained in this
manual are property of their respective owners including, but not limited to the
following.
TYAN®is a trademark of MiTAC International Corporation.
AMD®is a trademark of AMD®Corporation.
AMI, AMI BIOS are trademarks of AMI Technologies.
Microsoft®, Windows®are trademarks of Microsoft Corporation.
Winbond®is a trademark of Winbond Electronics Corporation.
Notice
Information contained in this document is furnished by MiTAC International
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN®products including liability or
warranties relating to fitness for a particular purpose or merchantability. MiTAC
retains the right to make changes to product descriptions and/or specifications at
any time, without notice. In no event will MiTAC be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.
http://www.tyan.com
2
Contents
S8032............................................................................................................1
Before you begin…....................................................................................3
Chapter 1: Instruction ................................................................................4
1.1 Congratulations .................................................................................4
1.2 Hardware Specifications....................................................................4
1.3 Software Specifications.....................................................................7
Chapter 2: Board Installation.....................................................................8
2.1 Board Image......................................................................................9
2.2 Block Diagram.................................................................................10
2.3 Motherboard Mechanical Drawing...................................................11
2.4Board Parts, Jumpers and Connectors...........................................12
2.5 LED Definitions................................................................................26
2.6Installing the Processor and Heatsink.............................................27
2.7Thermal Interface Material ..............................................................32
2.8Tips on Installing Motherboard in Chassis......................................33
2.9Installing the Memory ......................................................................35
2.10 Attaching Drive Cables..................................................................38
2.11 Installing Add-In Cards..................................................................39
2.12 Connecting External Devices........................................................40
2.13 Installing the Power Supply...........................................................41
2.14 Finishing Up...................................................................................41
Chapter 3: BIOS Setup.............................................................................42
3.1 About the BIOS................................................................................42
3.2 Main Menu.......................................................................................44
3.3 Advanced Menu...............................................................................46
3.4 Chipset Menu ..................................................................................98
3.5AMD CBS Menu............................................................................101
3.6 Server Management......................................................................120
3.7Security..........................................................................................129
3.8Boot ...............................................................................................135
3.9Save & Exit....................................................................................139
Chapter 4: Diagnostics...........................................................................141
4.1 Flash Utility....................................................................................141
4.2 AMIBIOS Post Code (Aptio)..........................................................142
Appendix I: Fan and Temp Sensors .....................................................149
Glossary...................................................................................................154
Technical Support ..................................................................................160
http://www.tyan.com
3
Before you begin…

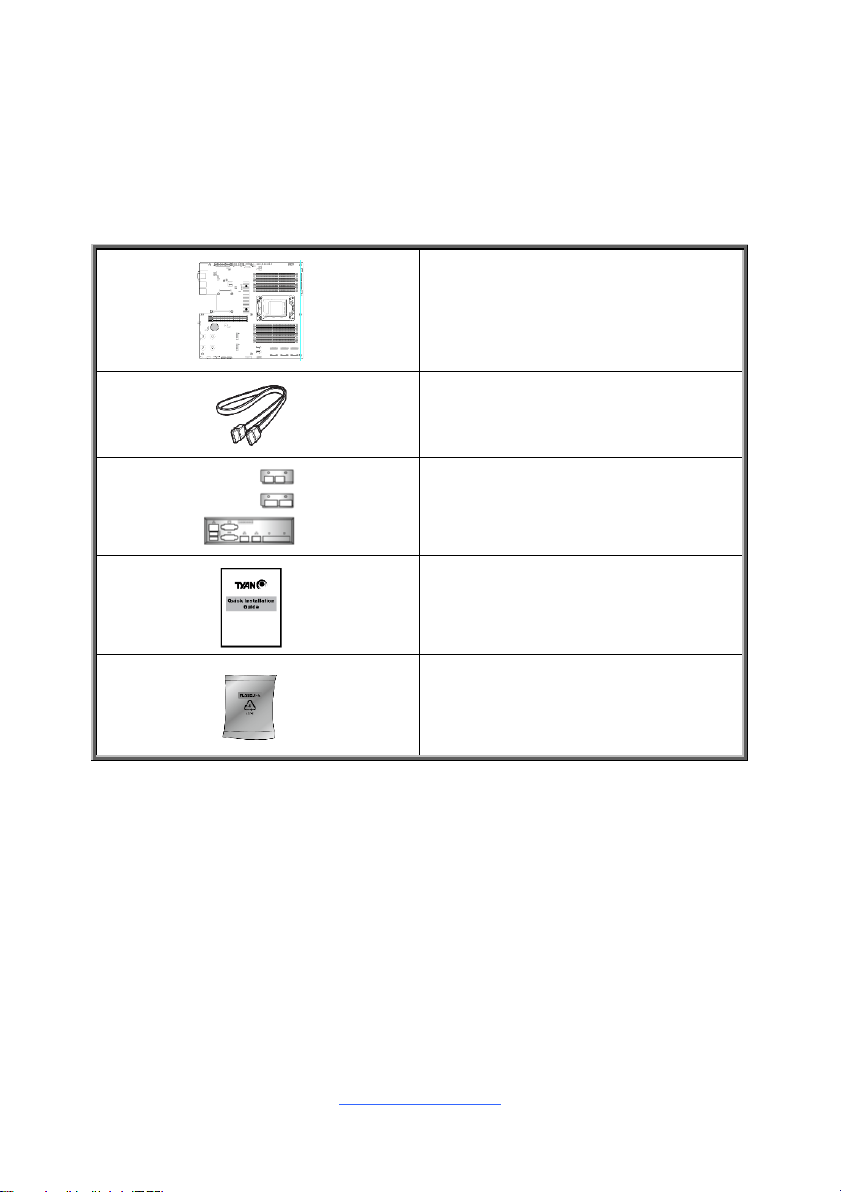

Check the box contents!
The retail motherboard package should contain the following:
S8032 Motherboard x 1
SATA Single Cable x 2
Rear IO shielding x 3
1 x S8032 Quick Installation Guide
M.2 Screw kit x2
IMPORTANT NOTE:
Sales samples may not come with any of the accessories listed above.
If you have ordered a sales sample and you are missing any of the above items,
please contact your sales representative to help order accessories.
http://www.tyan.com
4
Chapter 1: Instruction
1.1 Congratulations
You have purchased the powerful TYAN® S8032 motherboard, based on the
Aspeed®AST2500 chipset. The S8032 is designed to support AMD®EPYC™
7002/7003 series Processor, and Up to 1,024GB RDIMM/ 4,096GB LRDIMM 3DS
DDR43200 MHz memory. Leveraging advanced technology from AMD®, the
S8032 is capable of offering scalable 32 and 64-bit computing, high-bandwidth
memory design, and lightning-fast PCI-E bus implementation.
The S8032 not only empowers you in today’s demanding IT environment but also
offers a smooth path for future application upgradeability. All of these rich feature
sets provide the S8032 with the power and flexibility to meet demanding
requirements for today’s IT environments.
Remember to visit the TYAN® website at http://www.tyan.com. There you can find
all the information on all TYAN®products as well as all the supporting documentation,
FAQs, Drivers and BIOS upgrades.
1.2 Hardware Specifications
S8032GM2NE Specifications
Processor
Q'ty / Socket Type
(1) AMD Socket SP3
Supported CPU Series
(1) AMD EPYC™ 7002/7003
Series Processor
Configurable Thermal
Design Power (cTDP)
Wattage
Max up to 280W
Memory
Supported DIMM
Qty
(16) DIMM slots
DIMM Type / Speed
DDR4 ECC RDIMM/RDIMM
3DS/LRDIMM/LRDIMM 3DS 3200
Capacity
Up to 1,024GB RDIMM, 4,096GB
LRDIMM 3DS
Memory channel
8 Channels per CPU
Memory voltage
1.2V
Expansion Slots
PCIe
(2) PCIe Gen.3 x24 slots
Others
(1) PCIe Gen.3 x16 OCP v2.0
mezzanine slot
http://www.tyan.com
5
LAN
Q'ty / Port
(2) GbE ports + (1) GbE dedicated
for IPMI
Controller
Broadcom BCM5720
PHY
Realtek RTL8211E
Storage
SATA
Connector
(2) SFF-8654
connectors for up to
(16) SATA ports
Controller
Direct from AMD EPYC
CPU
Speed
6Gb/s
RAID
N/A
Additional
SATA
Connector
(2) SATA-DOM,
(2) SATA
Controller
Marvell 9235
Speed
6Gb/s
RAID
N/A
NVMe
Connector (M.2)
(2) 22110/2280 (by
PCIe Gen.3 & SATA
interface)
Connector (U.2)
(8) SFF-8654 for
(16) NVMe ports
Graphic
Connector type
D-Sub 15-pin
Resolution
Up to 1920x1200
Chipset
Aspeed AST2500
Input /Output
USB
(2) USB3.1 Gen.1 ports (@ rear),
(1) USB3.0 Gen.1 port (Type-A),
(1) USB3.0 Gen.1 ports (via Cable)
COM
(1) DB-9 COM Connector (at rear,
COM1) + (1) Header (COM2)
VGA
(1) D-Sub 15-pin VGA port (@ rear)
RJ-45
(2) GbE ports, (1) GbE dedicated for
IPMI
Front Panel
(1) 2x12-pin SSI front panel header
SATA
(2) SATA-III connectors + (2) SATA-
DOM connectors + (16) SATA ports
from (2) Slim SAS connectors
Power
SSI 24-pin + 8-pin + 8-pin power
connectors
TPM (Optional)
TPM Support
Please refer to our TPM supported
list.
http://www.tyan.com
6
System Monitoring
Chipset
Aspeed AST2500
Fan
Total (6) 4-pin headers
Temperature
Monitors temperature for CPU &
memory & system environment
Voltage
Monitors voltage for CPU, memory,
chipset & power supply
LED
Fan fail LED indicator, Over
temperature warning indicator, Fan
& PSU fail LED indicator
Others
Watchdog timer support
Server Management
AST2500 iKVM
Feature
24-bit high quality video
compression, Supports storage
over IP and remote platform-flash,
USB 2.0 virtual hub
AST2500 IPMI
Feature
IPMI 2.0 compliant baseboard
management controller (BMC),
10/100/1000 Mb/s MAC interface
BIOS
Brand / ROM size
AMI, 32MB
Feature
Hardware Monitor, SMBIOS
3.0/PnP/Wake on LAN, Boot from
USB device/PXE via LAN/Storage,
Console Redirection, ACPI 6.1,
ACPI sleeping states S0, S5, FAN
speed control automatic
Physical Dimension
Form Factor
EATX
Board Dimension
12" x 13" (305 x 330mm)
Regulation
FCC (SDoC)
Class A
CE (DoC)
Class A
Operating Environment
Operating Temp.
10°C ~ 35°C (50°F~ 95°F)
Non-operating Temp.
- 40°C ~ 70°C (-40°F ~ 158°F)
In/Non-operating
Humidity
90%, non-condensing at 35°C
RoHS
RoHS 6/6 Compliant
Yes
Operating System
OS supported list
Please refer to our AVL support
lists.
Package Contains
Motherboard
(1) S8032
Motherboard
Manual
(1) Quick Installation
Guide
I/O Shield
(1) I/O Shield
http://www.tyan.com
8
Chapter 2: Board Installation
You are now ready to install your motherboard.
How to install our products right… the first time
The first thing you should do is read this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, MiTAC recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the antistatic
bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
Caution!
1. To avoid damaging the motherboard and associated
components, do not use torque force greater than
5~7kgf/cm (4.35~6.09 lb/in) on each mounting screw
for motherboard installation.
2. Do not apply power to the board if it has been
damaged.
http://www.tyan.com
9
2.1 Board Image
S8032GM2NE-ML
This picture is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above picture.
http://www.tyan.com
10
2.2 Block Diagram
S8032 Block Diagram
Table of contents
Other TYAN Motherboard manuals
TYAN
TYAN TOMCAT N3400B User manual
TYAN
TYAN S8253 User manual
TYAN
TYAN Tempest i5100X User manual
TYAN
TYAN Tomcat i875P S5102 User manual
TYAN
TYAN S5102 User manual
TYAN
TYAN Tomcat i925X S5130 User manual
TYAN
TYAN Thunder i7500 Pro S2721 User manual
TYAN
TYAN THUNDER I7525 User manual
TYAN
TYAN THUNDER K8QS PRO User manual
TYAN
TYAN S5545 User manual
TYAN
TYAN S7053 User manual
TYAN
TYAN TEMPEST I5000XL User manual
TYAN
TYAN S5552 User manual
TYAN
TYAN TIGER LE User manual
TYAN
TYAN S7082 User manual
TYAN
TYAN S3227 User manual
TYAN
TYAN THUNDER HESL-T User manual
TYAN
TYAN B7018Y290D2 User manual
TYAN
TYAN Tempest i5400XL User manual
TYAN
TYAN TITAN TURBO AT-2 User manual
