Tsonic TUF-2000 Series User manual
>> Ultrasonic Flow meter User Manual
1
>> Ultrasonic Flow meter User Manual
1
Contents
1. Products Categories.................................................................................................................. 2
1.1 Composition of Ultrasonic flow meter .......................................................................... 2
1.2 Types of Converters ....................................................................................................... 2
1.3 Types of Flow/Temperature transducers ....................................................................... 3
2. Check Components................................................................................................................... 3
3. Measuring Diagrams ................................................................................................................ 4
4. Converter Installation and Wiring Diagram ............................................................................. 5
4.1 Separated Mounting ....................................................................................................... 5
4.2 Fix mounting .................................................................................................................. 8
4.3 Module type ................................................................................................................... 9
5. Transducer Introduction and Wiring Diagram ....................................................................... 10
5.1 Clamp on type transducer...................................................................................................... 10
5.2 Insertion type transducer ....................................................................................................... 11
5.3 Inline type transducer ................................................................................................... 12
6. Display and Operation ............................................................................................................ 12
6.1 Display and keyboard.................................................................................................... 13
6.2 Operation ...................................................................................................................... 13
6.3 Menu Details ................................................................................................................ 14
6.4 Quick setup of measured parameters ........................................................................... 24
7. Transducers Installation ......................................................................................................... 25
7.1 Choose installation points ............................................................................................ 25
7.2 Clamp on transducer Installation ................................................................................. 27
7.3 Insertion type transducer installation ........................................................................... 30
7.4 In-line type transducer installation .............................................................................. 35
7.5 Check Installation ........................................................................................................ 36
8. Finish Installation................................................................................................................... 37
>> Ultrasonic Flow meter User Manual
2
Welcome to use the new generation ultrasonic flow meter made of our patented technology.
TUF-2000 Series Ultrasonic Flow/Heat Meters utilize the transit-time principle to measure the
velocity of relatively clean liquids in full pipes.
The purpose of this guide is to provide installation procedures and basic operating instructions for
TUF-2000 Series Ultrasonic Flow/Heat Meters.
Installation Procedure
1. Products Categories
1.1 Composition of Ultrasonic flow meter
Ultrasonic Flow meter = Converter + transducer
Ultrasonic Heat meter = Converter + transducer + Temperature transducer
1.2 Types of Converters
Model
Wall Mount
TUF-2000B
Wall Mount
TUF-2000S
Wall Mount
TUF-2000S(Grey)
Explosion proof
TUF-2000D
Model
Panel mount
TUF-2000U
Module
TUF-2000M
Fix Mount
TUF-2000F2
Check Components
Choose Installation Points
Set Parameter
Connection of
Converter and transducer
transducer Installation
Check the installation
Converter Installation
Complete
>> Ultrasonic Flow meter User Manual
3
1.3 Types of Flow/Temperature transducers
Flow transducer
Model
Measuring range
Temperature
Clamp on
TS-2 (small)
DN25-100
-30 ~ 90℃
TM-1 (medium)
DN50-700
TL-1 (large)
DN300-6000
High temp.
Clamp on
TS-2-HT (small)
DN25-100
-30 ~ 160℃
TM-1-HT (medium)
DN50-700
TL-1-HT (large)
DN300-6000
Insertion
TC-1 (standard)
DN50-6000
-30 ~ 160℃
TC-2 (extended)
TP-1 (parallel)
DN80-6000
Inline
Standard
DN15-1000
-30 ~160℃
Temperature
transducer
Model
Measuring
range
Temperature
Cutoff water
Clamp on
CT-1
DN50-6000
-40 ~ 160℃
No need
Insertion
TCT-1
DN50-6000
-40 ~ 160℃
Need
Insertion
under pressure
PCT-1
DN50-6000
-40 ~ 160℃
No need
Insertion
small sizes
SCT-1
< DN50
-40 ~ 160℃
Need
2. Check Components
1. Please check you have all the components in the order.
2. All codes on the converter and transducers should be matched. They are used in sets.
transducer Codes
transducer Codes on Converter
>> Ultrasonic Flow meter User Manual
4
3. Measuring Diagrams
3.1 Separated Mounting
Clamp on
Insertion
Inline
3.2 Separated Mounting
Clamp on
Insertion
Inline
Note: Mounting of TUF-2000S(Grey), TUF-2000U and TUF-2000D are in the same way.
3.3 Fixed Mounting
Clamp on
Insertion
Inline
>> Ultrasonic Flow meter User Manual
5
3.4 Module type
Clamp on
Insertion
Inline
Temperature and heat can be measured by connecting PT100 temperature sensors on both
water supply and return pipes.
4. Converter Installation and Wiring Diagram
4.1 Separated Mounting
TUF-2000B Installation Instruction
Wall mounting: Fix the converter with 4 Φ6 expansion bolts or normal nails.
>> Ultrasonic Flow meter User Manual
6

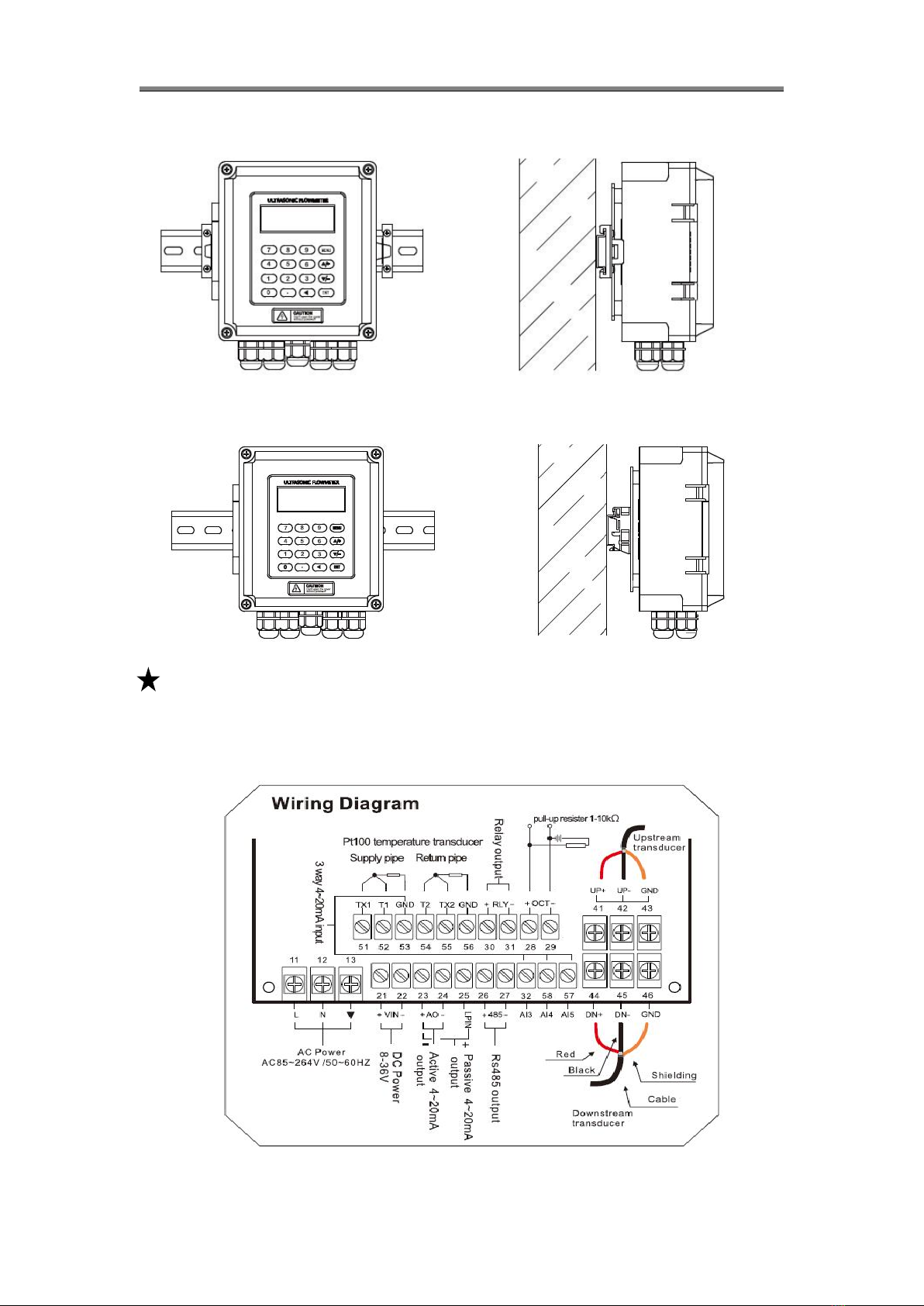

DIN-rail mounting by using rail fixing clamps.
DIN-rail mounting by using PCB bracket
Converter of TUF-2000B can be installed on the wall or in distribution box and
explosion-proof box
TUF-2000B Wiring Diagram
>> Ultrasonic Flow meter User Manual
7
TUF-2000S and TUF-2000D Installation Instruction(TUF-2000S(Grey) is the same
way)
Thickness: 75mm Thickness: 165mm
TUF-2000S and TUF-2000D Wiring Diagram
Explosion-proof grade: DⅡBT5
Fix the converter with 4 Φ8expansion bolts.
Wall mounting: Fix the converter
with 4 Φ6 expansion bolts.
>> Ultrasonic Flow meter User Manual
8
TUF-2000U Installation and Wiring Diagram
4.2 Fix mounting
TUF-2000F2 Installation and Wiring Diagram
The converter is generally installed on the pipeline, sometimes installed in the water.
>> Ultrasonic Flow meter User Manual
9
TUF-2000F2 Wiring Diagram
Open the flip cover and complete the wiring. To avoid leaking, please tighten the water joint and
screws of the back cover after wiring, then pot gel inside to reach IP68 protection class.
4.3 Module type
