Triplett BR500 User manual

User Manual

BR500

High Definition Videoscope

Introduction

Congratulations on your purchase of the Triplett Model BR500 Video

Scope. This compact handheld instrument allows user to view

applications in restricted spaces that could not normally be seen with the

naked eye. It is supplied in a sturdy carrying case and consists of a

display unit, insertion tube, main adapter and side view adapter. The

display unit, with a 3.5” wide angle TFT LCD screen, has the capacity of

viewing, storing and reviewing photos and video images. Images can also

be displayed directly on a TV screen or stored and transferred to a PC for

viewing later. The display unit is powered by rechargeable Li-polymer

batteries and a multi-voltage charger is included.

Safety

Warning

1. Do not modify or disassemble the unit.

2. Do not use this item in explosive atmospheres.

Caution

1. Keep the device out of the reach of children.

2. Do not look directly into the objective lens at the

end of the insertion tube, your eyesight may be

seriously damaged.

3. Do not forcibly bend, twist or elongate the insertion tube.

4. Strong impact on the device may result in the breakage

of the objective lens (made of glass) at the tip of the

insertion tube.

5. Do not use or store the device at a temperature

higher than 60 °C or lower than -20 °C.

6. Don’t use the device in the direct sunshine.

7. Store the device in a dry and adequately ventilated

environment.

8. Keep the device away from acid or alkaline solutions, oil

or petrol, and do not use it in an atmosphere containing their

vapors.

9. Do not remove the SD Memory Card while data is

being saved to the card. This may cause the data to be

lost or the card to be damaged.

Warning Notice for Insert Tube

DO NOT bend the tube over

30°angle.

DO NOT bundle the insert

tube less than a 14cm diameter

circle.

DO NOT bend the tube after

installation.

DO tighten the screw for all

accessories before use. .

Prohibited of high temperature

access for the tubes, the

maximum working temperature

shall not exceed 65°C.

Prohibited of collision or any

impacts on the front tips.

DO NOT immerse Insert Tube

deeper than 1M depth and over

30 minutes.

DO NOT immerse Insert Tube

deeper than 10cm depth and

over 10 minutes besides water.

(Such as lubricant oil, gasoline,

etc.)

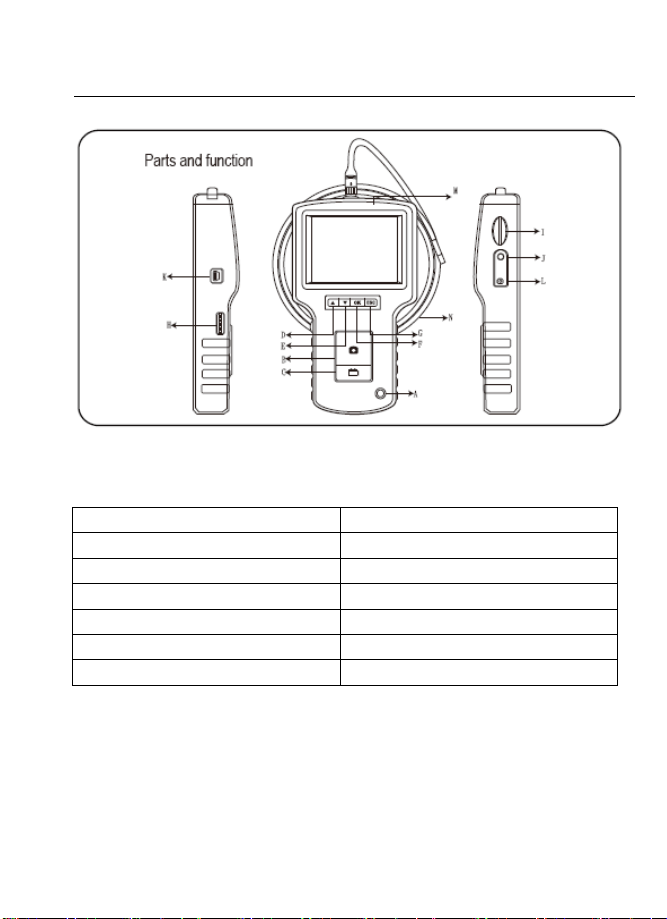

Meter Description

A. POWER button

H. LED intensity adjustment

B. PHOTO button

I. SD slot

C. REC button

J. TV OUT jack

D. UP button

K. USB jack

E. DOWN button

L. DC IN jack

F. OK button

M. Display unit

G. Escape

N. Insertion tube

Preparation for Use

On first use it is important that the

SD card is inserted as shown.

Connect the insertion tube to the display

Unit as shown in the figure and

tighten

the locking collar:

Press the POWER button for 3-5

seconds to turn the display unit on.

The Start-up screen is shown

briefly

followed by the status screen for

five

seconds.

The status screen shows the capacity of the SD card and the

internal battery If the Video Scope has been stored for a long time

then the display might not turn on. The most likely cause is that the

battery has run out. Please use power adapter to re-charge the

battery.

Directly on the screen, a “live” picture can be seen. This is the

camera mode It is strongly advised to properly set-up the Video

Scope before first use. The indexing of saved photos and video

is based on date and time only. Other parameters, if set before

first use, can make the operation of the Video Scope easier in

the future. Press POWER button for 3-5 seconds to turn the

display unit off

Operation

Menu setup

• Switch the unit on. Ensure that camera mode is active (i.e. a “live”

picture can be seen)

• Press the OK button to access the menus. Use the UP or DOWN

button to select the

menu item. Press OK to confirm.

The options displayed are as follows;

- Delete All

- Video Output

- Date / Time setup

- Language

- Video Format

- Auto Power off

Delete All

Take care in selecting this option, as everything will be deleted from

the SD card!

Navigate to DELETE ALL in the menu, press the OK button. Select

YES or NO using the

UP or DOWN buttons. Confirm with the OK button.

Video Output

This function allows live pictures or recorded photos and videos to

be displayed on a

TV screen or beamer. First make sure that the Video format is set

correctly to the used

TV system (PAL or NTSC). (See the Menu set up section.) Connect

the scope video cable to the display unit TV out jack. Ensure that

the other end of the video cable is well connected to the TV or

beamer.

Press the OK button to select menu options, select Video Output

and press the OK button.

The scope unit screen will turn black and the display will be shown

on the TV. You can

transfer the screen back to the display unit by selecting the same

function.

Date/Time Setup

Press UP button & DOWN button to select year/month/day or

hour/minute/second. Press

PHOTO button to increase the value and the REC button to

decrease

the value

The date

and time

can be

displayed

in the

preview

image mode. Use either the PHOTO or REC button to toggle

between display “ON” and “OFF” Confirm selection and exit menu

by pressing OK.

Language

Navigate to LANGUAGE in the

menu, press the OK button.

Select the required language

using the UP or DOWN buttons

and confirm with the OK button.

Video Format

Navigate to VIDEO FORMAT in the menu, press the OK button.

Select the required video

format (NTSC or PAL) using the UP or DOWN buttons. Confirm with

the OK button.

Auto Power Off

Navigate to AUTO POWER OFF in the menu, press the OK button.

Select the required

auto power off time (5, 10, 15, 30 minutes or Disable) using

the UP or DOWN

buttons.

Confirm with the

OK button.

LED Adjustment

The LED Adjustment thumb wheel is located on

the left side of the unit and designed for user

adjusting the brightness of LED to choose a

suitable illumination condition for different

environment.

Recording

In Camera mode, press the REC button to take a video. The video

icon is shown in the

top right corner. To stop recording, press the REC button again. The

video icon disappears. The display reverts to preview mode. The

video is automatically stored to the SD card in asf format with a file

name of running number. For example IMG00002.asf.

Snapshot While Recording

“SWR” function allows user to take photo snap-shot while recording

or playback the video.

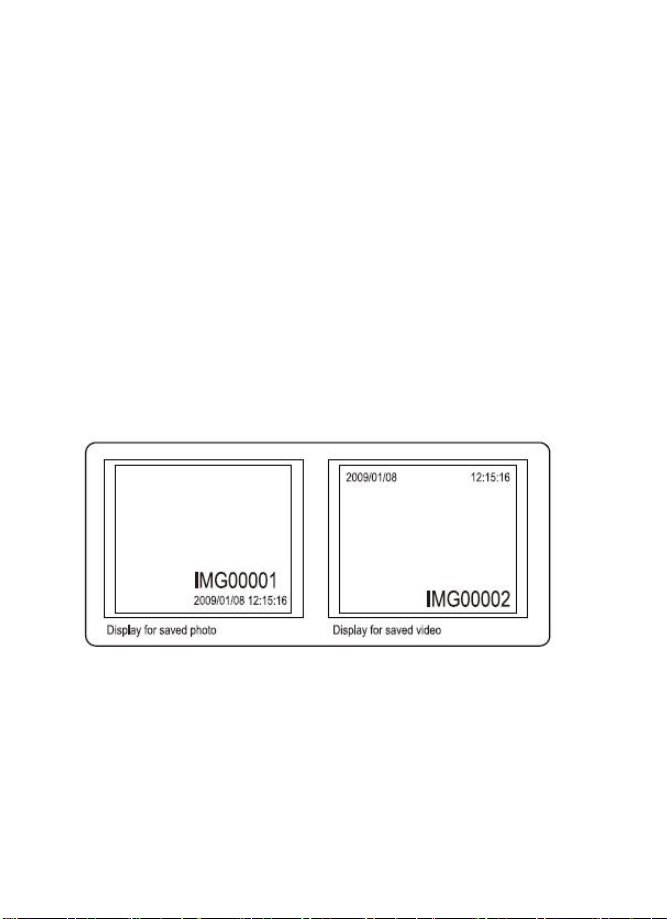

Surfing mode

In the camera mode, press the UP or DOWN key, the last photo or

video will be displayed.

Press the UP or DOWN keys to navigate to the photo or video to be

viewed.

To play the video, press the REC button. To revert to preview mode,

press the ESC button

To delete a saved photo, press the OK button while it is displayed.

To delete a saved video,

make sure the video is not in play mode, press the OK button. A

delete menu will show.

Toggle between the Yes and No options using the UP and DOWN

buttons. Press the OK
