OWNER'S MANUAL
P/N P474-1050
Programmable
Digital Thermostat
Dual Setpoint
5+2 Day Programmable
4 Time periods
Very Easy to Program
Large, Easy To Read Display
Thermoglow Backlight
No Batteries Required
Auto Changeover
No Batteries Required
Locking Keypad
1 For All
Use with most Air Conditioning & Heating Systems including: 1 or 2 Stage
Electric Cooling & Gas Heating, Heat Pump, Electric or Hydronic Heat.
Residential
Meets California Title 24
TOTALINE
Replacement Components Division Carrier Corporation 04/01
72
74
70
COOL
HEAT
AUTO
Mo
I2:00
TOTALINE
Table Of Contents
FRONT PANEL
DISPLAY
QUICK START Set the clock and go
BASIC OPERATION
PROGRAMMING 4 Time Periods
ADVANCED SETUP
ABOUT ADVANCED OPERATION
WARRANTY
Page 1
CAUTION
Follow Installation Instructions before proceeding.
SET THERMOSTAT TO MODE “OFF” PRIOR TO
CHANGING SETTINGS IN SETUP OR RESTORING
FACTORY DEFAULTS.
P/N P474-1050
2
3
5
6
8
12
16
21
Replacement Components Division Carrier Corporation 04/01
72
74
70
COOL
HEAT
AUTO
Mo
I2:00
TOTALINE

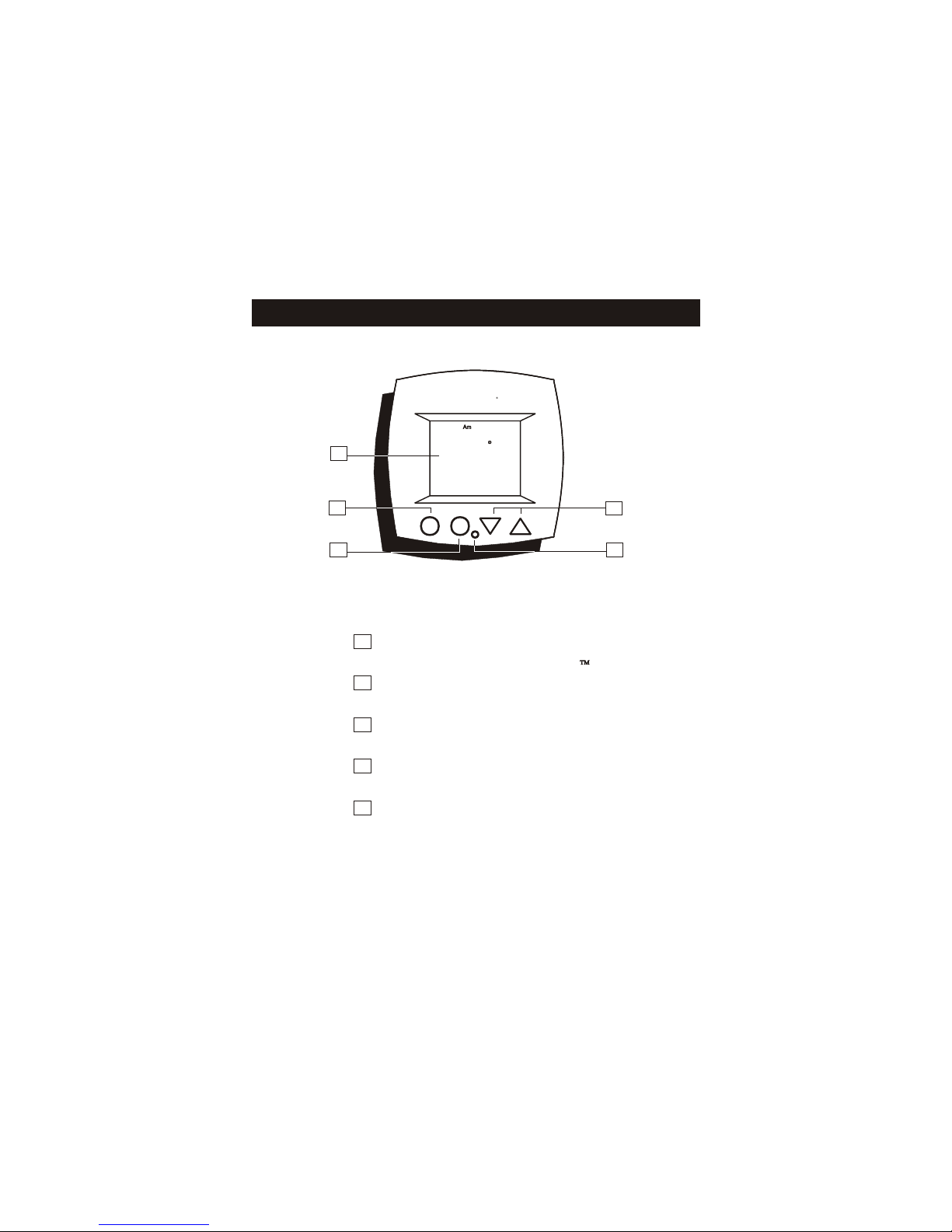

Front Panel
Page 2
Liquid Crystal Display
with Thermoglow
Up/Down Buttons
Mode Button
Fan Button
Heat or Cool Indicator
Heat = Red, Cool = Green
1
2
3
4
5
2
3
45
1
1
2
4
3
Mode Indicators
Selects the operation mode of the equipment.
HEAT - indicates the heat mode.
COOL - indicates the air conditioning mode.
AUTO - indicates the system will automatically
changeover between heat and cool modes
as the temperature varies.
OFF - indicates the entire system is turned off.
PROGRAM ON - indicates the stored program
is enabled to run. Page 6.
Clock with Day of the Week
Indicates the current time and day. This clock is
also used to program the timer periods. Page 5.
Room Temperature Display
Indicates the current room temperature.
Desired Set Temperature
Indicates desired room temperature(s). Page 7.
Display
Page 3
1
1
3
4
4
6
5
5
7
8
2
Night
MorningDayEvening
Fan On
Am
Pm
SuMoTuWeThFrSa
Setup
Locked
Program On
AUTO
ONOFF
COOL
HEAT
I2:00 88
88
88
5
6
7
8
Morning, Day, Evening & Night Indication
Indicates the program time period.
Page 8-11.
Setup Indication
Indicates the thermostat is in the programming
mode. Page 12.
Fan Operation Indication
Fan On - indicates constant, continuous fan
operation.
When Fan On is not lit - indicates the fan will
only operate when necessary to heat or
to cool. Page 7.
Locked Indication
Locked appears after the right combination of
buttons are pressed, rendering the buttons
inoperative. Page 18.
Display
Page 4

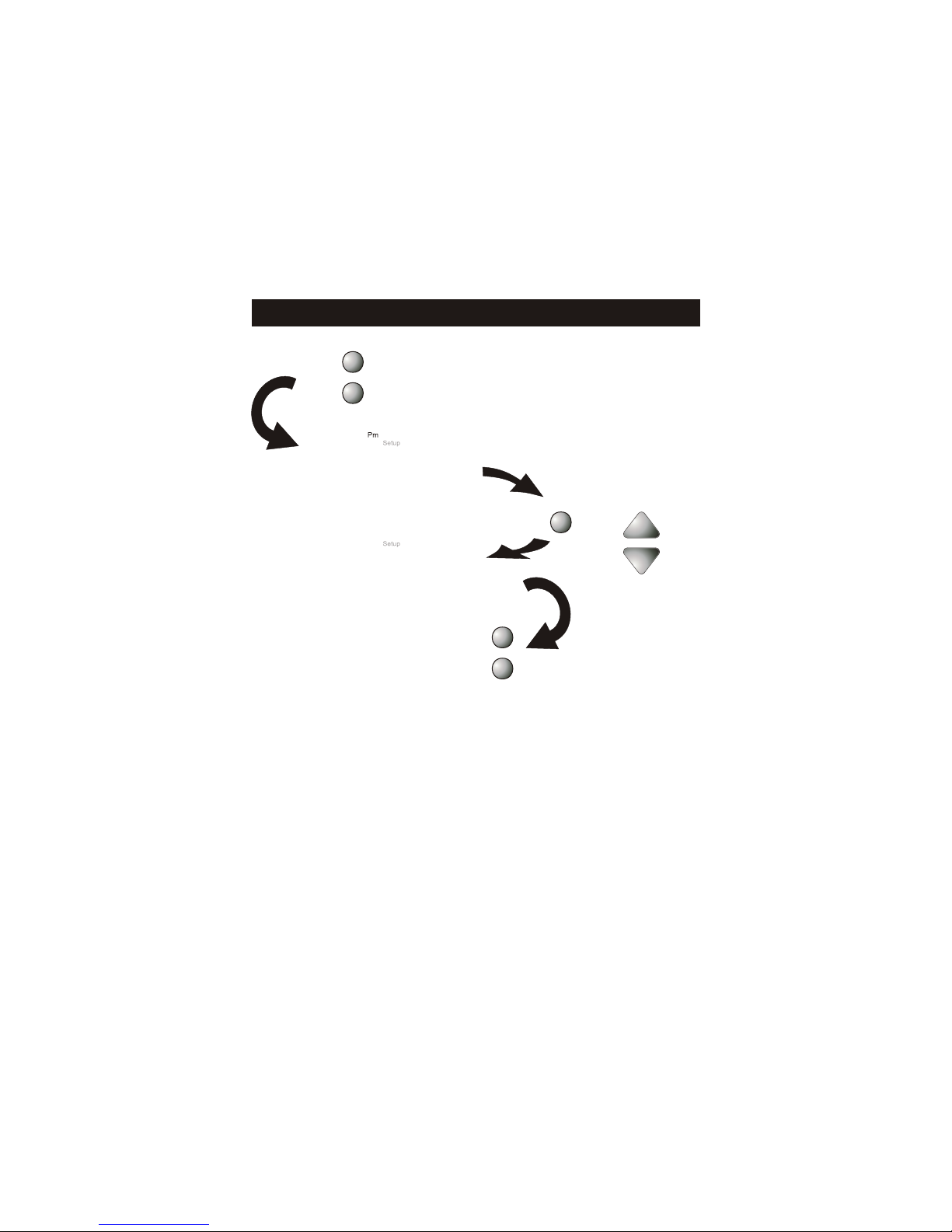

During Setup & Programming:
Pressing the Mode button
selects different flashing items.
(Represented in dark black)
Pressing the Up and Down
buttons will modify the flashing
selection.
Press the Mode button.
While holding the Mode,
press the Fan button
for 2 seconds to enter Setup
screens.
Press both Mode and
Fan buttons as
above to return to
normal operation.
Quick Start Set the Clock and Go
Page 5
The thermostat is preprogrammed from the
factory to operate 1 or 2 Stage equipment* without
the need for further programming. To optimize the
installation of this thermostat follow the instructions
in the Advanced Setup section.
* The thermostat is not preprogrammed from the
factory to operate electric heat or heat pump systems.
To control these systems, follow the steps in the
Advanced Setup section, pages 12 & 13.
buttons.
To adjust the
clock or Day use
Press
I
I2:00
2
SuMoTuWeThFrSa
FAN
FAN
MODE
MODE
MODE
The HEAT setting indicates the
temperature the room has to
reach before the furnace will
turn on to heat the room.
The COOL setting indicates the
temperature the room has to
reach before the air conditioner
will turn on to cool the room.
OFF indicates both heating
and air conditioning
systems are turned off.
AUTO will automatically select
heat or cool based on room
temperature demand.
Program On will activate the
stored timer operation.
(Morning, Day, Evening, Night)

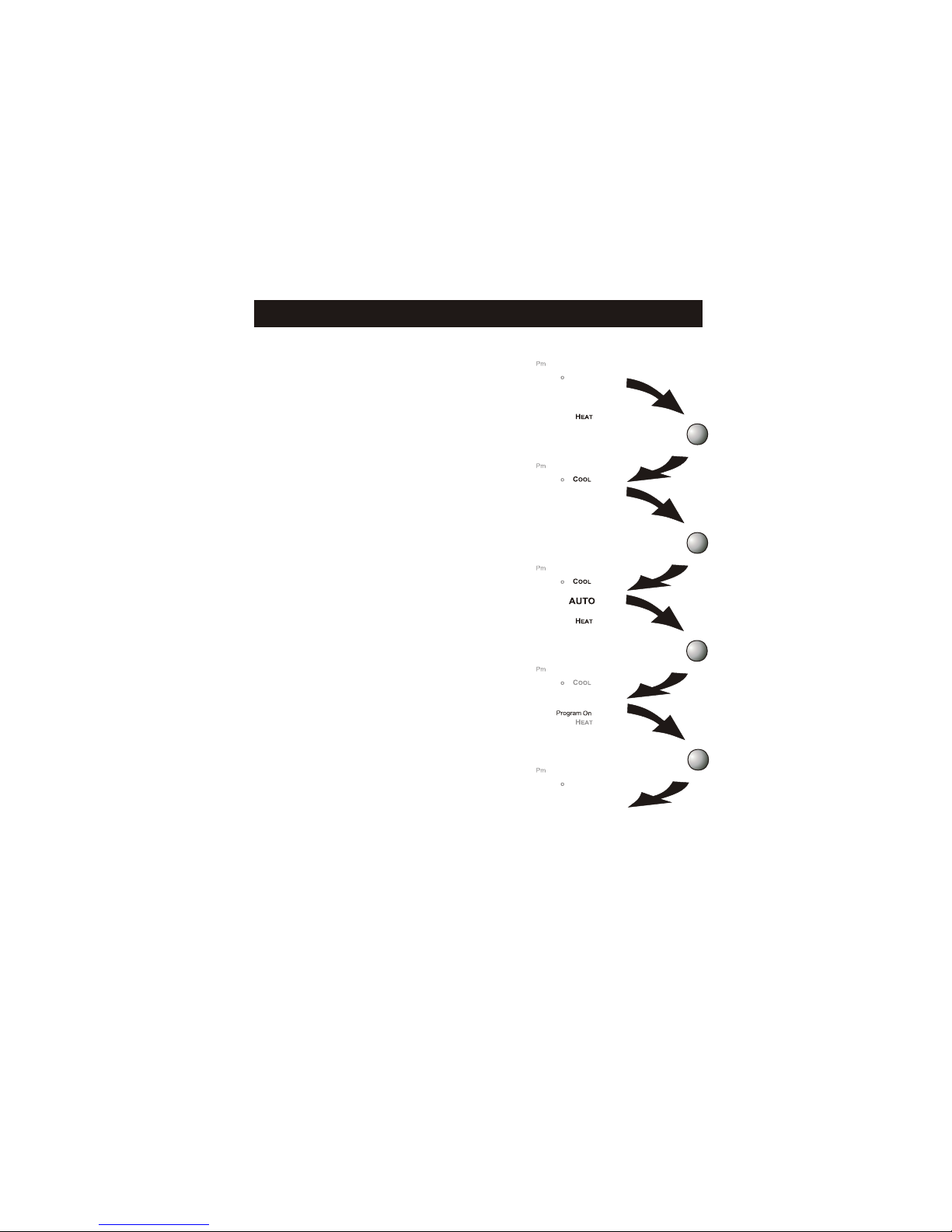

Select Mode
Basic Operation
Page 6
70
I2:00
69
Su
70
72
I2:00
Su
70
72
I2:00
69
Su
70
73
I2:00
70
Su
Day
70
I2:00
Su
OFF
MODE
MODE
MODE
MODE
buttons.

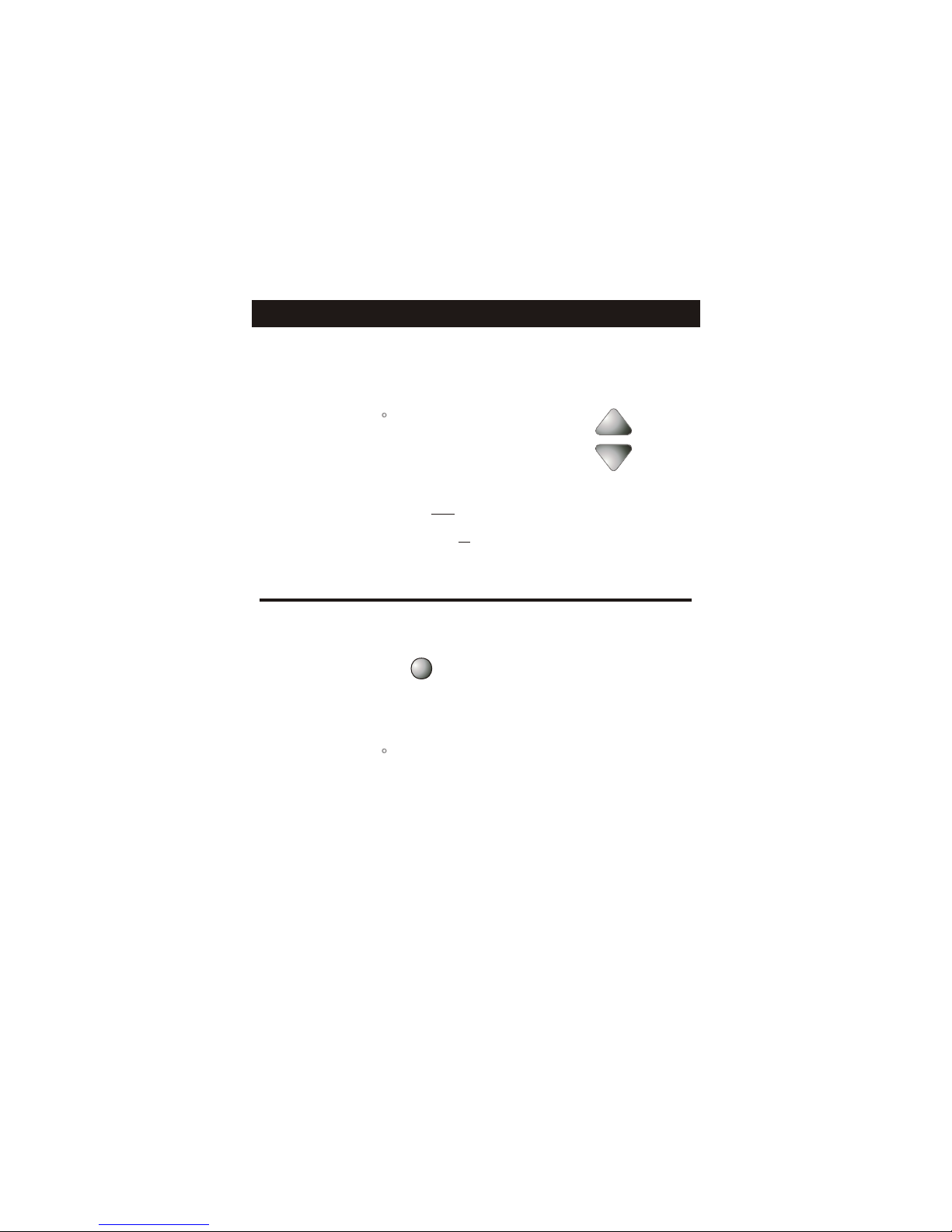

In any mode, adjust the
desired Set Temperature
with
Pressing the up/down buttons in Auto mode will adjust both the heat and cool
set temperatures simultaneously.
Pressing the up/down buttons in Heat or Cool modes will adjust only the
heat or cool set temperature.
Select Desired Temperature
Page 7
Basic Operation
70
72
69
Pm
COOL
HEAT
AUTO
Mo
I2:00
70
72
69
Pm
COOL
HEAT
AUTO
Mo
Fan On
I2:00
Fan
Operation
Fan On indicates constant fan operation.
This feature is active even if the thermostat
is set to Off.
Press
FAN

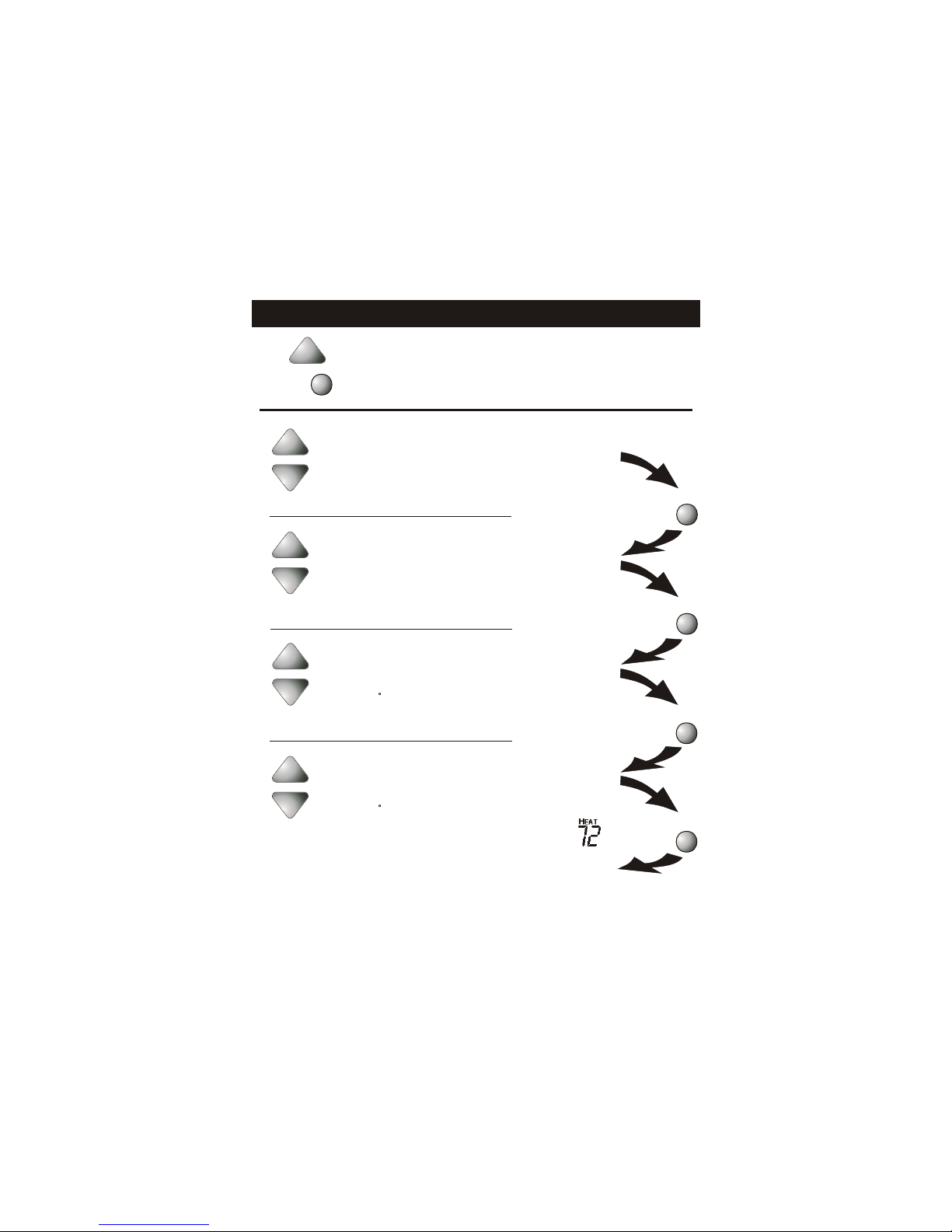

Programming 4 Time periods
Page 8
Press
Press
Press
Press
Press the Mode button. While holding the Mode,
press the Up button for 2 seconds to enter
time period programming.
Continued
Select the Day of the Week.
MoTuWeThFr or SaSu.
(Weekday or Weekend schedule)
Adjust the start time for
Morning.
Adjust the heating setpoint
for Morning.
Adjust the cooling setpoint
for Morning.
(35 - 99 )
(35 - 99 )
MODE
MODE
MODE
MODE
MODE
MoTuWeThFr
74
72
COOL
HEAT
74
COOL
Morning
Morning
Morning
Am
Am
Am
MoTuWeThFr
MoTuWeThFr
MoTuWeThFr
7:30
7:30
7:30
MODE

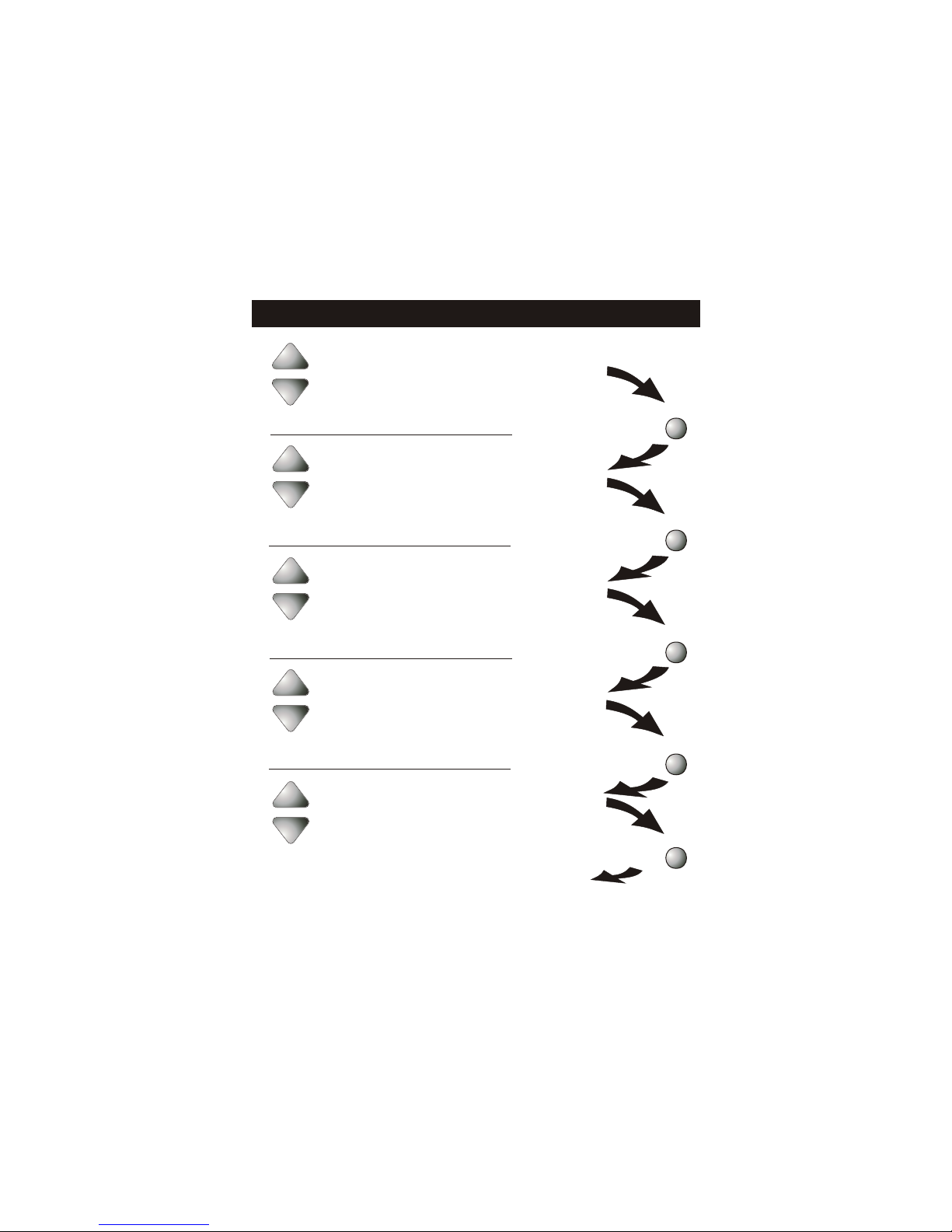

Programming 4 Time Periods
Page 9
Press
Press
Press
Press
Press
Continued
Adjust the start time for
Day.
Adjust the cooling setpoint
for Day.
(35 - 99)
Adjust the start time for
Evening.
Adjust the cooling setpoint
for Evening.
(35 - 99)
Adjust the heating setpoint
for Day.
(35 - 99)
MODE
MODE
MODE
MODE
Day
Am
MoTuWeThFr
I0:30
Day
Am
MoTuWeThFr COOL
I0:30 75
Day
Am
MoTuWeThFr COOL
HEAT
I0:30 75
73
Evening
Pm
MoTuWeThFr
5:30
Evening
Pm
MoTuWeThFr COOL
5:30 75
