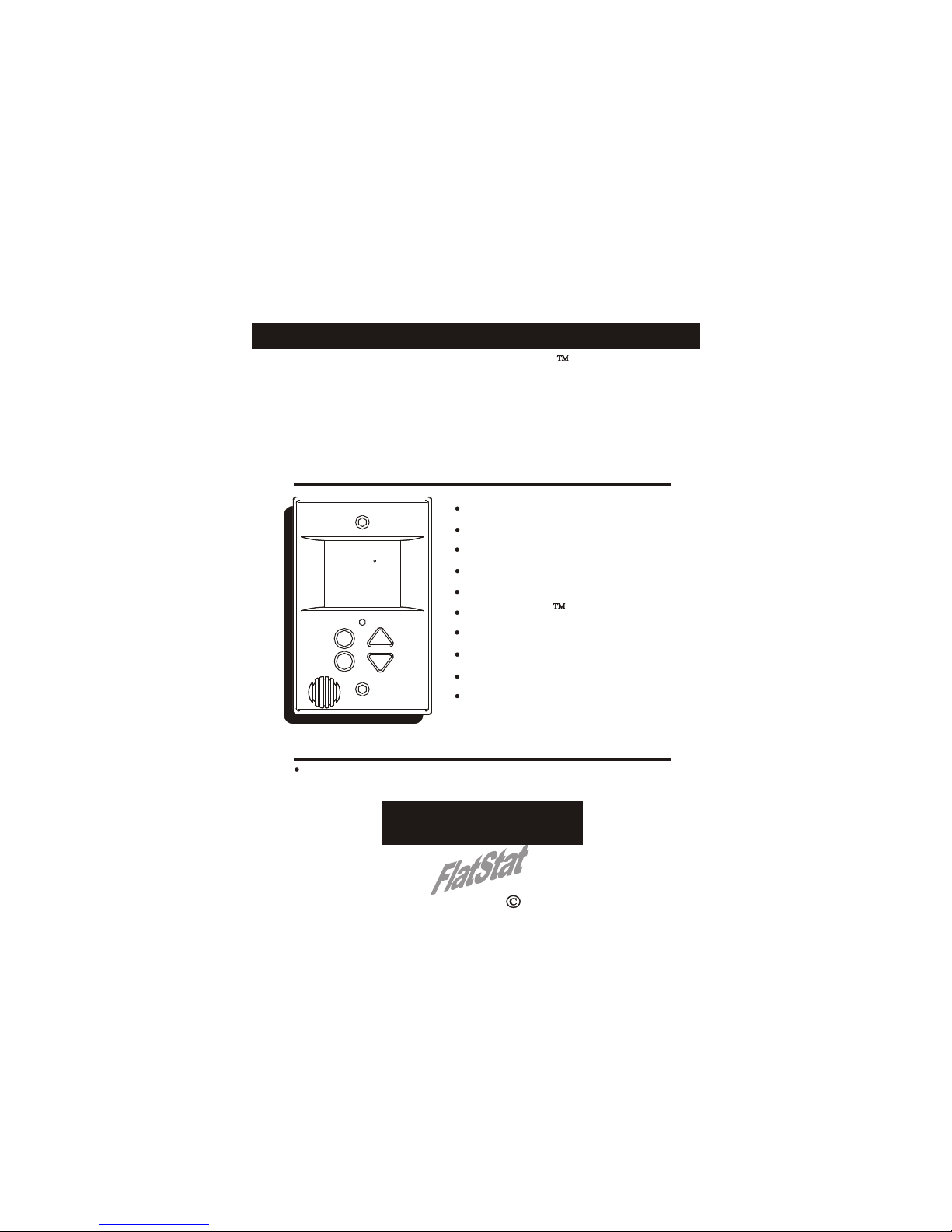

TOTALINE P374-1100FM User manual
OWNER'S MANUAL
P/N P374-1100FM
Programmable
Digital Thermostat
Mounts Flush to the Wall
7 Day Programmable
4 Time Periods per Day
Auto Changeover
Large, Easy To Read Display
Thermoglow Backlight
Very Easy to Program
Programmable Fan
No Batteries Required
Outdoor Temperature
Sensor Available
1 For All
Use with most Air Conditioning & Heating Systems including: 1 or 2 Stage
Electric Cooling & Gas Heating, Heat Pump, Electric or Hydronic Heat.
Meets Residential California Title 24
72
74
70
Am
COOL
HEAT
AUTO
Mo
I2:00
TOTALINE
Replacement Components Division Carrier Corporation 4/01
Table Of Contents
FRONT PANEL
DISPLAY
QUICK START Set the clock and go
BASIC OPERATION
PROGRAMMING 4 Time Periods
ADVANCED SETUP
ABOUT ADVANCED OPERATION
WARRANTY
Page 1
CAUTION
Follow Installation Instructions before proceeding.
SET THERMOSTAT TO MODE “OFF” PRIOR TO
CHANGING SETTINGS IN SETUP OR RESTORING
FACTORY DEFAULTS.
P/N P374-1100FM
2
3
5
6
8
12
17
22
Replacement Components Division Carrier Corporation 4/01

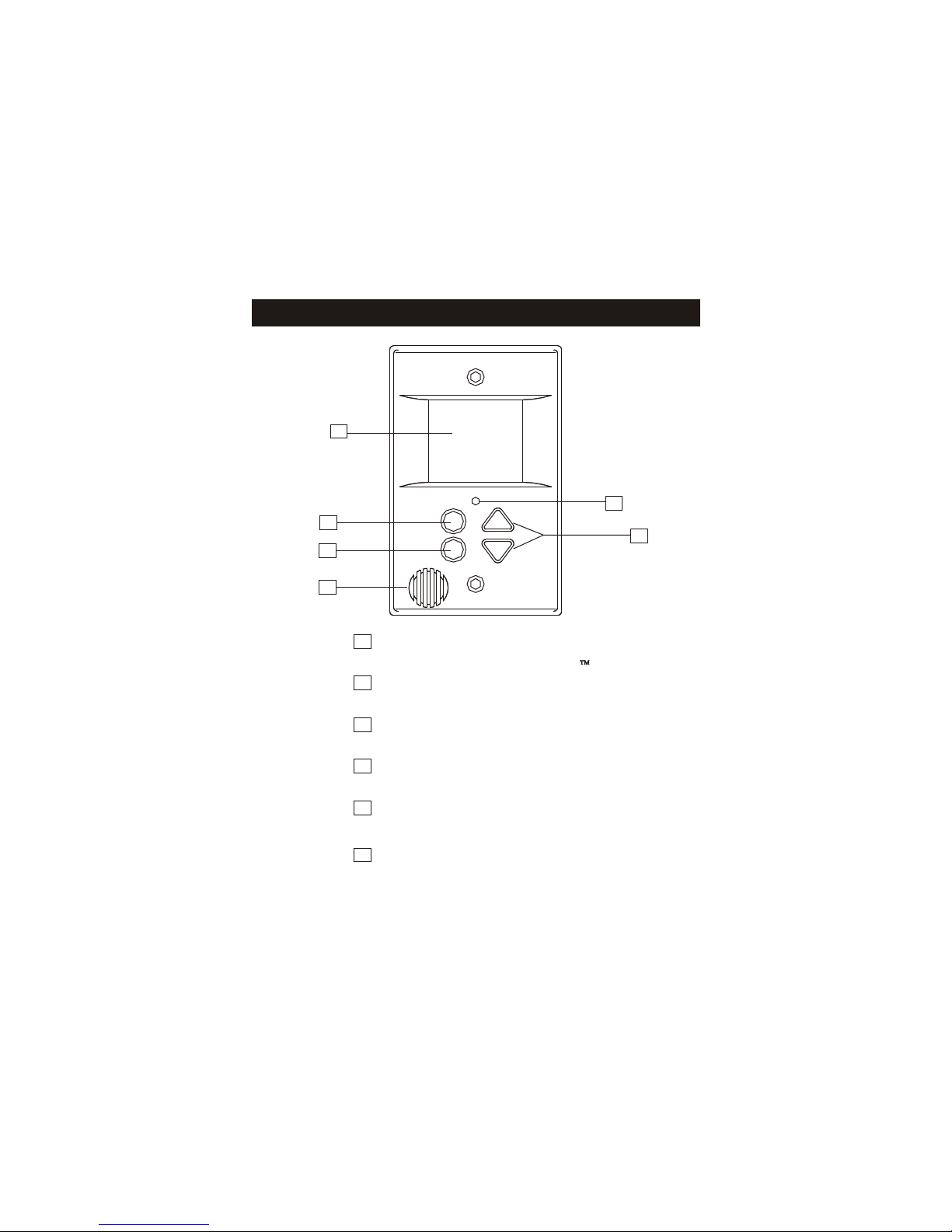

Front Panel
Page 2
Liquid Crystal Display
with Thermoglow
Up/Down Buttons
Mode Button
Fan Button
Heat or Cool Indicator
Heat = Red, Cool = Green
Temperature Sensor Bubble
1
2
3
4
5
6
1
3
5
2
4
6
88
88
HEAT
COOL
ONOFF
AUTO
Fan On
Program
Service Filter
Locked
Outside
Setup
On
o
Am
Pm
I8:88
88
Day
Night
Evening
Morning
SuMoTuWeThFrSa
1
2
4
3
Mode Indicators
Selects the operation mode of the equipment.
HEAT - indicates the heat mode.
COOL - indicates the air conditioning mode.
AUTO - indicates the system will automatically
changeover between heat and cool modes
as the temperature varies.
OFF - indicates the entire system is turned off.
PROGRAM ON - indicates the stored program
is enabled to run. Page 6.
Clock with Day of the Week
Indicates the current time and day. This clock is
also used to program the timer periods. Page 5.
Room Temperature Display
Indicates the current room temperature.
Desired Set Temperature
Indicates desired room temperature(s). Page 7.
Display
Page 3
21
5
1
1
3
6
6
7
10
9
8
4
4
1
5
6
7
8
9
10
Outside Indication
Indicates the temperature displayed is from
the optional outside sensor. Page 21.
Morning, Day, Evening & Night Indication
Indicates the program time period. Page 8-11.
Setup Indication
Indicates the thermostat is in the programming
mode. Page 12.
Fan Operation Indication
Fan On - indicates constant, continuous fan
operation.
When Fan On is not lit - indicates the fan will
only operate when necessary to heat or
to cool. Page 7.
Service Filter Indication
Service Filter indicates when the filter should
be serviced under normal conditions.
Appears after 0 - 1950 hours of blower
operation (adjustable). Page 15.
Locked Indication
Locked appears after the right combination of
buttons are pressed, rendering the buttons
inoperative. Page 19.
Display
Page 4
During Setup & Programming:
Pressing the Mode button
selects different flashing items.
(Represented in dark black)
Pressing the Up and Down
buttons will modify the flashing
selection.

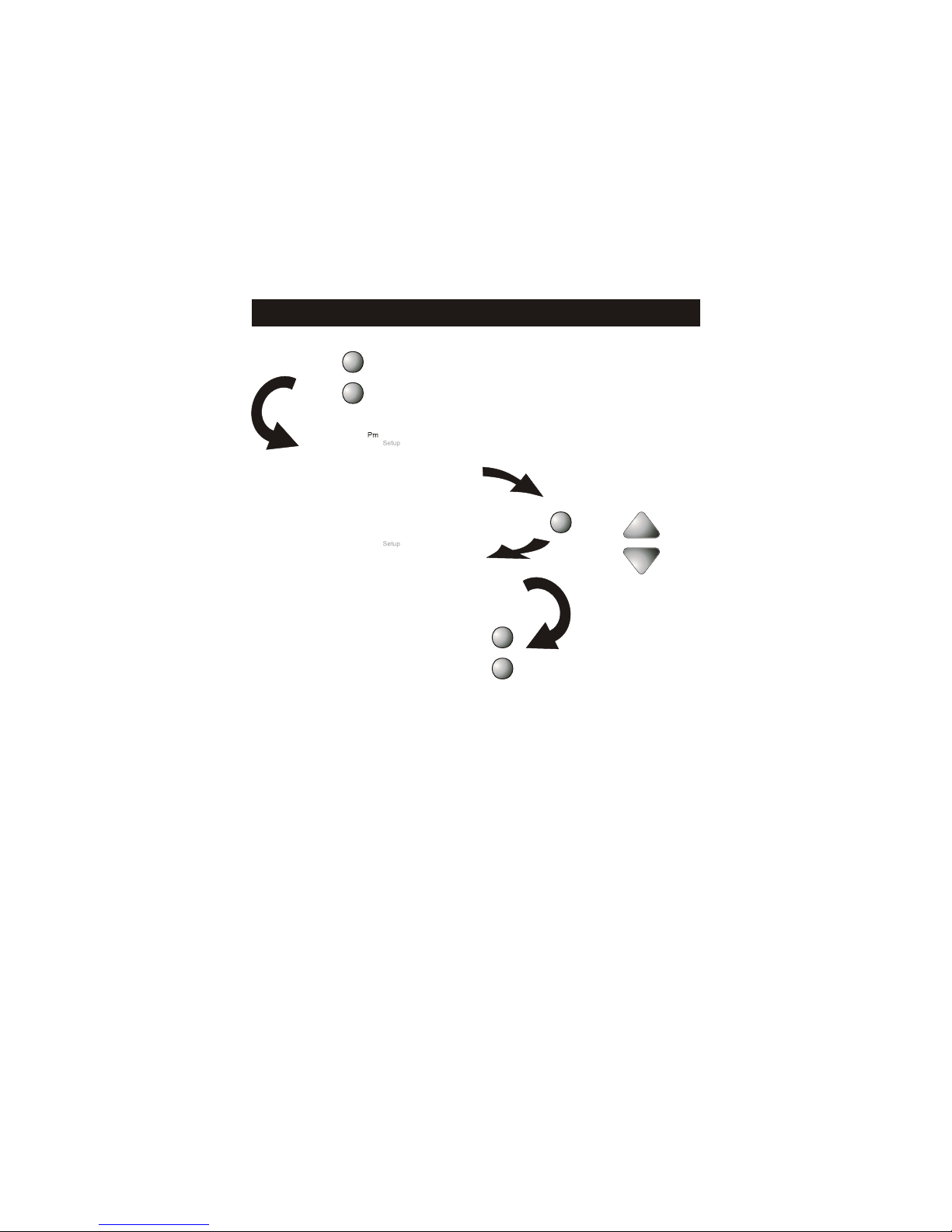

Press the Mode button.
While holding the Mode,
press the Fan button for
2 seconds to enter Setup
screens.
Press both Mode and
Fan buttons as
above to return to
normal operation.
Quick Start Set the Clock and Go
Page 5
The thermostat is preprogrammed from the
factory to operate 1 or 2 Stage equipment* without
the need for further programming. To optimize the
installation of this thermostat follow the instructions
in the Advanced Setup section.
* The thermostat is not preprogrammed from the
factory to operate electric heat or heat pump systems.
To control these systems, follow the steps in the
Advanced Setup section, pages 12 - 15.
buttons.
To adjust the
clock or Day use
Press
I
I2:00
2
Su
FAN
FAN
MODE
MODE
MODE
The HEAT setting indicates the
temperature the room has to
reach before the furnace will
turn on to heat the room.
The COOL setting indicates the
temperature the room has to
reach before the air conditioner
will turn on to cool the room.
OFF indicates both heating
and air conditioning
systems are turned off.
AUTO will automatically select
heat or cool based on room
temperature demand.
Program On will activate the
stored timer operation.
(Morning, Day, Evening
& Night periods.)

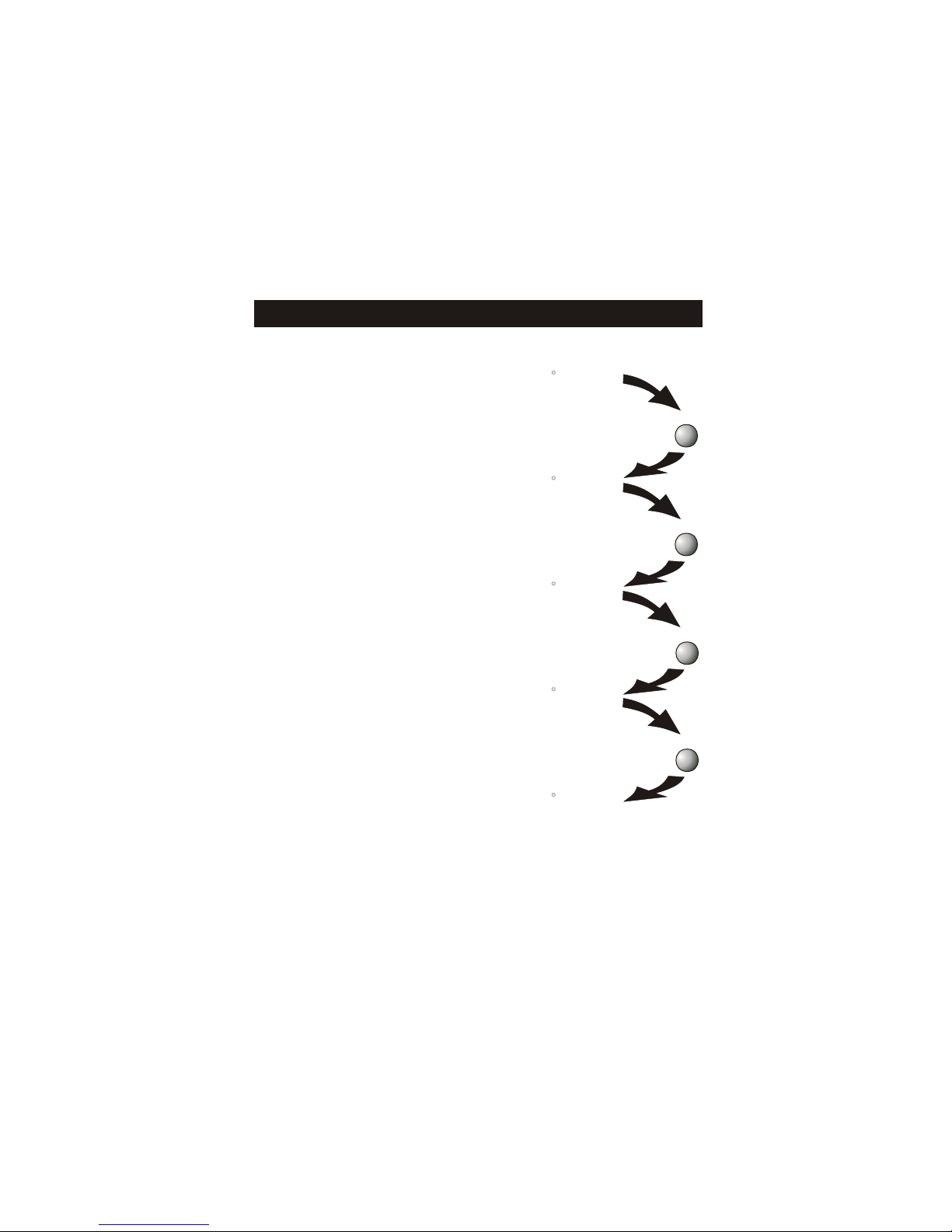

Select Mode
Basic Operation
Page 6
Press
Press
Press
Press
70 69
Pm
HEAT
Mo
I2:00
70
72
Pm
COOL
Mo
I2:00
70
72
69
Pm
COOL
HEAT
AUTO
Mo
I2:00
70
73
70
Night
ProgramOn
Pm
COOL
HEAT
Mo
I2:00
70
Pm
OFF
Mo
I2:00
MODE
MODE
MODE
MODE
buttons.

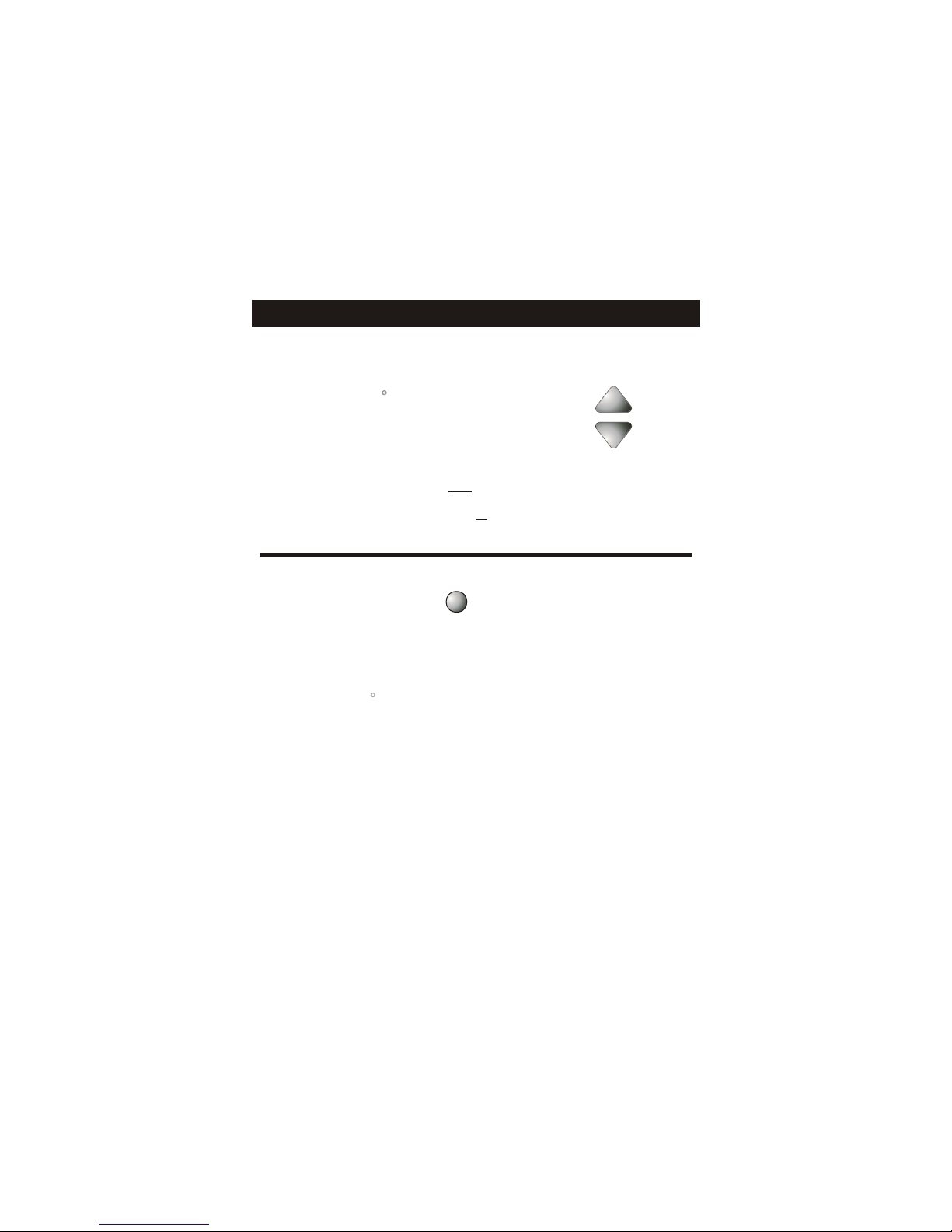

In any mode, adjust the
desired Set Temperature
with
Pressing the Up or Down buttons in Auto mode will adjust both the heat and cool
set temperatures simultaneously.
Pressing the Up or Down buttons in Heat or Cool modes will adjust only the
heat or cool set temperature.
Select Desired Temperature
Page 7
Basic Operation
Press
FAN
72
69
Pm
COOL
HEAT
AUTO
Mo
I2:00
65
85
55
FAN ON
Pm
COOL
HEAT
Su
I2:00
Fan
Operation
Fan On indicates constant fan operation.
This feature is active even if the thermostat
is set to Off.
70
Programming 4 Time Periods
Page 8
Press
Press
Press
Press
Press the Mode button. While holding the Mode,
press the Up button for 2 seconds to enter
time period programming.
Use the back cover Programming Worksheet to help with this section.
Continued
MODE
MODE
MODE
MODE
MODE
Mo
74
COOL
74
72
COOL
HEAT
Select the day of week
Adjust the start time
for Morning.
Adjust the heating
setpoint for Morning.
Adjust the cooling
setpoint for Morning.
(Mo - Su)
(35 - 99 )
(35 - 99 )
Am
Am
Am
7:30
7:30
Morning
Morning
Morning
Mo
Mo
Mo
7:30
MODE
Page 9
Press
Press
Press
Press
Press
Continued
MODE
MODE
MODE
MODE

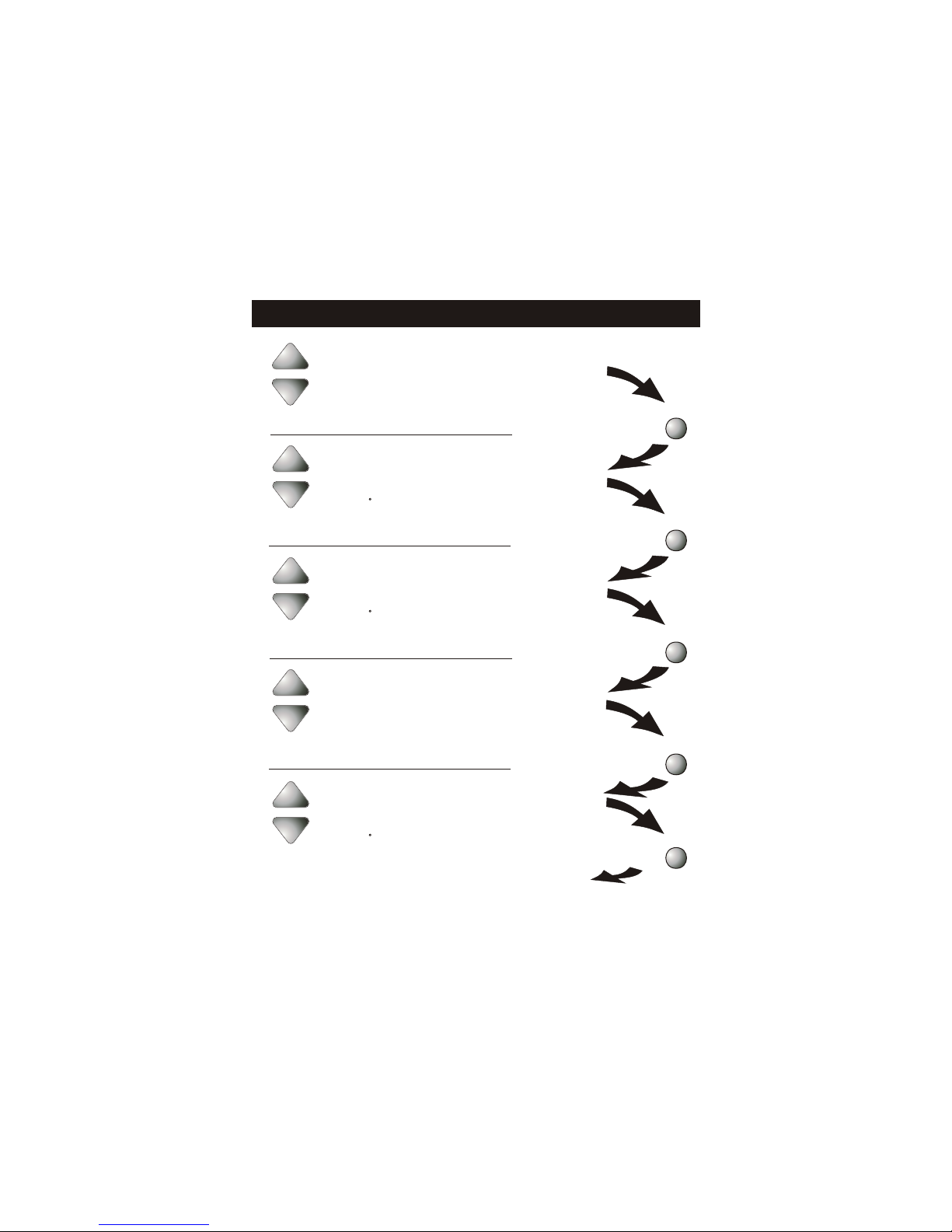

Programming 4 Time Periods
Adjust the start time
for Evening.
Adjust the cooling
setpoint for Evening.
Adjust the start time
for Day.
Adjust the heating
setpoint for Day.
Adjust the cooling
setpoint for Day.
(35 - 99 )
(35 - 99 )
(35 - 99 )
Am
I0:30
Day
Mo
75
COOL
Am
I0:30
Day
Mo
73
75
HEAT
COOL
Am
I0:30
Day
Mo
Pm
5:30
Evening
Mo
75
COOL
Pm
5:30
Evening
Mo
