Figure-9 Figure-12 Figure-13
Figure-9 Figure-10 Figure-11
3/6
Press DOWN button when figure-4 is being displayed. Press set button if you did not create a new password. Figure-6 will be
displayed. When you press set button again, figure-7 is displayed. Press DOWN button to select the digit you want to change.
Press the UP button to enter the value of the digit with under-line. When you press the set button after you enter the rate, the
current transformer value is saved and the figure-6 is displayed. You can exit the settings menu by using Esc button.
For example: 100/5A current transformer ratio (multiplier value) is 20. CTR value is required to be set as 0020.
Press DOWN button when figure-4 is being displayed. Press set button if you did not create a new password. Figure-6 will be
displayed. When you press down button, figure-8 is displayed. When you press set button, figure-9 is displayed. Press DOWN button
to select the digit you want to change. Press the UP button to enter the value of the digit with under-line. When you press the set
button after you enter the rate, the voltage transformer value is saved and the figure-8 is displayed. You can exit the settings menu
by using Esc button.
Figure-4 Figure-5 Figure-8 Figure-9
Figure-4 Figure-5 Figure-6 Figure-7

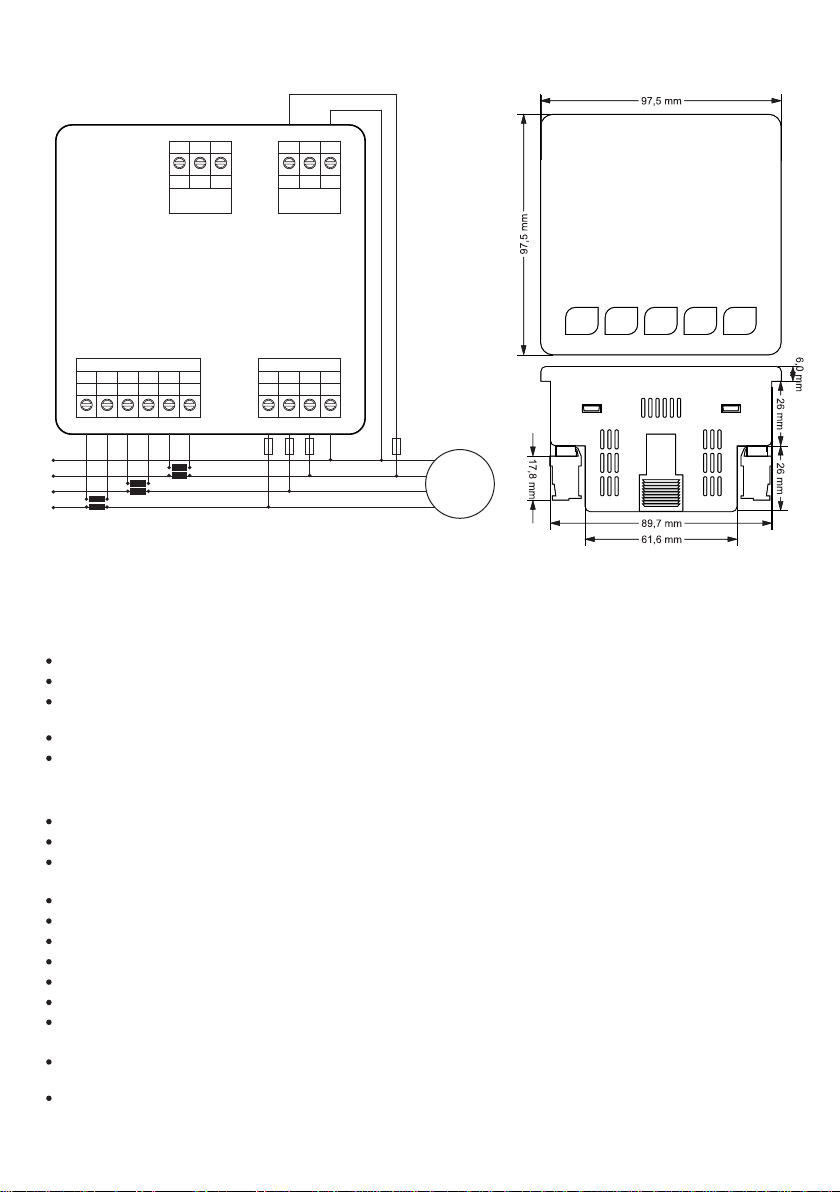

Read the warnings before the device is energized. Make sure that the device is connected according to the connection
diagram. When the device energized for the first time, the figure-2 is displayed. Enter the current transformer ratio and the
voltage transformer ratios, if installed, on the settings menu at first.
6 - Start-up of the Device:
5 - General
TPM-03 energy analyzer measures the load on the system and voltage, current, Cosφ, active power, reactive power minimum
and maximum values, demands and energies related to this load on the system and saves the cases. It measures the current
and voltage harmonics to the 31rd harmonic.
4 - Maintenance of the Device
De-energize and disconnect the device. Clean the body of the device with a dry or damp-dry cloth. Do not use conductive or
other chemical substances as a cleaning agent that can damage the device. After cleaning the device, make its connections and
check whether it is working by energizing it.
7 - Changing Current Transformer Ratio
8 - Changing Voltage Transformer Value
Settings Pass: 0000 Current Trans.
Ratio
Max Value 5000
CTR: 0001
Max Value 4000.0
VTR: 0001.0
Voltage Trans.
Ratio
Pass: 0000
Settings
10 - Setting the Time
9 - Setting Date
Date Set
Date & Time
01/01/2014
15:51:13 01/01/2014
New Date
01:01:20
New TimeTime Set
Date & Time
01/01/2014
15:51:13
Press DOWN button when figure-9 is being displayed.
Figure-10 will be displayed. When you press set button,
figure-11 is displayed. The sequence of date is day/month/
year. The line is firstly under the digit of day. Press the UP
button to change the day. Press DOWN button and see the line
is under the digit of month to change month. Enter the month
by pressing UP button. Press DOWN button and see the line is under the digit of year to change year. Enter the year by pressing UP
button. Then, when you press set button, the date is saved and the figure-10 is displayed. You can exit the settings menu by using
Esc button.
Press DOWN button when figure-9 is being displayed.
Figure-10 will be displayed. Figure-12 is displayed when you
press the DOWN button again. When you press set button,
figure-13 is displayed. The sequence of the time is hour:minute:
second. The line is firstly under the digit of hour. Press the UP
button to change the hour. Press DOWN button and see the line
is under the digit of minute to change minute. Enter the minute
by pressing UP button. Press DOWN button and see the line is under the digit of second to change second. Enter the second by
pressing UP button. Then, when you press set button, the time is saved and the figure-12 is displayed. You can exit the settings
menu by using Esc button.
