Tenmars TM-190 User manual

MULTI-FIELD EMF METER

TM-190

User’s Manual

HB2TM1900003

Meun

1 Features..............................................3

2 Identifying Parts..................................5

3 TFT description...................................6

4 Measurement Procedures ..................7

4.1 POWER ON/OFF BUTTON: .................... 7

4.2 READING DATA: ...................................... 7

4.3 DATA HOLD (HOLD):............................... 7

4.4 MENU SETTINGS:.................................... 8

4.4.1. Option Buttons:........................9

4.4.2. Screen Brightness options: .....9

4.4.3. Magnetic Unit: .........................9

4.4.4. RF Strength Unit：................10

4.4.5. Language: .............................11

4.4.6. Power Off Time:.....................12

4.4.7. Sound on/off:.........................13

4.4.8. Keys/Alarm Sound:................13

4.4.9. Keys Sound:..........................14

4.4.10. Alarm Sound:.........................14

4.4.11. Information: ...........................15

5 Specifications....................................16

5.1 SENSOR TYPE: LF MAGNETIC FIELDS (MF). 16

5.2 SENSOR TYPE: LF ELECTRIC FIELDS............ 16

5.3 SENSOR TYPE: RF STRENGTH ................... 17

6 Battery replacement..........................18

7 Safety and maintenance standards ..19

8 End of life..........................................19

TM-190

1 Features

Data hold (HOLD)

Low battery indication：HIGH LOW

Over load display “OL”.

External USB Power Supply: ” ”

Brightness options: low-Middle-high

Magnetic unit：Gauss(mG) or. Tesla(uT)

RF Strength Unit: (uW/m² ~mW/m²) (μW/cm²) (m

V/m ~V/m) (mA/m) (dBm).

Languages: English; Traditional Chinese;

Simplified Chinese; Japanese; Español.

Power Off Time：No; 1; 3; 5; 10; 15; 30. Factory

default sets as “5”. Settings can be changed by

the user. is displayed on the screen after

power off time is set.

Keys/Alarm Sounds: On ; Off

Low-Frequency EMF Readings: Individual and

aggregated XYZ axial readings .

RF Historical Records:

Up to 20 groups .

Information: Software version: V1.0

High-frequency EMF Readings: Please perform

tests according to the indicated direction .

TM-190 English

Electric field Measurement Precautions: Please

perform tests according to the indicated direction

. Please hold the meter at the bottom

of the display, as shown in the figure below:

Fig. 1 Electric Field measurement:

The color zones are for reference only

electromagnetic safety reference standard

1W/m²=0.1mW/Cm²=100uW/Cm².1mW/m²=0.1u

W/Cm²

Ma g n e tic Fie lds Electric Field RF stren g th

Th e Green zone 0~10.00mG 0~500V/m 0~0.99mW/m²;0~0.59V/m

Th e Ye llo w z o n e 10.01~100mG 501~1000V/m 1~9.99mW/m²;0.6~1.9V/m

Th e Re d z o n e 101~2000mG >1001V/m >10mW/m²;>2V/m

international國際的 Council Recommendation1999/519/EC 42V/m(4.75W/m²) 59V/m(9.25W/m²)

international國際的 ICNIRP Guidelines,April1998 42V/m(4.75W/m²) 59V/m(9.25W/m²)

Austria 奧地利 ONORM S1120 49V/m(6.33W/m²) 61V/m(10W/m²)

Belgium比利時 Belgisch Staatsblad F.2001-1365 21V/m(1.18W/m²) 30V/m(2.31W/m²)

Germang 德國 26.Deutsche Verordnung 42V/m(4.75W/m²) 59V/m(9.25W/m²)

italy意大利 Decreto n.381,1998 20V/m(1W/m²) 20V/m(1W/m²)

the netherlands荷蘭 Health Council 51V/m(6.92W/m²) 83V/m(18W/m²)

switzerland瑞士 Verordnung 1999 4V/m(0.04W/m²) 6V/m(0.1W/m²)

united states美國 IEEE C95.1 49V/m(6.33W/m²) 68V/m(12W/m²)

china中國 Draft:National Quality Technology Monitoring Bureau 49V/m(6.33W/m²) 61V/m(10W/m²)

japan日本 Radio-Radiadiation Protection Guidelines,1990 49V/m(6.33W/m²) 61V/m(10W/m²)

TM-190

2 Identifying Parts

Fig. 2 Instrument description:

2.4” 240*320 resolution color TFT.

2. Power and Menu button

3. Hold and Enter button

4. Select and Down button

5. Battery cover

TM-190

3 TFT description

1 Data Hold indicator.

2 Auto power off indicator.

3 Buzzer indicator.

4 Battery indicator.

5 Tesla(uT) or Gauss(mG) display.

6 Electric Field (V/m) display.

7 RF strength history histogram display.

8 RF strength digital (mV/m/ W/m²/μW/cm²/dB)

display.

9 Menu key indication

10 Hold/ Enter key indicator

11 RF electronic field warning indicator

12 LF electric field warning indicator

13 Individual XYZ axial value of LF electromagnetic

wave display

14 LF electromagnetic wave warning indicator’

TM-190

4 Measurement Procedures

4.1 POWER ON/OFF Button:

Press button to power on. LCD display

measurement screen.(see Fig. 3)

Press button for 3 seconds to power off LCD

display.

4.2 Reading Data:

Direct the front section of the meter at the desired

electromagnetic field for measurements.

The meter simultaneously displays the electromagnetic

field readings of individual and aggregated XYZ axes,

where the aggregated calculation equation can be

expressed as follows:

Because of environment-related magnetic field factors,

this electromagnetic field EMF meter may display a

reading of under 0.50 mG prior to testing. This is caused

by the magnetic noise in the environment, rather than

meter failure.

4.3 Data hold (HOLD):

Press the left button as to activate the HOLD

function and hold the current readings at the upper left

of the display.

To release the held data, press the left button

again.

Press the middle button for 3 seconds to power off

TM-190

the meter.

4.4 Menu Settings:

On the measurement screen: Press the middle

button to enter the main menu, where 7 options can be

selected, namely, Brightness,Magnetic unit, RF

Strength Unit,Language,Power off,Sound, and

Information.

Press the right button to make the blue brick

scroll down. Press the right button repeatedly,

and the blue brick will cycle through the options.

Press the left button to enter the selected option.

Press the left button again to exit the selected

option and return to the main menu.

Press the middle button to return to the previous

menu.

TM-190

4.4.1.Option Buttons:

Press the right button to scroll to and check

the next check box. Press the right button

repeatedly to cycle through the check boxes.

Press the left button to exit to the main menu.

Press the middle button to return to the previous

setting menu.

4.4.2.Screen Brightness options:

Following the operation procedures in 4.4, the

Brightness setting comprises the following three

options, namely, Low,Middle, and High. Under the

sub-directory, use the option buttons to select and

confirm the desired selection.

Default: Middle

4.4.3.Magnetic Unit:

Following the operation procedures in 4.4, the Magnetic

Unitsetting comprises the following two options, namely,

Gauss/mG and Tesla/uT. Under the sub-directory, use the

option buttons to select and confirm the desired selection.

TM-190

Default: mG

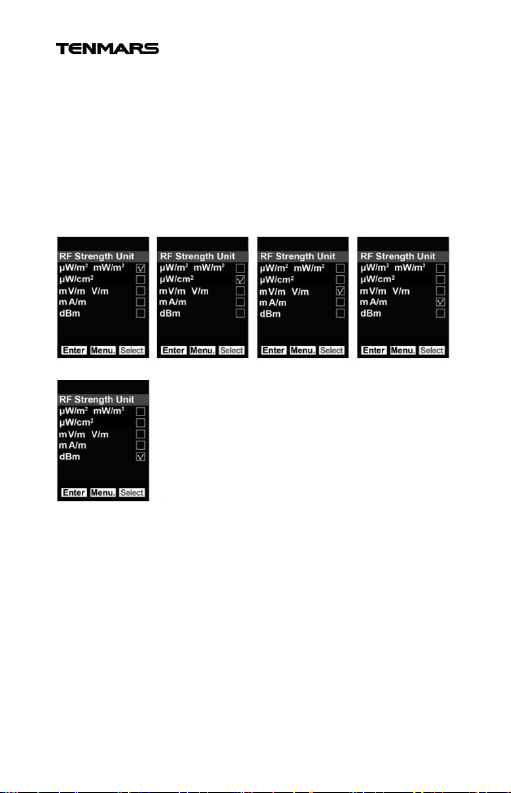

4.4.4.RF Strength Unit：

Following the operation procedures in 4.4, the RF

Strength Unit setting comprises the following five

options, namely, µW/m²~mW/m², µW/cm², mV/m~V/m,

mA/m, and dBm (files are automatically skipped within

the selected unit). Under the sub-directory, use the option

buttons to select and confirm the desired selection.

Default: µV/m² ~ mW/m²
