Tektronix RSA5100B series User manual

RSA5BUP (Options 56 and 59)

RSA5100B Series Real-Time Signal Analyzers

Internal HD and Removable SSD

ZZZ

Instructions

www.tektronix.com

*P075105600*

075-1056-00

or suppliers, and are protected by national copyright laws and international treaty provisions.

Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication

supersedes that in all previously published material. Speciﬁcations and price change privileges reserved.

TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.

Contacting Tektronix

Tektronix, Inc.

14150 SW Karl Braun Drive

P.O. Box 500

Beaverton, OR 97077

USA

For product information, sales, service, and technical support:

In North America, call 1-800-833-9200.

Worldwide, visit www.tektronix.com to ﬁnd contacts in your area.

Service safety summary

Only qualiﬁed personnel should perform service procedures. Read this Service

Safety Summary and the General Safety Summary located in the RSA5100B

Real-Time Signal Analyzer Service manual (Tektronix part number 077-0903-XX)

before performing any service procedures.

Do Not Service Alone. Do not perform internal service or adjustments of this

product unless another person capable of rendering ﬁrst aid and resuscitation is

present.

Disconnect Power. To avoid electric shock, switch off the instrument power, then

disconnect the power cord from the mains power.

UseCareWhenServicingWithPowerOn. Dangerousvoltagesorcurrentsmay

exist in this product. Disconnect power, remove battery (if applicable), and

disconnect test leads before removing protective panels, soldering, or replacing

components.

To avoid electric shock, do not touch exposed connections.

RSA5100B Series Hard Drive Upgrades 1

Kit description

This kit describes the installation of the following upgrade options:

Option 56: Removable Solid State Drive

Option 59: Internal Hard Drive

Products

RSA5103B Series. All serial numbers.

RSA5106B Series. All serial numbers.

RSA5115B Series. All serial numbers.

RSA5126B Series. All serial numbers.

Option 56 kit parts list

Quantity Part number Description

1 ea 075-1056-XX MANUAL, TECH: RSA5KB Option 56 and 59

INSTALLATION INSTRUCTIONS

1 ea 071-2191-XX MANUAL, TECH; SVCPT-UPG; TEKTRONIX

SUPPLEMENTAL INFORMATION SHEET FOR

THE PEOPLES REPUBLIC OF CHINA; CHINA

ROHS

2 ea 211-1050-XX SCREW, MACHINE; 6-32 X 0.312 L, PNH, STEEL,

ZINC FINISH, T15

4 ea 211-1081-XX SCREW, MACHINE; M3 X 0.5 X 3.5MM,

FLAT WAFER HD W/SERRATIONS STRESS

RELIEVED, PHL, ZINC PLATED STEEL

1 ea 407-5337-XX BRACKET, RHDD; SATA COMBO CABLE

RETENTION

1 ea 407-5473-XX BRACKET; HARD DRIVE 2.5 INCH REMOVABLE

1 ea 335-3314-XX MARKER, ID, REMOVABLE HD

1 ea 850-0263-XX DRIVE ASSEMBLY; REMOVABLE HARD DRIVE,

PROGRAMMED, RSA5XXXB SERIES

1ea N/A LABEL, MANUFACTURED; PRODUCT LABEL,

SAFETY CONTROLLED

2 RSA5100B Series Hard Drive Upgrades

Kit description

Option 59 kit parts list

Quantity Part number Description

1 ea 075-1056-XX MANUAL, TECH: RSA5KB Option 56 and 59

INSTALLATION INSTRUCTIONS

1 ea 071-2191-XX MANUAL, TECH; SVCPT-UPG; TEKTRONIX

SUPPLEMENTAL INFORMATION SHEET FOR

THE PEOPLES REPUBLIC OF CHINA; CHINA

ROHS

1 ea 200-5324-XX COVER; EMPTY DRIVE BAY

4 ea 210-1543-XX SCREW, SHOULDER, SPECIAL; 6-32 (USE WITH

VIBE ISOLATION GROMMETT)

4 ea 211-0510-XX SCREW, MACHINE; 6-32 X 0.375, PNH, ZINC

PLATED STEEL, T15

2 ea 211-0690-XX SCREW, MACHINE; 6-32 X 0.875, PNH, BLACK

ZINC PLATED STEEL, TORX & SLOT

4 ea 348-1835-XX GROMMET; VIBRATION ISOLATION

1 ea 850-0264-XX DRIVE ASSEMBLY; INTERNAL FIXED DRIVE,

PROGRAMMED, RSA5XXXB SERIES

1ea N/A LABEL, MANUFACTURED; PRODUCT LABEL,

SAFETY CONTROLLED

RSA5100B Series Hard Drive Upgrades 3

Removing the installed drives

This section contains all the procedures to remove Option 56 (Removable Hard

Disk Drive) or Option 59 (Internal Hard Disk Drive only) from your instrument.

The section following this one describes the installation of the new drive(s).

Minimum tool and equipment list

The following tools are required to for installation of this kit. All tools are

standard tools that are readily available.

Table 1: Tools required for installation

Item

no. Name Description

1. Screwdriver

handle

(magnetic)

Torque driver handle. Accepts 1/4-in. hex-head driver tips

2. No. 2 Phillips

or Pozidriv tip

Phillips or Pozidriv-driver tip for number 2 size screw heads

3. P-1 Phillips

tip

Phillips driver tip for P-1 size screw heads

4. T-15 TORX

tip

TORX driver tip for T-15 size screw heads

5. T-20 TORX

tip

TORX driver tip for T-20 size screw heads

These instructions are for qualiﬁed service personnel who are familiar

with servicing the product. If you need further details for disassembling or

reassembling the product, refer to the RSA5100B Series Real-Time Signal

Analyzers Service Manual, Tektronix part number 077-0903-XX.

Removing a removable hard disk drive (Option 56)

WARNING. To avoid electric shock, switch off the instrument power, then

disconnect the power cord from the mains power. Failure to do so could result

in injury or death.

4 RSA5100B Series Hard Drive Upgrades

Removing the installed drives

If you are upgrading from Option 56 to Option 59, you need to remove the drive

assembly from the instrument to begin the upgrade process. Perform the following

steps to remove the removable hard disk.

1. Loosen the thumbscrews securing the drive to the front panel.

2. Grasp the drive assembly by the thumbscrews and pull the drive assembly

straight out of the instrument.

3. Place the removed drive assembly in anti-static packaging and store it in a

protected location for possible future use or discard the drive.

Removing the internal hard drive (Option 59)

NOTE. Right-side or left-side references in these instructions assume you are

viewing the instrument from the front panel.

WARNING. To avoid electric shock, switch off the instrument power, then

disconnect the power cord from the mains power. Failure to do so could result

in injury or death.

If you are upgrading from Option 59 (internal hard drive) to Option 56, you have

to remove the internal hard drive from your instrument.

1. Remove the power cord.

2. If it is installed, pull the front cover off the instrument.

3. Remove the two T-15 Torx-head screws that secure the plastic carrying handle

to the side of the instrument. (It is not necessary to remove the black metal

handles.) (See Figure 1.)

4. Remove four T15 Torx-head screws along each side that attach the top and

bottom covers to the instrument, and two T20 screws near the front edge of

the top cover (next to the folding handles).

5. Remove the top and bottom covers. Remove the top cover by pulling it

straight back about 1 inch. Pull out on the sides of the top cover, ﬂexing the

sides slightly to clear the instrument chassis, and pull the top cover away

from the instrument.

6. Remove the eighteen T15 Torx-head screws that secure the top shield to the

chassis and remove the shield.

RSA5100B Series Hard Drive Upgrades 5

Removing the installed drives

Figure 1: Remove covers

6 RSA5100B Series Hard Drive Upgrades

Removing the installed drives

Removing the internal hard

drive

1. Disconnect the two video cables from the PC carrier board. Move the cables

out of the way.

2. Remove the four screws at the corners of the hard disk drive mounting plate

that secure the mounting plate to the instrument.

3. Lift the hard disk drive mounting plate out of the instrument. Disconnect the

SATA cable from the hard disk drive.

4. Remove the four screws that secure the hard disk drive to the mounting plate.

RSA5100B Series Hard Drive Upgrades 7

Installing new drive options

5. Place the removed hard drive in anti-static packaging and store it in a

protected location for possible future use or discard the drive.

NOTE. If you discard or recycle the removed drive, be sure to follow your

organization’s security protocols to ensure the destruction of sensitive data.

6. Reinstall the hard disk drive mounting plate in the chassis.

Installing new drive options

This sections describes how to install your new drive options.

Installing Option 56: Removable hard disk drive

To perform the following procedure you must have already removed option 59

from your instrument. (See page 5, Removing the internal hard drive (Option 59).)

1. Attach the removable hard drive to the removable hard disk drive bracket

(part number 407-5473-XX) with four screws (part number 211-1081-XX)

using a torque driver with a P1 tip. Tighten the screws to 4.0 in-lbs.

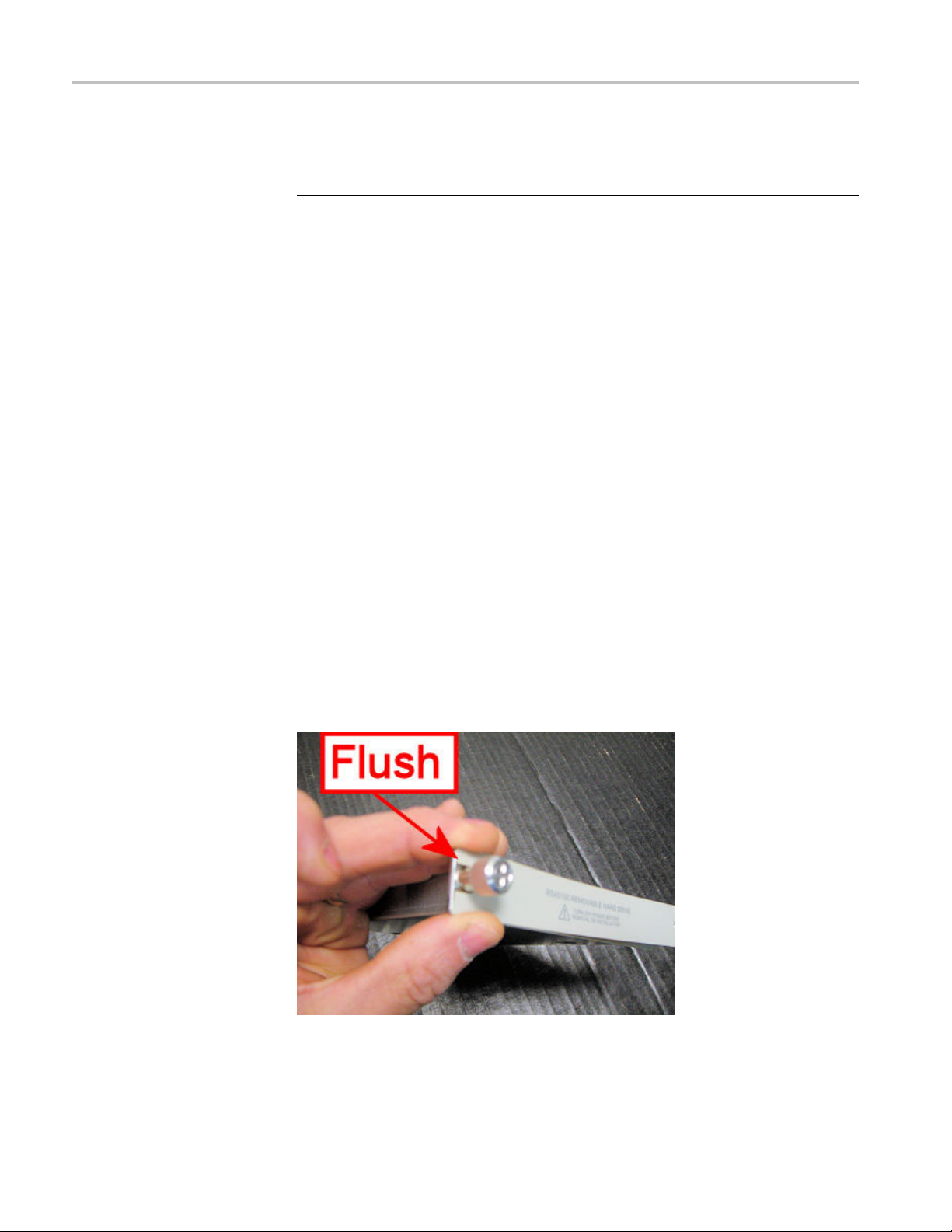

2. Attach the removable hard drive label to the removable hard drive bracket.

Start by centering one end of the label and making it ﬂush with the bracket.

Make sure the label is correctly oriented with the bottom of the label aligned

with the bottom of the bracket.

3. Slide the removable hard disk drive assembly into the drive opening and

secure the hard drive with the two thumbscrews.

8 RSA5100B Series Hard Drive Upgrades
