Tektronix KEITHLEY 8011 User manual

Model 8011 High Current Test Socket Kit

Connection Instructions

PA-1032 Rev. B / May 2011 *PPA-1032B*1

Keithley Instruments

28775 Aurora Road

Cleveland, Ohio 44139

1-800-935-5595

http://www.tek.com/keithley

Model 8011 High Current Test Socket Kit connection instructions

Before proceeding, please read, understand, and follow all safety precautions provided at the

end of this document.

The Model 8011 is designed for testing high power devices with 2600A Series SourceMeter instruments and

the Model 2651A High Power SourceMeter Instrument at currents up at 50 A pulsed and voltages up to 40 V.

The Model 8011 includes two test boards, the 8011-DTB and the 8011-CTB, and cables and connectors for

simplifying connections between the SourceMeter instruments and the device. The 8011-DTB Device Test

Board is designed for testing type TO-247 packaged parts and axial-lead components. The 8011-CTB

Customizable Test Board provides a blank space for user customization — the user can use the socket type of

his or her choice.

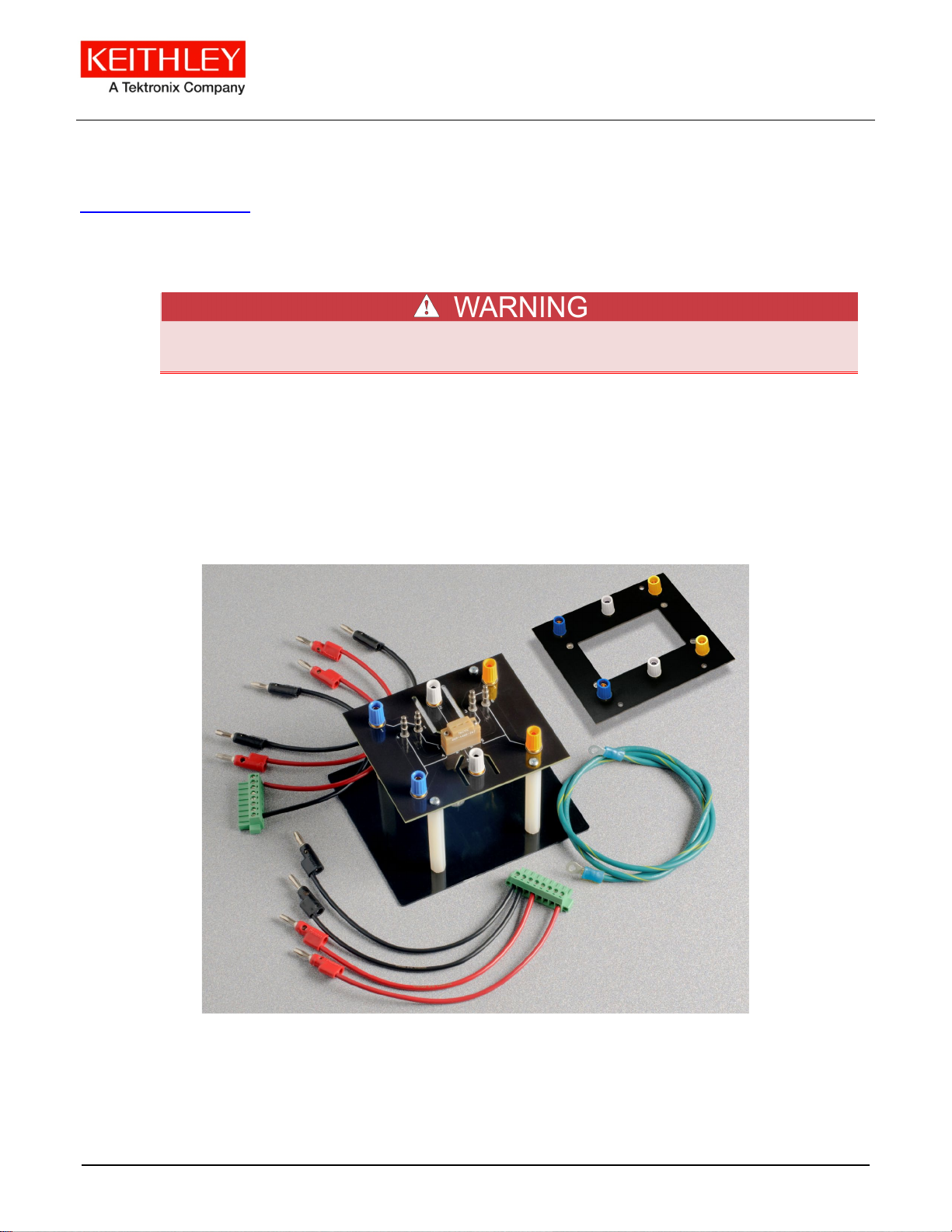

Figure 1: Model 8011 High Current Test Socket Kit*

*Not shown: PA-1032 (these instructions); full set of cables; 8010-317 insulator plugs; and 2600-KIT.

Model 8011 High Current Test Socket Kit

2 PA-1032 Rev. B / May 2011

Power and environmental specifications

For indoor use only.

Specification Value

Voltage limit 40 V DC maximum

Current limit 15 A DC maximum

Unpack and inspect the High Current Test Socket Kit

To unpack and inspect the:

1. Inspect the box for damage.

2. Open the top of the box.

3. Remove the bags that contain the boards and accessories.

4. Carefully lift the Model 8010 out of the box.

5. Inspect the materials for any obvious signs of physical damage. Report any damage to the shipping agent

immediately.

You should have received:

•TO-247 Device Test Board (8010-120; to re-order, use Keithley Model number 8010-DTB)

•Customizable Test Board (8010-130; to re-order, use Keithley Model number 8010-CTB)

•PA-1032 Connection Instructions (this document)

•Four nylon hex standoffs with inserts on each end (ST-272-1)

•Four Phillips flat-head screws (#6-32 x 3/8)

•Two 8 in. (203.2 mm) stackable banana cables — one black (CA-560-0), one red (CA-560-2)

•One mounting plate (8011-301)

•Two 8-pin female plug connectors with screw terminal connections (CS-1629-8)

•Four 9 in. (228.6 mm) black cables with one stackable banana plug and one unterminated end (CA-567-0)

•Four 9 in. (228.6 mm) red cables with one stackable banana plug and one unterminated end (CA-567-2)

•One 120 in. (304.6 cm) green/yellow ground cable with lugs (CA-568-120)

•One #6-32 Keps®washer nut

•Two insulator plugs (quantity includes a spare plug) (8010-317)

•Two screw terminal connector kits (2600-KIT)

Assembly instructions

If you are customizing the 8010-130 Customizable Test Board, make customizations before

assembling the Model 8011.

Tools needed

•Medium Phillips head screwdriver

•5/16 in. nut driver or socket wrench

Model 8011 High Current Test Socket Kit

PA-1032 Rev. B / May 2011 3

Assembly instructions

1. Select the TO-247 Device Test Board (8010-120) or Customizable Test Board (8010-130), as appropriate

for your application.

2. Connect one end of the ground cable to the ground screw at the center of the mounting plate.

3. Attach the ground cable with the #6-32 Keps®washer nut.

4. Thread the four nylon hex standoffs onto the four threaded posts on the mounting plate.

5. Place the 8010-120 or 8010-130 board on the standoffs.

6. Thread four of the Phillips flat-head screws through the 8010-120 or 8010-130 board.

7. Tighten the screws.

8. Attach the other end of the ground cable to protective earth (ground).

The ground wire must be attached to a known safety earth (ground). Failure to attach the

ground wire to a known safety earth (ground) may result in electric shock.

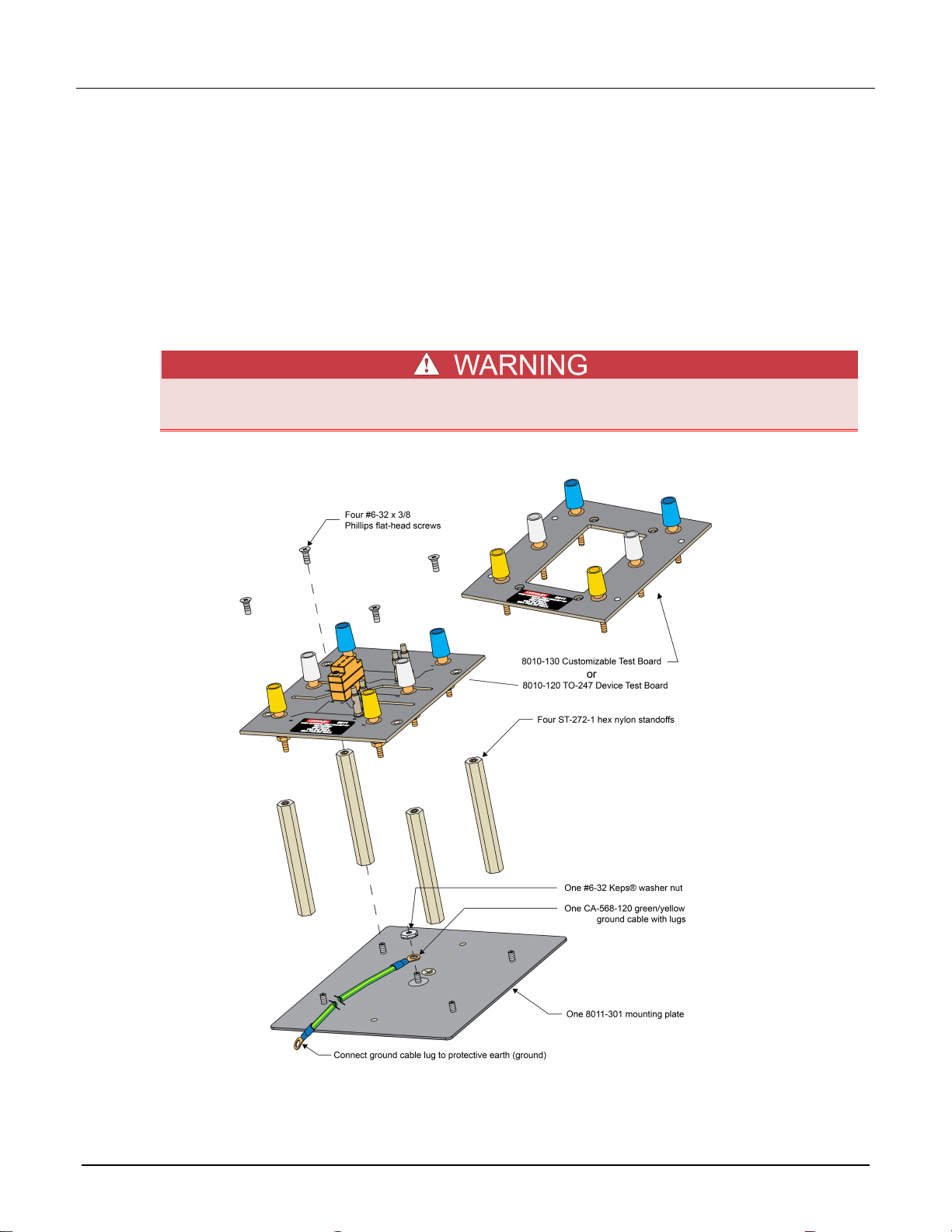

Figure 2: Model 8011 assembly

Model 8011 High Current Test Socket Kit

4 PA-1032 Rev. B / May 2011

Mounting instructions

The 8011-301 mounting plate should be used to secure your test board (8010-120 or 8010-130). It can also be

used to secure the assembled Model 8011 to a work surface using the mounting holes shown in the next figure.

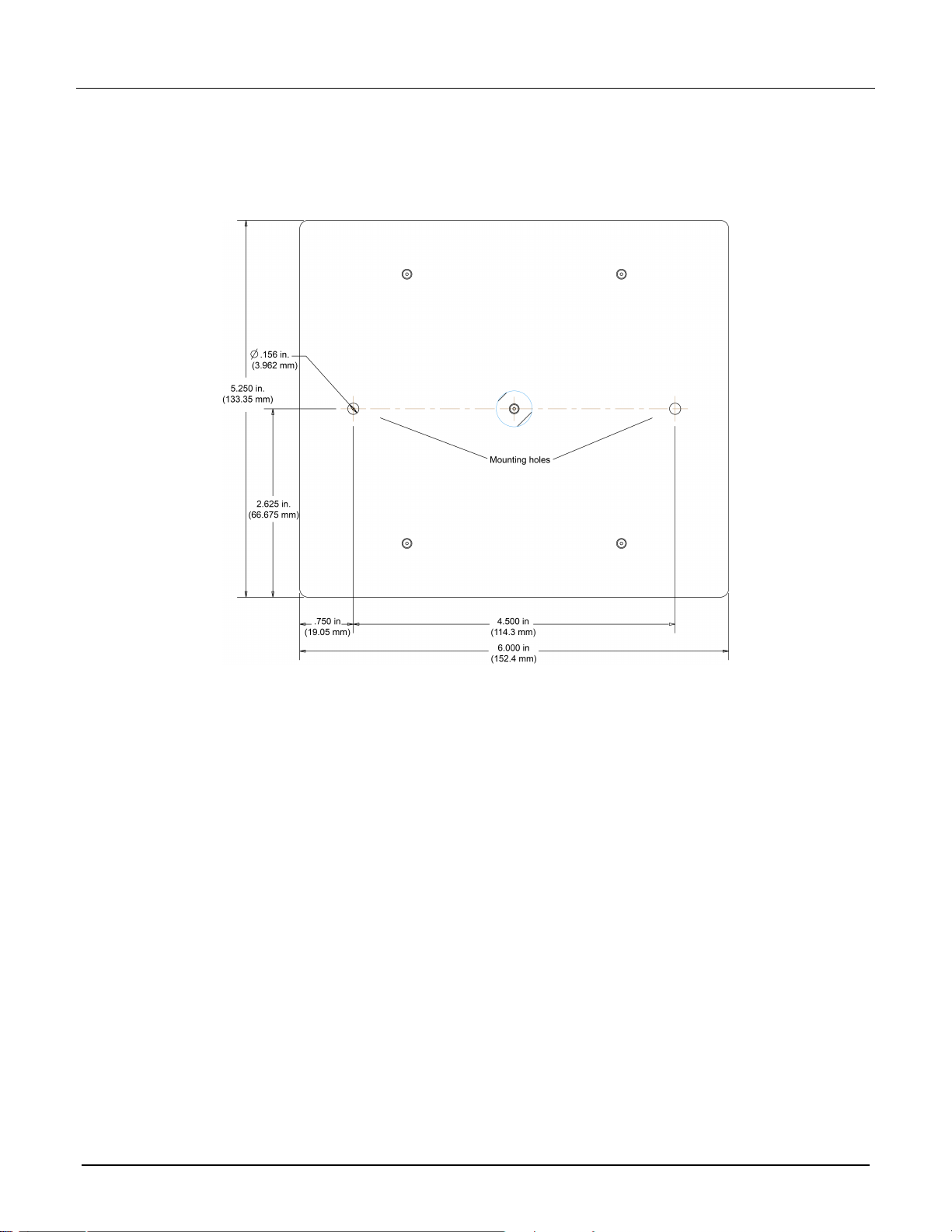

Figure 3: Mounting plate dimensions

Model 8011 High Current Test Socket Kit

PA-1032 Rev. B / May 2011 5

You can attach your own test board or testing fixture to the 8010-130 Customizable Test Board using

the #6-32 screw mounts provided.

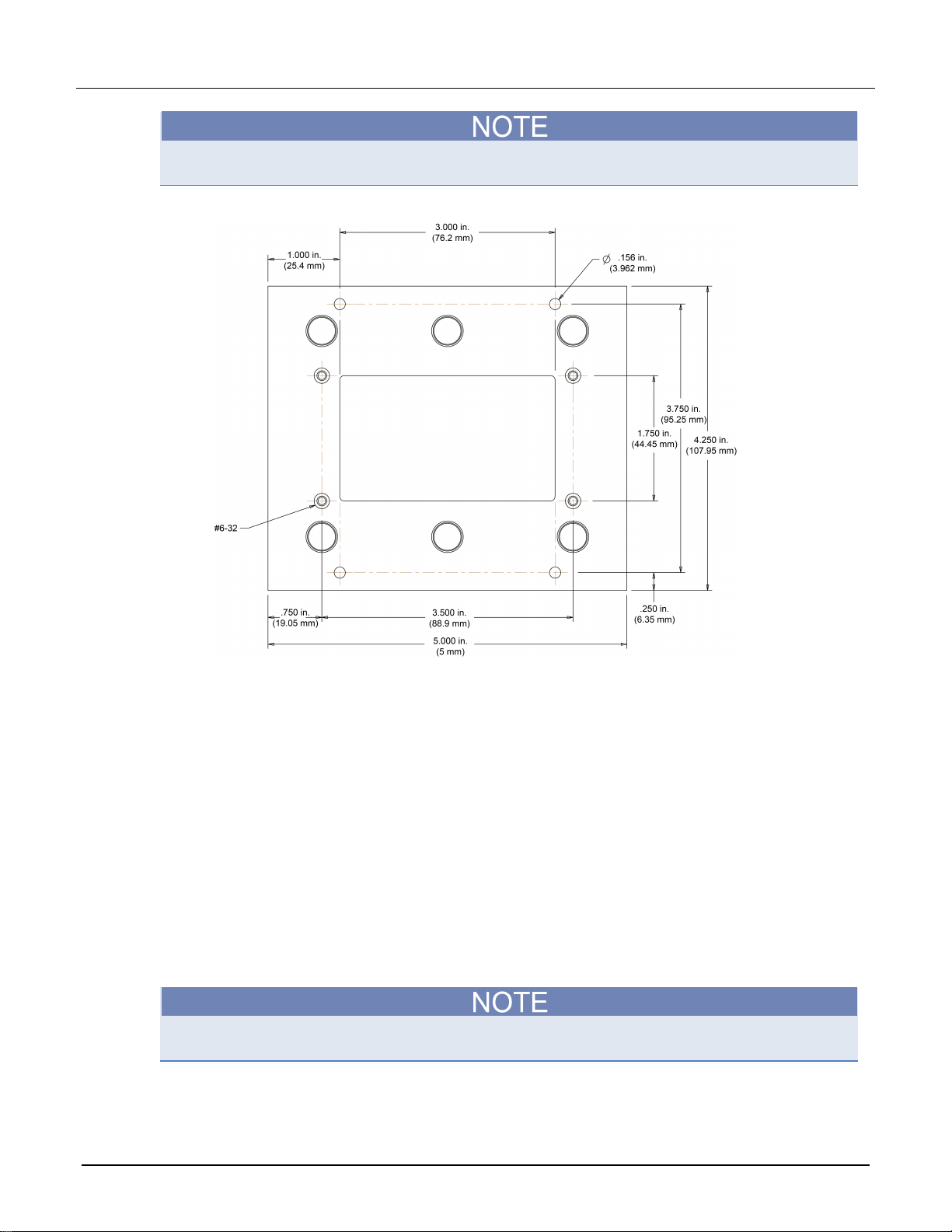

Figure 4: 8010-130 Customizable Test Board dimensions

The High Current Test Socket Kit provides several types of connections to allow you to make connections to

meet the needs of your application.

In general, when making connections:

•Remove power from the SourceMeter instrument before making connections.

•Make connections to the SourceMeter instrument before making connections to the Model 8011 boards.

•Connect the force leads of the SourceMeter instrument to terminals 4, 5, and 6 of the Model 8011 boards.

Connect the sense leads to terminals 1, 2, and 3.

•Install the device under test (DUT) after making the SourceMeter instrument connections.

Use-cases are shown below that demonstrate some typical connections.

Use-cases

Two-terminal DUT using a Model 2651A set to local sense

These instructions provide general information about connections to the Model 2651A. For detail on

the connections, see the Model 2651A user documentation.

Model 8011 High Current Test Socket Kit

6 PA-1032 Rev. B / May 2011

Tools needed

•Small flat-head screwdriver

Instructions

1. Remove power from the Model 2651A.

2. Make connections as shown in the next t and figure.

3. Install the 8010-317 insulator plug into the test socket.

4. Install the 2-terminal DUT into the axial posts labeled 4, 1, 3 and 6 on the 8010-120 board.

5. Return power to the Model 2651A.

6. Press the CONFIG key.

7. Press the SRC or MEAS key (the sense mode can be set from either the V-SOURCE or the V-MEAS

menu).

8. If you pressed the SRC key, select V-SOURCE > SENSE-MODE.

9. If you pressed the MEAS key, select V-MEAS > SENSE-MODE.

10. Select 2-WIRE to enable local sense.

11. Test the device.

Connections for two-terminal device test (local sense)

Cable end Cable Cable end

Model 2651A rear panel CA-552-1 (supplied with the Model 2651A) Open

LO of CA-552-1 Black CA-560-0 8010-120 blue terminal 4

HI of CA-552-1 Red CA-560-2 8010-120 yellow terminal 6

Do not plug the CA-560-0 and CA-560-2 cables directly into the CA-552-1. Always use the

CS-1626-2, as shown in the figure. Plugging the cables directly into the CA-552-1 can permanently

damage the connector.

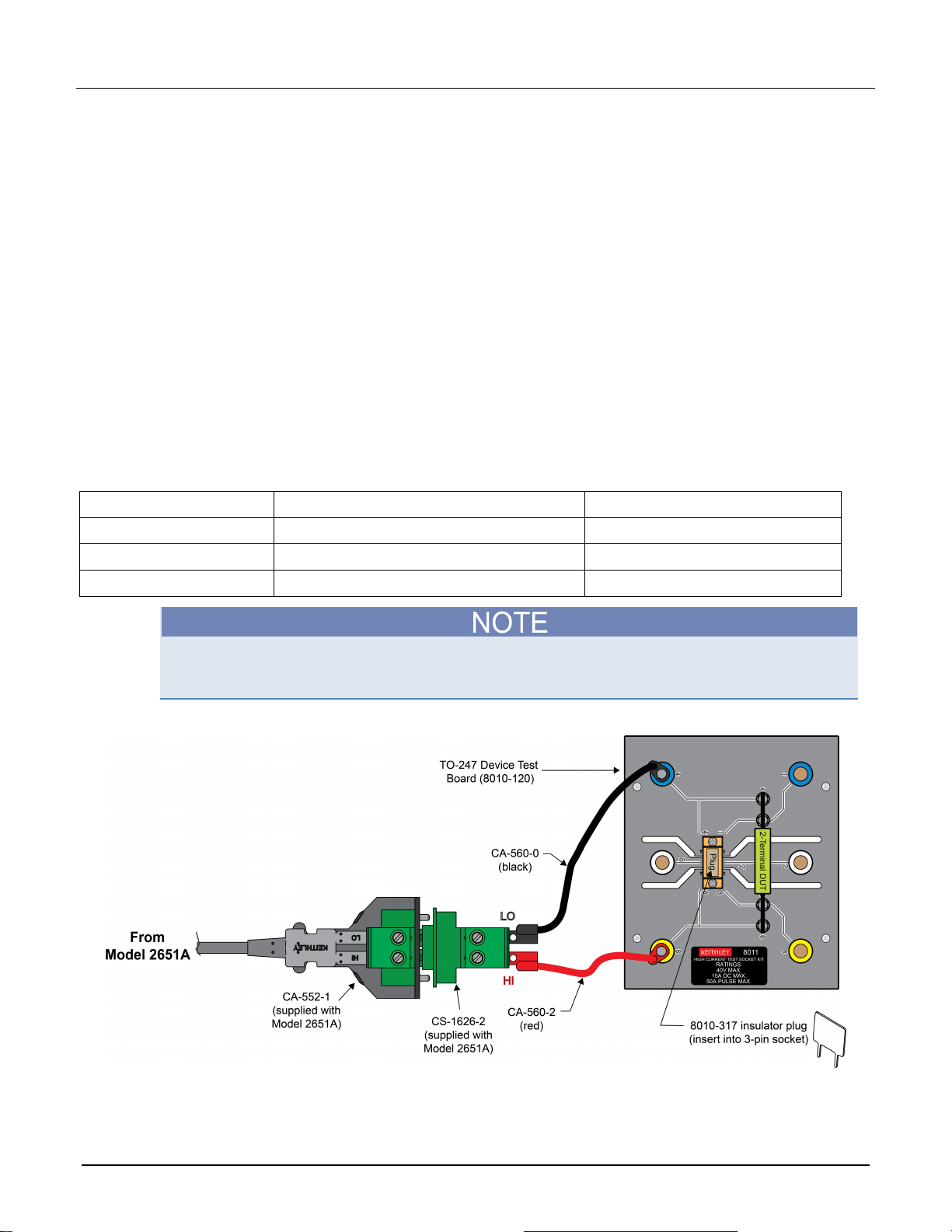

Figure 5: Connections for two-terminal device test (local sense)

Model 8011 High Current Test Socket Kit

PA-1032 Rev. B / May 2011 7

Two-terminal DUT using a Model 2651A set to remote sense

Tools needed

•Small flat-head screwdriver

Instructions

1. Remove power from the Model 2651A.

2. Make connections as shown in the next table and figure.

3. Install the 8010-317 insulator plug into the test socket.

4. Install the 2-terminal DUT into the axial posts labeled 4, 1, 3 and 6 on the 8010-120 board.

5. Return power to the Model 2651A.

6. Press the CONFIG key.

7. Press the SRC or MEAS key (the sense mode can be set from either the V-SOURCE or the V-MEAS

menu).

8. If you pressed the SRC key, select V-SOURCE > SENSE-MODE.

9. If you pressed the MEAS key, select V-MEAS > SENSE-MODE.

10. Select 4-WIRE to enable remote sense.

11. Test the device.

Connections for two-terminal device test (remote sense)

Cable end Cable Cable end

Model 2651A rear panel CA-552-1 (supplied with the Model 2651A) Open

LO of CA-552-1 Black CA-560-0 8010-120 blue terminal 4

HI of CA-552-1 Red CA-560-2 8010-120 yellow terminal 6

Model 2651A rear panel CA-557-1 (supplied with the Model 2651A) CS-1629-8

Sense LO of CS-1629-8 Black CA-567-0 8010-120 blue terminal 1

Sense HI of CS-1629-8 Red CA-567-2 8010-120 yellow terminal 3

Model 8011 High Current Test Socket Kit

8 PA-1032 Rev. B / May 2011

Do not plug the CA-560-0 and CA-560-2 cables directly into the CA-552-1. Always use the

CS-1626-2, as shown in the figure. Plugging the cables directly into the CA-552-1 can permanently

damage the connector.

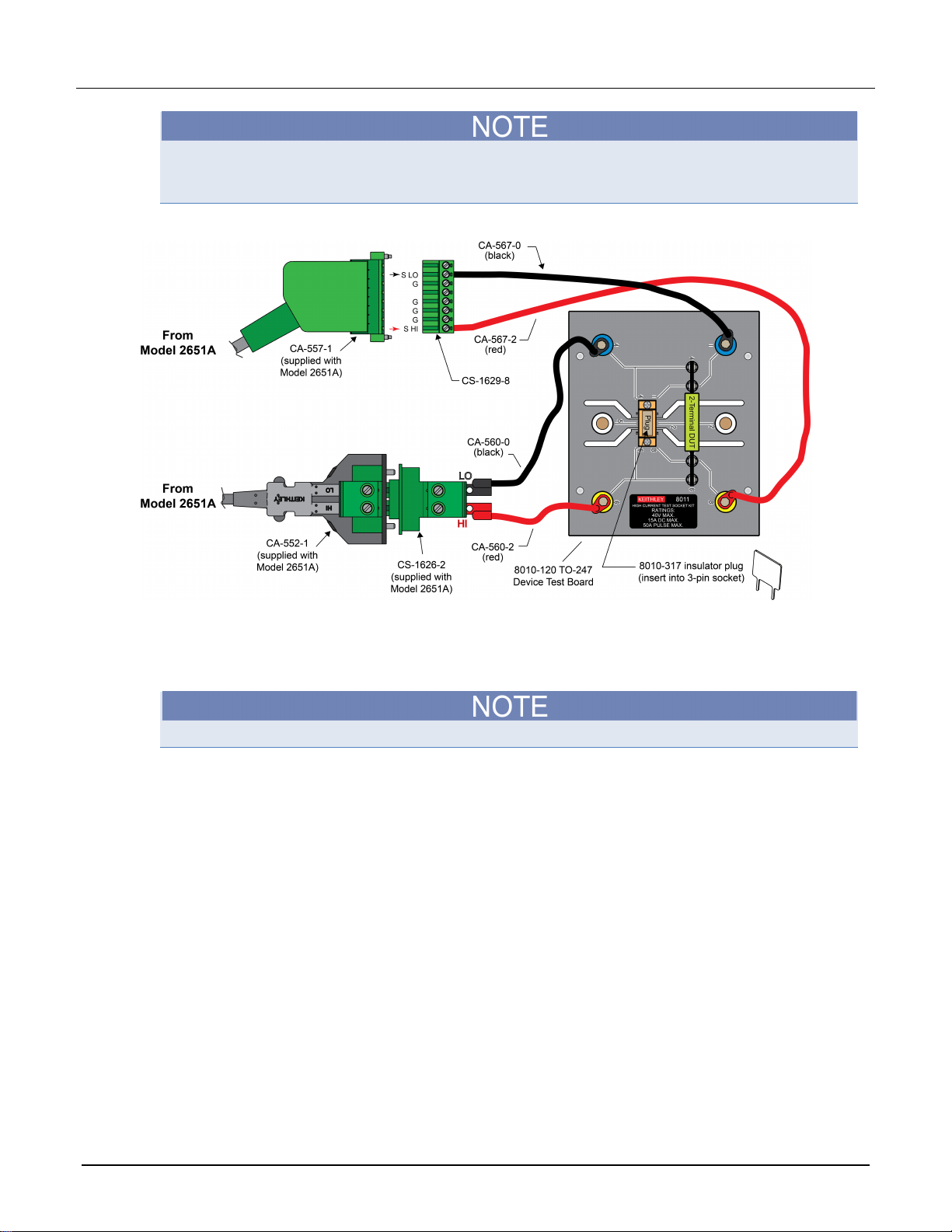

Figure 6: Connections for two-terminal device test (remote sense)

Three-terminal DUT using a Model 2651A and a single or dual channel

SourceMeter instrument

If you are using a Model 2600A, do not set the output above 40 V. The Model 8011 is rated to 40 V.

You can use the Model 8011 with the 8010-120 board to test a three-terminal device using a Model 2651A High

Power System SourceMeter®Instrument and another SourceMeter instrument. This use-case is appropriate for

the following SourceMeter instruments:

•Model 2601A Single-Channel System SourceMeter Instrument

•Model 2611A Single-Channel System SourceMeter Instrument (200 V)

•Model 2602A Dual-Channel System SourceMeter Instrument

•Model 2612A Dual-Channel System SourceMeter Instrument (200 V)

Model 8011 High Current Test Socket Kit

PA-1032 Rev. B / May 2011 9

Tools and equipment needed

•Small flat-head screwdriver

•Cable created using the 2600-KIT screw terminal connector kits (included with the Model 8011); the cable

must use wire that can support 3 A and 200 V

Instructions

1. Remove power from the SourceMeter instruments.

2. Make connections as shown in the next table and figure.

3. Install the three-terminal DUT into the socket on the 8010-120 board.

4. Return power to the SourceMeter instruments.

5. On both SourceMeter Instruments:

a. Press the CONFIG key.

b. Press the SRC or MEAS key (the sense mode can be set from either the V-SOURCE or the V-MEAS

menu).

c. If you pressed the SRC key, select V-SOURCE > SENSE-MODE.

d. If you pressed the MEAS key, select V-MEAS > SENSE-MODE.

e. Select 4-WIRE to enable remote sense.

6. Test the device.

Connections for three-terminal device test

Cable end Cable Cable end

Model 2651A rear panel CA-552-1 (supplied with the Model 2651A) Open

Model 2651A rear panel CA-557-1 (supplied with the Model 2651A) CS-1629-8

Series 2600A rear panel CA-557-x (recommended; separately purchased) CS-1629-8

LO of CA-552-1 Black CA-560-0 8010-120 yellow terminal 6

HI of CA-552-1 Red CA-560-2 8010-120 white terminal 5

Sense LO of CS-1629-8 Black CA-567-0 8010-120 yellow terminal 3

Sense HI of CS-1629-8 Red CA-567-2 8010-120 white terminal 2

Sense LO of CS-1629-8 Black CA-567-0 8010-120 yellow terminal 3

LO of CS-1629-8 Black CA-567-0 8010-120 yellow terminal 3

Sense HI of CS-1629-8 Red CA-567-2 8010-120 blue terminal 1

HI of CS-1629-8 Red CA-567-2 8010-120 blue terminal 4

Model 8011 High Current Test Socket Kit

10 PA-1032 Rev. B / May 2011

Do not plug the CA-560-0 and CA-560-2 cables directly into the CA-552-1. Always use the

CS-1626-2, as shown in the figure. Plugging the cables directly into the CA-552-1 can permanently

damage the connector.

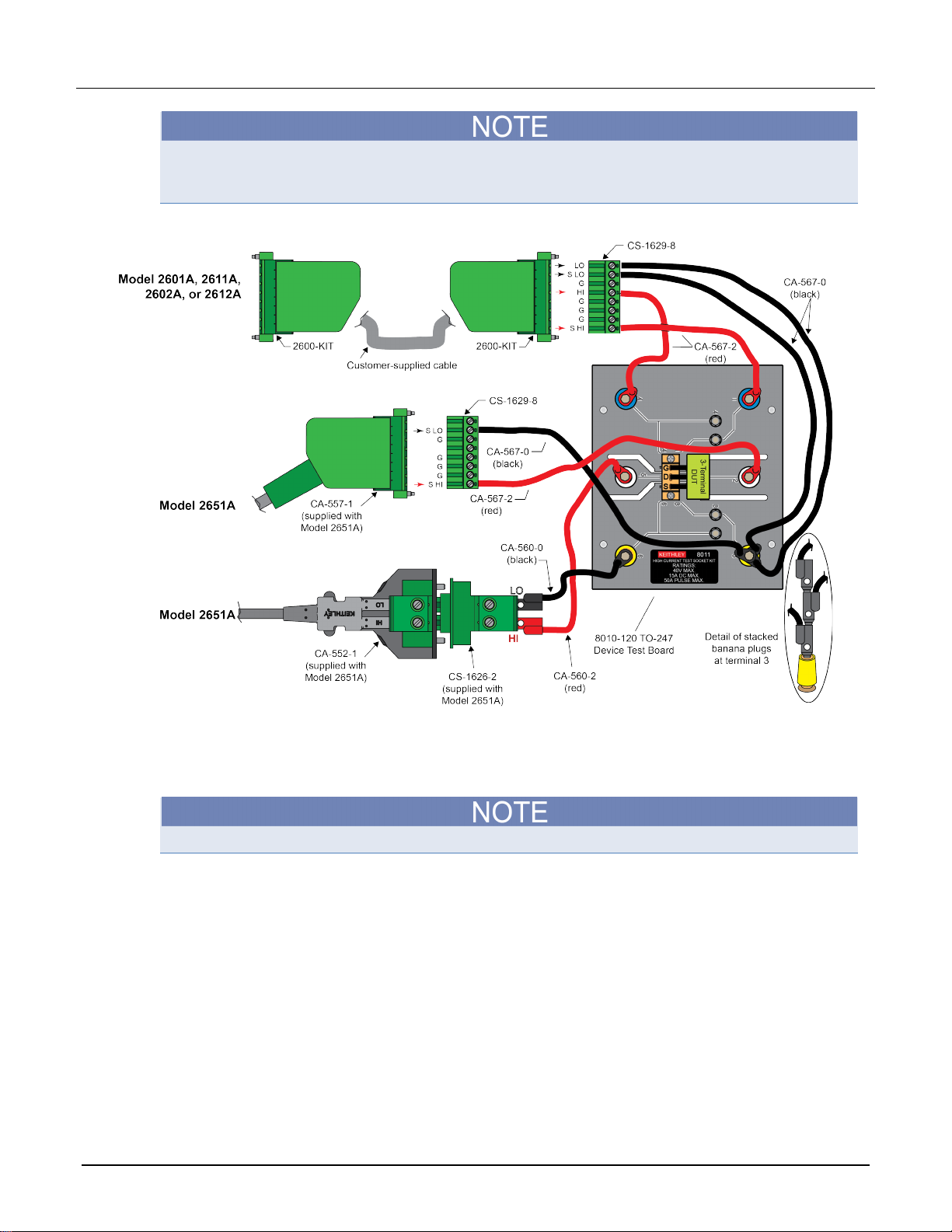

Figure 7: Connections for three-terminal device test

Three-terminal DUT using a Model 2651A and a low current SourceMeter

instrument

Do not set the Model 2635A or Model 2636A above 40 V. The Model 8011 is rated to 40 V.

You can use the Model 8011 with the 8010-120 board to test a three-terminal device using a Model 2651A High

Power System SourceMeter®Instrument and a low-current SourceMeter instrument. This use case is

appropriate for the following SourceMeter instruments:

•Model 2635A Single-Channel System SourceMeter Instrument (1 fA, 10 A Pulse)

•Model 2636A Dual-Channel System SourceMeter Instrument (1 fA, 10 A Pulse)

Table of contents

Other Tektronix Measuring Instrument manuals

Tektronix

Tektronix Keithley 2601B-PULSE User manual

Tektronix

Tektronix IsoVu TIVM Series User manual

Tektronix

Tektronix 1741C User manual

Tektronix

Tektronix RSA5100A Series Owner's manual

Tektronix

Tektronix TLA 700 Series User manual

Tektronix

Tektronix 475A User manual

Tektronix

Tektronix 2714 Service manual

Tektronix

Tektronix Keithley 2651A User manual

Tektronix

Tektronix 492, 492P User manual

Tektronix

Tektronix WFM4000 Series User manual

Tektronix

Tektronix DC 501 User manual

Tektronix

Tektronix KEITHLEY 2600B Series User manual

Tektronix

Tektronix TAP1500 User manual

Tektronix

Tektronix 496 User manual

Tektronix

Tektronix KEITHLEY 4200A-SCS-PK2 User manual

Tektronix

Tektronix TDP3500 Use and care manual

Tektronix

Tektronix Keithley 1756 User manual

Tektronix

Tektronix CSA8000B Series User manual

Tektronix

Tektronix 7L13 User manual

Tektronix

Tektronix 1910 User manual

Tektronix

Tektronix DSA8300 Use and care manual

Tektronix

Tektronix WVR6020 Use and care manual

Tektronix

Tektronix RFM150 User manual

Tektronix

Tektronix CM-9930 User manual

Popular Measuring Instrument manuals by other brands

Suaoki

Suaoki D40 user manual

Elster

Elster BK-G1.6 operating instructions

Endress+Hauser

Endress+Hauser Deltabar FMD71 technical information

Duratool

Duratool D03128 manual

Vega

Vega VEGAPULS 65 Quick setup guide

Tonghui

Tonghui TH2618B Operation manual

Tenmars

Tenmars TM-801 user manual

MSR

MSR 145 user manual

TPS

TPS WP-82 manual

ELMETRON

ELMETRON CP-511 user manual

PCB Piezotronics

PCB Piezotronics 003C30 Installation and operating manual

Tenma

Tenma 72-10465 manual

Endress+Hauser

Endress+Hauser Proline Promag 50 Brief operating instructions

Siemens

Siemens SITRANS F Coriolis FCT030 Function manual

KLINGER

KLINGER CMF V Series instruction manual

EXFO

EXFO FTB-2 Notice

Keysight

Keysight M8290A Getting started guide

ADTEK

ADTEK MW-5 operating manual
