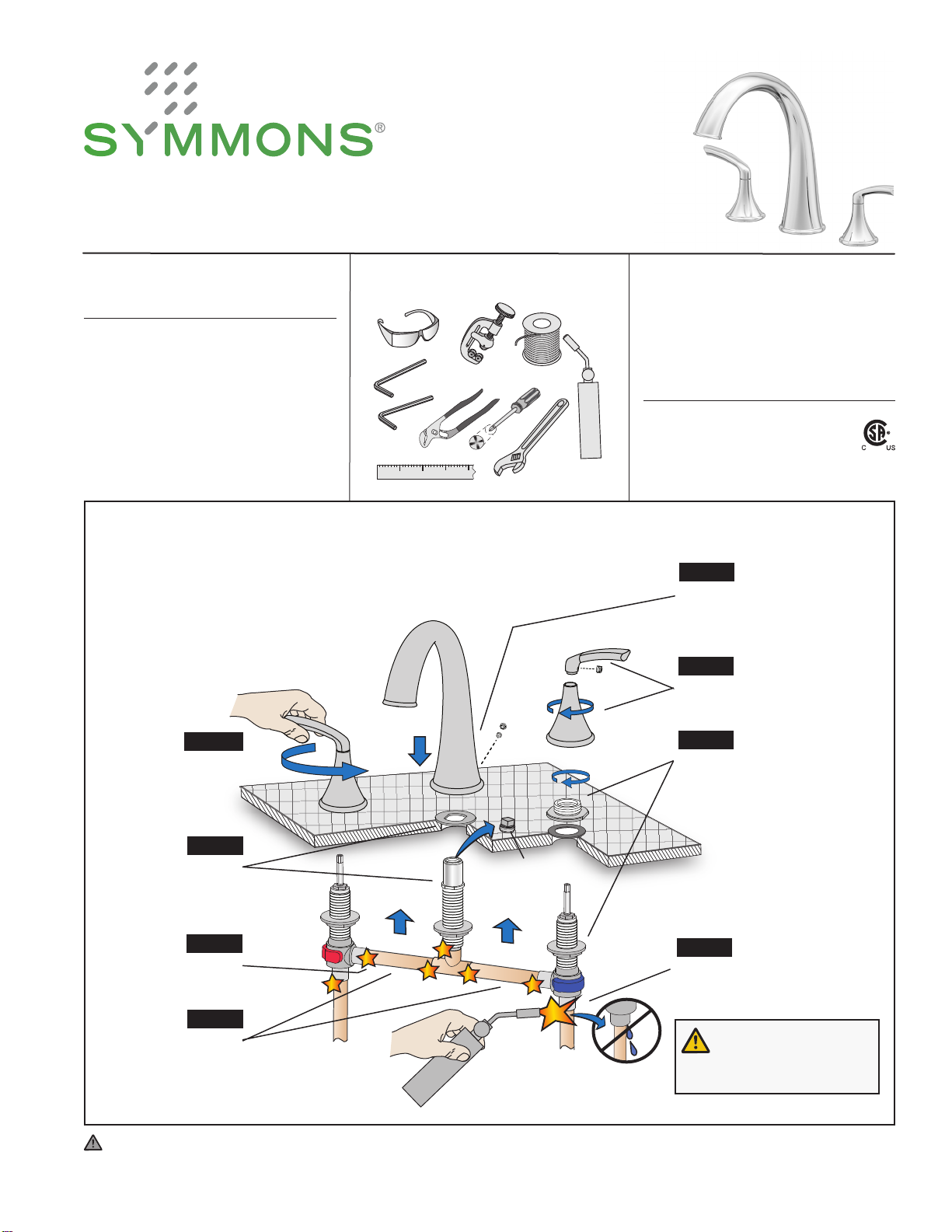

Symmons Elm SRT-5570 Reference guide

3/32"

1/8"

1 2 3 4

Step 1

Cut copper

tubing to length HOT

Supply COLD

Supply

Step 6

Solder supply lines

and check for leaks

Step 2

Solder valve

assembly together

Step 4

Attach supply valves

to deck

Step 5

Attach handles

Step 3

Attach spout

centerbody to deck

Step 7

Remove plug and

attach spout

Step 8

Flush supply lines

Check for leaks with plug

installed in centerbody.

Remove and discard plug

before attaching spout.

centerbody

plug

Quick Install Guide Elm Roman Tub Faucet, SRT-5570

WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer, birth defects,

or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Roman Tub Faucet SRT-5570

Installation Brief

Elm®

Tools & Materials Need Help?

Symmons customer service:

Phone: (800) 796-6667

Email: [email protected]

Monday - Friday 7:30 am - 6:00 pm EST

www.symmons.com/service



Finish Options

-STN Satin Nickel

-SBZ Season Bronze

- Chrome (standard nish)

Model Numbers

SRT-5570 Roman Tub Faucet

Compliance

ASME A112.18.1/CSA B125.1

(101 mm)

2-5/16" dia

(58 mm)

Connect using

1/2" copper tubing

Hole size

1-1/16" (27 mm) min

1-1/2" (38 mm) max

Finished deck

thickness

1-5/16" (33 mm) min

1-7/16" (36 mm) max

Dimensions Elm Roman Tub Faucet, SRT-5570

8" (203 mm) min

18-1/4" (464 mm) max

with Symmons supplied copper tubing

4-1/4"

(102 mm)

7-7/8"

(200 mm)

9-3/8"

(238 mm)

9-3/4"

(246 mm)

2-1/2" dia

(64 mm)

6-13/16"

(173 mm)

Dimensions subject to change without notice.

(76 mm)

1" dia

(25 mm)

1" dia

(25 mm)

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: (800) 796-6667 ■ Fax: (800) 961-9621

RL-143*

includes two

handles

KN-114E (hot)

OFF = CW

KN-113E (cold)

OFF = CCW

KN-113E

identiﬁed

by groove

handle (2)

screw (2)

escutcheon (2)

Replacement Parts

Part Number Item

Handle kit Qty

valve cartridgevalve cartridge

retaining

plate

ange nut

RL-142 Mounting kit, Qty

retaining nut (2)

washer (2)

mounting nut (2)

spout

handle

escutcheon

centerbody

plug

centerbody

cartridge

retaining nut

gasket

ange nut

supply valve

8" copper

tube

copper tee

hole plug

Ordering replacement parts:

Call Symmons customer service at (800) 796-6667,

(781) 848-2250 M-F 7:30 am - 6:00 pm EST or

check our website at www.symmons.com for a

list of Symmons distributors.

Note: For faucets with an optional decorative nish,

add appropriate sufx code letters to part numbers

marked with an asterisk (*) when ordering.

1/8" Allen

wrench

(not included)

3/32" Allen

wrench (not included)

Parts Assembly Elm Roman Tub Faucet, SRT-5570
