STAUFF SPG-DIGI User manual

Operating Instruction

SPG-DIGI

Please read carefully before use!

Contents

Contents ................................................................................................................ 1

1Introduction...................................................................................................... 1

1.1 Notes on Safety / Product Selection................................................................................. 1

1.2 Device Versions and Range of Delivery...........................................................................1

2Commissioning................................................................................................ 2

2.1 Replacing the Batteries ....................................................................................................2

3Functions and keys ......................................................................................... 3

3.1 Display Mode ...................................................................................................................4

3.2 Menu Functions................................................................................................................4

4Connection to the Hydraulics......................................................................... 5

5Operating the SPG-DIGI .................................................................................. 6

5.1 Turning on (ON) ...............................................................................................................6

5.2 Turn off (OFF) ..................................................................................................................7

5.3 Turn on backlight..............................................................................................................7

5.4 MIN/MAX Display ............................................................................................................. 7

5.5 FS Full Scale Display .......................................................................................................7

5.6 Erasing MIN/MAX Values................................................................................................. 7

5.7 OFL Display .....................................................................................................................7

5.8 Zero Point Correction (ZERO).......................................................................................... 8

5.9 Resetting Zero Point Correction.......................................................................................8

5.10 Automatic Power Off .....................................................................................................9

5.11 Changing the Unit .......................................................................................................10

5.12 Filter settings...............................................................................................................11

5.13 Display serial number..................................................................................................11

6Technical Data: .............................................................................................. 12

1 Introduction

The SPG-DIGI is a digital manometer featuring a MIN/MAX display function. Full scale (FS) accuracy is

± 0,5% based on the upper limit of the measurement range.

Dynamic pressure peaks are measured at a scanning rate of 10 ms (100 measurement values/second).

The MIN/MAX memory is continuously updated and rewritten.

1.1 Notes on Safety / Product Selection

The correct functioning of the SPG-DIGI can only be guaranteed when the specifications detailed in

these operation instructions are adhered to. In particular, specifications relating to the permitted upper

limit of the measurement range as well as the permissible temperature range must be observed.

Serious malfunctions leading to personal injury or damage to property can result from using the

chosen product in applications that do not comply with the specifications or from disregarding the

operation instructions. In particular, incorrect mounting of the manometer and the corresponding adapter

can cause the manometer to be torn out of the assembly.

For Service, Repair and Calibration of the measurement instruments please contact your STAUFF

sales branch.

1.2 Device Versions and Range of Delivery

Device Versions and scope of delivery

Pressure connection G 1/4 male thread

Without Connection adapter

Basic setting to unit "bar"

Pressure connection 7/16-20 UNF male

Without Connection adapter

Basic setting to unit "PSI"

Measurement

Range Part No. Measurement

Range Part No.

-1… 16 bar SPG-DIGI-B0016-B -14,5… 230 PSI SPG-DIGI-B0016-U

0… 100 bar SPG-DIGI-B0100-B 0 ... 1450 PSI SPG-DIGI-B0100-U

0… 400 bar SPG-DIGI-B0400-B 0… 5800 PSI SPG-DIGI-B0400-U

0… 600 bar SPG-DIGI-B0600-B 0… 8700 PSI SPG-DIGI-B0600-U

0…1000 bar SPG-DIGI-B1000-B

SPG-DIGI without Adapter

SPG-DIGI with Adapter

Page 1 of 13

2 Commissioning

The SPG-DIGI is supplied with batteries fitted.

The device is operational as soon as it is turned on.

Caution!

Turn off the device before replacing the

batteries. Open the battery compartment.

Insert the new batteries as depicted. Ensure

correct polarity of the batteries.

Batteries: 2 x 1,5 V (LR6 - AA)

2.1 Replacing the Batteries

When in continuous operation (without light), the service life of the batteries is 1.500 hours.

A battery symbol permanently displays the actual battery status.

The serial number is of the SPG-DIGI pressure

gauge is no longer displayed on a label under the

protective rubber cap but now in the SPG-DIGI

software menu.

Please press the button

ZERO and hold the button

for min. 2 s. The SPG-DIGI will switch through the

following menu points on every keystroke:

- Automatic Switch off (PO, 5.10)

- Changing the units (unit, 5.11)

- Filter settings (Filt, 5.12)

- Display serial number (5.13)

Page 2 of 13

3 Functions and keys

Display

• 4 ½ digit LCD with backlight

• Displays measurement values and menu

functions

- „Bar-graph“ with peak & hold

function

- Actual Value display (size 15mm)

- MIN/MAX or FullScale (FS)

(8 mm)

- Battery status

Keys

OFF

MIN

MAX

ZERO

RESET

Key Function

OFF

ON /OFF

Turns the device on / off.

Press for 2 s. Turns on the Back Light (stays on for 20 s.).

MIN

MAX

MIN

MAX

Select display unit: MIN, MAX or FS.

Minimum value,

Maximum value (=pressure peak)

Displays the upper limit (FS) of the scale (e.g.400 bar)

ZERO

MENU:

ZERO:

Press for 2 s.

Changes the unit.

Auto power off - on/off.

Zero point calibration.

RESET

RESET:

OK:

Erases MIN and MAX values from the memory.

Confirms the MENU functions.

Page 3 of 13

3.1 Display Mode

The actual pressure (ACT) is indicated in the display mode. The ACT measured value is displayed

in the corresponding unit. The MIN, MAX or FS values is indicated in the lower oart of the display.

Display Description

bar-graph Graphic indication of the actual pressure.

A pressure peak is indicated by means of a pixel (graduation mark).

The indicated value is refreshed at intervals of 50 ms (20

measurements /s).

ACT Indicates the actual pressure.

The indicated value is refreshed at intervals of 300 ms (3 times /s).

MIN/MAX Indicates the MIN-, MAX- or FS value according to setting.

The indicated value is refreshed at intervals of 300 ms (3 times /s).

FS Upper limit of the scale (e.g. 400 bar).

Units Indicates the chosen unit.

Battery

Indicates the battery status (5 segments).

x10 Indicated value (actual indication and MIN/MAX indication) x10

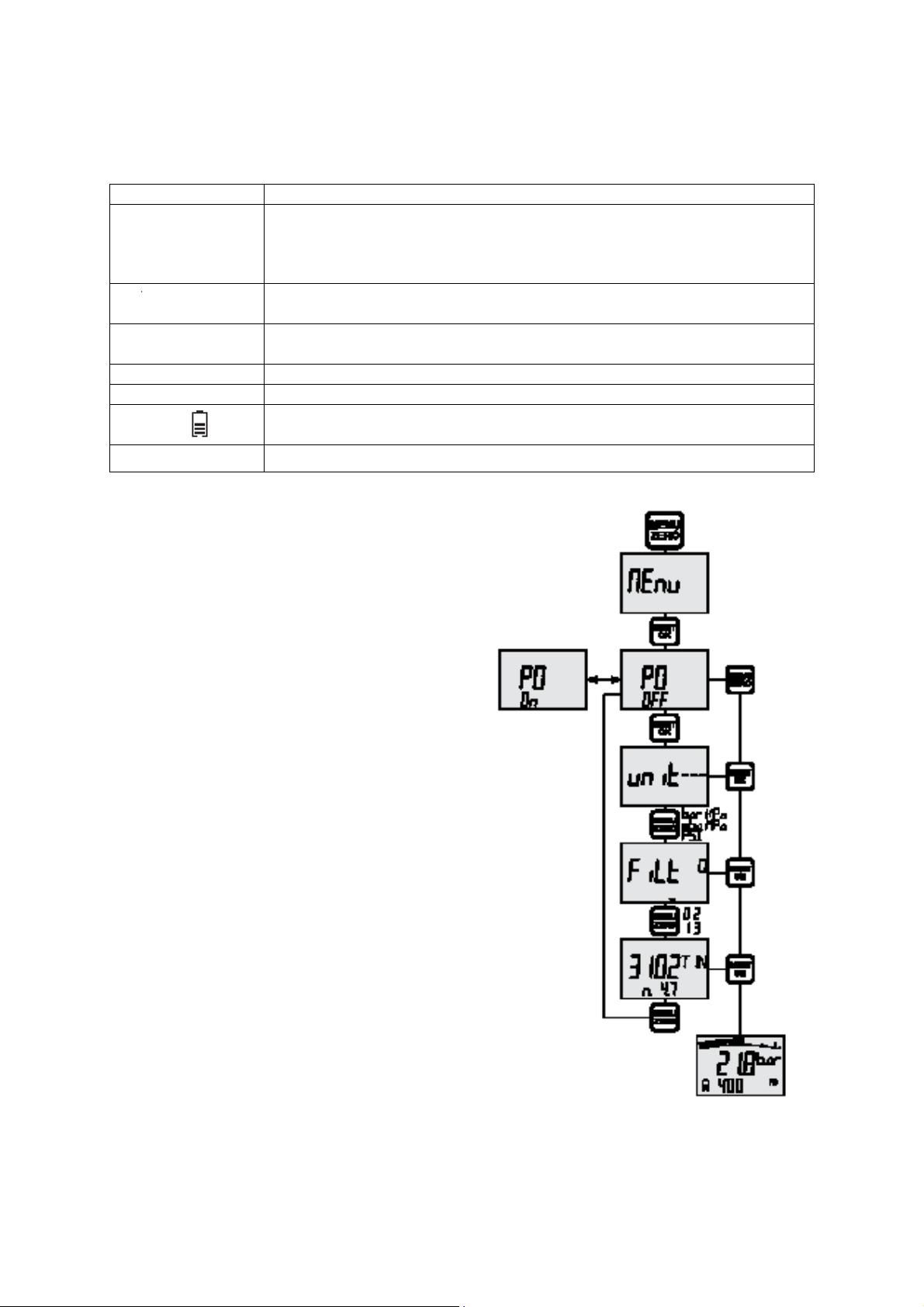

3.2 Menu Functions

The following settings can be made

in the MENU function:

• Auto Power Off – on or off

• Unit selection

(bar/mbar/PSI/kPa/Mpa.)

Press the MENU key for 2 seconds to

activate the functions menu.

Press the MENU key again to select

the next function.

Press the OK key to save the function setting.

The device then switches to the display mode.

Page 4 of 13

4 Connection to the Hydraulics

The SPG-DIGI is available with male thread G ¼ (BSPP) or 7/16-UNF for the corresponding versions

(bar / psi). Several adapters for other pressure connections can be supplied also.

Please make sure that the device is properly mounted to avoid malfunctions.

Please do not assemble while the SPG-DIGI is pressurized

Connection Designation Adapter

G1/4 to M16x2 SDA20-G1/4

G1/4 to M16x1,5 SDA15-G1/4

G1/4 to S12,65x1,5 SDA12-G1/4

Adapter SAD only in conjunction with Adapter SDA20-G1/4

M16x2 to M16x1.5 SAD20/15-P

M16x2 to S12,65x1.5 SAD20/12-P

M16x2 to Plug SAD20/10-P

(Other adapters on request available.)

Observe specified torques when fitting the SPG-DIGI:

The spanner size of the pressure connection is 27 mm

Pressure connection Torque

¼ BSPP 25 Nm

7/16-20 UNF 35 Nm

When fitting directly, please ensure the SPG-DIGI can be rotated freely.

Safety instructions for using the 1.000 bar operating range:

Please note that special connection adapters are available which are approved for

a nominal working pressure of 1.000 bar.

Please pay attention to built in test points acc. to rated nominal pressure and

specified safety factors.

Page 5 of 13

5 Operating the SPG-DIGI

5.1 Turning on (ON)

MIN FS

MAX

REC

x10

A self-test procedure is carried out

OFF Press

The measuring range is indicated

(FS)

Unit (bar) SPG-DIGI-…-B

Unit (PSI) SPG-DIGI-…-U

Auto Power Off function is active.

Power off activates automatically

after 5 min. This function can be

altered in MENU.

MAX

Display mode.

ACT value displayed

MAX pressure peak

Page 6 of 13

5.2 Turn off (OFF)

OFF Press once (briefly)

5.3 Turn on backlight

OFF Press for 2 s

The backlight turns off automatically after 20 seconds.

5.4 MIN/MAX Display

Use this key to toggle the required value.

The key function is sequential; the values are indicated in the display in sequence.

The MIN/MAX function is used to measure pressure peaks. The respective lowest (MIN) and highest

(MAX) measured values are stored in the MIN/MAX memory. Values in the MIN/MAX memory are

erased when the device is turned off. If different pressure tests are to be carried out in succession, the

MIN/MAX memory must be erased after each measurement.

MIN

MAX

MIN / MAX and FS value is indicated in the display

5.5 FS Full Scale Display

Displaying the upper limit of the scale (FS) is designed to increase readability of the bar graph function.

The upper limit of the measurement range is indicated numerically.

FS is indicated in sequence after MIN and MAX

MAX

MIN

FS is displayed.

5.6 Erasing MIN/MAX Values

RESET

Erases MIN/MAX values.

5.7 OFL Display

This indicates that the applied pressure is outside given full scale

range (at appr. 20% overload from FS).

If the message will remain displayed, while the SPG-DIGI is

pressure less, please consult your local STAUFF office.

Page 7 of 13

5.8 Zero Point Correction (ZERO)

The zero point can be corrected manually should undesired deviations occur when no system pressure

is being applied (atmospheric pressure).

OFF

Caution! The zero point correction sets the current ACT value to zero.

In order exclude erroneous measurements; ensure no system pressure is

being applied when carrying out this function.

Press ZERO (quick)

ZERO

RESET

This initiates the zero point correction..

The ACT (actual) value is indicated in the display as 0.0 bar.

This correction remains active until the device is turned off.

OFL / ZEro is displayed for 3 s if the measured pressure is

greater than 5% of the measurement range.

Zero point correction cannot be carried out.

Please ensure that no system pressure is being applied.

5.9 Resetting Zero Point Correction

Turn off the device.

Zero point correction is no longer active when the device is turned off and on again.

Page 8 of 13
