StarTech.com PCI1PM User manual

PCI Parallel Adapter

1-Port Remappable PCI Parallel

Adapter Card

PCI1PM

Instruction Manual

Manual Revision:01/10/2011

For the most up-to-date information, please visit www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents..................................................................... 1

System Requirements ................................................................. 1

Installation....................................................................... 2

DIP Switch Settings..................................................................... 2

Hardware Installation................................................................... 3

Driver Installation......................................................................... 3

Legacy ISA Address Mode...................................................... 3

Standard Plug-and-Play Mode ................................................ 9

Pinout............................................................................... 10

Speciﬁcations.................................................................. 11

Technical Support........................................................... 12

Warranty Information...................................................... 12

Introduction

The PCI1PM Re-mappable 1 Port PCI Parallel Card adds one fully

featured I/O mapped IEEE 1284 parallel port to your system using a

PCI expansion slot.

Saving time and money in costly upgrades of legacy hardware, the

re-mappable parallel card can be installed and conﬁgured using legacy

memory ranges (278, 378, and 3BC legacy ISA addresses) under

DOS® and Windows® operating systems for compatibility with legacy

devices such as security dongles that require a speciﬁc memory I/O

range for operation.

The card also supports standard installations, with plug-and-play

WHQL certiﬁed drivers for Windows® as well as support for DOS® and

Linux®.

Packaging Contents

• 1 x PCI Parallel card

• 1 x Low Proﬁle Installation Bracket

• 1 x Driver CD

• 1 x Instruction Manual

System Requirements

• PCI enabled computer with available full or low proﬁle PCI slot

• Microsoft®Windows®XP/Server 2003/Vista/Server 2008 R2/7

(32/64-bit), or DOS, or Linux®kernel 2.4.x/2.6.x

Installation

WARNING! PCI cards, like all computer equipment, can be severely

damaged by static electricity. Be sure that you are properly grounded

before opening your computer case or touching your PCI card.

StarTech.com recommends that you wear an anti-static strap when

installing any computer component. If an anti-static strap is unavailable,

discharge yourself of any static electricity build-up by touching a large

grounded metal surface (such as the computer case) for several

seconds. Also be careful to handle the PCI card by its edges and not

the gold connectors.

DIP Switch Settings

This card supports both standard PCI Plug-and-Play mode, as well as

the legacy ISA addresses 278, 378 and 3BC. Set the switches on the

card to the desired mode, prior to installation.

System Assigned

(PnP)

1 - OFF

2 - OFF

3 - OFF

4 - OFF

378 (Legacy ISA)

1 - ON

2 - ON

3 - OFF

4 - OFF

278 (Legacy ISA)

1 - ON

2 - OFF

3 - ON

4 - OFF

3BC (Legacy ISA)

1 - ON

2 - OFF

3 - OFF

4 - ON

Hardware Installation

1. Turn your computer off and any peripherals connected to the

computer (i.e. Printers, external hard drives, etc.). Unplug the power

cable from the rear of the power supply on the back of the computer

and disconnect all peripheral devices.

2. Remove the cover from the computer case. Refer to documentation

for your computer system for details.

3. Locate an open PCI or PCI-X slot and remove the metal cover plate

on the rear of the computer case.

4. Insert the card into the open PCI or PCI-X slot and fasten the card’s

bracket to the rear of the case.

NOTE: If installing the card into a small form factor/low proﬁle system,

replacing the pre-installed full proﬁle bracket with the included low

proﬁle installation bracket may be necessary.

5. Place the cover back onto the computer case.

6. Insert the power cable into the socket on the power supply and

reconnect all other connectors removed in Step 1.

Driver Installation

Legacy ISA Address Mode

Windows 2000/XP/Server 2003/Vista

1. In Windows, open the Control Panel and run the Add New Hardware

wizard.

2. When prompted, select that the hardware is already installed, then

choose the “Add a new hardware device” from the list of device

types.

3. Select the option to install the hardware manually, then select “Ports”

has the hardware type.

4. From the Standard Port Types, select ECP Printer Port, then

proceed to complete the installation.

5. Once the hardware wizard has completed, access the Device

Manager by right-clicking on My Computer and selecting the

“Manage” option. In the Computer Management window, select

Device Manager from the left window panel.

6. Locate the new port under the “Ports” category and right-click on it

and select “Properties”.

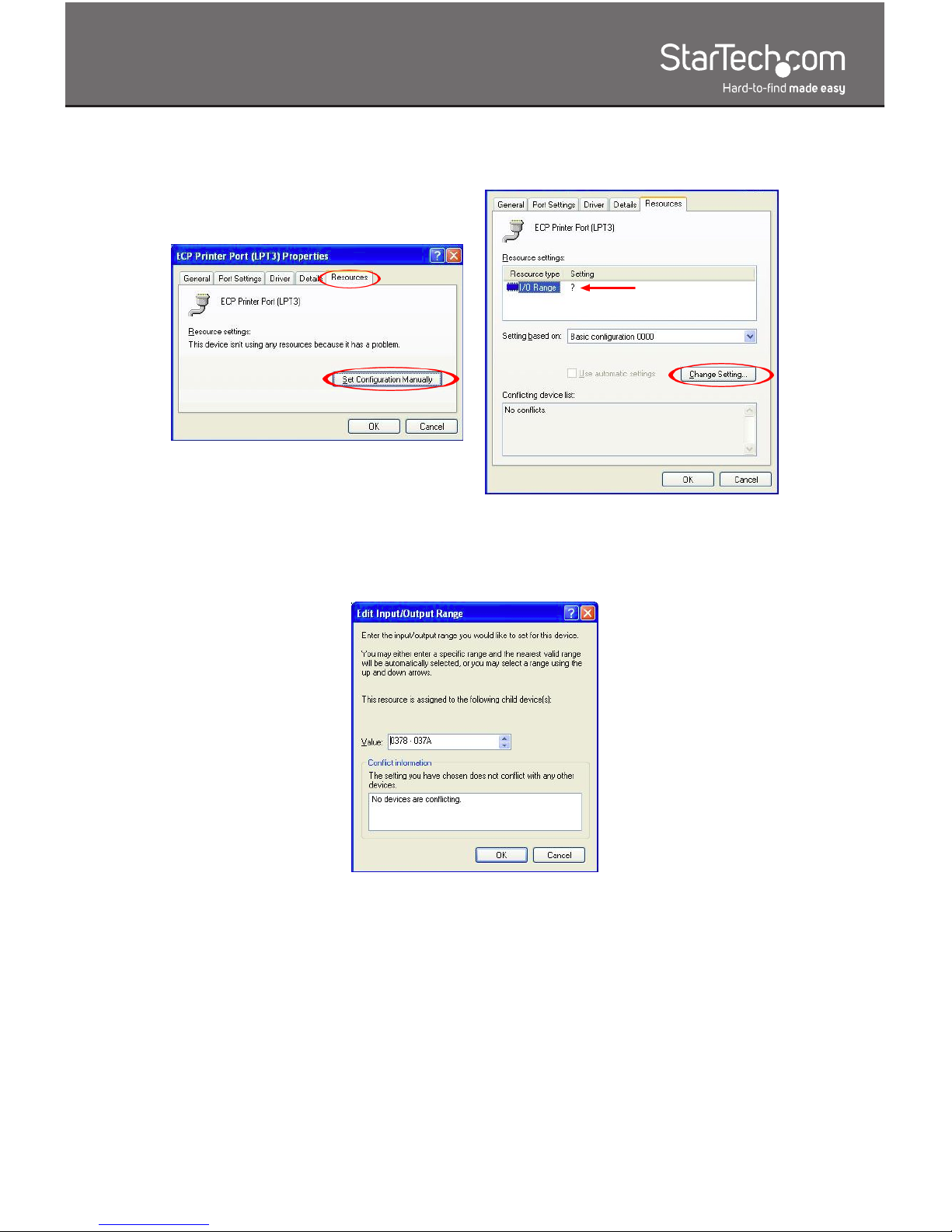

7. In the Properties window, select the “Resources” tab along the top

and click the “Set Conﬁguration Manually” button.

8. Select “I/O Range” under the Resource Settings then click the

“Change Settings” button.

9. Select the “Value” that matches the DIP switch settings used for the

adapter card and note any conﬂicts that appear. Accept the settings

and reboot the computer.

10. If a conﬂict is not reported in Device Manager, then the port should

be ready for use. Otherwise contact the system or motherboard

manufacturer for a possible work around.

Windows 7/Server 2008 R2

1. Access the Device Manager by right-clicking on My Computer

and selecting the “Manage” option. In the Computer Management

window, select Device Manager from the left window panel.

2. Click on “Action” from the top menu and select the “Add Legacy

Hardware” option. This will launch the Add Hardware wizard.

3. When prompted, select the option to install hardware manually, then

select “Ports” as the hardware type.

4. From the Standard Port Types category, select ECP Printer Port,

then proceed to complete the wizard.
