StarTech.com PEX2IDE User manual

Manual Revision: 11/25/2011

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

PEX2IDE

1 Port PCI Express IDE Controller Adapter

Card

*actual product may vary from photos

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per StarTech.com Scheda controller

PCI Express IDE (PEX2IDE) o cerca il tuo prodotto tra le migliori offerte diAltre Schede

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction ...........................................................................................1

Features ........................................................................................................................................................ 1

Package Contents ..................................................................................................................................... 1

System Requirements.............................................................................................................................. 1

Installation ..............................................................................................2

Installing the PCI Express expansion card........................................................................................2

Software Installation ................................................................................................................................ 3

Changing the Boot Sequence ..............................................................................................................3

Specications..........................................................................................4

Technical Support ..................................................................................5

Warranty Information............................................................................5

Instruction Manual

Introduction

Thank for purchasing a StarTech.com 1 Port PCI Express IDE Adapter Card. Using the

speed and reliability of PCI Express, you will be able to add IDE connectivity to a host

computer - a cost-eective way to use legacy devices with more modern computers.

Features

• Provides data burst transfer rates up to 133 MB/s

• Supports ATA/ATAPI Command

• Onboard ROM BIOS provides Boot Features

• One channel IDE support for up to two drives

• Supports PIO Mode 0/1/2/3/4, UDMA 33/66/100

• Supports 48-bit LBA mode over 137Gb

Package Contents

• PCI Express IDE Controller Card

• IDE Cable

• Low Prole Bracket

• Instruction Manual

System Requirements

• PCI Express-enabled system with an available PCI Express slot

• Windows 2000 / XP / Server 2003 / Windows Vista / 7 / operating system

Instruction Manual

Installation

Installing the PCI Express expansion card

WARNING! PCI Express cards, like all computer equipment, can be severely damaged

by static electricity. Be sure that you are properly grounded before opening your

computer case or touching your card. StarTech.com recommends that you wear an

anti-static strap when installing any computer component. If an anti-static strap is

unavailable, discharge yourself of any static electricity build-up by touching a large

grounded metal surface (such as the computer case) for several seconds. Also be

careful to handle the card by its edges and not the gold connectors.

1. Turn OFF the computer power before installation.

2. Remove the chassis cover from your computer.

3. Locate an unused PCI Express slot and remove the corresponding slot cover from

rear panel of the computer chassis. Retain the screw (if applicable) used to hold the

slot cover in place.

4. Align the PCI Express card with the unused PCI Express expansion slot. Applying

pressure evenly across the top edge of the expansion card, rmly but gently insert

the card into the slot, ensuring that the card is properly aligned with the rear panel

slot.

5. Secure the card to the motherboard and rear chassis, using the screw removed in

step 3

Activity LED

Boot BIOS

J3 Activity LED

connector

Instruction Manual

6. With the drives secured within the computer case, use the IDE cable provided to

connect the Master and Slave devices to the PEX2IDE IDE connector. Please note the

orientation of the IDE cable, as illustrated below.

7. Replace the chassis cover (removed in step 2).

8. Power on the computer and observe the BIOS messages that appear on the monitor.

The BIOS will list all Parallel ATA devices attached to the PATA PCI Express Host

Adapter. For example:

(Copyright Messages)

HDD0: Maxtor 6L080P0 81 GB

Press any key to continue...

If the information displayed on your monitor is correct (all installed devices are listed

with the correct device name, etc.), the PATA PCI Express Host Adapter has successfully

been installed in your computer.

Software Installation

Because PEX2IDE supports native IDE mode, driver installation is not required.

Windows operating systems will detect the card and install the necessary driver

automatically.

Changing the Boot Sequence

Changes to the boot sequence of the devices installed in the host computer must be

made through the host computer motherboard BIOS setup utility.

1. Launch the motherboard BIOS setup utility. Normally, this can be done by pressing

the DEL (DELETE) key while the BIOS is checking all hardware congurations

2. Select Advanced BIOS Features

BLACK

To Master

GREY

To Slave

BLUE

To PEX2IDE

Instruction Manual

3. Change the Hard Disk Boot Priority / First Boot Device to enable the system to boot

from the designated drive.

4. Save and exit the BIOS.

Please note that due to variations in BIOS designs, the above instructions may dier

from your system BIOS. For further instruction on how to complete this step, please

consult the documentation that accompanied your motherboard or computer system

purchase.

Specications

Bus Type PCI Express

Connectors 1 x 40 PIN IDC MALE

Cables 18 in internal IDE Cable

OS Support Windows 2000 / XP / 2003 / VISTA / 7

Chipset JMicron JMB368

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a lifetime warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.

Table of contents

Other StarTech.com PCI Card manuals

StarTech.com

StarTech.com PCI4S550N User manual

StarTech.com

StarTech.com ECHDCAP User manual

StarTech.com

StarTech.com PEX867WAC22 User manual

StarTech.com

StarTech.com PCI2S950 User manual

StarTech.com

StarTech.com PCI2S1P2 User manual

StarTech.com

StarTech.com 8STPEXUSB3S42V User manual

StarTech.com

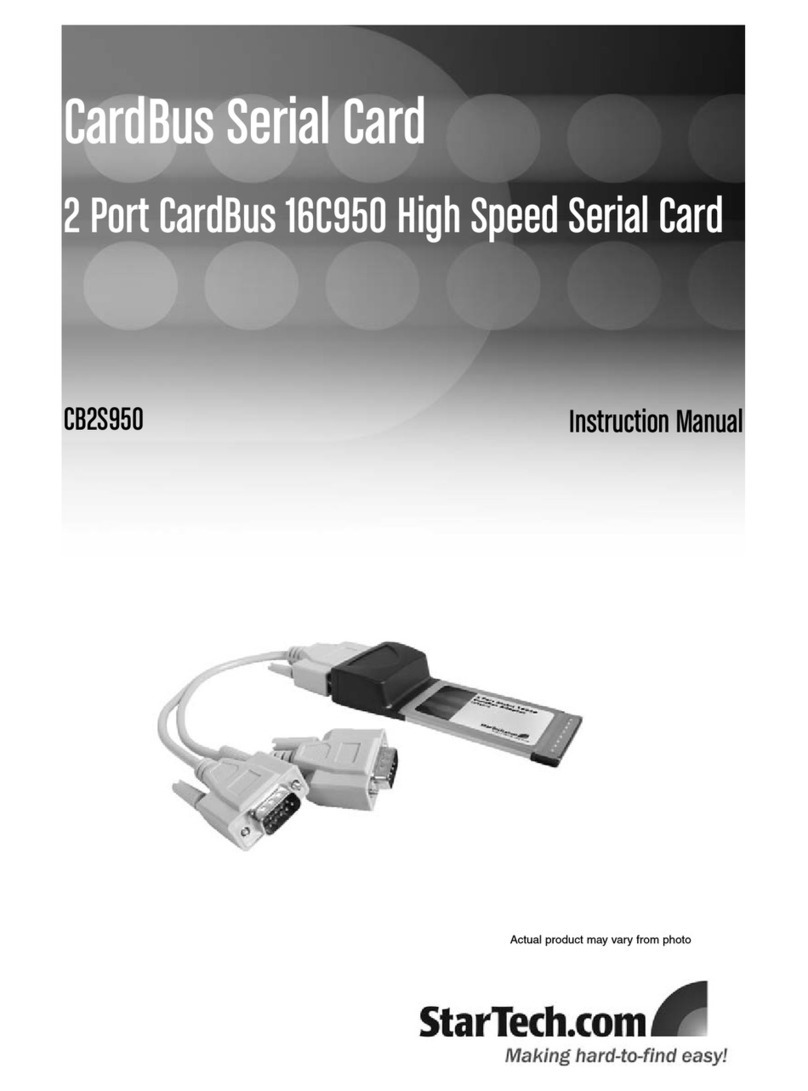

StarTech.com CB2S950 User manual
