Spectra Precison GL1425C User manual

GL1425C

spectraprecision.com

User Guide

Bedienungsanleitung

Manuel de l´utilisateur

Guida per l´uso

c a

Exit of Laser Beam

Exit of Laser

Beam

f g

Contents

1 Introduction .......................................................................................7

2 Safety Instructions............................................................................7

3 Product ..............................................................................................8

3.1 General description...........................................................................8

3.2 Product Components........................................................................8

3.3 RC1402 Remote Control ...................................................................9

3.4 Batteries ............................................................................................9

3.4.1 Installing batteries.............................................................................9

3.4.2 Battery indication............................................................................10

3.4.3 Recharging the batteries ................................................................10

3.4.4 LED indication on the charger........................................................10

4 Laser Setup.......................................................................................11

5 Turn On/O the laser .......................................................................11

6 Menu Navigation ............................................................................. 12

7 Bluetooth® Connectivity ................................................................. 13

8 Horizontal automatic, self-leveling mode...................................... 13

9 Horizontal manual mode ................................................................ 14

10 Grade................................................................................................ 14

10.1 Grade Input...................................................................................... 14

10.2 Grade value from +/- 9% to +/- 15%; laser pre-tilt is needed..... 16

11 Rotation Speed................................................................................ 16

12 Mask Mode ...................................................................................... 16

13 Temperature Reference Check....................................................... 17

14 Standby Mode .................................................................................18

15 GradeMatch (Y-Axis)....................................................................... 18

16 PlaneLok ..........................................................................................19

17 Settings........................................................................................... 22

17.1 Pairing .............................................................................................. 21

17.1.1 Bluetooth ......................................................................................... 21

17.1.2 Radio ............................................................................................... 22

17.2 Shock Warning (HI-alert)............................................................... 22

17.3 Grade Display ................................................................................. 23

17.4 Start Grade ..................................................................................... 23

17.5 Backlight ......................................................................................... 23

17.6 Sensitivity ....................................................................................... 24

17.7 Language ........................................................................................ 24

17.8 Radio Channel ................................................................................ 24

18 Info................................................................................................... 25

19 Determining the Height of Instrument (HI) .................................. 26

20 Vertical Application..........................................................................27

20.1 Vertical Automatic Mode.................................................................27

20.1.1 Laser Line Position ..........................................................................27

20.1.2 Line Scan..........................................................................................27

20.1.3 PlaneLok in Vertical ........................................................................ 28

20.2 Vertical Manual mode..................................................................... 28

21 Use Receiver ................................................................................... 28

21.1 Pair the laser with HL760 receiver ................................................ 28

21.2 Pair the laser with CR700 .............................................................. 29

22 Remote Control RC1402 ................................................................ 30

22.1 Powering the RC1402 ..................................................................... 30

22.2 Turning On/O the radio remote control RC1402........................ 30

22.3 Pairing the remote control RC1402 with the laser ....................... 30

22.4 RC1402 Menu Navigation................................................................ 31

22.5 RC1402 LCD Display........................................................................ 31

23 Troubleshooting............................................................................... 31

24 Check Calibration ........................................................................... 33

24.1 Checking calibration of the Y- and X-Axis ..................................... 33

24.2 Checking calibration of the Z-Axis (vertical)................................. 33

25 Service............................................................................................. 33

25.1 Technician Menu............................................................................. 34

26 Protect the unit ............................................................................... 34

27 Cleaning and maintenance ............................................................ 34

28 Protecting the environment........................................................... 34

29 Warranty.......................................................................................... 35

30 Technical Specication .................................................................. 36

30.1 Technical Specication Laser GL1425C........................................ 36

30.2 Technical Specication Laser Remote RC1402............................ 36

31 Declaration of Conformity...............................................................37

32 UKCA ................................................................................................37

33 Electro-Magnetic Compatibility......................................................37

1 Introduction

Thank you for choosing the GL1425C dual grade laser from the family of Spectra

Precision professional lasers. The GL1425C is an easy-to-use self-leveling laser that

oers accurate horizontal, grade and vertical laser reference using a receiver.

2 Safety Instructions

For hazardless and safe operation, read all the user guide instructions.

• Use of this product by people other than those trained on this product may result

in exposure to hazardous laser light.

• The users of this product ensure they have read and understand the user guide.

• Do not remove warning labels from the unit.

• The GL1425C is a class 2 laser (IEC 60825-1:2014).

• Never look into the laser beam or direct it to the eyes of other people.

• Always operate the unit in a way that prevents the beam from getting into people’s

eyes. Watch for reections from surfaces like windows or at metal surfaces.

• If initial service is required, which results in the removal of the outer protective

cover, removal must only be performed by factory-trained personnel.

• Do not use the product in aggressive or explosive environment.

• There is a risk of electrocution when using leveling rods and poles near electrical

installations such as power cables.

• Ensure the product is not damaged so that any unsafe usage can happen.

• Before starting your work, always check the leveling accuracy of the product (see

chapter 24).

• Spectra Precision LLC is not responsible for any inaccuracy that is caused by not

reading the user guide and by any misuse of the product.

• The user of the product is responsible to check the result for the measurement.

• Never put a wet laser or wet accessories in the carrying case for storage.

Caution: Use of other than the described user and calibration tools or other

procedures may result in exposure to hazardous laser light.

Caution: Using the laser dierent than described in the GL1425C user guide may

result in unsafe operation.

Note: Any local or national laws and regulations for the use of machines or products

described in this document have to be followed.

Note: Reections from some surfaces like windows or at metal surfaces can lead to

wrong receiver readings.

Note: After storage or transportation let the product acclimate to the ambient

temperature before use of high accurate measurements.

Warning: NiMH batteries or alkaline batteries shipped with the product may contain

small amounts of harmful substances.

Do not open the battery, dispose of in re or short circuit; it may ignite,

explode, leak or get hot causing personal injury.

Dispose in accordance with all applicable federal, state and local regulations.

Keep the batteries away from children, If swallowed, do not induce vomiting.

Seek medical attention immediately.

Charge only with specied chargers according to device manufacturer’s

instructions.

Charge the batteries only within the specic temperature range (see

chapter 30.1)

Be sure to charge the battery before using it for the rst time and after not

using it for an extended length of time.

Do not open the rechargeable batteries cage.

3 Product

3.1 General description

The laser ships with a rechargeable NiMH battery pack. Alkaline batteries can be used

as a backup to power the laser on the jobsite.

The rechargeable NiMH battery pack can only be inserted one way and can be charged

inside or outside the unit.

Note: Charging the rechargeable NiMH battery pack beyond the temperature

mentioned in the technical specications may lead to decreased battery lifetime or

undercharged batteries.

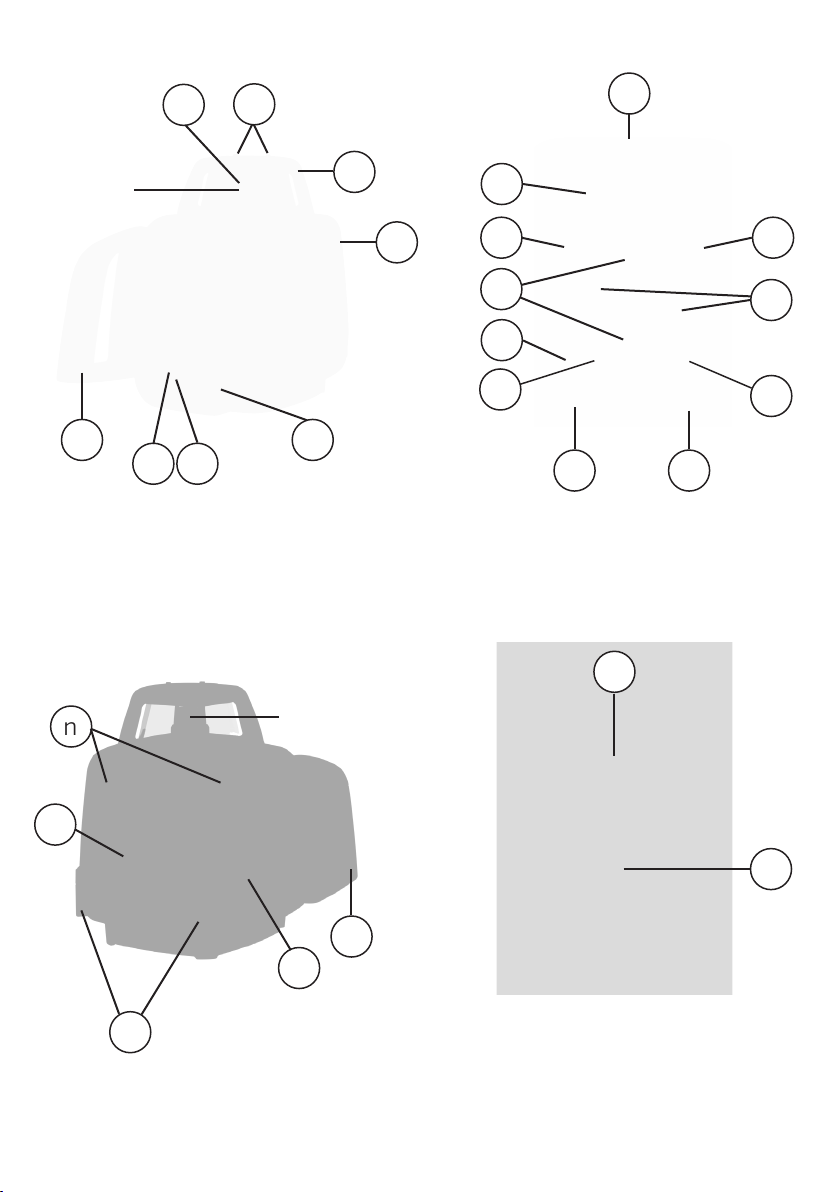

3.2 Product Components GL1425C Laser

a Power Button Press for one second to turn on; press and hold for

2 seconds to turn o

b Battery LED Indicates battery charge status

c Manual/Standby Button Quickly press and release activates/deactivates

the manual mode

d Leveling/Bluetooth® LED Indicates the automatic level status of the Laser as

well as Bluetooth® connection; in standard mode

the LED color is green; in Bluetooth® advertising or

connection mode the color is blue

e Manual/HI-Warning LED Indicates the manual level status or a HI alarm of

the laser

f Up and Down Arrow Buttons

g Left and Right Arrow Buttons

h M – Menu Button Quickly press and release enters the Menu and

returns to the previous menu

iLCD

j E – Enter Button Quickly press and release enters the sub-menu or

starts the selected mode

k Rotorhead

l Sunshade

m Sighting Guides

n Slope Indication Marks

o Laser Keypad

p Recharge Port

q Recharge Cover

r Handle

s Battery Door

t Battery Door Latch

u Tripod Mounts 5/8x11

v Stands Support for vertical setup

w Serial Number/Laser Safety

Label

x Rechargeable Battery Pack B10

y Universal Charger CH10

3.3 RC1402 Remote Control

The remote control oers the same functions as the GL1425C keypad.

a Power Button Press for one second to turn on; press and hold

for two seconds to turn o

b Battery LED Shows the amount of battery charge

c Manual Button Quickly press and release activates/deactivates

the manual mode/single axis slope mode

f Up and Down Arrow Buttons

g Left and Right Arrow Buttons

h M – Menu Button Quickly press and release enters the Menu and

can be used to return to previous menu position

j E – Enter Button Quickly press and release starts the selected

mode

3.4 Batteries

3.4.1 Installing batteries

Open the battery door. Insert the rechargeable battery

pack or alkaline batteries into the housing. If using

alkaline, install per the “+” and “–“ symbols noted in the

battery compartment.

Note: DO NOT REMOVE RECHARGEABLE BATTERIES

FROM THEIR CAGE AND INSTALL ALKALINE

BATTERIES. SEVER DAMAGE TO THE UNIT WILL

RESULT IF CHARGING IS ATTEMPTED.

Close the battery door.

3.4.2 Battery indication

WHY: Displays the battery status prior to starting work on the job site.

WHAT: The battery indication shows the remaining battery capacity for the rechargeable

or alkaline batteries. Actual capacity depends on battery brand, environmental factors,

age, and recharge cycles.

HOW: When the laser battery LED (b) is o, the battery capacity is good. Blinking once

every second indicates the batteries are weak and remaining operating time is limited.

The batteries should be charged. A quickly ashing battery LED indicates the batteries

are empty and remaining battery capacity of 5 minutes. Times may vary depending on

environmental factors.

On the RC1402 or on the laser on the standard display press the E button (j). The

battery symbol will appear and is shown on the screen for app. 5 seconds. The symbol

represents relative battery capacity: Empty, almost empty, good, and full. (pic 1)

Pic 1: battery symbols

3.4.3 Recharging the batteries

It typically requires less than ten hours to fully charge empty rechargeable batteries.

For charging, connect the plug of the charger to the recharge jack of the battery pack.

Plug the charger into the appropriate outlet. The battery pack can be charged in or out

of the laser.

New or long-time out-of-use rechargeable batteries reach their best performance after

being charged and recharged ve times. For indoor applications, the charger can be

used as a power supply for the laser.

3.4.4 LED indication on the charger

Green LED ashes: charging in progress

Green LED permanent on: charging has stopped

Red LED permanent on: Error (batteries too cold or too warm, battery failure etc.)

Note: The batteries should only be charged when the temperature is between 41°F and

104°F (5°C to 40°C). Charging at temperature other than specied may give an error

indication.

Note: The charger has a security timer. The maximum charging time is twelve hours.

After twelve hours, the charger will always stop the charging process, independently

from the charging status of the batteries.

Note: The batteries can be charged during use.

Table of contents

Other Spectra Precison Measuring Instrument manuals

Spectra Precison

Spectra Precison GL412N Installation guide

Popular Measuring Instrument manuals by other brands

Suaoki

Suaoki D40 user manual

Elster

Elster BK-G1.6 operating instructions

Endress+Hauser

Endress+Hauser Deltabar FMD71 technical information

Duratool

Duratool D03128 manual

Vega

Vega VEGAPULS 65 Quick setup guide

Tonghui

Tonghui TH2618B Operation manual

Tenmars

Tenmars TM-801 user manual

MSR

MSR 145 user manual

TPS

TPS WP-82 manual

ELMETRON

ELMETRON CP-511 user manual

PCB Piezotronics

PCB Piezotronics 003C30 Installation and operating manual

Tenma

Tenma 72-10465 manual

Endress+Hauser

Endress+Hauser Proline Promag 50 Brief operating instructions

Siemens

Siemens SITRANS F Coriolis FCT030 Function manual

KLINGER

KLINGER CMF V Series instruction manual

EXFO

EXFO FTB-2 Notice

Keysight

Keysight M8290A Getting started guide

ADTEK

ADTEK MW-5 operating manual
