Smeg A11A-6 User manual

Contents

1. INSTRUCTIONS FOR SAFE AND PROPER USE________________ 4

2. INSTALLATION OF THE APPLIANCE_________________________ 6

3. ADAPTATION TO DIFFERENT TYPES OF GAS _______________ 11

4. FINAL OPERATIONS_____________________________________ 13

5. DESCRIPTION OF CONTROLS ____________________________ 15

6. USE OF THE COOKING HOB ______________________________ 21

7. USE OF THE OVEN______________________________________ 23

8. AVAILABLE ACCESSORIES _______________________________ 24

9. COOKING HINTS________________________________________ 25

10. CLEANING AND MAINTENANCE ___________________________ 29

11. EXTRAORDINARY MAINTENANCE _________________________ 32

THESE INSTRUCTIONS ARE VALID ONLY FOR END USER COUNTRIES WHOSE

IDENTIFICATION SYMBOLS APPEAR ON THE COVER OF THIS MANUAL.

INSTRUCTIONS FOR THE INSTALLER: these are for the qualified

technician who must carry out a suitable check of the gas system,

install the appliance, set it functioning and carry out an inspection test.

INSTRUCTIONS FOR THE USER: these contain user advice,

description of the commands and the correct procedures for cleaning

and maintenance of the appliance.

Introduction

1. INSTRUCTIONS FOR SAFE AND PROPER USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND

THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE

PLACE FOR THE WHOLE WORKING LIFE OF THE COOKER. WE ADVISE

READING THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN BEFORE

USING THE COOKER. ALSO KEEP THE SERIES OF NOZZLES SUPPLIED.

INSTALLATION MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN

ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS

INTENDED FOR DOMESTIC USES AND CONFORMS TO CURRENT

REGULATIONS IN FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY

OUT THE FOLLOWING FUNCTIONS: COOKING AND HEATING-UP OF FOOD.

ALL OTHER USES ARE CONSIDERED IMPROPER.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER

USE.

DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE

THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST

SPECIAL GARBAGE COLLECTION CENTRE.

IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED

ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.

IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION

TEST OF THE APPLIANCE, FOLLOWING THE INSTRUCTIONS BELOW.

SHOULD THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE

SUPPLY AND CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.

NEVER ATTEMPT TO REPAIR THE APPLIANCE.

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE POSITION

"ZERO" (OFF) WHEN YOU FINISH USING THE HOB.

NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD BE

ACCIDENTALLY LIGHTED AND CAUSE FIRES.

DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO

TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.

Introduction

DO NOT INSTALL THIS APPLIANCE ON A RAISED PLATFORM.

THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND

BRAND NAME IS POSITIONED VISIBLY IN THE STORAGE COMPARTMENT.

THE PLATE MUST NOT BE REMOVED.

DO NOT PUT PANS WITHOUT PERFECTLY SMOOTH AND FLAT BOTTOMS

ON THE COOKING HOB GRIDS.

NEVER USE THE COOKING HOB AS A WORK SURFACE.

DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT

IS IN OPERATION.

WHERE THIS APPLIANCE IS INSTALLED IN MARINE CRAFT OR IN

CARAVANS, IT SHALL NOT BE USED AS A SPACE HEATER.

DO NOT USE CONTAINERS OR BROILERS THAT EXTEND BEYOND THE

OUTER PERIMETER OF THE HOB.

THE APPLIANCE IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW

CHILDREN TO GO NEAR OR PLAY WITH IT.

BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND

PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above prescriptions or by

interference with any part of the appliance or by the use of non-original

spares.

Instructions for the installer

2. INSTALLATION OF THE APPLIANCE

It is the law that all gas appliances are installed by authorised persons.

Clearance around the cooker must comply with the requirements of

AS5601.

2.1 Electrical connection

Make sure that the power line voltage matches the specifications

indicated on the rating plate located inside the storage compartment.

This rating plate must never be removed.

On the power line, install an omnipolar cut-off device with contact cut-off

distance greater than or equal to 3 mm, located in an easily accessible

position near the unit.

If the power cable is replaced, the wire

section on the new cable must not be

less than 1.5 mm2(3 x 1.5 cable),

keeping in mind that the end to be

connected to the hob must have the

ground wire (yellow-green) longer by at

least 20 mm. Use only the special

cables available at our Service

Centres.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above prescriptions or by

interference with any part of the appliance.

Overall dimensions: location of gas and electrical connection points (all

measures in mm).

A 110

B 760

C 150

D 170

Instructions for the installer

2.2 Gas connection

This appliance is suitable for installation with Natural

Gas or LPG (propane). Refer to page 12 for the relevant

burner pressure and appropriate injector sizes. When

the appliance is to be connected to Natural Gas then the

pressure regulator supplied must be fitted to the gas

inlet. A test point (for checking the gas pressure) is

supplied either with the regulator or as a separate fitting

in the case of LPG (propane) appliances.

Connection of the appliance to the gas supply must be in

accordance with the requirements of AS5601. A ½” BSP

connector at the inlet is recommended and the gas

supply line to the appliance must be of adequate length

to allow sufficient withdrawal of appliance for service or

disconnection and be:

1. annealed copper pipe or;

2. flexible hose according to AS/NZ1869 & be at least Class “B”, 10 mm

diameter.

The appliance must be installed with provision to allow the gas to be

turned off and disconnected for servicing and removal of the appliance as

required from the gas supply.

Before the appliance is operated make certain all relevant parts are placed

in the correct position.

When the installation is completed the installation connections of

appliance will require to be leak tested, the burner operating pressure and

flame checked and adjusted.

Warranty service calls do not cover these adjustments!

To check the operating pressure of the appliance it is recommended at

least 2 large size burners are used. Ensure appliance is secured to wall

when installation is completed.

N.G. The regulator supplied must be fitted to the ½ BSP thread at the rear

of the appliance. An approved manual shut-off valve must be installed.

The N.G. regulator must be checked and adjusted to 1.0kPa after

installation.

ULPG: Can be connected to the inlet fitting

directly. The pressure must be checked to

ensure it is operating at 2.75kPa. A separate

test point fitting must be installed between the

piping & the appliance for the pressure to be

checked to ensure it is operating at 2.75kPa.

Instructions for the installer

2.3 Room ventilation

Caution – This cooker may only be installed and operated in rooms

permanently ventilated in accordance with current regulations. For

proper operation of a gas appliance it is essential for the air necessary

for combustion of the gas to be able to flow naturally into the room. Air

must flow directly into the room through openings in its outside walls.

This (these) opening (s) must have a free passage cross-section of at

least 100 cm2, or 200 cm2for appliances not equipped with gas safety

device. These openings must be constructed so that they cannot be

obstructed indoors or outdoors, and should preferably be close to the

floor on the side opposite to the combustion gas discharge point. If it is

not possible to make the openings in the room where the cooker is

installed, the necessary air may be taken from an adjoining room,

proveded it is not a bedroom or a room with fire risk.

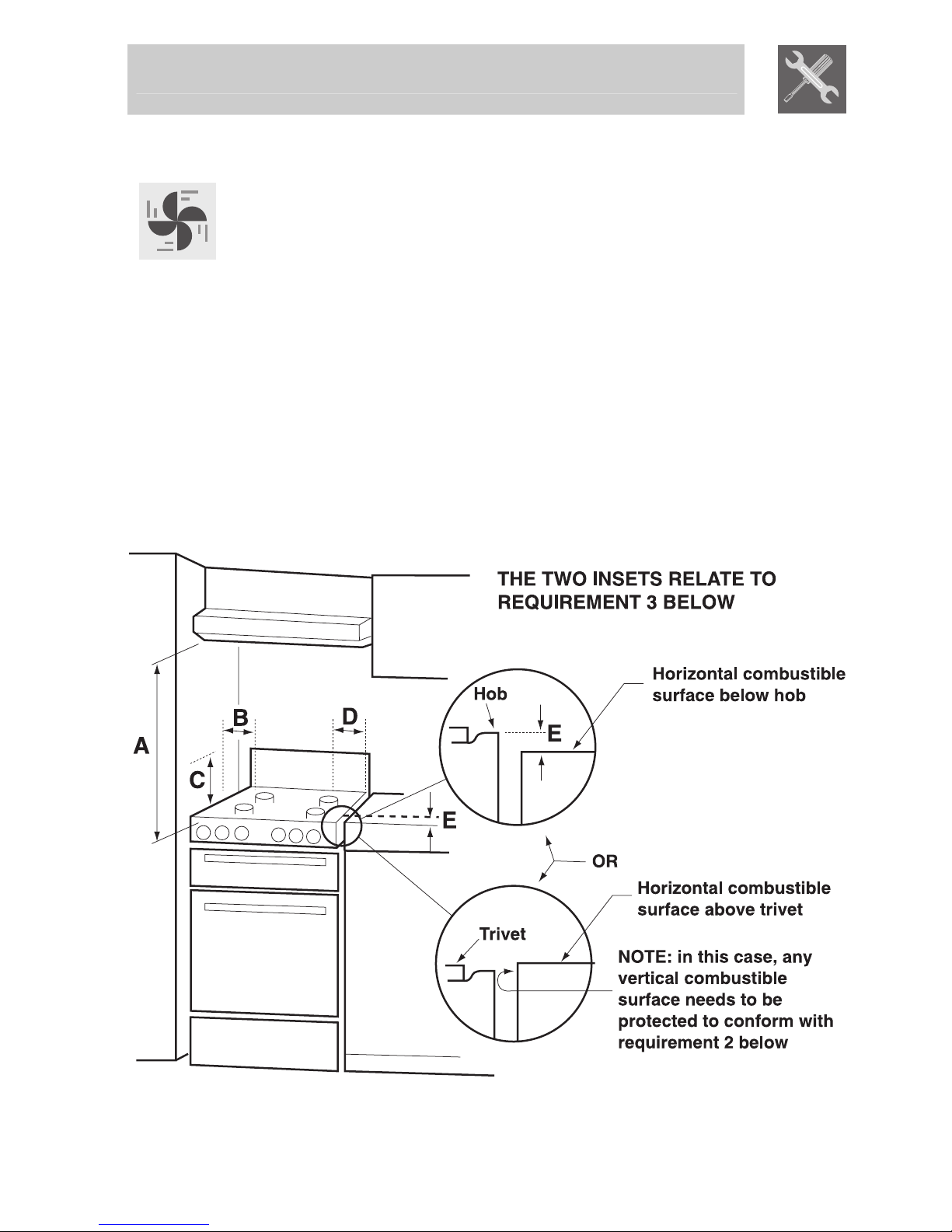

2.4 Clearance above and around domestic cookers

Extract from AS5601

REQUIREMENTS

Instructions for the installer

1Overhead clearances – (Measurement A)

Range hoods and exhaust fans shall be installed in accordance with

the manufacturer’s instructions. However, in no case shall the

clearance between the highest part of the hob of the cooking

appliance and a range hood be less than 600 mm or, for an overhead

exhaust fan, 750 mm.

Any other downward facing combustible surface less than 600 mm

above the highest part of the hob shall be protected for the full width

and depth of the cooking surface area in accordance with Clause

5.12.1.2. However, in no case shall this clearance to any surface be

less than 450 mm.

2Side clearances – (Measurements B& C)

Where B, measured from the periphery of the nearest burner to any

vertical combustible surface, is less than 200 mm, the surface shall

be protected in accordance with Clause 5.12.1.2 to a height Cof not

less than 150 mm above the hob for the full dimension (width or

depth) of the cooking surface area. Where the cooking appliance is

fitted with a ‘splashback’, protection of the rear wall is not required.

3Additional requirements for Freestanding and Elevated Cooking

Appliaces – (Measurements D& E)

Where D, the distance from the periphery of the nearest burner to a

horizontal combustible surface is less than 200 mm, then Eshall be

10 mm or more, or the horizontal surface shall be above the trivet.

See insets above.

NOTES

1Requirement 3 does not apply to a freestanding or elevated

cooking appliance which is designed to prevent flames or the

cooking vessels from extending beyond the periphery of the

appliance.

2The ‘cooking surface area’ is defined as that part of the

appliance where cooking normally takes place and does not

include those parts of the appliance containing control knobs.

3For definition of hob, see Clause 1.4.64.

4For definition of trivet, see Clause 1.4.109.

5Consideration is to be given to window treatments when

located near cooking appliances. See Clause 5.3.4.

Instructions for the installer

2.5 Instruction for wall fixing

1) Fix the screw to the wall and hook the chain (B);

2) Hook the chain to the hole positioned at the rear of the cooker by the

gas pipe (A);

3) Once the chain is in position, push the cooker against the wall;

4) The height of the screw hole from floor level must not exceed 800

mm (C).

Instructions for the installer

3. ADAPTATION TO DIFFERENT TYPES OF GAS

Before performing any cleaning or maintenance work, detach the

appliance from the electrical socket.

The cooker hob is set for natural gas G20 (2H) at a pressure of 20 mbar.

In the case of functioning with other types of gas the burner nozzles must

be changed and the minimum flame adjusted on the gas taps. To change

the nozzles, proceed as described below.

3.1 Replacement of nozzles on the hob

This operation requires no primary air regulation.

1. Extract the grids and remove all the caps and flame-spreader

crowns;

2. Unscrew the burner nozzles with a 7 mm socket wrench;

3. Replace the nozzles according to the type of gas to be used and the

description in paragraph “3.2 Burner and nozzle characteristics

table”.

Replace the burners in the correct position.

Instructions for the installer

3.2 Burner and nozzle characteristics table

Burner Nominal gas

consumption

(MJ/h)

LPG – 2.75 kPa

Turn-down gas

consumption

(MJ/h)

Injector

(mm)

Auxiliary 3.9 1.3 0.54

Semi-rapid 6.3 1.6 0.68

Rapid 10.8 2.7 0.88

Wok 13.5 5.8 1.00

Fish pan 6.8 2.9 0.72

Burner

Nominal gas

consumption

(MJ/h)

NG – 1.00 kPa

Turn-down gas

consumption

(MJ/h)

Injector

(mm)

Auxiliary 3.9 1.3 0.90

Semi-rapid 7.5 1.6 1.20

Rapid 12 2.7 1.55

Wok 15 5.8 1.75

Fish pan 7.8 2.9 1.26

3.3 Arrangement of burners on cooking hob

BURNERS

1 Auxiliary

2 Semi rapid

3Rapid

4Ultra rapid

5Fish pan

Table of contents

Popular Cooker manuals by other brands

Modena

Modena FC 7645 SGM User manual book

Electrolux

Electrolux Insight EKG6049 user manual

Stanley

Stanley Donard 60 Installation and operating instructions

Bartscher

Bartscher 201TC manual

Parkinson Cowan

Parkinson Cowan 50 GR/BU installation instructions

Siemens

Siemens HK9P00020U instruction manual

Creda

Creda S150E Installation and user instructions

Creda

Creda HB48309 instructions

Bosch

Bosch HCE743220F instruction manual

Tricity Bendix

Tricity Bendix SE545P manual

NEFF

NEFF E1461A2/01 Instructions for use

Zanussi

Zanussi ZCM 700 X Instruction booklet

RiverGrille

RiverGrille TF2002501-RG Assembly instruction

Vollrath

Vollrath 69504F Operator's manual

Tricity Bendix

Tricity Bendix CSIE500 Operating and installation instructions

AEG

AEG Competence 5731 V Instruction book

Euromaid

Euromaid ES60 Installation and operation manual

Hotpoint

Hotpoint HUI 62 TP Instructions for installation and use
