Shinyei Technology OMX-TDM User manual



HandheldOdorMeter



OMX-TDM

OperationManual



Ver.1



Table of Contents

1. Introduction.........................................................................................................................................3

1-1 Supplied Component List ....................................................................................................3

1-2 Warning....................................................................................................................................4

1-3 Cautions....................................................................................................................................5

1-4 Unit Dimension ......................................................................................................................6

2. General Description…………………………………………………………………………………………………….7

2-1 Instrument Features.............................................................................................................8

2-1-1 LCD Display..........................................................................................................................8

2-1-2 Base Unit..............................................................................................................................9

2-3 Accessories...........................................................................................................................10

3. Measurement....................................................................................................................................11

3-1 Real-time Sampling Mode ................................................................................................11

3-1-1 Measurement Preparation...........................................................................................11

3-1-2 Measurement ..................................................................................................................11

3-1-3 Finish Measurement......................................................................................................10

3-2 Memory Sampling Mode...................................................................................................12

3-2-1 Measurement Preparations.........................................................................................12

3-2-2 Measurement...................................................................................................................12

3-2-3 No Memory Space...........................................................................................................12

3-3 Peak-hold Function............................................................................................................12

3-4 Zero-point Function...........................................................................................................12

4. How to Use Data Filing Software .................................................................................................14

4-1 How to Download Software .............................................................................................12

4-2 How to Install Software.....................................................................................................12

4-3 Preparation..........................................................................................................................12

5. Specification......................................................................................................................................20

6. Maintenance ad Servicing .............................................................................................................21

6-1 Replacement of ‘AA’ Alkaline Batteries........................................................................21

6-2 Replacement of Button Battery......................................................................................21

6-3 Maintenance of Air Purifying Unit.................................................................................22

6-4 Replacement of Filter for Suction Nozzle.....................................................................22

6-5 Troubleshooting.................................................................................................................23



1. Introduction

1-1 Supplied Component List

HandheldOdorMeterOMX-TDMhasbeenpackagedcarefullyandincludesallthecomponents

necessaryforfulloperation.Uponreceipt,checkthekitcontentscarefullytofindyoureceived

thefollowingitemsingoodcondition.



Theinstrumentkitcontains:



OMX-TDMBaseUnit 1

SuctionNozzle 1

ACAdaptor 1

ʻAAʼAlkalineBattery 4

USBConnectionCable 1

AirPurifyingUnit 1

ActivatedCarbon(50cc/bag) 1

ReplacementFilterforAirPurifyingUnit 4

ReplacementFilterforSuctionNozzle 5

OperationManual 1



1-2 Warning

WARNING

DonotuseanyadaptorsexceptsuppliedACAdaptor.

Donotuseinexplosiveatmosphere.

Thedeviceisnotdesignedforexplosionproof.

Donotuseitwherecombustibleand/orexplosivegasesexist.

Donotdismantlethebaseunit.



1-3 Cautions

CAUTIONS

Do not install, use, or store the unit at a place where:

-Ambienttemperatureisnotintherangeof-10to40 ºC.(14-104°F)

-Ambienthumidityexceeds90%R.H.

-Condensationoccursduetorapidtemperaturechange.

-Corrosiveand/orexplosivegasesexist.

-Directvibrationand/orstreamoccur.

-Mushdust,saltymaterials,and/orironpowdersexist.

-Staticelectrons,magnetic,and/orelectronicnoisecanoccur.

-Coolorwarmairfromconditionershasdirectinfluence.

-Theunitisexposedtodirectsunlight.

-Heatingoccursduetoheatradiation.

Do not use or store the unit at a place where the following gases exist:

-Extremelyconcentratedodor

-Cigarettesmokeand/oroilmist

-Siliconcompoundgasincludedinhairspray,adhesive,andsiliconrubberetc.

-Highconcentratedchloride,acidicsubstances,corrosivegas,andchlorofluorocarbonetc.



Exchangenewbatteriesifbatterystatusdisplays“Low.”

Donotuserechargeablebatteries.

Donotuseliquidsuchasbenzeneand/orthinnertocleantheunitsurface.

Donotblocksuctionnozzleand/orexhaustnozzle.



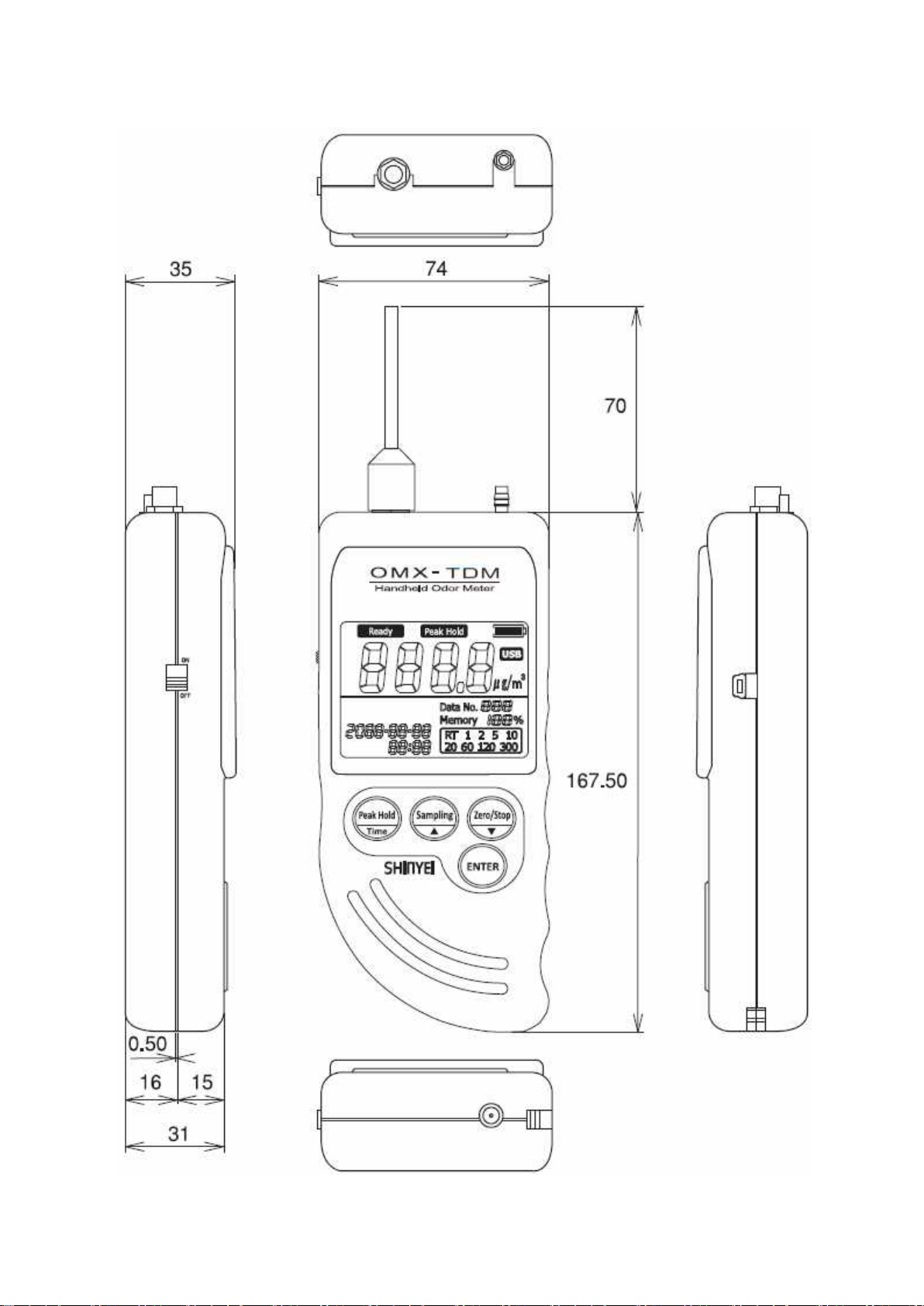

1-4 Unit Dimension



 

Unit:mm



2. General Description



HandheldOdorMeteristhemostpopularsimplifiedtoolforodoranalysis,whichenablesto

displayTVOCasToluene-valueDigitalIndicationnumericallybycomparingodorgasesand

purifiedair.

Thereadingshownondisplayiscalculatedbasedonouroriginalprinciple.

Byusingdatafilingsoftware,youcantransfermeasuringdatatoPCineasysteps.



Toluene-value Digital Indication

Simplyturnonthedeviceandstartmeasuring.

Real-timegasconcentrationconvertedintoTolueneconcentrationcanbemeasured

continuously.



Peak-hold Function

Maximumstrengthlevelcanberetained.



Memory Sampling Measurement Mode

Upto511measuringdatacanbesaveduponselectingsamplingrate:1,2,5,10,20,60,120,or

300seconds.



Transferring measuring data to PC

Byusingdatafilingsoftware,itcantransfermeasuringdataautomaticallyfromthedeviceto

PCduringmeasurement.

Or,italsocantransfersavedmeasuringdatafromthedevicetoPCanddrawillustratedgraph

automatically.



TodownloadOMX-TDMDataFilingSoftware,enterthefollowingURLandgoto:

http://www.odormonitor.com/download.html



2-1 Instrument Features

2-1-1 LCD Display



No.

Name Function

① Ready Afterturning,itwillbeblinkingforabouttenminutesforinitializing.

StartmeasuringafterʻReadyʼstopsblinking.

② Toluene-valueDigital

Indication GasconcentrationconvertedintoTolueneconcentrationisdisplayed

from0to9999inμg/㎥.

③ CalendarFunction Upper:Year-Month-Date

Lower:Hour-Time

④ PeakHold Maximumstrengthlevelcanberetained.

⑤ BatteryStatus

■■■■Full

■■■□Good‒Measurablefor3to4hours.

■■□□Moderate‒Measurablefor1to2hours.

■□□□Low‒Changebattery.

□□□□NoBattery

⑥ USB USBCableisconnected.

⑦ DataNo. Numberofstoreddataisshown.

⑧ Memory Remainingmemorycapacityisdisplayedfrom0to100%.

⑨ SamplingRate Selectsamplingrate:RT(*),1,2,5,10,20,60,120,or300seconds.



Real-timeSampling(*)‒Thevalueisdisplayedinevery3secondcontinuously.

   ByusingDataFilingSoftware,thedataissavedperasecond.



MemorySampling‒Samplingratecanbeselected:1,2,5,10,20,60,120,or300seconds.



2-1-2 Base Unit (OMX-TDM)



No.

Name Function

①



-HoldthreesecondsforPeak-holdFunction.

-HoldandturnonthedeviceatthesametimetosetCalendar.

②



-SelectSamplingrate.

-SetCalendar.

③



-UseforZero-pointMode.

-SetCalendar.

④



ConfirmSamplingRateand/orZero-pointMode.

❶



PowerSwitch Turnonandoffthedevice.

❷



ACAdaptor

Port ACAdaptorisconnectedtotheport.

❸



SuctionNozzle Nozzletotakesamplingairand/orobjectgases.

❹



ExhaustNozzle



Samplingairand/orobjectgasesareexhausted.

❺



USBPort USBattachedUSBcabletoconnectthedevicetoPC.

❻



BatteryBox Openorclosetoreplacebatteries.

❼



HookPin Useforstraps.



Calendar Settings

1.Hold andturnonthedeviceatthesametime.



2.WhenʻYearʼisblinking,changetothearbitrarynumber.



3.Presstoconfirmthenumber.



4.RepeatStep2and3tosetmonth,date,hour,andminute.



2-2 Accessories

Name Function

ACAdaptor ACadaptorcanbeconnectedtothedeviceduringthe

measurement.

AirPurifyingUnit AttachtheunittoSuctionNozzleforZero-pointMode.



ActivatedCarbon Exchangeactivatedcarbonwhendeodorizingusing

AirPurifyingUnitisnoteffective.

ReplacementFilterforAirpurifyingUnit



ReplacethefilterwhendeodorizingusingAir

PurifyingUnitisnoteffective.

ReplacementFilterforSuctionNozzle Replacethefilterwhenitgetsdirt.

USBConnectionCable UseUSBConnectionCabletotransfermeasuringdata

fromthedevicetoPC.


