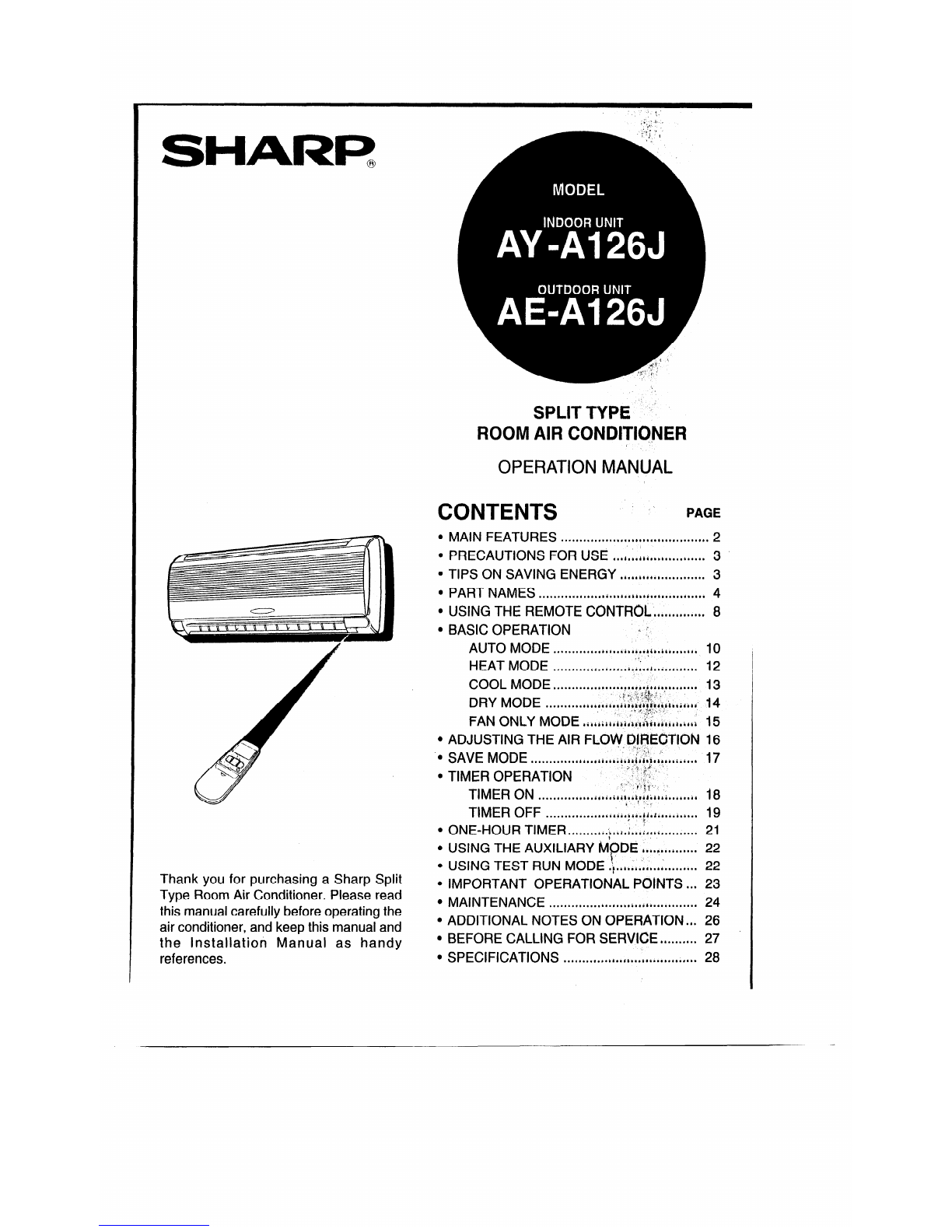

SHARI?

SPLIT TYPE “I

ROOM AIR CONDITIONER

OPERATION MANUAL

CONTENTS r\ PAGE

Thank you for purchasing a Sharp Split

Type Room Air Conditioner. Please read

this manual carefully before operating the

air conditioner, and keep this manual and

the Installation Manual as handy

references.

MAIN FEATURES ........r..........o....*.*.......*.,1.2

PRECAUTIONS FOR USE ~.r~.,.~~~rrbr.....b..... 3

TIPS ON SAVING ENERGY ai.rrbrrr.a..........l . 3

PART NAMES .................~i.r...r.‘.tr..‘............ 4

USING THE REMOTE CONTROL .............. 8

BASIC OPERATION . I-

AUTO MODE ..*.......‘.‘r.rr.‘lrr~~cb~b.~*~*...*~.IO

,I b

HEAT MODE .....*.....*.*.*rr..$.~~s*..~...*..~.,.12

COOL MODE ........‘..*.tr.‘r~~~~~~8bb~&~b~b....‘.

DRY MODE -”f*>*z.

:,lb,%:*1 13

..?I:” ,

......r..*.i.trrrtrr~lbbli~~~~m~b.b~b~~~kbd’14

FAN ONLY MODE ’ “<“.q’- ’ ,5

.i,‘,iil.lii,l,liJilrSlsrllrctl

ADJUSTING THE AIR FLOW,D!,~EGTION 16

SAVE MODE . ^ ;.

............rr~..~~~.~b.~b~~~~~bi~b~~b~~.~..b 17

;*<,‘2&P‘’

TIMER OPERATION

TIMER ON (<,/-,..5_._’

* .,’

.........rb~.~.icrir~~~k#b~i~brPl.ib~.r~.ic18

‘ t :_

TIMER OFF .............r.r.r~t~~~~~.~~~..~‘..~.b...19

ONE-HOUR TIMER ’ ‘:........c..~LI~.~.rl~~~b~b.........

USING THE AUXILIARY MODE ~~..r~..ir.i..r22

USING TEST RUN MODE .!..*,.,..,..,;.....*... 22

IMPORTANT OPERATIONAL POINTS l ., 23

MAINTENANCE ..............~r.‘...*irrr.............. 24

ADDITIONAL NOTES ON OPERATION .a. 26

BEFORE CALLING FOR SERVICE .......... 27

SPECIFICATIONS ..*,..,.r.,..*..“r..‘*.....*...,... 28

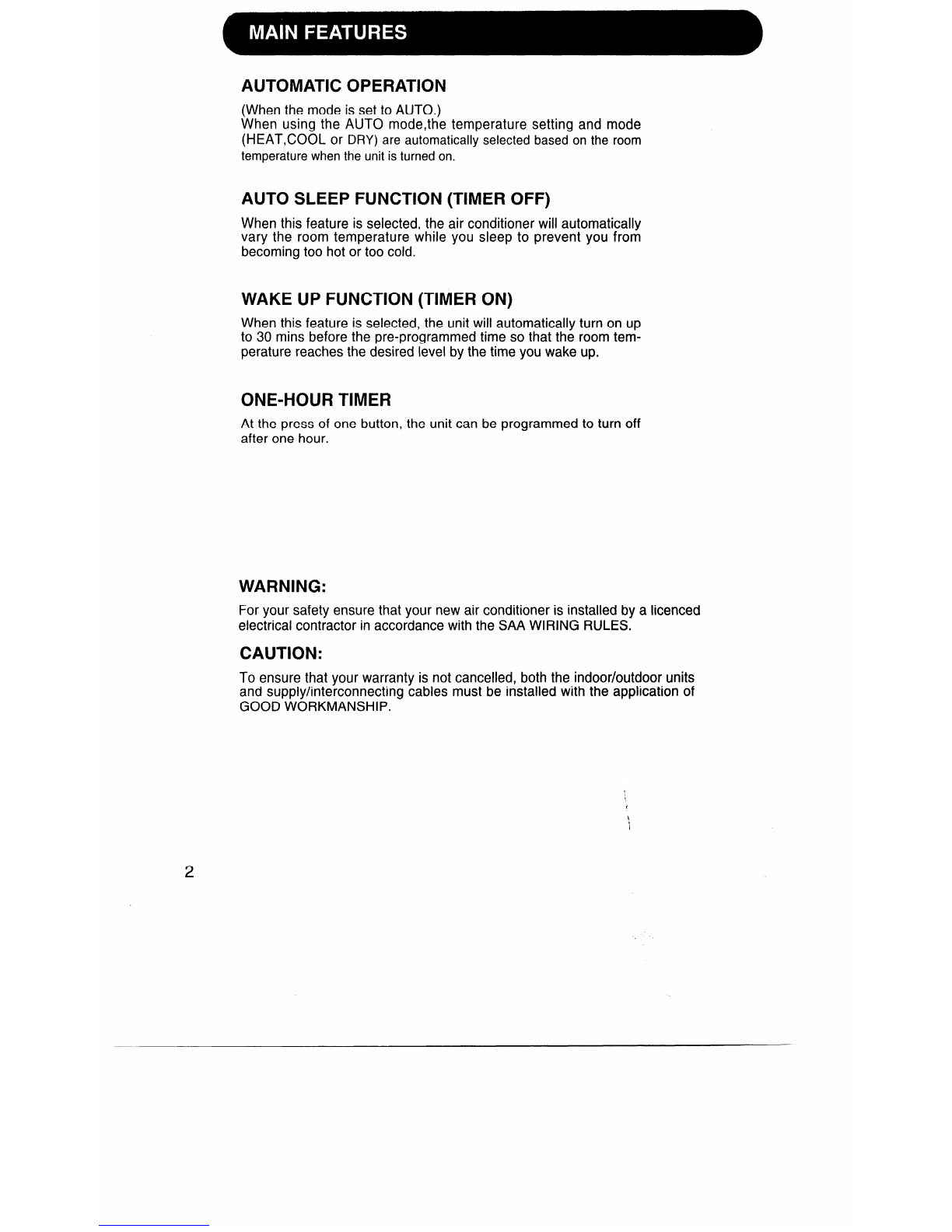

AUTOMATIC OPERATION

(When the mode is set to AUTO.)

When using the AUTO mode,the temperature setting and mode

(HEAT,COOL or DRY) are automatically selected based on the room

temperature when the unit is turned on.

AUTO SLEEP FUNCTION (TIMER OFF)

When this feature is selected, the air conditioner will automatically

vary the room temperature while you sleep to prevent you from

becoming too hot or too cold.

WAKE UP FUNCTION (TIMER ON)

When this feature is selected, the unit will automatically turn on up

to 30 mins before the pre-programmed time so that the room tem-

perature reaches the desired level by the time you wake up.

ONE-HOUR TIMER

At the press of one button, the unit can be programmed to turn off

after one hour.

WARNING:

For your safety ensure that your new air conditioner is installed by a licenced

electrical contractor in accordance with the SAA WIRING RULES.

CAUTION:

To ensure that your warranty is not cancelled, both the indoor/outdoor units

and supply/interconnecting cables must be installed with the application of

GOOD WORKMANSHIP.

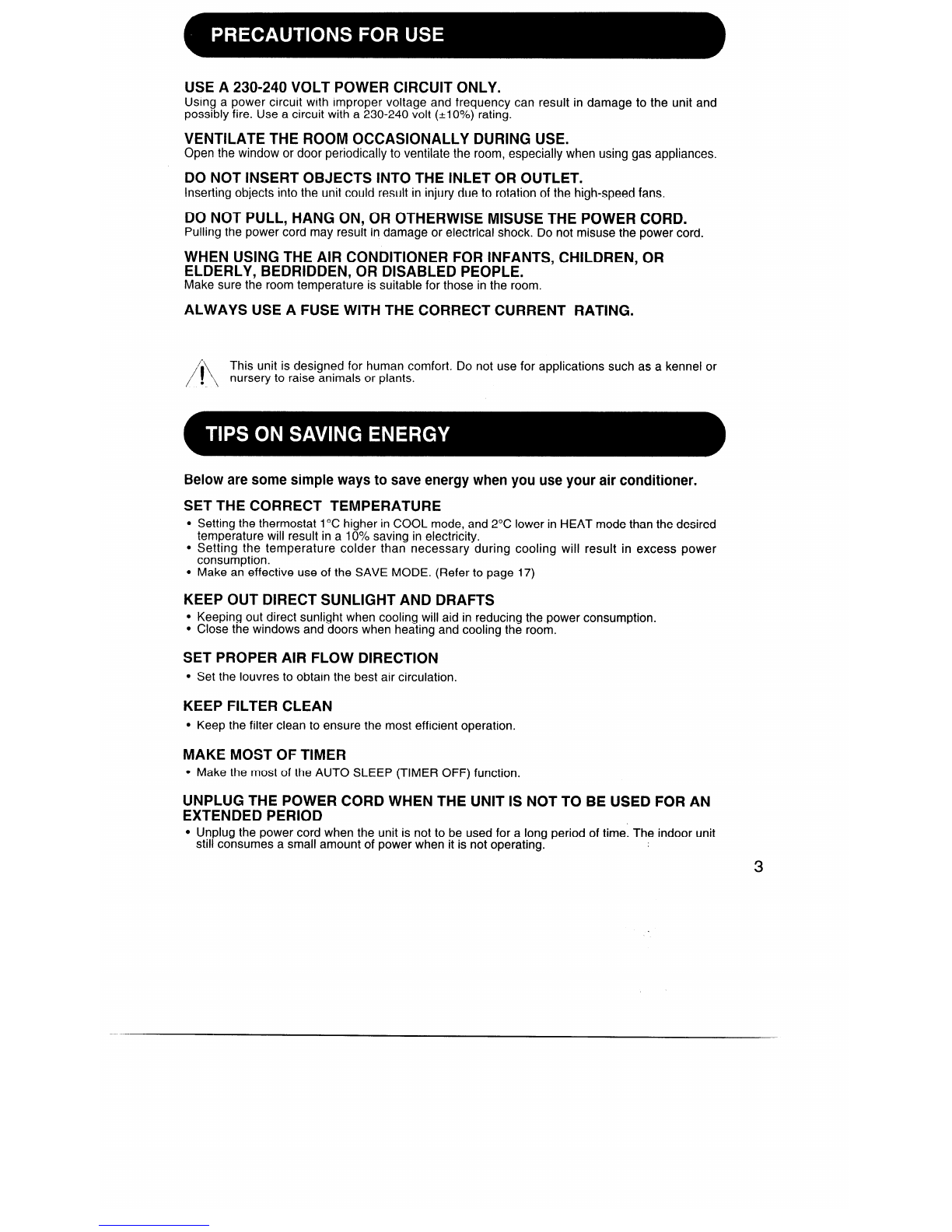

USE A 230-240 VOLT POWER CIRCUIT ONLY.

Using a power circuit with improper voltage and frequency can result in damage to the unit and

possibly fire. Use a circuit with a 230-240 volt (+lO%) rating.

VENTILATE THE ROOM OCCASIONALLY DURING USE.

Open the window or door periodically to ventilate the room, especially when using gas appliances.

DO NOT INSERT OBJECTS INTO THE INLET OR OUTLET.

Inserting objects into the unit could result in injury due to rotation of the high-speed fans.

DO NOT PULL, HANG ON, OR OTHERWISE MISUSE THE POWER CORD.

Pulling the power cord may result in damage or electrical shock. Do not misuse the power cord.

WHEN USING THE AIR CONDITIONER FOR INFANTS, CHILDREN, OR

ELDERLY, BEDRIDDEN, OR DISABLED PEOPLE.

Make sure the room temperature is suitable for those in the room.

ALWAYS USE A FUSE WITH THE CORRECT CURRENT RATING.

This unit is designed for human comfort. Do not use for applications such as a kennel or

nursery to raise animals or plants.

Below are some simple ways to save energy when you use your air conditioner.

SET THE CORRECT TEMPERATURE

l Setting the thermostat 1“C higher in COOL mode, and 2°C lower in HEAT mode than the desired

temperature will result in a 10% saving in electricity.

l Setting the temperature colder than necessary during cooling will result in excess power

consumption.

l Make an effective use of the SAVE MODE. (Refer to page 17)

KEEP OUT DIRECT SUNLIGHT AND DRAFTS

+ Keeping out direct sunlight when cooling will aid in reducing the power consumption.

l Close the windows and doors when heating and cooling the room.

SET PROPER AIR FLOW DIRECTION

l Set the louvres to obtain the best air circulation.

KEEP FILTER CLEAN

l Keep the filter clean to ensure the most efficient operation.

MAKE MOST OF TIMER

l Make the most of the AUTO SLEEP (TIMER OFF) function.

UNPLUG THE POWER CORD WHEN THE UNIT IS NOT TO BE USED FOR AN

EXTENDED PERIOD

l Unplug the power cord when the unit is not to be used for a long period of time. The indoor unit

still consumes a small amount of power when it is not operating.

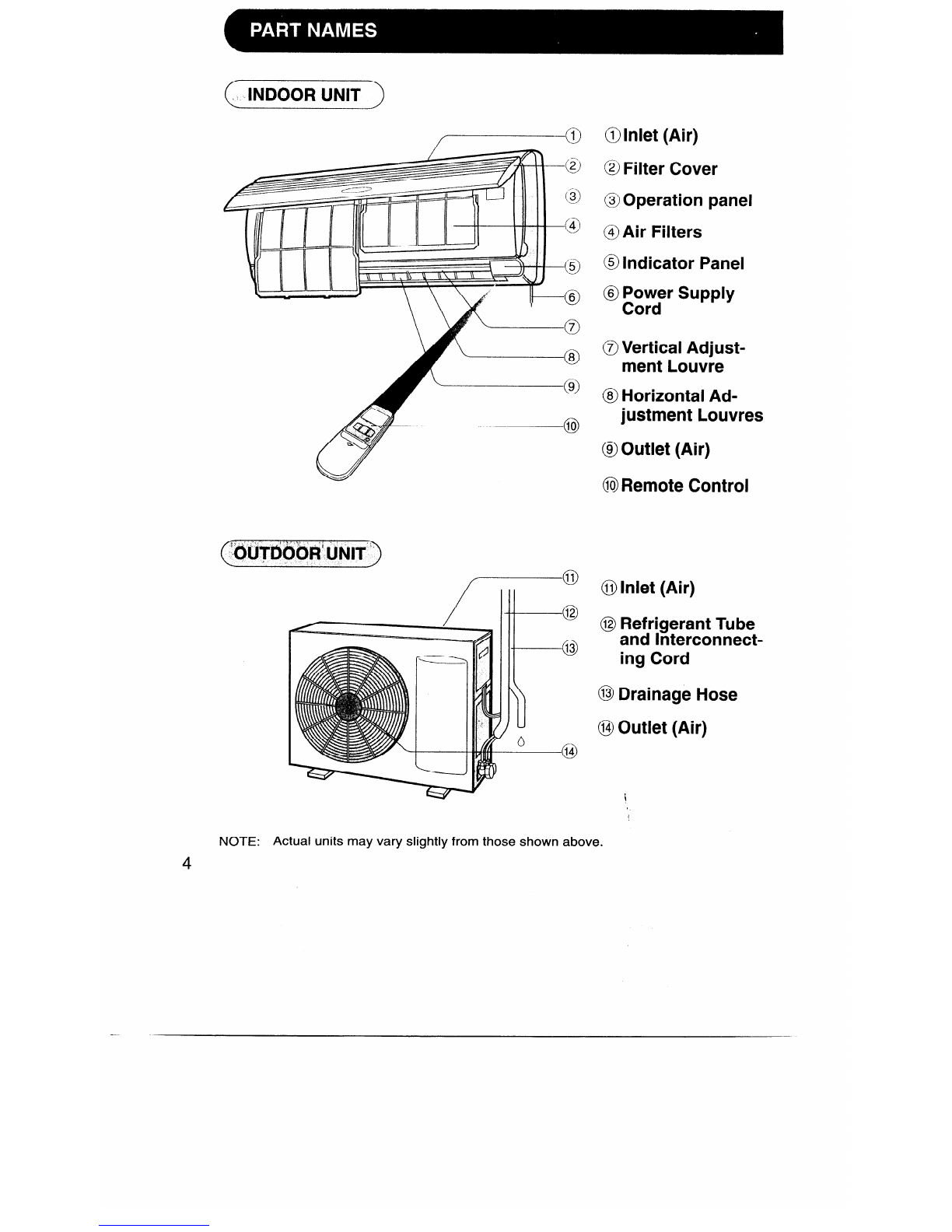

( INDOOR UNIT >

@Inlet (Air)

@ Filter Cover

@Operation panel

@IAir Filters

@ Indicator Panel

@ Power Supply

Cord

@Vertical Adjust-

ment Louvre

@ Horizontal Ad-

justment Louvres

@ Outlet (Air)

@IRemote Control

NOTE: Actual units may vary slightly from those shown above.

@Inlet (Air)

@ Refrigerant Tube

and Interconnect-

ing Cord

@ Drainage Hose

@IOutlet (Air)

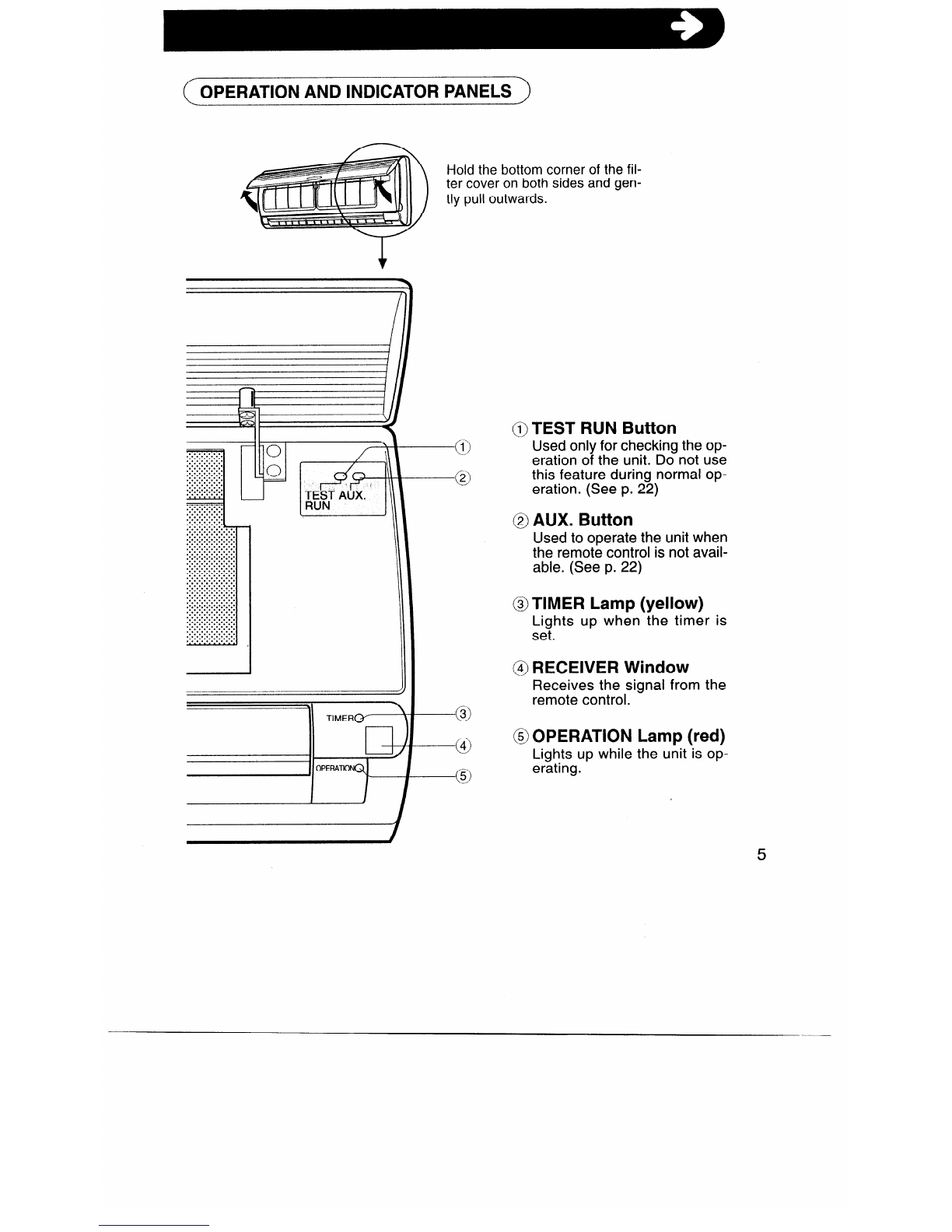

( OPERATION AND INDICATOR PANELS )

Hold the bottom corner of the fil-

ter cover on both sides and gen-

tly pull outwards.

.;_;_;_;T;‘. .

........

.......

‘::.*.~:::

........

.......

........

.......

..........

. . . . . . . . . .

. . ........

. . . . . . . . . .

. . . . . ... . .

c!l

A TEST RUN Button

Used only for checking the op-

eration of the unit. Do not use

this feature during normal op-

eration. (See p. 22)

AUX. Button

Used to operate the unit when

the remote control is not avail-

able. (See p. 22)

@TIMER Lamp (yellow)

Lights up when the timer is

set.

@JRECEIVER Window

Receives the signal from the

remote control.

@OPERATION

Lights up while

erating.

Lamp (red)

the unit is op-

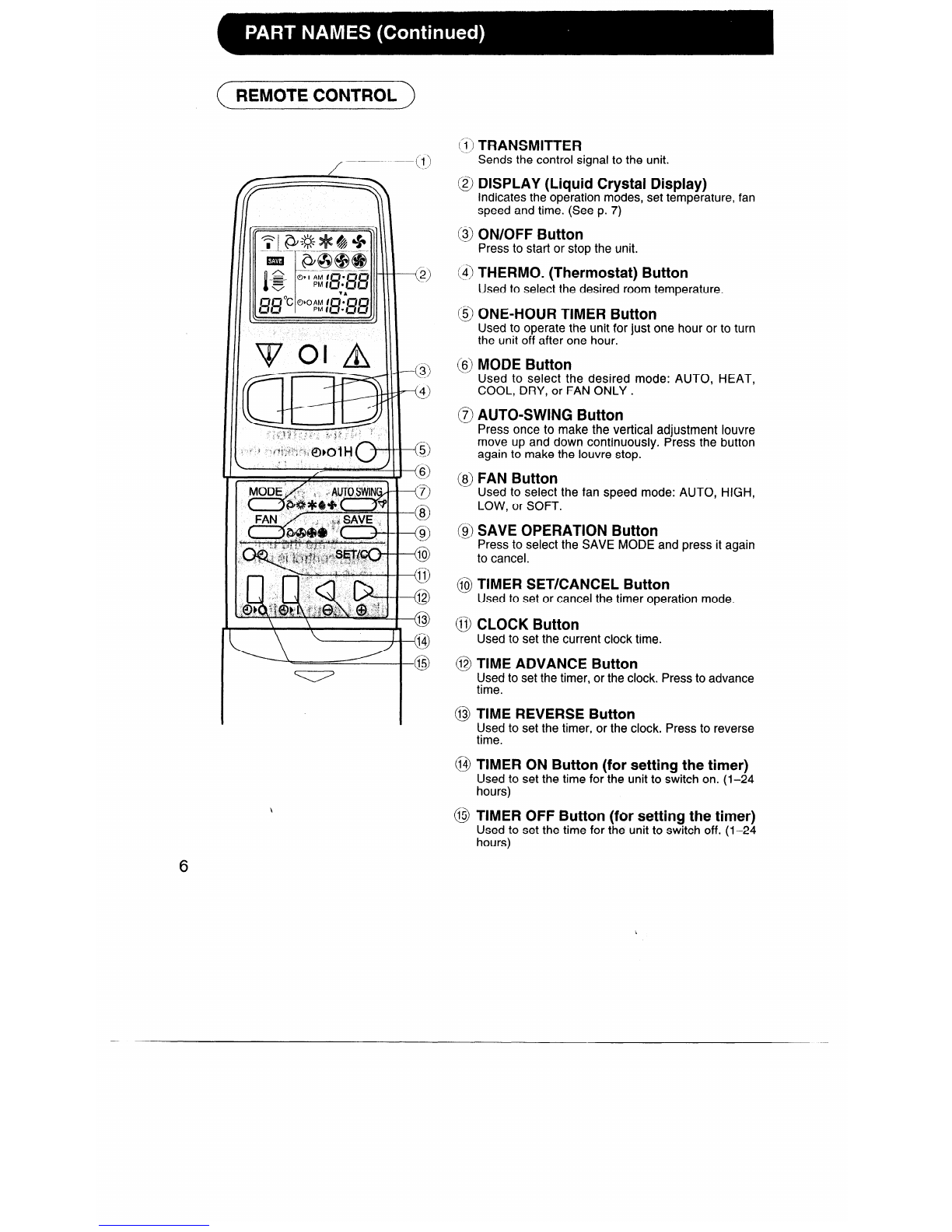

( REMOTE CONTROL )

-0

-0 5

-0 6

-0 7

-a

-0 9

3 10

-012

-013

-c)

-15

(:i:TRANSMITTER

Sends the control signal to the unit.

@ DISPLAY (Liquid Crystal Display)

Indicates the operation modes, set temperature, fan

speed and time. (See p. 7)

@ ON/OFF Button

Press to start or stop the unit.

(4) THERMO. (Thermostat) Button

.., Used to select the desired room temperature.

@ ONE-HOUR TIMER Button

Used to operate the unit for just one hour or to turn

the unit off after one hour.

@ MODE Button

Used to select the desired mode: AUTO, HEAT,

COOL, DRY, or FAN ONLY.

a AUTO-SWING Button

Press once to make the vertical adjustment louvre

move up and down continuously. Press the button

again to make the louvre stop.

@ FAN Button

Used to select the fan speed mode: AUTO, HIGH,

LOW, or SOFT.

SAVE OPERATION Button

Press to select the SAVE MODE and press it again

to cancel.

TIMER SET/CANCEL Button

Used to set or cancel the timer operation mode.

CLOCK Button

Used to set the current clock time.

TIME ADVANCE Button

Used to set the timer, or the clock. Press to advance

time.

TIME REVERSE Button

Used to set the timer, or the clock. Press to reverse

time.

TIMER ON Button (for setting the timer)

Used to set the time for the unit to switch on. (l-24

hours)

TIMER OFF Button (for setting the timer)

Used to set the time for the unit to switch off. (l-24

hours)

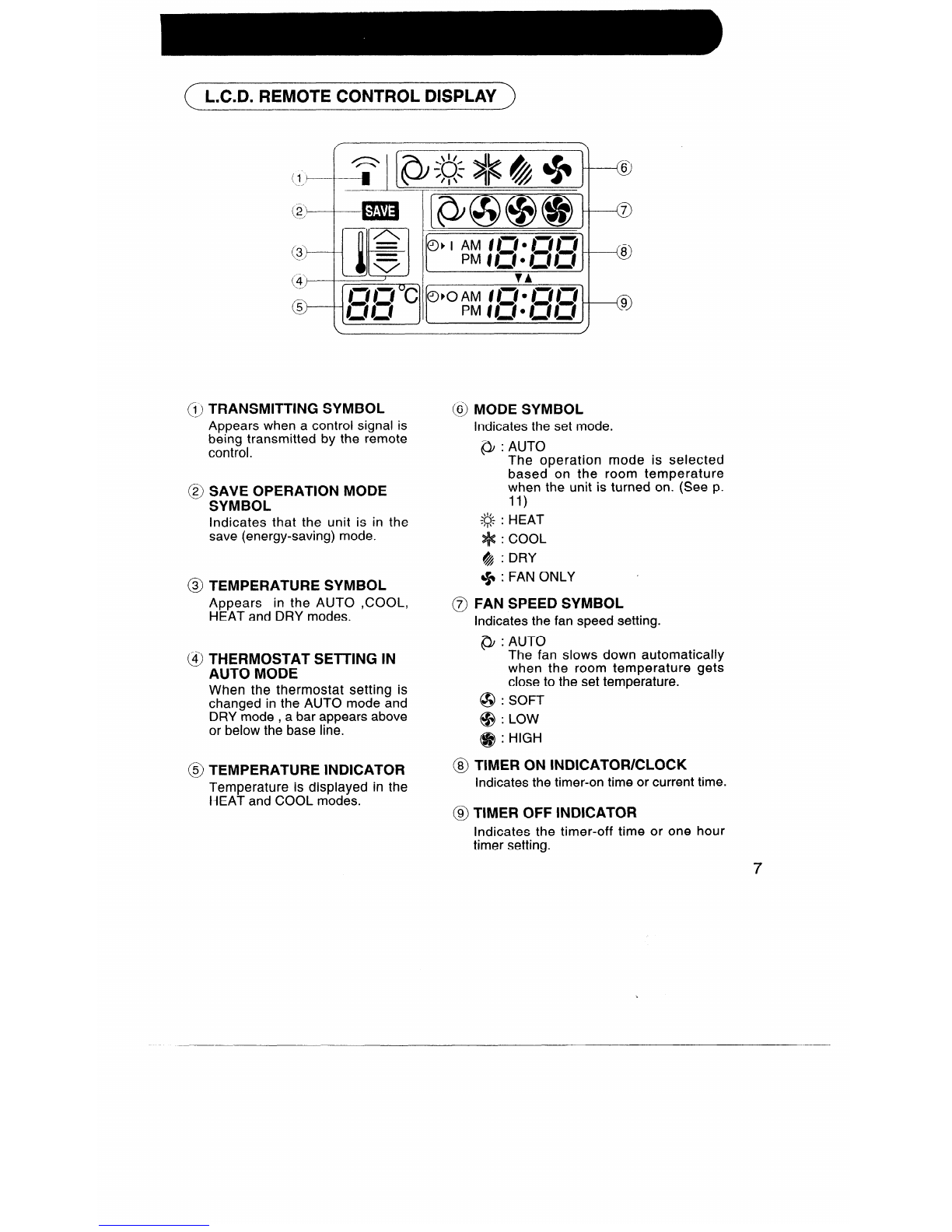

( L.C.D. REMOTE CONTROL DISPLAY>

(i., TRANSMITTING SYMBOL

Appears when a control signal is

being transmitted by the remote

control.

@ SAVE OPERATION MODE

SYMBOL

indicates that the unit is in the

save (energy-saving) mode.

@I TEMPERATURE SYMBOL

Appears in the AUTO ,COOL,

HEAT and DRY modes.

@ THERMOSTAT SETTING IN

AUTO MODE

When the thermostat setting is

changed in the AUTO mode and

DRY mode , a bar appears above

or below the base line.

@ TEMPERATURE INDICATOR

Temperature is displayed in the

HEAT and COOL modes.

@ MODE SYMBOL

Indicates the set mode.

0 : AUTO

The operation mode is selected

based on the room temperature

when the unit is turned on. (See p.

11)

# : HEAT

>* : COOL

& : DRY

$Q : FAN ONLY .

a FAN SPEED SYMBOL

Indicates the fan speed setting.

@ : AUTO

The fan slows down automatically

when the room temperature gets

close to the set temperature.

@ : SOFT

@ : LOW

@ : HIGH

@I TIMER ON INDICATOR/CLOCK

Indicates the timer-on time or current time.

@ TIMER OFF INDICATOR

Indicates the timer-off time or one hour

timer setting.

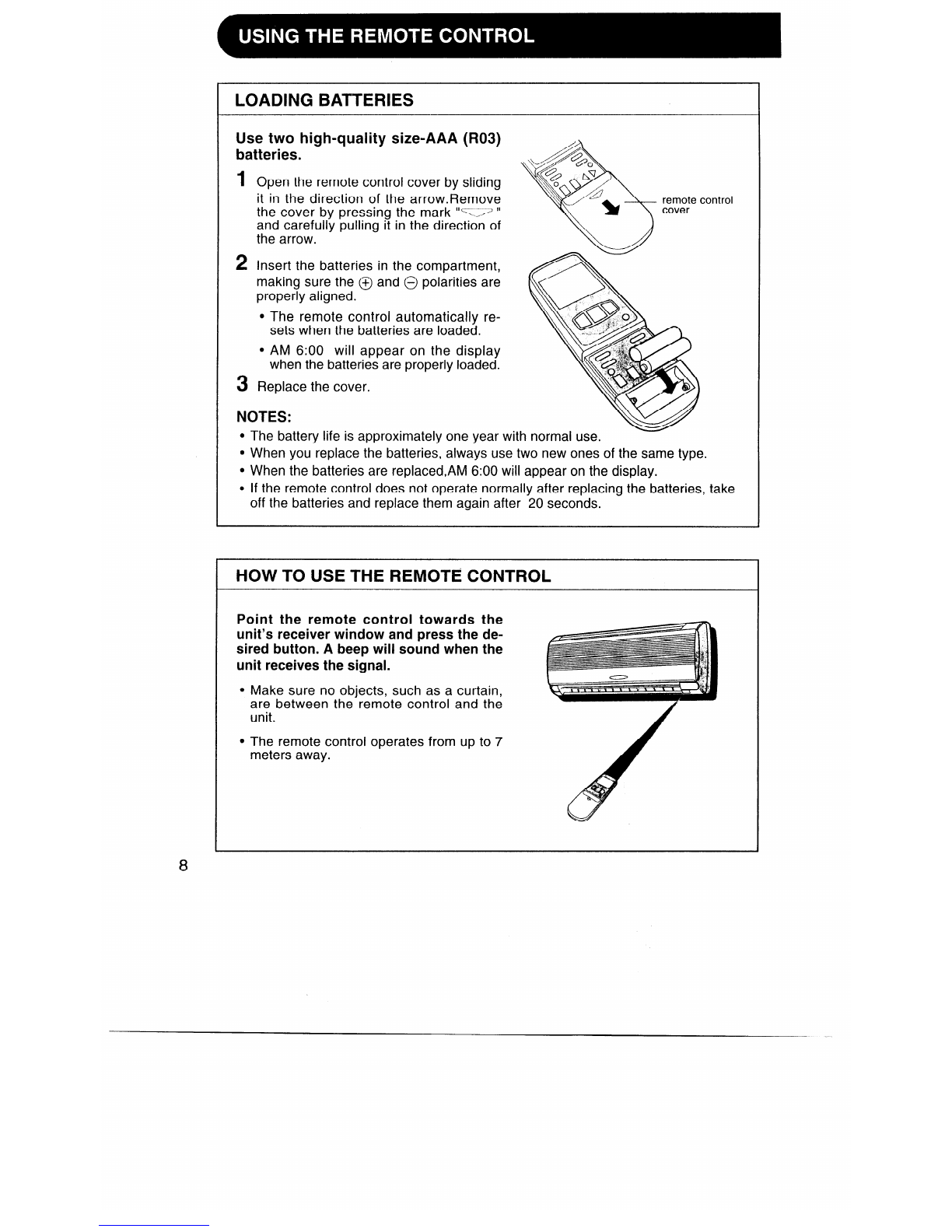

LOADING BATTERIES

Use two high-quality size-AAA (R03)

batteries.

1 Open the remote control cover by sliding

it in the direction of the arrow.Remove

the cover by pressing the mark “77 ”

and carefully pulling it in the direction of

the arrow.

remote control

2 Insert the batteries in the compartment,

making sure the @ and @ polarities are

properly aligned.

l The remote control automatically re-

sets when the batteries are loaded.

l AM 6:00 will appear on the display

when the batteries are properly loaded.

3 Replace the cover.

NOTES:

l The battery life is approximately one year with normal use.

l When you replace the batteries, always use two new ones of the same type.

l When the batteries are replaced,AM 6:00 will appear on the display.

l If the remote control does not operate normally after replacing the batteries, take

off the batteries and replace them again after 20 seconds.

HOW TO USE THE REMOTE CONTROL

Point the remote control towards the

unit’s receiver window and press the de-

sired button. A beep will sound when the

unit receives the signal.

l Make sure no objects, such as a curtain,

are between the remote control and the

unit.

l The remote control operates from up to 7

meters away.

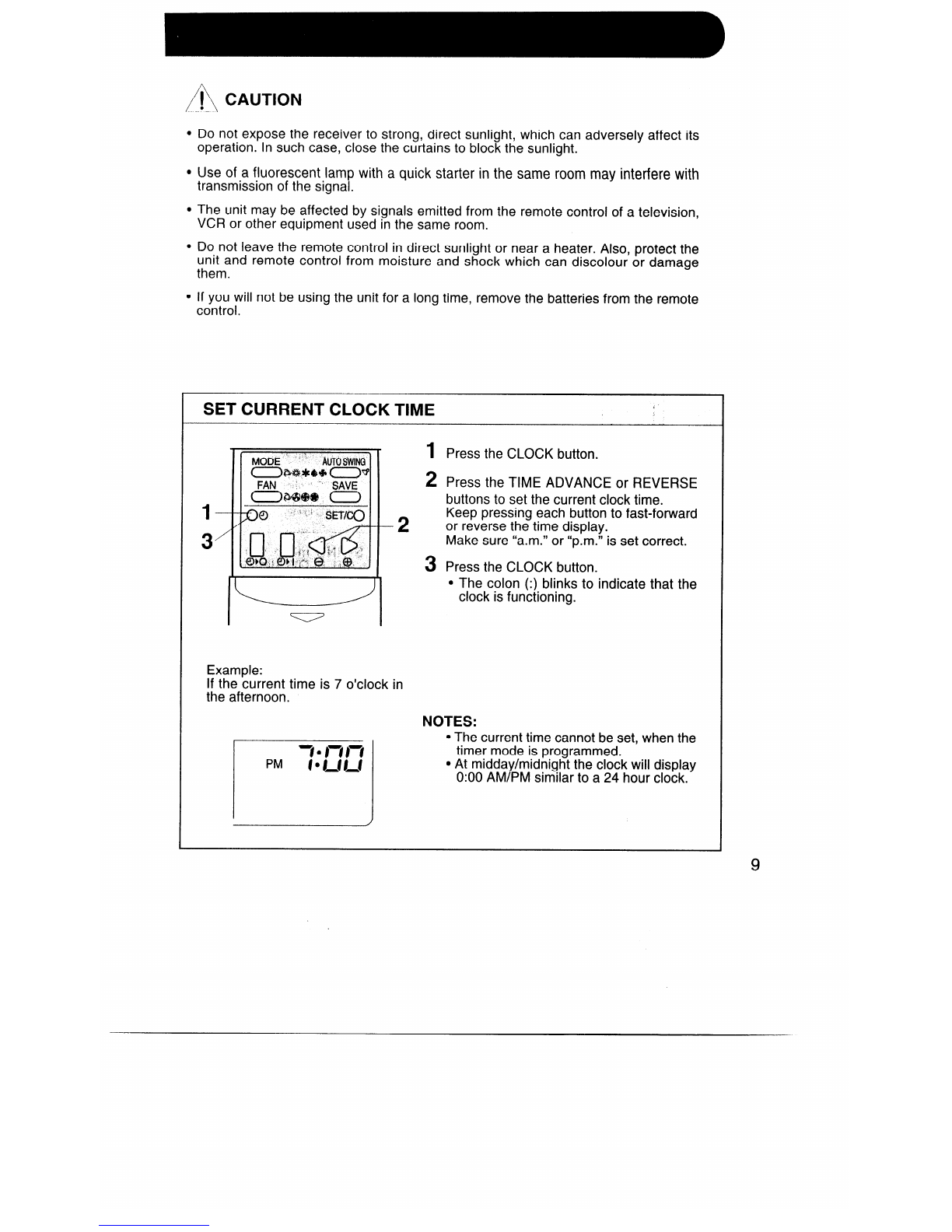

t CAUTION

Do not expose the receiver to strong, direct sunlight, which can adversely affect its

operation. In such case, close the curtains to block the sunlight.

Use of a fluorescent lamp with a quick starter in the same room may interfere with

transmission of the signal.

The unit may be affected by signals emitted from the remote control of a television,

VCR or other equipment used in the same room.

Do not leave the remote control in direct sunlight or near a heater. Also, protect the

unit and remote control from moisture and shock which can discolour or damage

them.

If you will not be using the unit for a long time, remove the batteries from the remote

control.

SET CURRENT CLOCK TIME

1 Press the CLOCK button.

2 Press the TIME ADVANCE or REVERSE

buttons to set the current clock time.

2 Keep pressing each button to fast-forward

or reverse the time display.

Make sure “a.m.” or “p.m.” is set correct.

3 Press the CLOCK button.

l The colon (:) blinks to indicate that the

clock is functioning.

Example:

If the current time is 7 o’clock in

the afternoon.

NOTES:

l The current time cannot be set, when the

timer mode is programmed.

l At midday/midnight the clock will display

0:OOAM/PM similar to a 24 hour clock.

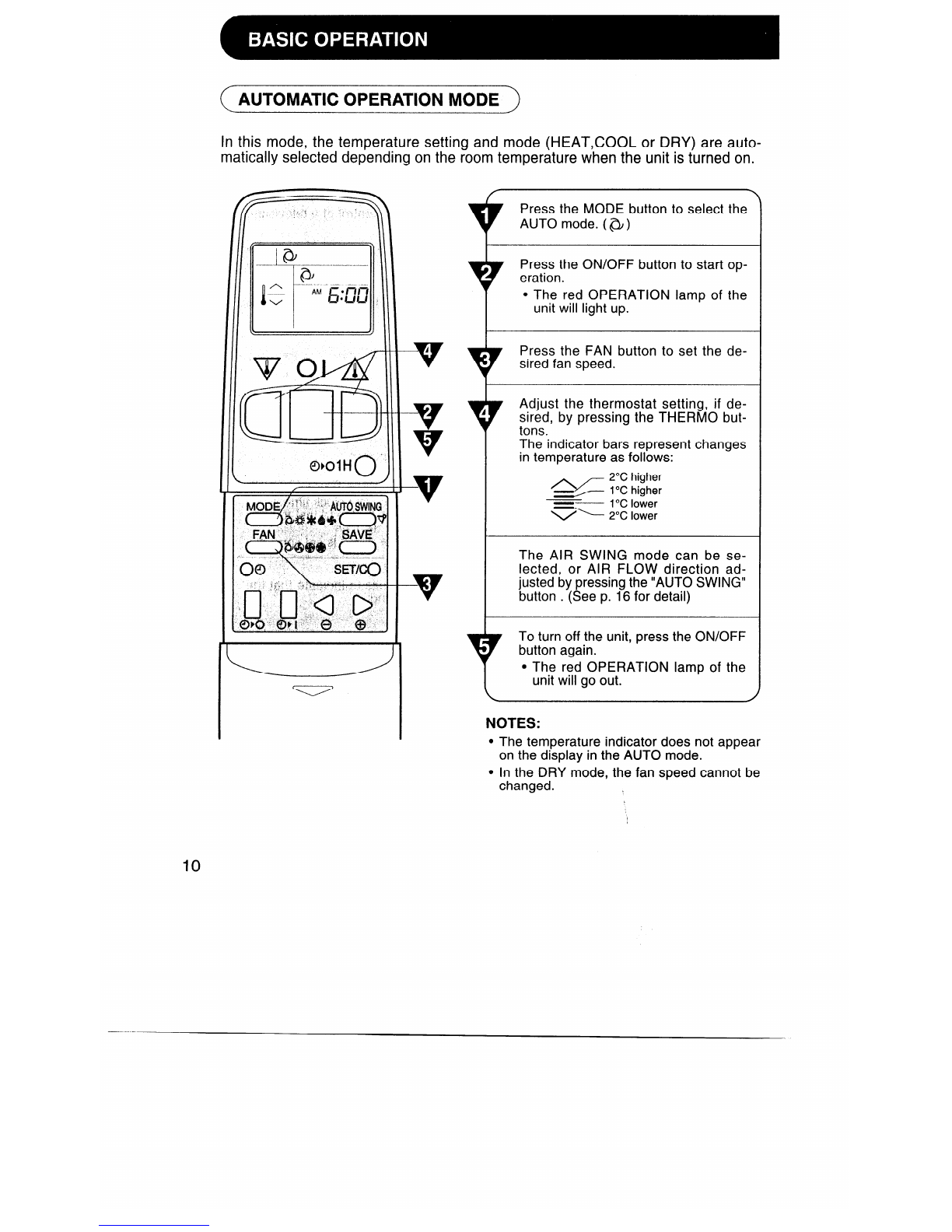

(- AUTOMATIC OPERATION MODE -)

In this mode, the temperature setting and mode (HEAT,COOL or DRY) are auto-

matically selected depending on the room temperature when the unit is turned on.

-v

r Press the MODE button to select the

AUTO mode. (Q)

r Press the ON/OFF button to start op-

eration.

l The red OPERATION lamp of the

unit will light up.

7 Press the FAN button to set the de-

sired fan speed.

Adjust the thermostat setting, if de-

sired, by pressing the THERM0 but-

tons.

The indicator bars represent changes

in temperature as follows:

-- 1°C lower

TP----- 2°C lower

The AIR SWING mode can be se-

lected, or AIR FLOW direction ad-

justed by pressing the “AUTO SWING”

button . (See p. 16 for detail)

7 To turn off the unit, press the ON/OFF

button again.

l The red OPERATION lamp of the

unit will go out.

NOTES:

The temperature indicator does not appear

on the display in the AUTO mode.

In the DRY mode, the fan speed cannot be

changed. /

--__ _

This manual suits for next models

Other Sharp Air Conditioner manuals

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
