SEWOO SLK-TS400 Instruction Manual
TS400 ENG Rev. I 01/2021
Aroot Co., Ltd.
28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi- do, 18103, Republic of Korea
TEL : +82-31-8077-5000 / FAX : +82-31-624-5310
http://www.miniprinter.com
All speci cations are subject to change without notice
MODEL : SLK-TS400 SERIES
Receipt Printer User’s Manual
This device co mplies with part 15 of the FCC Rules.
Operation is subject to the following two conditions.
1) This device may not cause harmful interference, and
2) This device must accept any interference received,
including interference that may cause undesired operation.
Vic Barczyk
19700 S Vermont Ave Ste 200 Torrance, CA 90502 | USA
sales@miniprinter.com
Henning Mahlstedt
26188 Edewecht, Holljestr.9 | Germany
europe@miniprinter.com
Victor Almazan
Paseo de la Reforma No. 265 Piso 2.Ocina SBC. Col.
Cuauhtémoc, C.P. 06500 Ciudad de Mexico | Mexico
sales@miniprinter.com
Yan xiao rui
Room 902, No. 7, Lane 118, Xiaojishan Road, Sheshan Town,
Songjiang District, Shanghai | China
sales@miniprinter.com
Disposal of Old Electrical&Electronic Equipment(Applicable in the European Union and other
European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as
household waste. Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronics equipment. For more detailed information about recycling of this product,
please contact your local city oce, your household waste disposal service or the shop where you
purchased the product.
2
Table of Contents
1. Parts Identications 3
2. Setting up the printer 4
2.1 Unpacking 4
2.2 Connecting the cables 5
2.3 Loading the roll paper 8
3. Control panel and other functions 11
3.1 Control panel 11
3.2 Error Indicating 11
4. Self Test 12
5. ASCII Print 13
6. ECO Mode 13
6.1 Font 13
6.2 Paper Reduce 14
6.3 Density 14
7. Printer Setting 15
7.1 Baudrate 15
7.2 Cutter 15
7.3 Error Beep 15
7.4 Melody 16
8. Hexadecimal Dump 17
9. Peripherals Connection (Option) 18
9.1 Bluetooth Connection 18
9.2 Wi-Fi Connection 18
10. Printer Cleaning 19
11. Specications 20
12. Command List 22
13. Utilities 24
14. S/W 25
3
1. Parts Identications
Used to turn on/o
power to the printer.
POWER SWITCH
CONTROL PANEL
Features LED indicators
to indicate printer status
and switches to operate
the printer.
Open this cover to
load or replace a
paper roll.
PRINTER COVER
Push down this button to
open the printer cover.
COVER OPEN PUSH BUTTON
4
2. Setting Up the Printer
2-1. Unpacking
Your printer box should include these items. If any items are damaged or miss-
ing, please contact your dealer for assistance.
The Printer CD Roll Paper
Adaptor(Option) USB Cable(option)
5
2-2. Connecting the Cables

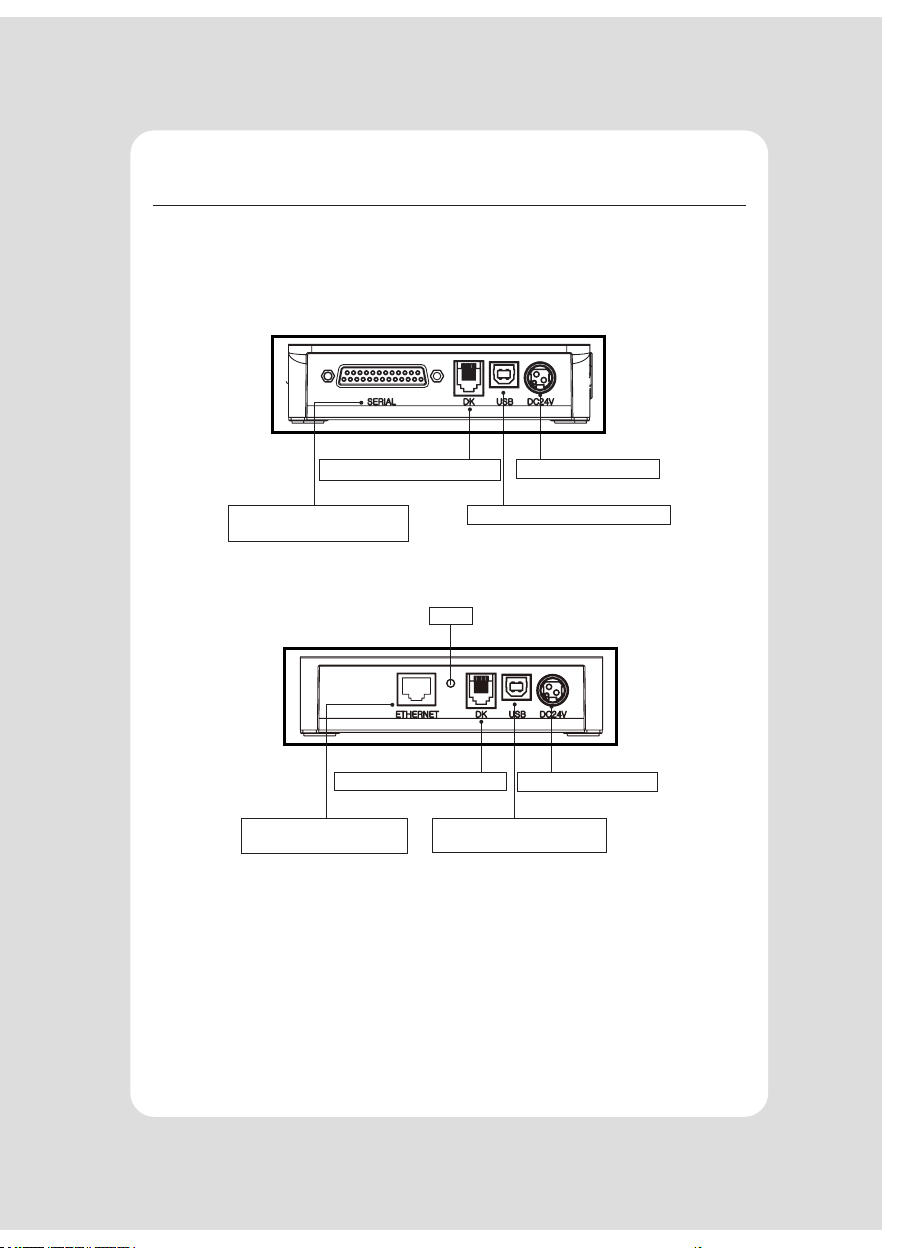

All cables connect to the connector panel on the back of the printer which is
shown below:
SLK-TS400
CASH DRAWER CONNECTOR
POWER CONNECTOR
INTERFACE CONNECTOR (USB)INTERFACE CONNECTOR
(SERIAL)
SLK-TS400EB
CASH DRAWER CONNECTOR
RESET
POWER CONNECTOR
INTERFACE CONNECTOR
(USB)
INTERFACE CONNECTOR
(ETHERNET)
Before connecting any of the cables, make sure that both the printer and the
computer are turned o.
6
2-2-1. Interface Connector
14
1
25
13
4 3
21
D-SUB 25 Female Serial USB “B” Type
Status LED
123453678
Link END
Ethernet
Ethernet Interface
PIN SIGNAL I/O
1Data Out + Output Data +
2Data Out - Output Data -
3Data IN + Input Data +
4N.C
5N.C
6Data IN - Input Data -
7N.C
8N.C
25Pin Serial Interface
PIN SIGNAL I/O Description
2TxD Output Printer transmit data line
3RxD Input Printer receive data line
4, 20 DTR Output Data Terminal Ready
6DSR Input Data Set Ready
1, 7 GND -System Ground
7
USB Interface
PIN SIGNAL I/O Description
1+5V -+5V
2DATA- -Printer transmit data line
3DATA+ -Printer transmit data line
4GND -System Ground
2-2-2. Cash Drawer Connector
The printer can operate two cash drawers with a 6 pin RJ-11 modular connector.
The driver is capable of supplying a maximum current of 1.0A for 510ms or less
when not printing.
61
PIN SIGNAL Description
1Signal GND -
2Drawer kick-out drive signal 1 Output
3Drawer open/close signal Input
4+24V -
5Drawer kick-out drive signal 2 Output
6Signal GND -
NOTE
Cash drawer 1 and 2 are connected each other inside the printer.
As it is not able to distinguish between Cash drawer 1 and 2, we recommend
you to use only one cash drawer.
