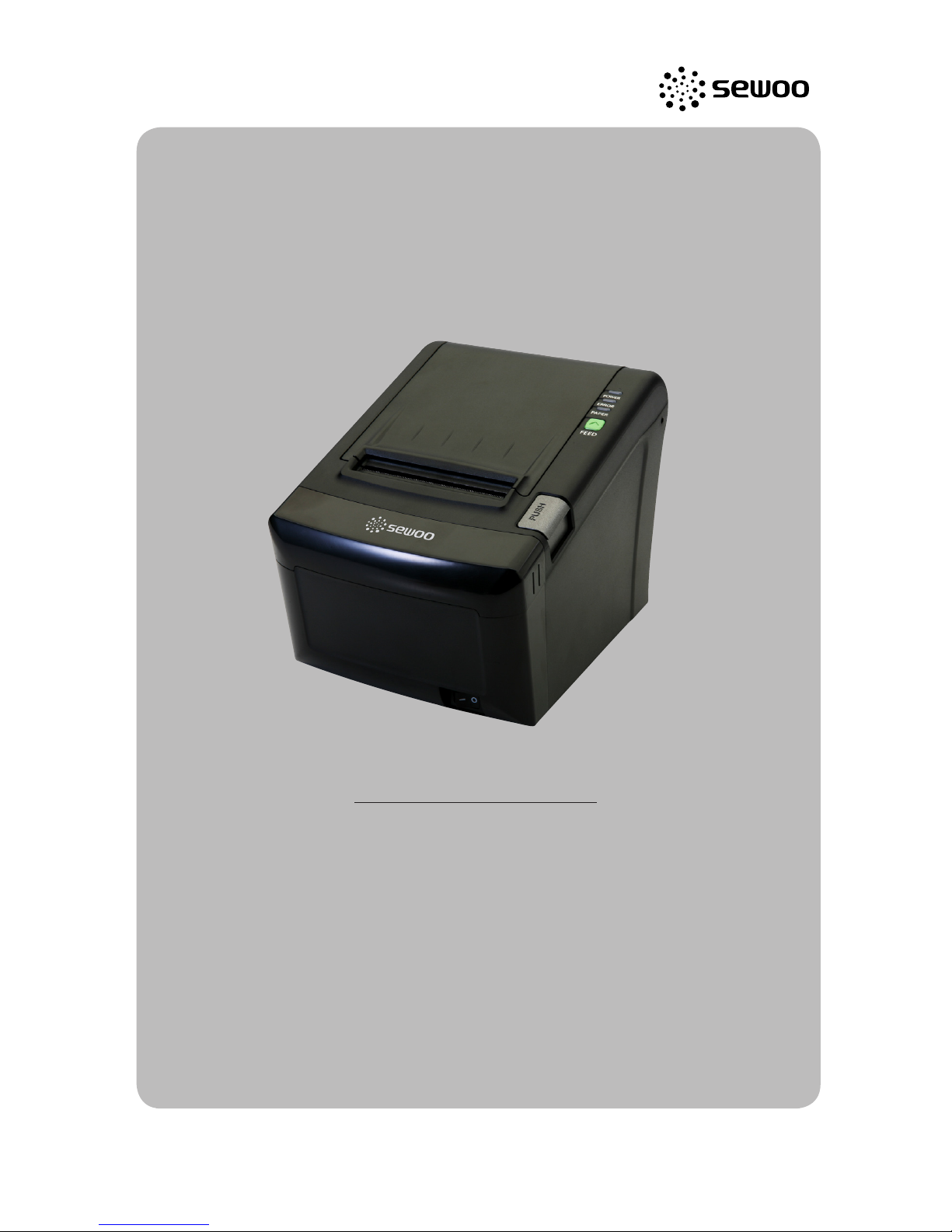

SEWOO LK-T12 User manual

Receipt Printer User’s Manual

MODEL : LK-T12

전자파 적합등록

A급 기기(업무용)

▶ 이 기기는 업무용(A급)으로 전자파 적합등록을 한 기기이오니 판매자 또는 사용자는 이점을

주의하시기 바라며, 가정 외의 지역에서 사용하는 것을 목적으로 합니다.

인증 사항

인증자 상호 ㈜세우테크

LK-T12

2009. 06. 11

㈜세우테크 / 한국

SWP-LK-T12(A)

MINI PRINTER

모델명

제조년

제조자/제조국가

인증번호

기기의 명칭

이 사용설명서와 제품은 저작권법에 의해 보호되어 있습니다.

본 제품을 분류되지 않은 자치단체 쓰레기로 처리하지 마십시오,

본 제품은 재활용이 가능하며, 해당 지역의 기준에 따라 재활용해야 합니다.

Disposal of Old Electrical&Electronic Equipment(Applicable in the European

Union and other European countries with separate collection systems)

1. Parts Identications 3

2. Setting up the printer 4

2.1 Unpacking 4

2.2 Connecting the cables 5

2.3 Loading the roll paper 9

2.4 Dip switch setting 11

3. Control panel and other functions 14

3.1 Control panel 14

3.2 Error Indicating 14

4. Self Test 15

5. Hexadecimal Dump 16

6. Specications 17

6.1. General Specications 17

6.2. Auto Cutter Specications 19

6.3. Interface 19

6.4. Electrical Characteristics 19

6.5. Environmental Requirements 20

6.6. Reliability 20

6.7. Certication 20

7. Command List 21

Table of Contents

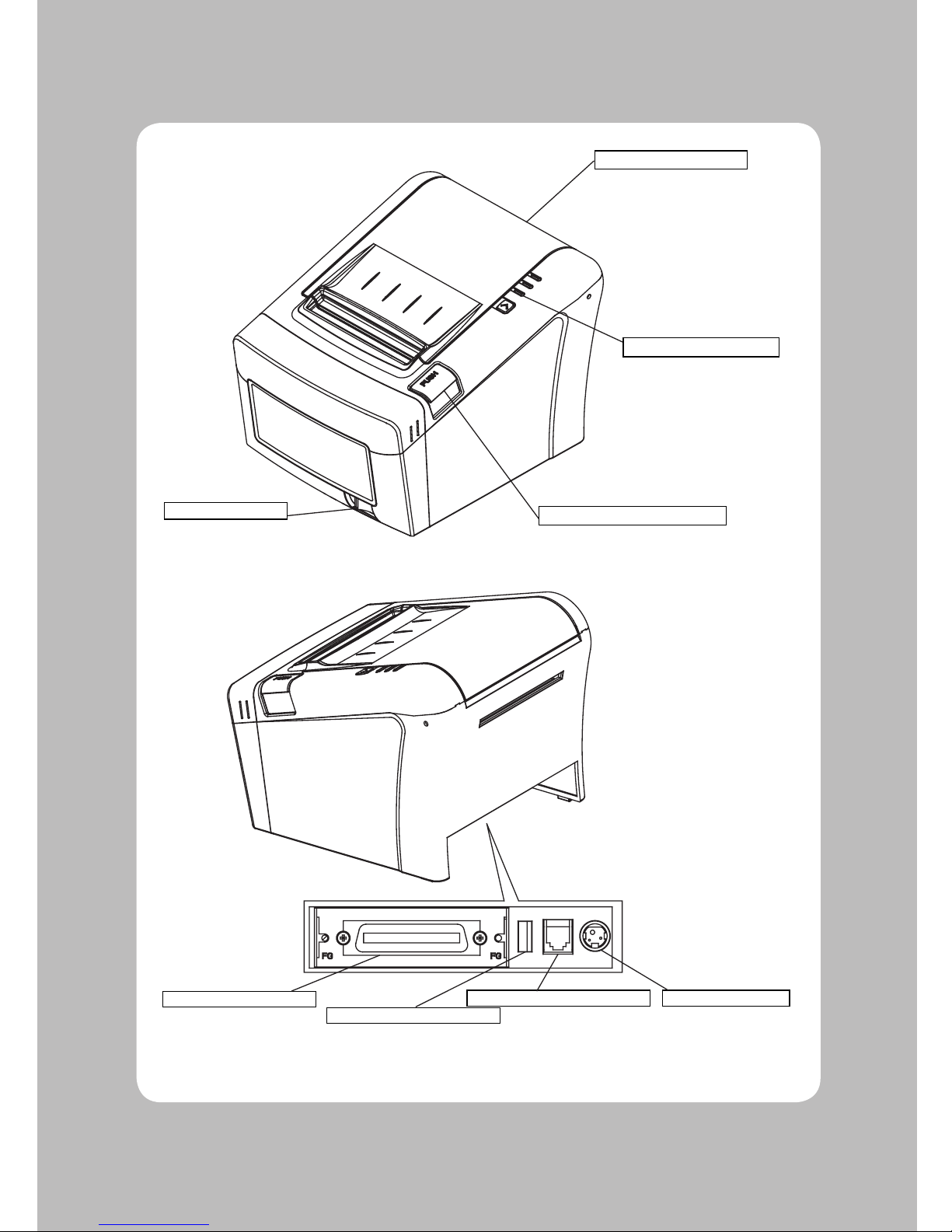

1. Parts Identifications

PRINTER COVER

POWER SWITCH

CONTROL PANEL

COVER OPEN PUSH BUTTON

INTERFACE CONNECTOR PERIPHERAL DRIVE CONNECTOR POWER CONNECTOR

INTERFACE CONNECTOR (USB)

Open this cover to load or

replace a paper.

Used to turn on/off

power to the printer.

Features LED indicators

to indicate printer status

and switches to operate

the printer.

Push down this button to

open the printer cover.

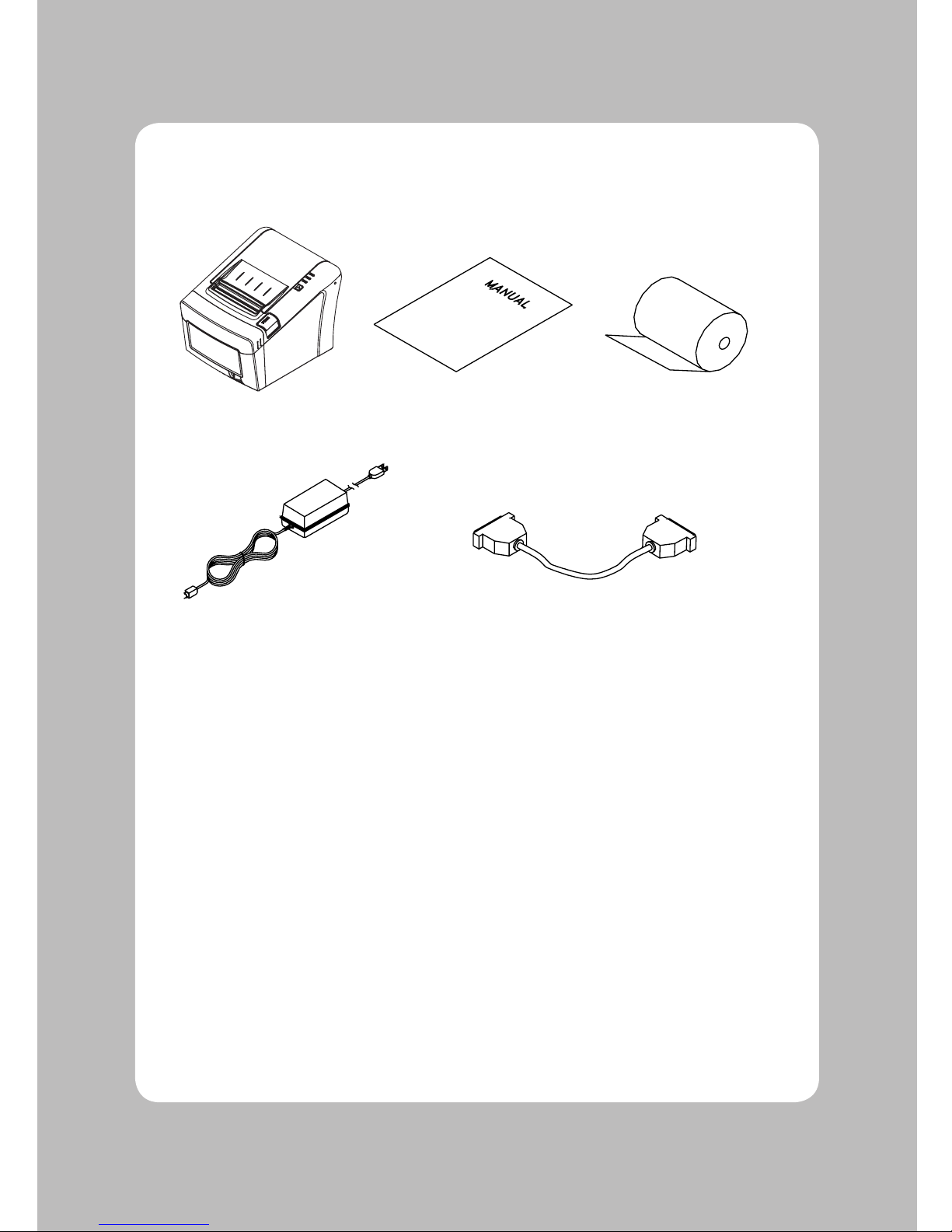

2-1. Unpacking

Your printer box should include these items. If any items are damaged or missing, please contact your

dealer for assistance.

The Printer User's Manual Roll Paper

Adaptor(Option) Interface Cable(optional)

2. Setting Up the Printer

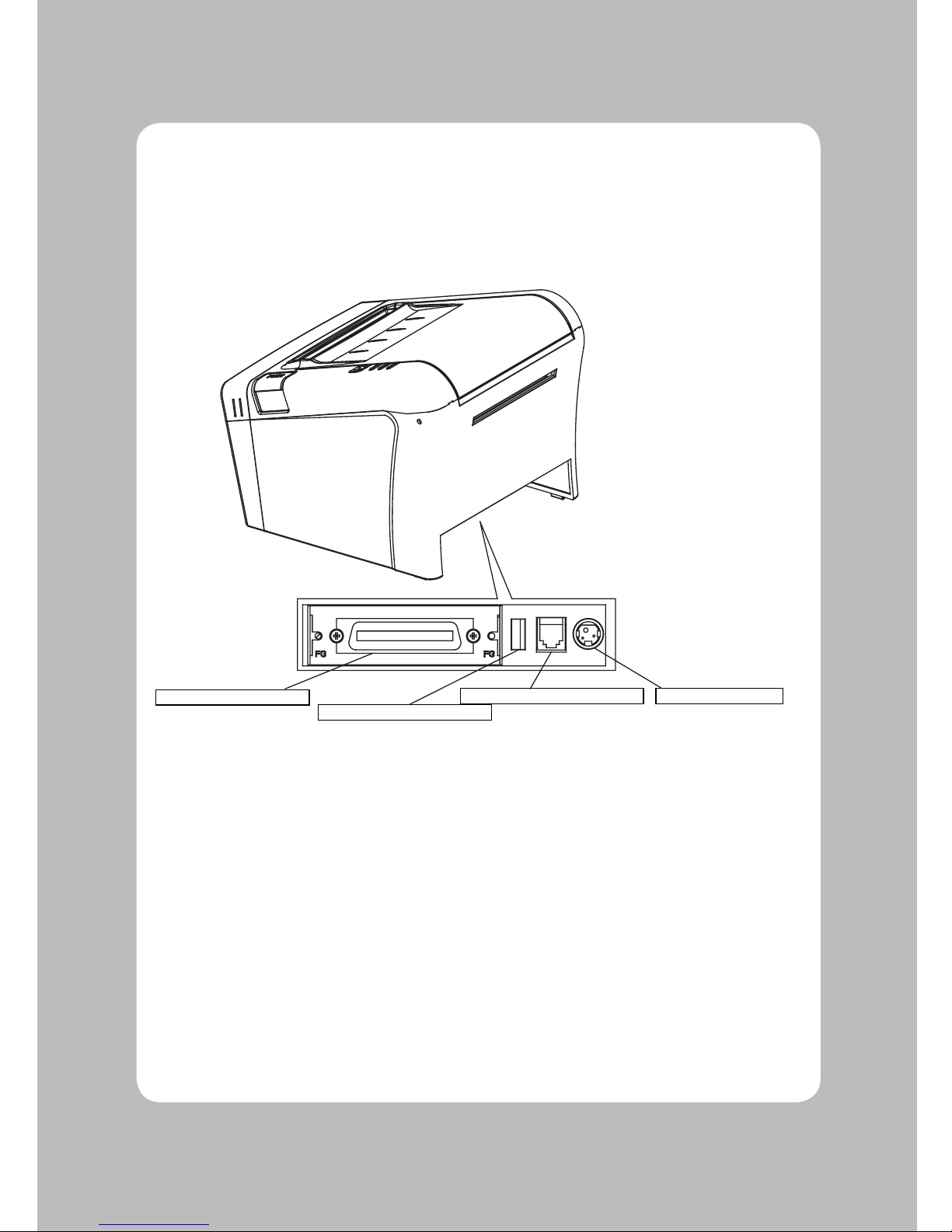

2-2. Connecting the Cables

All cables connect to the connector panel on the back of the printer which is shown below:

Before connecting any of the cables, make sure that both the printer and the computer are turned off.

INTERFACE CONNECTOR PERIPHERAL DRIVE CONNECTOR POWER CONNECTOR

INTERFACE CONNECTOR (USB)

For connection to a

host computer. For connection to a

host computer.

For connection of the

AC adapter.

Never unplug the AC

adapter while the

printer is on.

Connects to peripheral

units such as cash

drawer, etc.

Do not connect this to a

telephone.

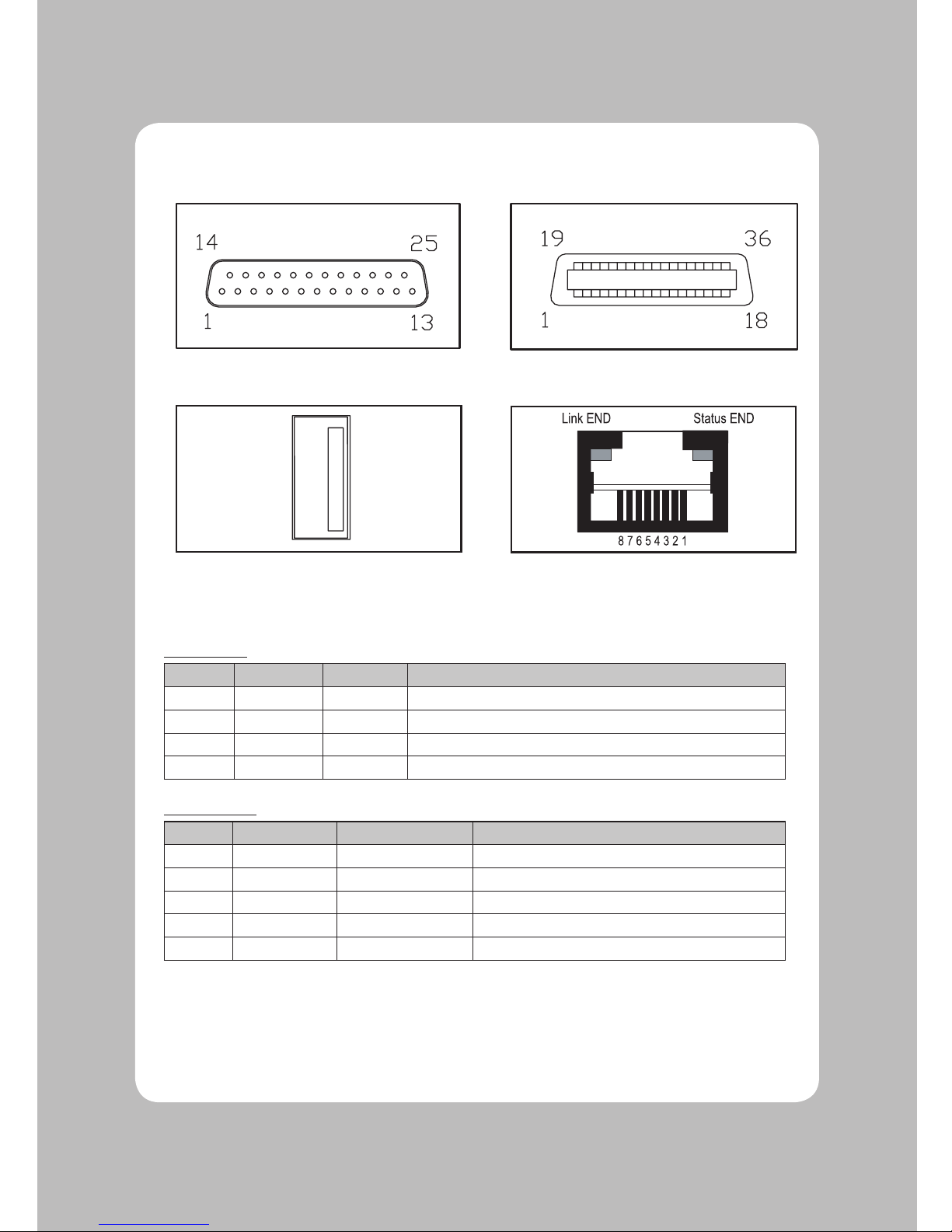

2-2-1. Interface Connector

<D-SUB 25 Female Serial> <Centronics Parallel>

USB Interface

PIN SIGNAL I/O DESCRIPTION

1 +5V - +5V

2 DATA- - Printer transmit data line

3 DATA+ - Printer transmit data line

4 GND - System Ground

Serial Interface

PIN SIGNAL I/O DESCRIPTION

2 TxD Output Printer transmit data line RS-232C level

3 RxD Input Printer receive data line RS-232C level

4, 20 DTR Output Printer handshake to host line RS-232C level

6 DSR Input Data Send Ready

1, 7 GND - System Ground

Centronics Parallel Interface

PIN SIGNAL I/O DESCRIPTION

1 STROBE- Input Synchronize signal Data received

2~9 DATA0~7 Input/Output Data bit Transmitted 0~7

10 ACK- Output Data receiving completed.

11 BUSY Output Impossible to print of data receiving.

12 PE Output Paper empty

13 SELECT Output Printer status for ON/OFF line

14 AUTO FEED- Input Paper auto feed signal

15 GROUND - System ground

16 GROUND - System ground

17 NC -

18 LOGIC-H - +5V

19~30 GROUND - System ground

31 INIT- Input Initialize

32 ERROR- Output Printer error

33 GROUND - System ground

34 NC -

35 +5V - +5V

36 SELLECT IN- Input Printer select signal

Ethernet Interface

PIN SIGNAL I/O

1 Data Out + Output Data +

2 Data Out - Output Data -

3 GND Ground

4 Data IN + Input Data +

5 Data IN - Input Data -

6 N.C

7 N.C

8N.C

2-2-2. Cash Drawer Connector

The printer can operate two cash drawers with a 6 pin RJ-11 modular connector.

The driver is capable of supplying a maximum current of 0.1A for 510ms or less when not printing.

PIN SIGNAL DESCRIPTION

1 Signal GND -

2 Drawer kick-out drive signal 1 Output

3 Drawer open/close signal Input

4 +24V -

5 Drawer kick-out drive signal 2 Output

6 Signal GND -

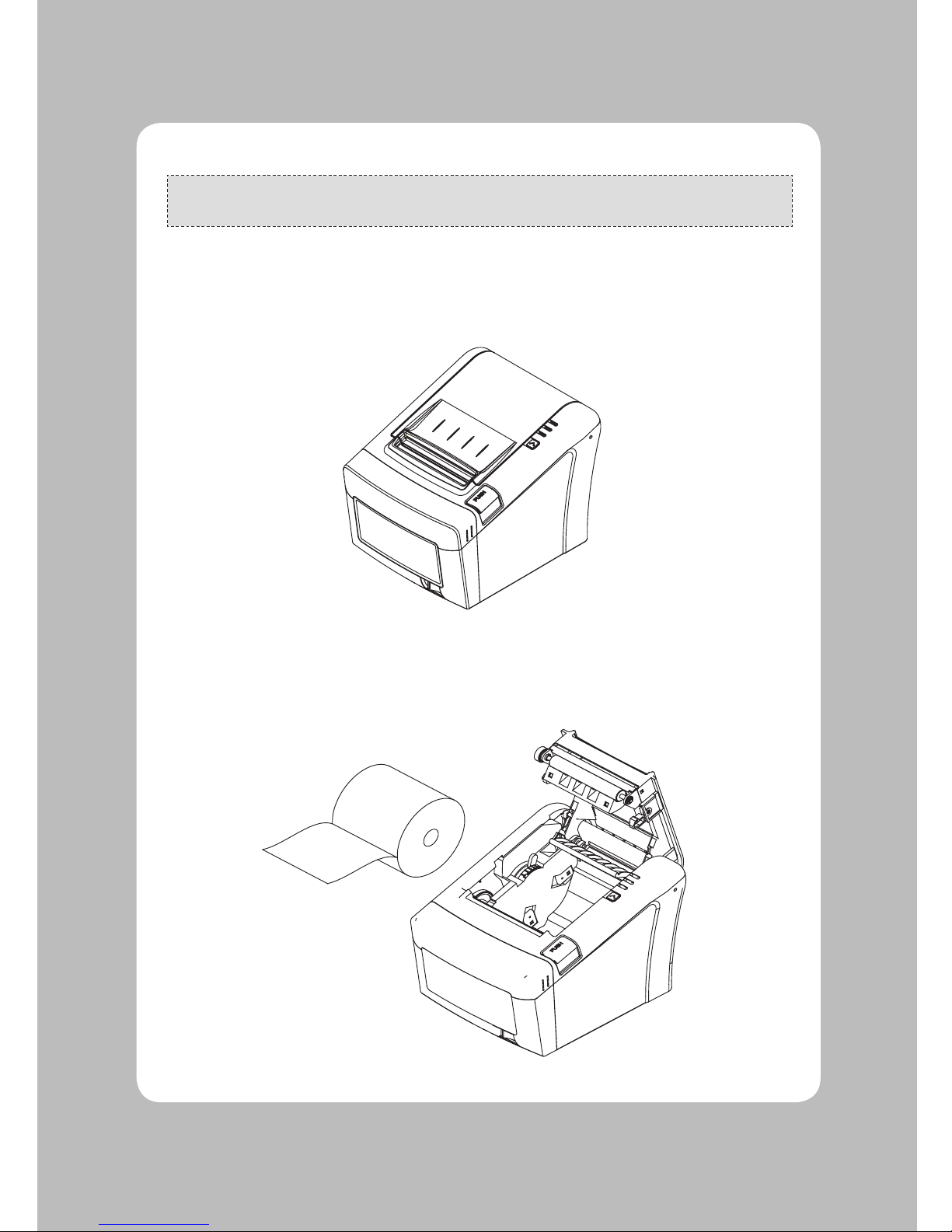

2-3. Loading the Roll Paper

Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the

paper glued to the core because the printer cannot detect the paper end correctly.

♣Turn off power switch.

1. Make sure that the printer is not receiving data; Otherwise, data may be lost.

2. Open the paper roll cover by pushing down the cover open push button.

3. Remove the used paper roll core if there is one inside.

4. Insert new paper roll as shown.
