Seagull Models Turbo Raven User manual

“Graphics and specifications may change without notice”.

ASSEMBLY MANUAL

MS: 117

Specifications:

Wingspan-------------------------59.8in(152cm).

Wingarea--------------592.1sq.in(38.2sqdm).

Weight--------------------6.4-7.1lbs(2.9-3.2kg).

Length------------------------------51.2in(130cm).

Engine -------------.46-.55cu.in-----2-stroke.

.52 - .72cu.in -----4-stroke.

Radio-----------------4channelswith5servos.

TURBO RAVEN. Instruction Manual

INTRODUCTION.

Thank you for choosing the TURBO RAVEN ARTF by SEAGULL MODELS. The TURBO

RAVEN was designed with the intermediate/advanced sport scale in mind. It is a semi scale

airplane whichiseasytoflyandquick toassemble.Theairframeisconventionallybuiltusingbalsa,

plywood tomakeitstrongerthantheaverageARTF,yetthedesignallowstheaeroplanetobekept

light. You will find that most of the work has been done for you already. The motor mount has been

fitted and the hinges are pre-installed . Flying the TURBO RAVEN is simply a joy.

This instruction manual is designed to help you build a great flying aeroplane. Please read this

manualthoroughlybeforestartingassemblyofyourTURBO RAVEN.Usethepartslistingbelowto

identify all parts.

WARNING.

Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it

is capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU

ASSUME ALL RISK & RESPONSIBILITY.

If you are inexperienced with basic R/C flight we strongly recommend you contact your R/C

supplierandjoinyourlocalR/CModelFlyingClub.R/CModelFlyingClubsofferavarietyoftraining

proceduresdesigned to helpthenewpilotonhis way tosuccessfulR/Cflight.Theywill alsobeable

to advise on any insurance and safety regulations that may apply.

KIT CONTENTS

10 8.1

8.2

www.seagullmodels.com

ADDITIONAL ITEMS REQUIRED.

.46- .55 cu.in 2-stroke

.52- .72 cu.in 4-stroke

Radio System required 4 channels

with 5 servos.

Glow plug to suit engine

Propeller to suit engine

Protective foam rubber for radio

system

Silicone fuel line

TOOLS & SUPPLIES NEEDED.

Thick cyanoacrylate glue

30 minute epoxy

5 minute epoxy

Hand or electric drill

Assorted drill bits

Modellingknife

Straight edge ruler

2mm ball driver

Phillips head screwdriver

220 grit sandpaper

90° square or builder’s triangle

Wire cutters

Masking tape & T-pins

Thread-lock

Paper towels

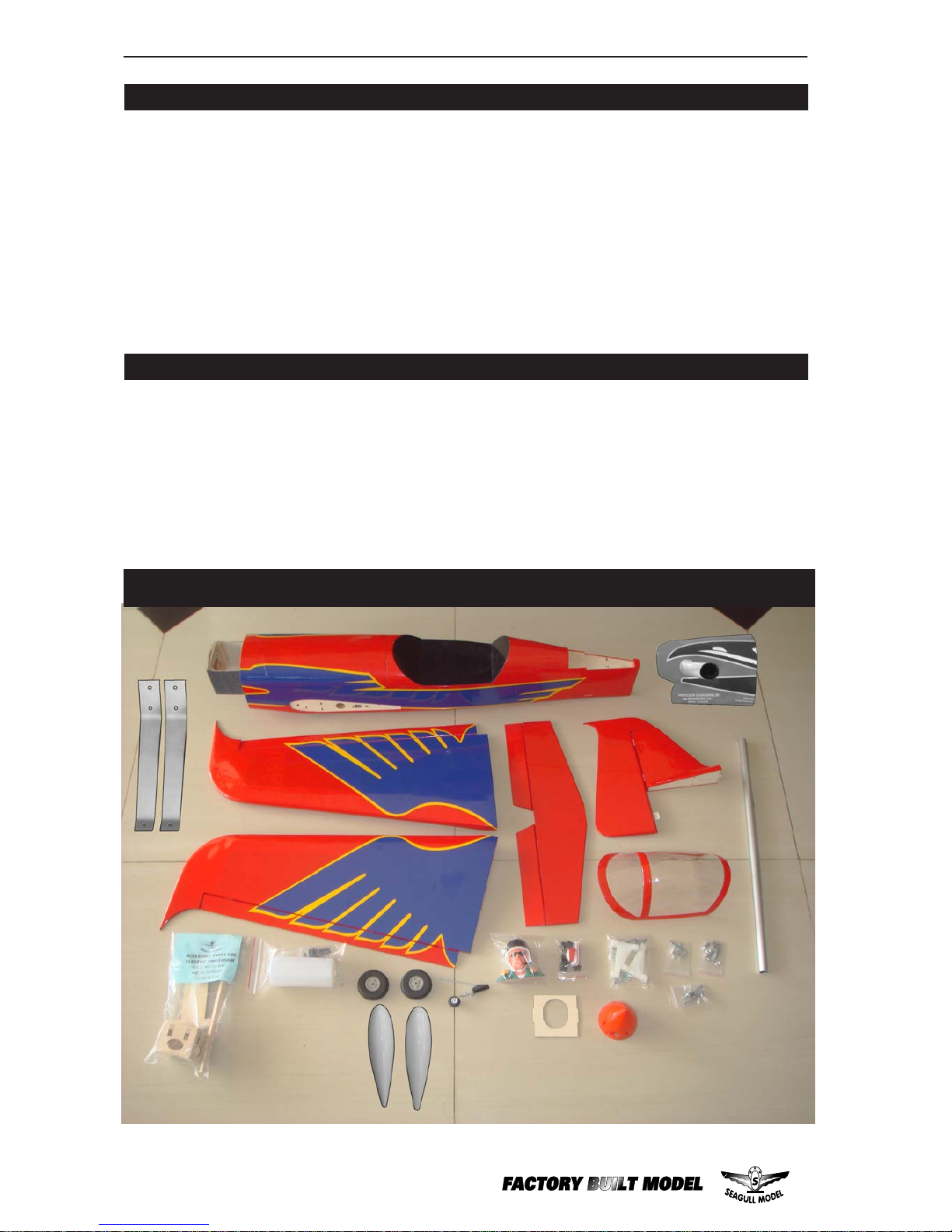

KIT CONTENTS

1 Fuselage

2 Canopy

3 Left wing panel

4 Right wing panel

5 Tail set

6 Aluminum wing tube

7 Scale pilot

8 70mm wheels (2)

8.1 Tail wheel gear

8.2 Main landing gear

9 EP conversion pack

10 Hardware bag included

11 Wheel pants (2)

12 Fiberglass cowl

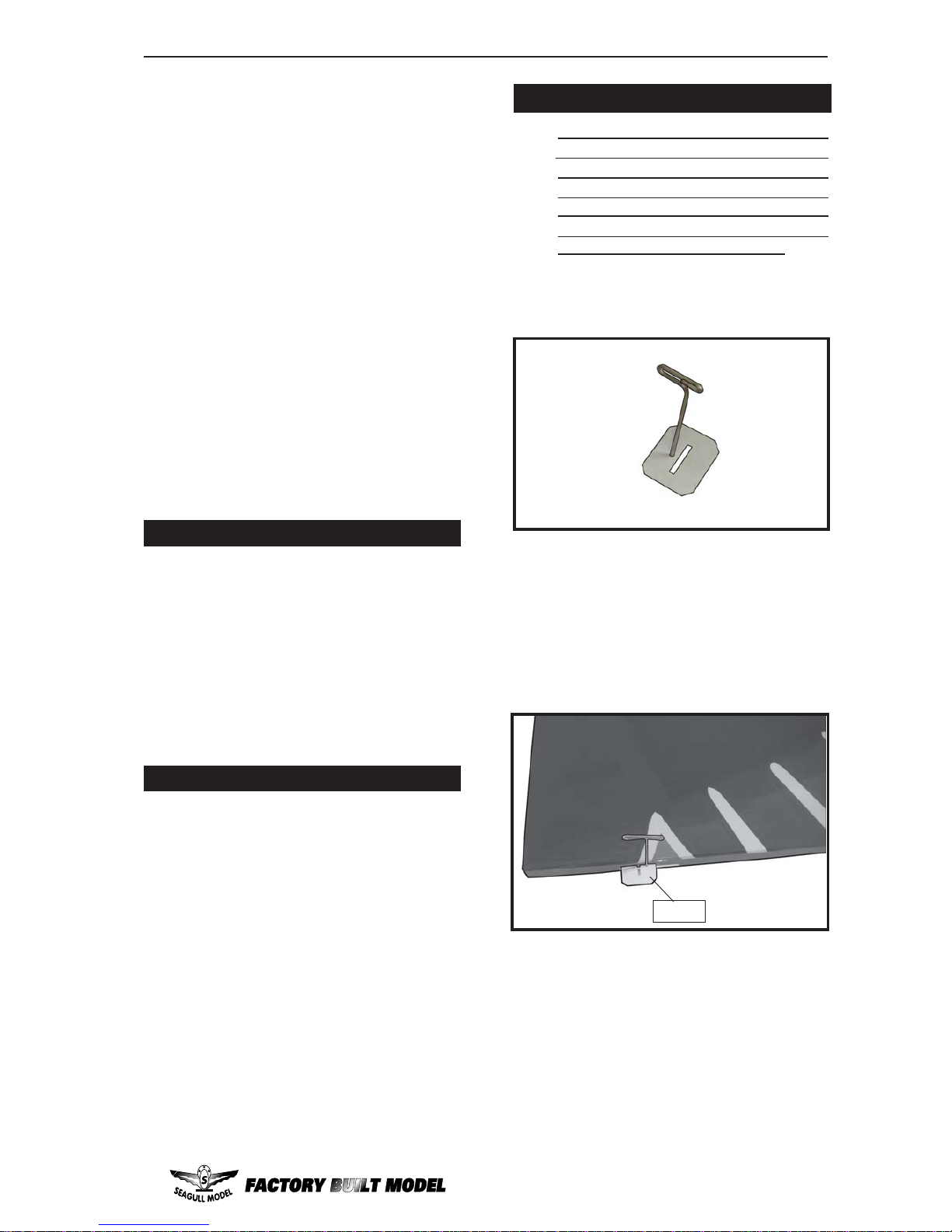

2)Removeeachhingefromthewingpanel

and aileron and place a T-pin in the center of

each hinge. Slide each hinge into the wing

panel until the T-pin is snug against the wing

panel. This will help ensure an equal amount

ofhingeisoneithersideofthehingelinewhen

the aileron is mounted to the aileron.

The control surfaces, including the

ailerons, elevators, and rudder, are

prehinged with hinges installed, but the

hinges are not glued in place. It is

imperativethat you properly adherethe

hingesin place perthesteps that follow

using a high-quality thin C/A glue.

Note:

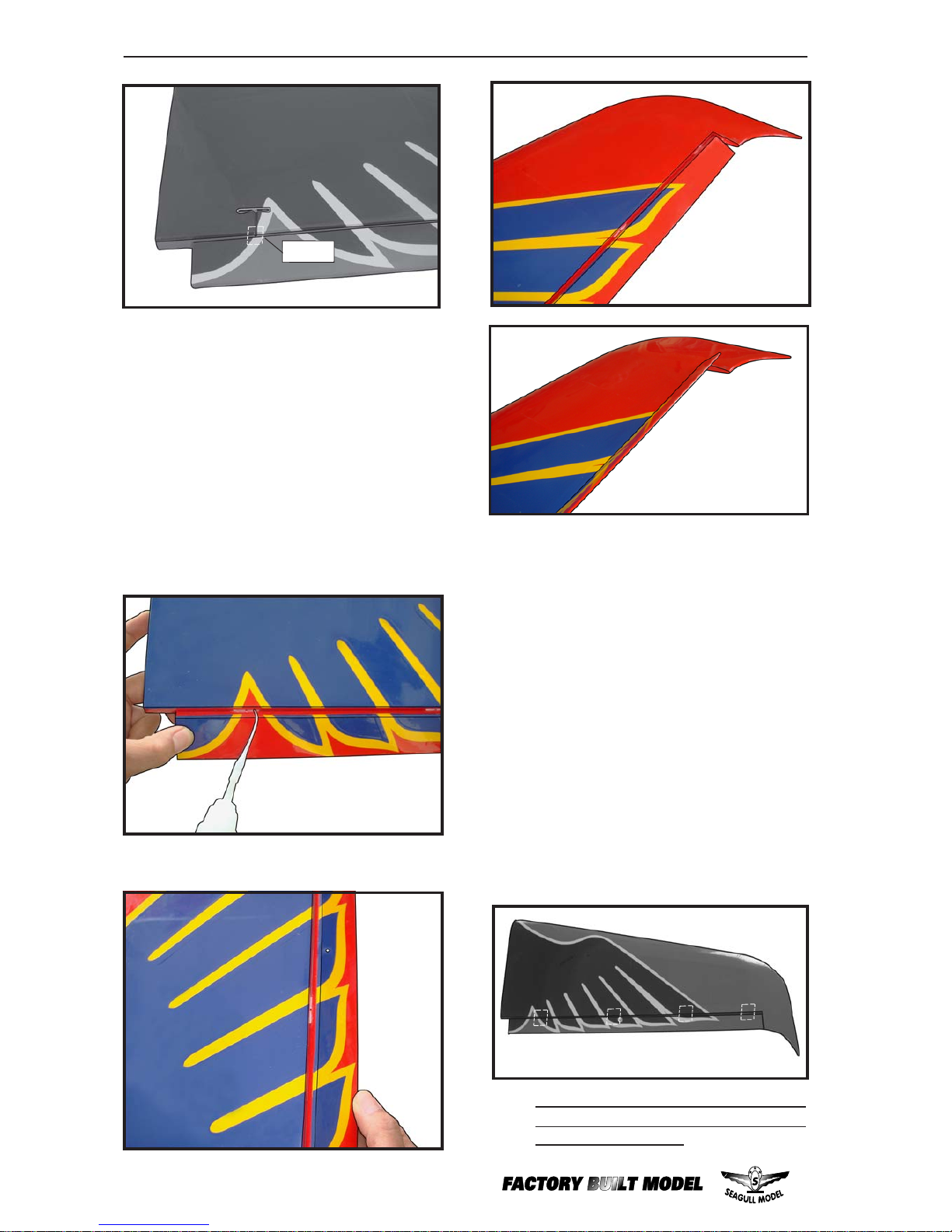

HINGING THE AILERONS.

Hinge.

3) Slide the wing panel on the aileron until

there is only a slight gap. The hinge is now

centered on the wing panel and aileron.

Remove the T-pins and snug the aileron

against the wing panel.A gap of 1/64” or less

shouldbemaintained between the wingpanel

andaileron.

1) Carefully remove the aileron from one

of the wing panels. Note the position of the

hinges.

TURBO RAVEN. Instruction Manual

8)After both ailerons aresecurely hinged,

firmly grasp the wing panel and aileron to

make sure the hinges are securely glued and

cannot be pulled out. Do this by carefully

applying medium pressure, trying to separate

the aileron from the wing panel. Use caution

not to crush the wing structure.

7) Repeat this process with the other wing

panel, securely hinging the aileron in place.

Work the aileron up and down several

times to “work in” the hinges and check

for proper movement.

Note:

4)Deflect the aileron and completely

saturate each hinge with thin C/A glue. The

aileronsfrontsurfaceshouldlightlycontactthe

wing during this procedure. Ideally, when the

hinges are glued in place, a 1/64” gap or less

will be maintained throughout the lengh of the

aileron to the wing panel hinge line.

Note: The hinge is constructed of a special

material that allows the C/A to wick or

penetrateanddistributethroughoutthe

hinge, securely bonding it to the wood

structureofthe wing panel andaileron.

5)Turn the wing panelover anddeflectthe

aileron in the opposite direction from the

opposite side. Apply thin C/A glue to each

hinge,making surethattheC/Apenetrates into

both the aileron and wing panel.

6) Using C/A remover/debonder and a

papertowel,remove any excess C/A gluethat

may have accumulated on the wing or in the

aileronhinge area.

Hinge.

www.seagullmodels.com

HINGING THE ELEVATOR.

HINGING THE RUDDER.

Glue the elevator hinges in place using the

same techniques used to hinge the ailerons.

Glue the rudder hinges in place using the

same techniques used to hinge the ailerons.

INSTALL AILERON CONTROL HORN.

M3LOCK

NUT.

ALUMINUMWASHER.

CONTROLHORN

M3 SCREW.

18mm.

Epoxy.

2 sets.

3x35mm. Wing

bottom.

Aileroncontrol horn.

Hinge.

1) Locate the hardware necessary to install

the control horns for the ailerons.

2) Position the control horn on the bottom of

the aileron. You will see pre-drill hole 3mm for

the horn mounting screw on the aileron.

3) Place epoxy into hole. This will harden the

threads and prevent the crews from pulling

loose.

4) Thread a control horn end with aluminum

washer, lock nut until the top edge of the end is

18mm from the vase of the horn as shown.

Install the elevator control horn using the

same method as same as the aileron control

horns.

INSTALL ELEVATOR CONTROL HORN.

3mm.

TURBO RAVEN. Instruction Manual

2 sets.

3x40mm. 2 sets.

3x45mm.

16mm.

Epoxy.

INSTALL RUDDER CONTROL HORN.

Horizontal

Stabilizer.

Elevator control horn.

AluminumWasher.

CONTROL HORN M3

M3LOCKNUT.

Epoxy.

AluminumWasher.

Horizontal

Stabilizer. Elevator.

M3LOCK

NUT.

ALUMINUMWASHER.

CONTROLHORN

M3 SCREW.

18mm.

Epoxy.

3mm.

Repeatsteps to installthe rudder controlhorn

as same as steps done for ailerons.

3mm.

www.seagullmodels.com

Ruddercontrolhorn.

Hinge.

1) Locate the items necessary to install the

engine mount included with your model. .

ENGINE MOUNT INSTALLATION.

4x30mm.

2) Usefour4x30mmheadboltsandfour4mm

washers to attach the engine mount rails to

thefirewall.Tighten thescrews . Makesure to

use threadlock on the screws to help prevent

them from vibrating loose.

3) Carefully bend the second nylon tube

up at a 45º angle. This tube is the vent tube.

1) Using a modeling knife, carefully cut

off the rear portion of one of the 3 nylon tubes

leaving 1/2” protruding from the rear of the

stopper. This will be the fuel pick up tube.

INSTALLING THE STOPPERASSEMBLY.

Thread locker glue.

2) Usinga modeling knife, cutonelength

ofsiliconfuelline. Connect one end oftheline

tothe weighted fuel pickup and the other end

to the nylon pick up tube.(The silicon tube is

not included).

Vent tube. Fuel pick up tube.

Fuel fill tube.

TURBO RAVEN. Instruction Manual

5) With the stopper assembly in place,

the weighted pick-up should rest away from

therear ofthe tank and move freelyinside the

tank. The top of the vent tube should rest just

below the top of the tank. It should not touch

the top of the tank.

6) When satisfied with the alignment of

the stopper assembly tighten the 3 x 20mm

machine screw until the rubber stopper ex-

pands and seals the tank opening. Do not

overtighten the assembly as this could cause

the tank to split.

FUEL TANK INSTALLATION.

You should mark which tube is the vent

and which is the fuel pickup when you

attach fuel tubing to the tubes in the stopper.

Once the tank is installed inside the fuselage,

it may be difficult to determine which is which.

Fueltank.

Fuel pick-up tube. Fuelfill tube.

Vent tube.

Blow through one of the lines to ensure

thefuel lines have not become kinked in-

side the fuel tank compartment. Air should

flowthrough easily.

C/Aglue.

Balsa wood included.

4) Test fit the stopper assembly into the

tank. It may be necessary to remove some of

the flashing around the tank opening using a

modeling knife. If flashing is present, make

sure none falls into the tank.

Important: When the stopper assembly is in-

stalled in the tank, the top of the vent tube

should rest just below the top surface of the

tank. It should not touch the top of the tank.

Carefully use a lighter or heat gun to

permenently set the angle of the vent tube.

 8) Use balsa stick to help prevent moveable

from transferring to the fuel tank.

 9) Connect the lines from the tank to the

engine and muffler. The vent line will connect

to the muffler and the line from the clunk to the

carburetor.

 7) Slide the fuel tank into the fuselage.

Guide the lines from the tank through the hole

in the firewall.

Pushrodwire.

www.seagullmodels.com

1) Locate the items neccessary to install

the wheel and wheel pants as shown.

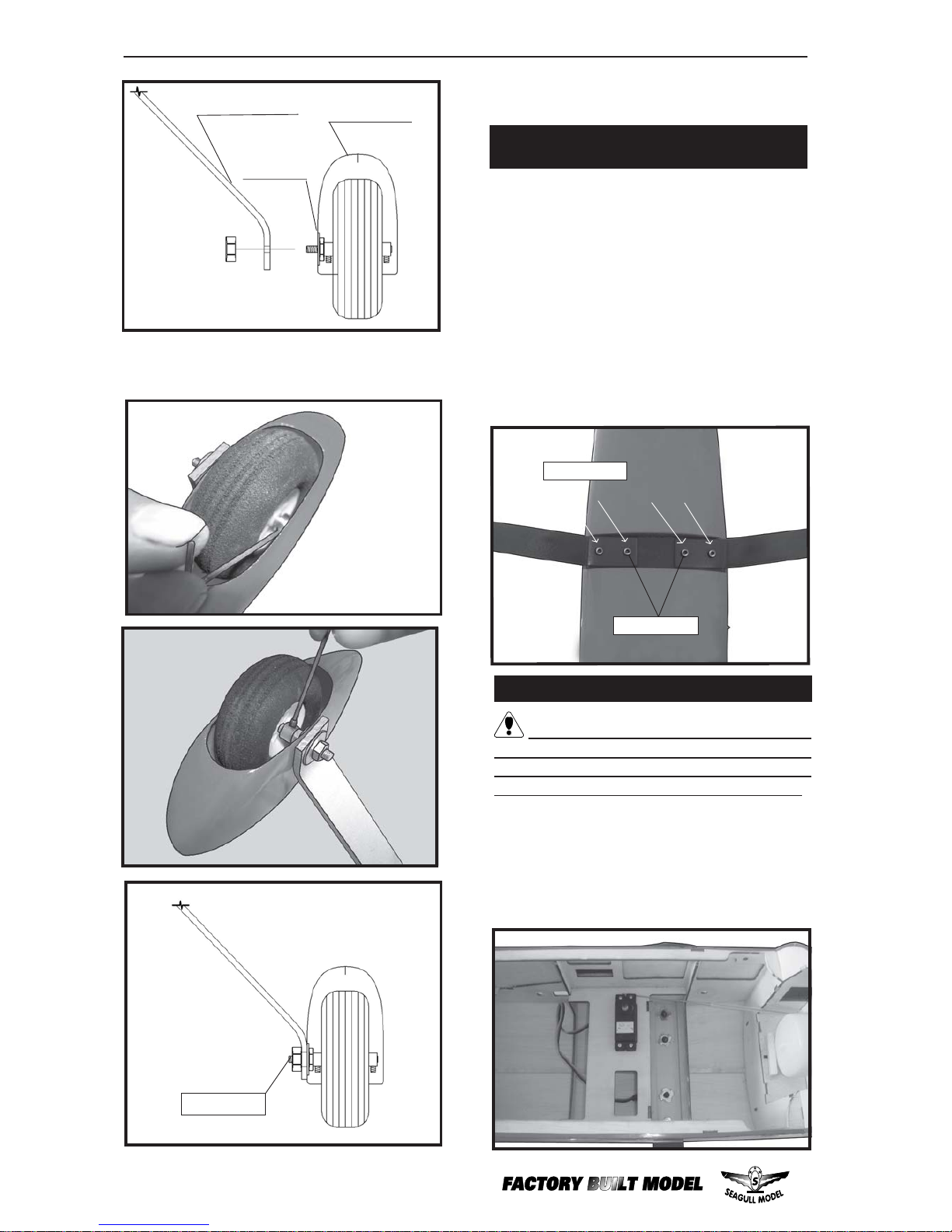

WHEEL AND WHEEL PANTS

INSTALLATION.

2) Follow diagram below for wheel pant

installation:

Use a drill and 4.2mm drill bit to drill a hole in

the wheel pants.

4.2mm.

8mm.

3) You have to trim each axle using a tool

cutting and cut-off wheel.

Caution when cutting the axles and

wear protective goggles.

wheel collar.

wheel.

Axle.

Washer. M3.

wheel Pant.

wheel.

M3.

wheel collar.

nut. Axle.

Washer.

M3.

46mm

Drill a hole.

4) Slidethecollartothe axle and setscrew

the collars to secure the collar to the axle and

thensliderthe wheel on theaxlewitha drop of

oilon theaxlesothe wheelwillspinfreelywhen

installed. Prepare a second collar and tighten

the setscrew using hex wrench to secure the

collar to the axle.

5) Place the wheel assembly in the wheel

pants. The threaded portion of the axle will fit

the notch of the wheel pant as shown.

6) Slide the threaded end of the axle

through the hole in the bottom of the landing

gear leg. Use a washer and locknut to tighten

the axle to the landing gear. Make sure to use

threadlock on the nut so it won’t vibrate loose

in flight as shown.

TURBO RAVEN. Instruction Manual

INSTALLING THE MAIN LANDING GEAR

TO FUSELAGE.

Lockerglue.

M4 x 20mm.

 8) The blind nuts for securing the landing

geararealready mounted inside thefuselage.

 9) Using the hardware provided, mount

the main landing gear to the fuselage.

INSTALLING THE FUSELAGE SERVO.

1) Installthe rubber grommetsandbrass

colletsonto the throttle servo. Testfittheservo

into the aileron servo mount.

 2) Secure the servos with the screws pro-

vided with your radio system.

Because the size of servos differ, you

mayneedtoadjust the size of the precut open-

ing in the mount. The notch in the sides of the

mount allow the servo lead to pass through.

C/Aglue.

LandingGear. wheel Pant.

 7) Tighten the setcrews using a hex

wrench to secure the collars on the axle over

the flat spot to retain the wheel as shown.

Repeat steps as above to attach remain-

ing wheel pants to the landing gear.

 10) Place the fuselage inverted on the

workbenchina suitable stand. Setthelanding

gear in place and use a screwdrive to secure

the landing gear to the fuselage using bolts

M4x20mmandwashers.Makesuretousethe

threadlock on the bolts so they don’t vibrate

loose.

Table of contents

Other Seagull Models Toy manuals

Seagull Models

Seagull Models SHOCK-CUB 35-55cc User manual

Seagull Models

Seagull Models KA8-B User manual

Seagull Models

Seagull Models ET 6 - TEXAN User manual

Seagull Models

Seagull Models EDGE 540 EP User manual

Seagull Models

Seagull Models T-34 Mentor User manual

Seagull Models

Seagull Models CESSNA 188 AGWAGON User manual

Seagull Models

Seagull Models 540 User manual

Seagull Models

Seagull Models Ultimate User manual

Seagull Models

Seagull Models Nemesis 114 User manual

Seagull Models

Seagull Models Mini Sparrowhawk EP User manual

Seagull Models

Seagull Models JU-87 STUKA User manual

Seagull Models

Seagull Models L-4 Grasshopper 90 inches User manual

Seagull Models

Seagull Models THUNDERBOLT P47G SNAFU 60 ARF User manual

Seagull Models

Seagull Models CURTISS P-40N WARHAWK User manual

Seagull Models

Seagull Models FOCKE-WULF FW190 User manual

Seagull Models

Seagull Models GLASAIR SPORTSMAN 2-2 User manual

Seagull Models

Seagull Models SEA 334 User manual

Seagull Models

Seagull Models SAVAGE CRUISER MS:195 User manual

Seagull Models

Seagull Models CHEROKEE User manual

Seagull Models

Seagull Models SEA 302 User manual

Seagull Models

Seagull Models PERCIVAL MEW GULL User manual

Seagull Models

Seagull Models MASTER SCALE KIT EDITION CLASSIC UGLY STICK... User manual

Seagull Models

Seagull Models Low Wing Sport V2 10cc ARF User manual

Seagull Models

Seagull Models YAKOVLEV YAK 3 User manual

Popular Toy manuals by other brands

marklin

marklin 37321 instruction manual

Canon

Canon PAPER CRAFT Assembly instructions

GREAT PLANES

GREAT PLANES Pitts M-12S instruction manual

NOCH

NOCH 14261 manual

Hausler

Hausler 450 SE V2 quick start

Dynaflite

Dynaflite Daydream instruction manual

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Build instructions

Kenner

Kenner Batman 63651 instructions

LEGO

LEGO 8527 instructions

iKarus

iKarus ECO 8 Assembly instruction

Multiplex

Multiplex EasyStar II Building instructions

Walkera

Walkera 38 User handbook

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE manual

MD MXION SWD user manual

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway instructions

marklin

marklin 39671 user manual

Meccano

Meccano 15103 instructions

LEGO

LEGO TECHNIC 8735 instructions
