INTRODUCTION
This Scientific Pocket Moisture Meter (model SP-
850001) displays the moisture content on a large
backlit LCD screen. This meter combines the
versatility of measuring many different materials
with the peace of mind of an in-cap calibration
check. The meter simultaneously displays the
moisture content in multiple formats including
percentage, low and high, and a convenient bar
graph that can be seen at a distance. The
meter’s pins are minimally invasive to surfaces
while still having the strength to penetrate a
variety of materials including hardwoods, brick,
and concrete.
4
FEATURES
•Reads 7 different building materials
•Minimally invasive penetration pins
•Rugged housing
•Hold button for maintaining readings
•Maximum and minimum values
•Backlight
•In-cap calibration check
•LCD that can withstand freezing temperatures
•Reads ambient temperature in °C or °F
•Reads ambient humidity and dew point
•Automatically calculates wet bulb value
MATERIALS SUPPLIED
•Pocket moisture meter
•Calibration cap
•Soft carrying case
•Instruction manual
•Two AAA batteries
5
1
2
3
4
5
6
7
8
FRONT PANEL DESCRIPTION
9
1. Calibration Sensors on top of cap
2. Calibrating Cap/protective cover
3. Power Button
4. Unit Selector
5. Backlight Button
6. Data Hold Button
7. Material Selector
8. Maximum/Minimum Button
9. Enter Button
6

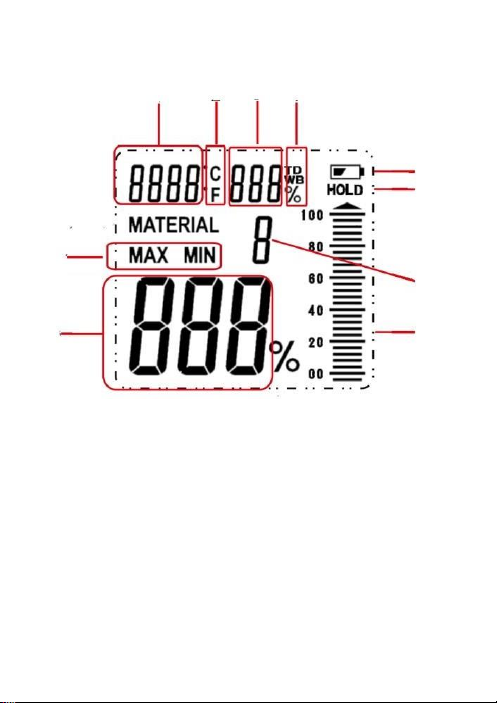

LCD DISPLAY
1 2 3 4
10
9
6
5
7 8
1. Ambient Air Temperature
2. Temperature Units
3. Ambient Air Moisture
4. Moisture Units
5. Material Selected
6. Maximum and Minimum Values
7. Material Moisture Reading
8. Material Moisture Bar Graph
9. Data Hold Indicator
10. Low-Battery Icon
7
SET UP
Battery Installation
This meter uses two AAA batteries. To install
the batteries before first use:
1. Unscrew the single screw in the center of the
back of the meter. This screw secures the
battery cover.
2. Remove the battery door by inverting the
meter and allowing the door to slide out.
3. Insert two new AAA batteries, ensuring
correct polarity.
4.
Replace the battery cover and reinstall
the screw.
Replace the batteries when the low-battery icon
blinks on the LCD.
Note…
Before replacing the batteries, turn the meter oႇ .
8
Meter On and Off
1. Press POWER to turn the meter on.
2. Press POWER to turn the meter off.
3. The meter will automatically turn off after ten
minutes of inactivity.
Backlight
1. Press the backlight button to illuminate the
LCD screen.
2. The backlight will shut off automatically when
the power is turned off.
9
Select Ambient Air Units
IMPORTANT:
The temperature and humidity readings represent the
temperature and humidity of the surrounding air and
do NOT represent the temperature or
humidity of the material being tested.
1. Press UNIT to toggle through temperature
and humidity unit options. The meter will
toggle through temperature settings (°C
or °F) followed by the humidity options of
Relative Humidity, Wet Bulb, and Dew
Point (%, WB, and TD).
2. Once the desired unit of measure appears
on the screen, press ENTER to select it. The
meter will return to normal measuring mode.
3. Press UNIT again to toggle to your preferred
humidity unit. Press ENTER to select it. The
meter will return to normal measuring mode.
4. The unit will remember your choice of
temperature units after turning off.
10
CALIBRATION
Check the meter periodically using its included
calibration cap. The meter can be checked before
each use or when switching between materials.
1. Turn the meter on and
ensure it is set to Material 1.
2. Remove the protective
cap and turn it upside
down to expose the
calibration sensors. See
image to the right.
3. Wipe pins with a cloth and
remove all debris.
4. Place the pins into the cap’s
calibration sensors. Wait up
to ten seconds. The meter
will display the number 35%
once calibration is complete.
