Schiedel ICID Manual
Instruction Guide
ICID Double Wall Adjustable Starter Section
Schiedel Chimney Systems Ltd.
Crowther Estate
Washington
Tyne & Wear NE38 0AQ
Tel. 0191 4161150
Follow SchiedelUK
Visit our website: Schiedel.co.uk

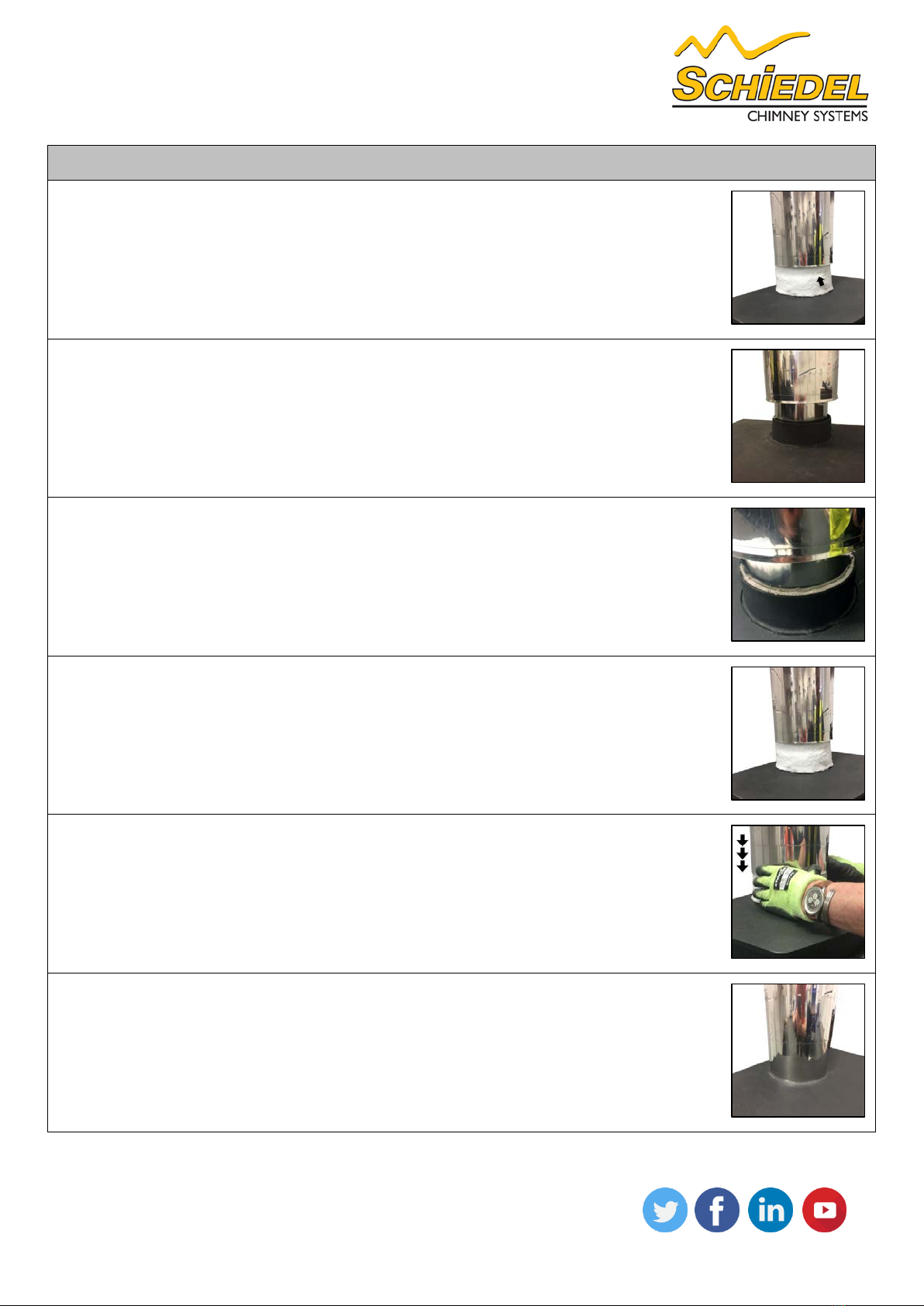

INITIAL INSTALLATION
1. Remove loose strip of insulation and keep to one side.
2. Insert male spigot of liner into the appliance spigot.
3. Seal using the rope gasket, fire cement or similar.
4. Insulate liner using strip of insulation with joint to rear.
Width of insulation strip can be trimmed to suit.
5. Slide adjustable case down over the insulation to cover the
appliance spigot.
Please see reverse side of this guide for instructions to allow
removal of stove for servicing and re-installation of stove.
Instruction Guide
ICID Double Wall Adjustable Starter Section
Schiedel Chimney Systems Ltd.
Crowther Estate
Washington
Tyne & Wear NE38 0AQ
Tel. 0191 4161150
Follow SchiedelUK
Visit our website: Schiedel.co.uk
INSTRUCTION TO ALLOW REMOVAL
OF STOVE FOR SERVICING
1. Slide adjustable case up
inside the outer wall of the
chimney.
2. Remove two loose insulation
strips and keep to one side.
3. Loosen the locking band on
the liner using the quick
release clip (retain the
locking band to one side).
4. Break the fire cement seal
between the appliance
spigot and chimney liner.
5. Slide the liner spigot up
inside the chimney until clear
of appliance spigot.
6. Remove appliance.
RE-INSTALLATION OF STOVE
1. Position stove spigot
immediately beneath liner
spigot of chimney.
2. Slide locking band into place
around the joint on the liner,
but do not tighten.
3. Slide liner spigot down inside
the appliance spigot and seal
using the fire cement or
similar.
4. Now tighten the bolt on the
locking band around the joint
of the liner.
5. Position narrower strip of
insulation around the locking
band with joint to the rear.
6. Slide adjustable cover down
5mm past insulation. Position
final insulation around spigot
with joint to the the rear.
7. Slide adjustable case down
over the insulation to cover
the appliance spigot.
