SATO M-8400RVe Series User manual
Page 1-1
M-8400RVe Printer
Parts List
P/N 9001085
Rev.B
®
Rev. B
Page 2
SATOM-8400RVe Printer Parts List
SATO Industrial Bar Code Printers
Table of Contents
M-8400RVe Page
Parts List
Frame Assembly........................................................................................................3
Head Assembly..........................................................................................................8
Ribbon Assembly .................................................................................................... 11
Feed Roller Assembly.............................................................................................16
Base Cover Assembly.............................................................................................18
Cutter Unit Assembly..............................................................................................27
Dispenser Unit Assembly.......................................................................................33
Rev. B Page 3
SATO Industrial Bar Code Printers
SATOM-8400RVe Printer Parts List

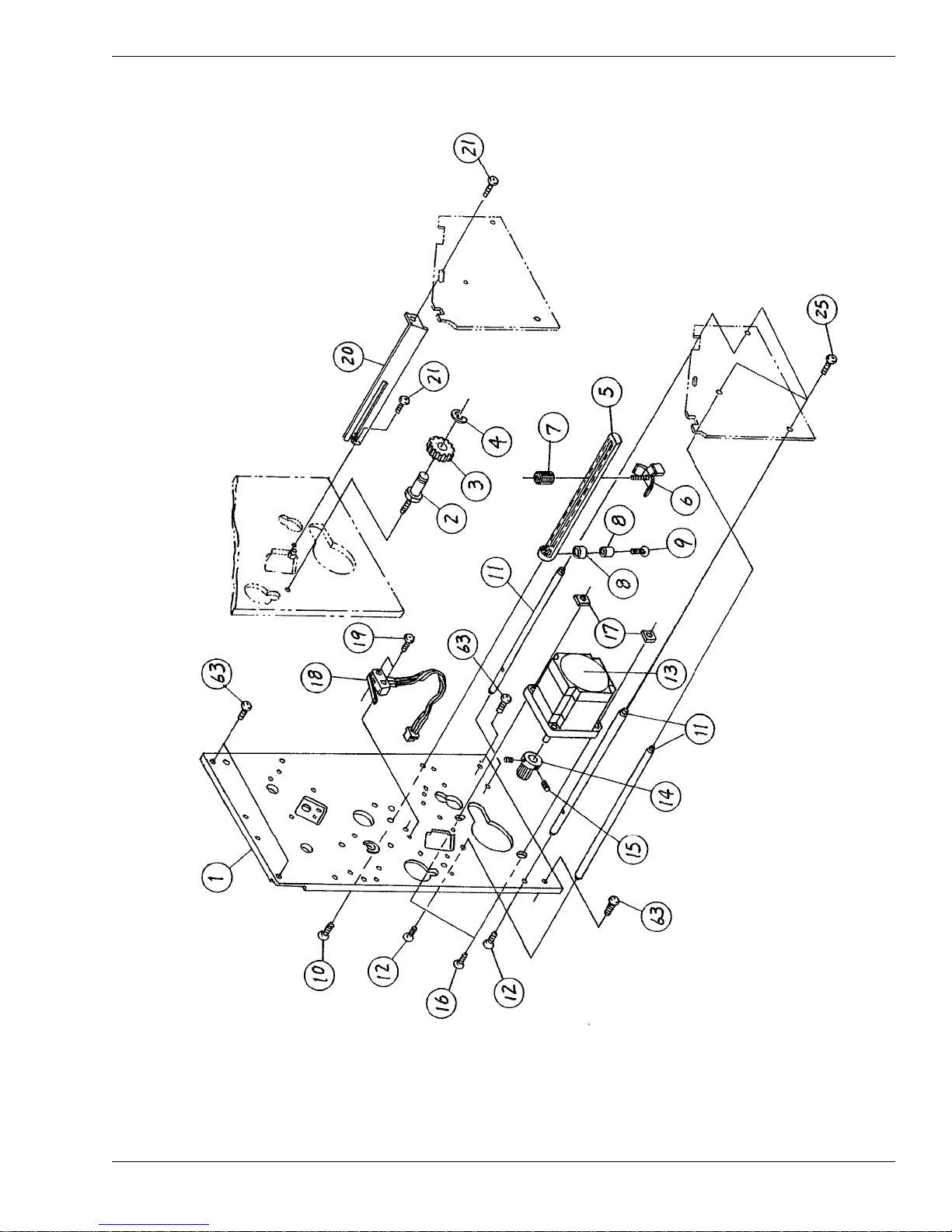

Frame Assembly
Rev. B
Page 4
SATOM-8400RVe Printer Parts List
SATO Industrial Bar Code Printers
Frame Assembly
Rev. B Page 5
SATO Industrial Bar Code Printers
SATOM-8400RVe Printer Parts List
Frame Assembly
Rev. B
Page 6
SATOM-8400RVe Printer Parts List
SATO Industrial Bar Code Printers
Frame Assembly
NO. CODE DESCRIPTION QTY
1 PR1740104 ENGINE FRAME 1
2 PB0680000 IDLE GEAR POST 1
3 PR1680100 IDLE GEAR 1
4 ND0040030 E-SNAP RING 1
5 PE5680000 GUIDE SHAFT 1
6 PR3740501 SLIDE GUIDE (MELTED) 1
7 PB2680100 KNOB 1
8 PE1010400 GUIDE ROLLER (A) 2
9 MF0302022 PAN TAPPING SCREW W/+ HOLE 1
10 MH0301621 PAN HEAD SCREW 1
11 PB0680400 GUIDE SHAFT 3
12 MD4401022 PAN HEAD SCREW 3
13 RH1741400 STEPPER MOTOR ASSY 1
14 PL0680102 MOTOR PULLEY 1
15 MJ1300424 HEX HOLE W-POINT 2
16 MD4402021 PAN HEAD SCREW 2
17 PA1740100 NUT PLATE 2
18 RH1740500 HEAD OPEN SW CABLE SET(SEN5) 1
19 MD3201221 PAN SCREW 2
20 PA3740200 SENSOR GUIDE 1
21 MD4300822 PAN HEAD SCREW 2
22 PT8130064 MINI PITCH BELT 1
23 PT8090064 MINI PITCH BELT 1
24 PA1740200 SIDE FRAME 1
25 MD4401022 PAN HEAD SCREW 3
26 PR3740400 PAPER GUIDE 1
27 PE3720300 ROLLER 2
28 PB2740100 COLLAR 2
29 MD4301222 PAN HEAD SCREW 2
30 RH1741300 PAPER END SW CODE SET (SEN7) 1
31 MD3201221 PAN HEAD SCREW 2
32 MD4300622 PAN HEAD SCREW 2
33 MD4301022 PAN HEAD SCREW 2
34 PB0740101 POST (LATCH) 1
35 NA1040022 PLAIN WASHER 1
36 NB0040022 SPRING WASHER 1
37 MT1400722 HEX NUT 1
38 PB0740202 SENSOR SHAFT 1
39 PR7740200 PITCH SENSOR SUB 1
Rev. B Page 7
SATO Industrial Bar Code Printers
SATOM-8400RVe Printer Parts List
Frame Assembly
40 PA4740300 PLATE SPRING 1
41 MH0300821 P-TIGHT SCREW 2
42 ND0040030 E-SNAP RING 2
43 PA1740300 SENSOR BRACKET 1
44 ND0030030 E-SNAP RING 1
45 MD4300822 PAN HEAD SCREW 2
46 PB0740800 POST 1
47 MD4401621 PAN HEAD SCREW 1
48 PA3741800 TENSION BRACKET 1
49 PE3720100 TENSION ROLLER 1
50 PB0740900 TENSION ROLLER SHAFT 1
51 ND0040030 E-SNAP RING 3
52PC0740100 SPRING 1
53 MD4301422 PAN HEAD SCREW 1
54 MT1300522 HEX NUT 1
56 MD4300822 PAN HEAD SCREW 1
58 MD4300822 PAN HEAD SCREW 1
59 PA1741000 ADJUST PLATE 1
60 MD4401022 PAN HEAD SCREW 2
61 PA1681000 SPACER 1
62 MD0300622 PAN HEAD SCREW 1
63 MD4301422 PAN HEAD SCREW 4
64 MD4401022 PAN HEAD SCREW 2
65 PA1741400 COVER (PLATE) 1
67 MD4301222 PAN HEAD SCREW 1
68 PR7740102 PLATEN ROLLER SUB 1
69 PR7740300 FEED ROLLER SUB 1
NO. CODE DESCRIPTION QTY
Rev. B
Page 8
SATOM-8400RVe Printer Parts List
SATO Industrial Bar Code Printers

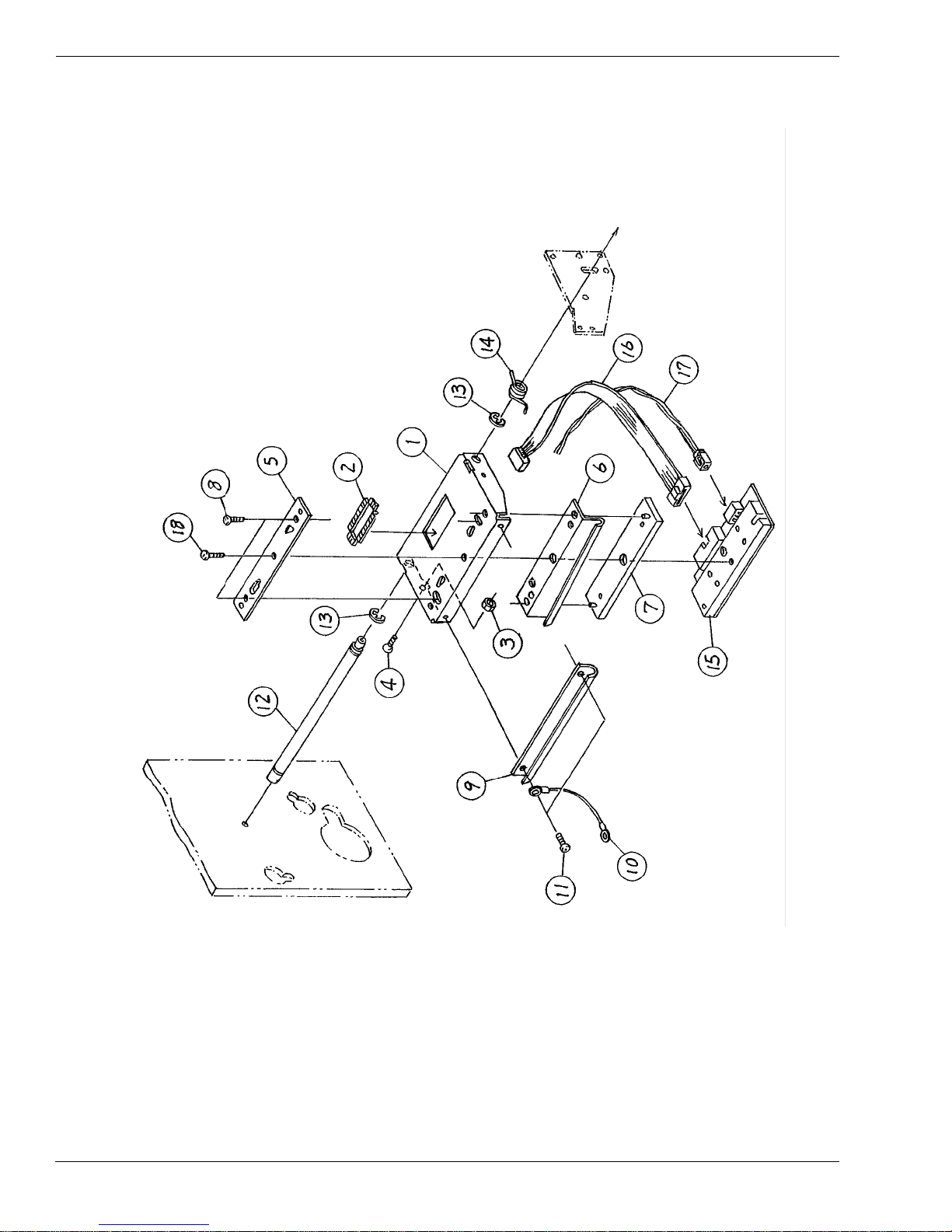

Head Assembly
Rev. B Page 9
SATO Industrial Bar Code Printers
SATOM-8400RVe Printer Parts List

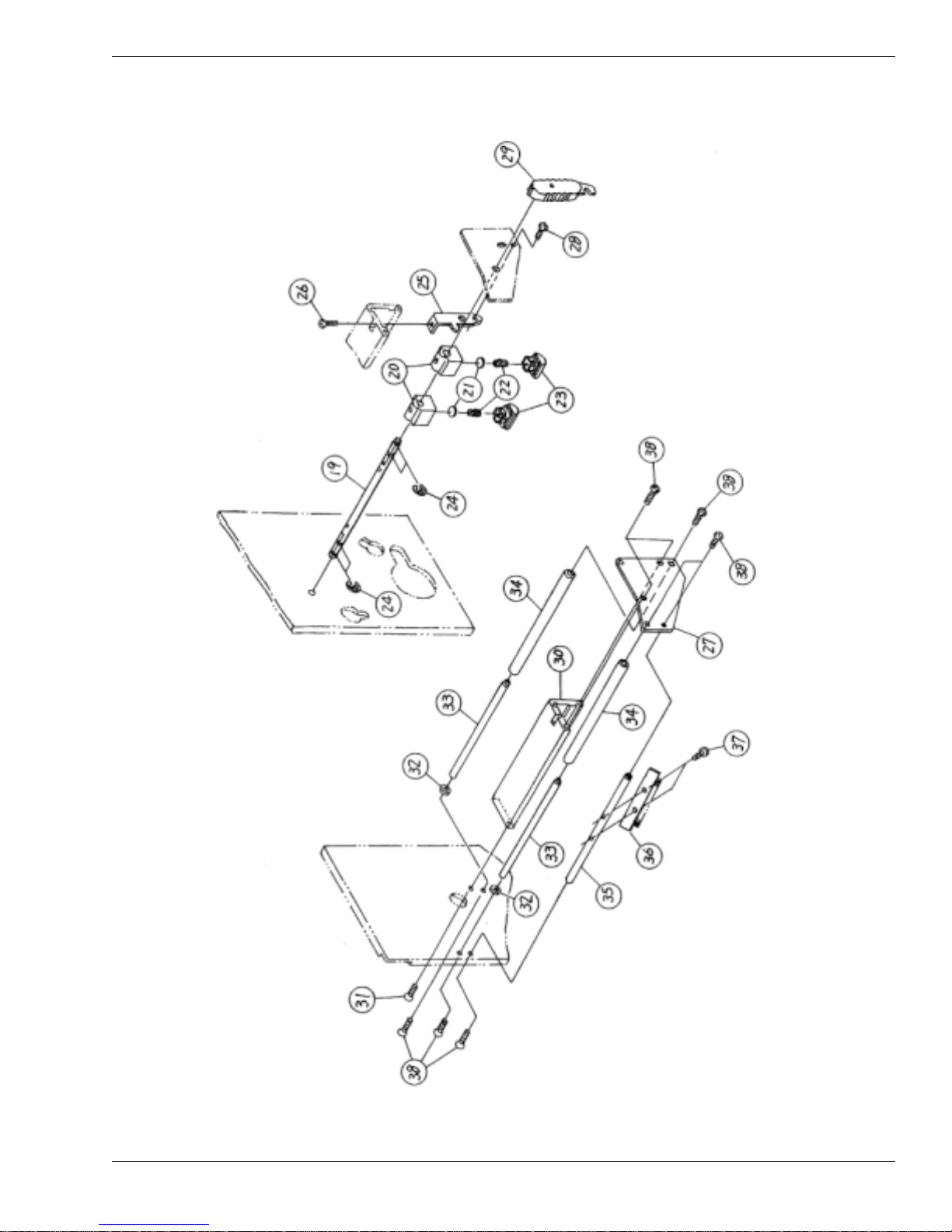

Head Assembly
Rev. B
Page 10
SATOM-8400RVe Printer Parts List
SATO Industrial Bar Code Printers
NO. CODE DESCRIPTION QTY
Head Assembly
1 PA3740402 HEAD BRACKET 1
2 PV9740300 BUSHING 1
3 MT1300522 HEX NUT 1ST TYPE 1
4 MA0300821 PAN HEAD SCREW 1
5 PA1740401 ADJUST PLATE 1
6 PR4740402 PLATE (RIBBON) 1
7 PR1740300 HEAD SUB HOLD 1
8 MD4301022 PAN HEAD SCREW 2
9 PA3740504 PLATE (RIBBON ADJUST) 1
10 RH1741800 HEAD BRACKET FG CORD SET 1
11 MA0300622 PAN HEAD SCREW 2
12 PB0740300 SHAFT (HEAD) 1
13 ND0060030 E-SNAP RING 2
14 PC2740101 SPRING (OPEN) 1
15 GH000811A PRINT HEAD 1
16 RH1775201 PRINT HEAD CABLE ASSY 1
17 RH1775100 HEAD CABLE ASSY 1
18 MD4301422 PAN SCREW 1
19 PB0740401 SHAFT (HEAD PRESSURE) 1
20 PE1740100 HEAD PRESSURE BRACKET 2
21 PA0740100 PRESSURE PLATE 2
22 PC1740200 SPRING (HEAD) 2
23 PE1740200 HEAD PRESSURE 2
24 ND0060030 E-SNAP RING 4
25 PA3740600 ADJUST PLATE 1
26 MD4301422 PAN SCREW 1
27 PA1740500 HEAD PLATE 1
28 MD4300622 PAN SCREW 1
29 PR2740100 LATCH HANDLE 1
30 PD1740100 STAY 1
31 MD4401621 PAN HEAD SCREW 2
32 PT9740300 POLY SLIDER 2
33 PB0680400 GUIDE SHAFT 2
34 PR1740400 ROLLER 2
35 PB0740500 SHAFT(BRASH) 1
36 PR1340500 ANTI-STATIC BRASH 1
37 MA0300622 PAN HEAD SCREW 2
38 MD4401022 PAN SCREW 8
