Samsung PH28ZA1 User manual

Split-type Packaged Air Conditioner (Cool and Heat)

Grieta de Colmado de Aire Acondicionado (Refrigeración y Calefacción)

Un tipo Sfalsalto Confezionato (Raffreddamento e Riscaldamento)

Aparelho de Ar Condicionado do Tipo-Dividido (Refrigeração e Aquecimento)

Climatiseur Monobloc de Type Split (Refroidissement et Chauffage)

Split-typ Pauschal Klimaanlage (Kühlen und Wärmen)

PH28ZA1

APH2840E

Indoor unit

PH28ZA1X

UPH2840E

Outdoor unit

ENGLISH

ESPAÑOL

ITALIANO

PORTUGUÉS

FRANÇAIS

DEUTSCH

OWNER’S INSTRUCTIONS

MANUAL DE INSTRUCCIONES

ISTRUZIONI PER L’USO

MANUAL DE INSTRUÇÕES

MANUEL D’UTILISATION

GEBRAUCHSANWEISUNG

ES IPFDDB68-02545A(3)

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

1 Make sure that the indoor unit is correctly ventilated at all times; do NOT place clothing or other materials

over it.

2 NEVER spill liquid of any kind into the indoor unit. Should this happen, switch off the breaker used for your

air conditioner and contact your installation specialist.

3 Do NOT insert anything between the air flow blades, as the inner fan may become damaged and you may be

hurt. Keep children away from the indoor unit.

4 Do NOT place any obstacles in front of the outdoor unit.

5 If the remote control will not be used for a long time, remove the batteries.

6 Users of this product are cautioned not to attempt repair of this product at their own discretion.

Instead, they are requested to directly contact a designated service center or the outlet at which the

product was purchased.

7 If the supply cord is damaged, it must be replaced by a special cord or assembly available from the

manufacturer or its service centre.

8 This device must be installed according to the national electrical rules.

9 Before disposing of the remote control it is necessary to remove batteries.

10 The appliance is not intended for use by young children or infirm person without supervision;

young children should be supervised to ensure that they do not play with the appliance.

The manufacturer does not take any responsibility for any accidents that occur because

the air conditioner is not fixed firmly or installed securely, during installing or using the

product. In case you experience difficulty in installation, you must use an installation

specialist. An accident will occur if the installation is not done as recommends in the

installation guide.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

E-2

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . . . . . . . 6

■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . . . . . . . 8

■ Using the Control Panel on the Indoor Unit . . . . . . . . . . . . . . . . . . . . . 8

■ Using the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

◆

PERATING YOUR AIR CONDITIONER

■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . . . . . . . . 9

■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

■ Heating Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . . . . . . . .13

■ Selecting the Long Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . . . . . . . .16

■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . . . . . . . .17

◆

ROGRAMMING YOUR AIR CONDITIONER

■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . .22

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

◆

ECHNICAL SPECIFICATIONS

E-3

ENGLISH

View of the Unit

Indoor Unit

Outer Air Flow Blades

Inner Air Flow Blades

Control Panel (refer to page 5)

Air Filter (Inside)

Air Inlet

How to open the front panel

◆Hold the upper part of the front panel,

then pull it slightly forward.

E-4

Outdoor Unit

Air Outlet

Connection Valve

FAN

DRY

COOL

HEAT

AUTO

Control Panel

Air Inlet(Rear)

Temperature setting

Remote control sensor

Fan speed indicators

Deice indicator

Operating indicators

Fan speed selection

button

On/Off button

Turbo button

Temperature

adjustment buttons

Power indicator

Operating indicator

Timer indicator

Swing indicator

Operating mode selection

button (Auto, Cool, Dry,

Fan, Heat)

Operating mode

indicators

E-5

ENGLISH

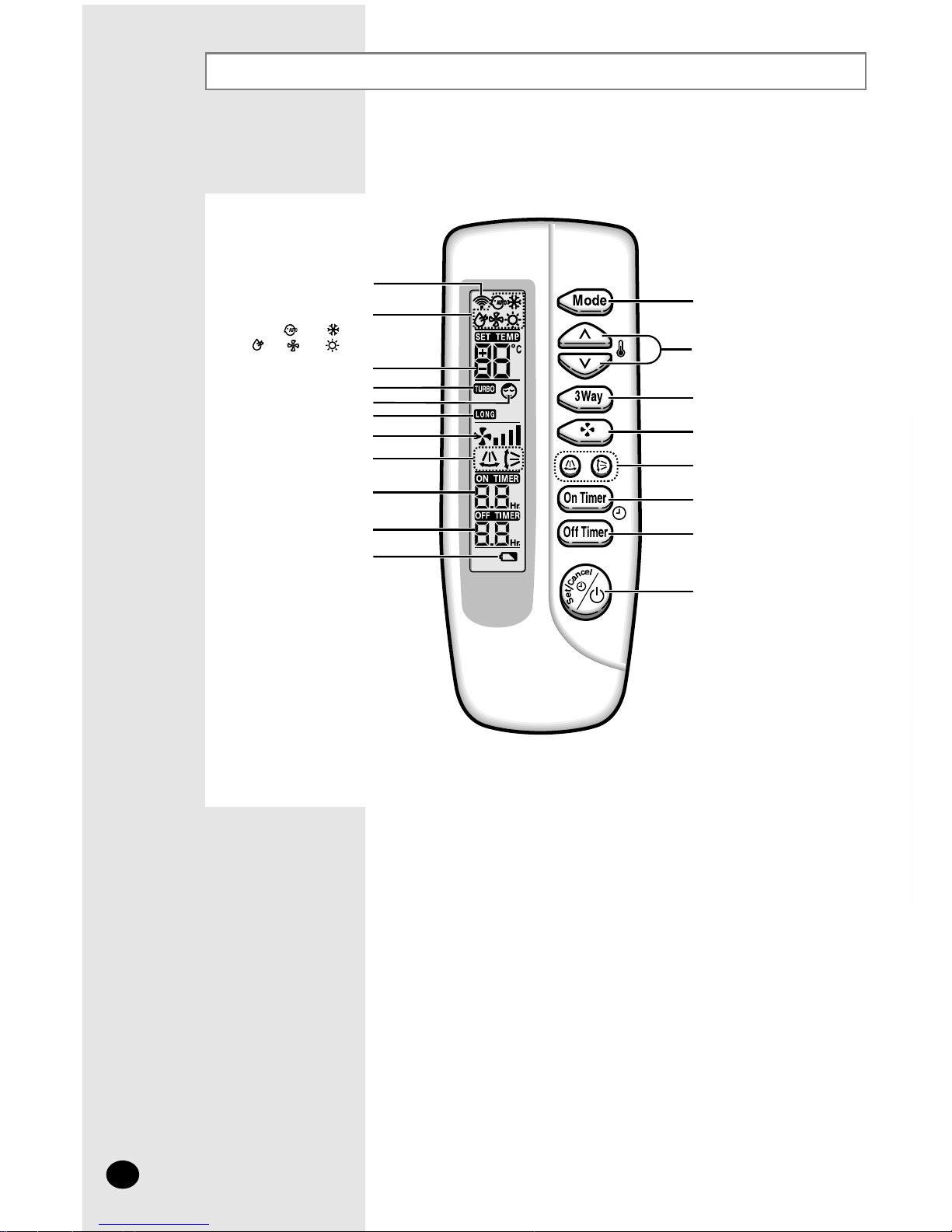

Remote Control - Buttons and Display

Operating mode

( Auto, Cool,

Dry, Fan, Heat)

Remote control

transmission indicator Mode selection button

(Auto, Cool, Dry, Fan, Heat)

Turbo/Sleep/Long mode

selection button

Swing buttons

On Timer button

Off Timer button

On/Off &

Timer Set/Cancel button

Fan speed adjustment

button

Temperature adjustment

buttons

Temperature setting

Turbo mode

Sleep mode

Fan speed

Long mode

Air flow directions

On Timer setting

Off Timer setting

Battery discharge indicator

E-6

Getting Started

You have just purchased a split-type packaged air conditioner and it has been

installed by your installation specialist.

Your Owner’s Instructions contains valuable information on using your

air conditioner. Please take the time to read it as it will help you take full

advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages from 4 to 6 :

- View of the unit

- Remote control(buttons and display)

They will help you find the buttons and understand the symbols displayed.

◆In the main part of the installation book, you will find a series of

step-by-step procedures for each function available.

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

E-7

ENGLISH

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

◆if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

NNoo

oott

ttee

Using the Control Panel on the Indoor Unit

You can operate with indoor unit when you do not wish to or cannot

operate the air conditioner with the remote control.

You can use the AUTO, COOL, DRY, FAN and HEAT functions depending on

your specific requirement. For further details on the functions,

refer to pages 9~15.

Using the Remote Control

All features of the air conditioner can be controlled with the remote

control.

Press any buttons depending on your specific requirements.

E-8

Selecting the Automatic Operating Mode

You can start the air conditioner in Automatic mode from your remote

control. In the Automatic mode, the standard temperature and the

optimum fan speed is selected automatically. You can adjust the

standard temperature but not the fan speed.

If the is not displayed at the top of the remote control,

press the MODE button on the remote control one or more times until it

appears.

Result:◆The indoor unit beeps each time you press the MODE button.

◆The air conditioner runs in AUTO mode.

You can change modes at any time.

If necessary, press the (On/Off) button.

Result:◆The POWER indicator on the indoor unit lights up.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

NNoo

oott

ttee

To adjust the standard temperature (The air conditioner automatically

set the standard temperature by the current room temperature.),

press the TEMPERATURE buttons one or more times.

SET TEMP. SET TEMP. - SET TEMP. SET TEMP.

-2°C -1°C Standard temperature +1°C +2°C

< When you feel hot > < When you feel chilly >

E-9

ENGLISH

Cooling Your Room

1If necessary, press the (On/Off) button.

Result:

◆

The POWER indicator on the indoor unit lights up.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

If the is not displayed at the top of the remote control,

press the MODE button on the remote control one or more times until it

appears.

Result:

◆

The indoor unit beeps each time you press the MODE button.

◆

The air conditioner runs in COOL mode.

You can change modes at any time.

NNoo

oott

ttee

To adjust the temperature, press the TEMPERATURE buttons one or

more times until the required temperature is displayed.

Possible temperatures are between 18°C and 30°C inclusive.

Result:◆

Each time you press the TEMPERATURE buttons:

- The temperature is adjusted by 1°C

- The indoor unit beeps

◆The air conditioner starts cooling, provided that the room

temperature is higher than the selected temperature;

the fan will, however, operate.

Select the fan speed by pressing the FAN button one or more times

until the required setting is displayed:

Automatic (rotated : )

Low

Medium

High

Result: Each time you press the FAN button, the indoor unit beeps.

To control the direction of the air flow, refer to pages 16 and 17.

You must select the Cool mode if you wish to adjust the:

◆Cooling temperature

◆Fan speed when cooling

E-10

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung AS09CM1N User manual

Samsung

Samsung AVMKH035EA0 User manual

Samsung

Samsung PC4SUFMAN User manual

Samsung

Samsung AM080*XV Series User manual

Samsung

Samsung AM007FN1DCH/AA User manual

Samsung

Samsung AM BN4PCH Series User manual

Samsung

Samsung AM280JNPDKH User manual

Samsung

Samsung AQV09NSD User manual

Samsung

Samsung AC RN DKG Series User manual

Samsung

Samsung AVMKH020EA0 User manual

Samsung

Samsung AC160JNH KH Series User manual

Samsung

Samsung AJ FBMDEC Series Guide

Samsung

Samsung AS18A1(A2)QE/B User manual

Samsung

Samsung AVMKC020CA0(1) User manual

Samsung

Samsung AG TN1DKH Series User manual

Samsung

Samsung Cassette Type Series User manual

Samsung

Samsung AC RNNDKG Series User manual

Samsung

Samsung AQ09FBX User manual

Samsung

Samsung Duct Type Series User manual

Samsung

Samsung EH035CAV User manual

Samsung

Samsung AS24A1RE/B User manual

Samsung

Samsung DC18BTSA User manual

Samsung

Samsung AM080FXWANR Instruction manual

Samsung

Samsung MH052FUEA User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
