Chapter

Contents

E-2

■ Preparation for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Deciding on Where to Install the Indoor Unit . . . . . . . . . . . . . . . . . 5

■ Indoor Unit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Purging the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

■ Electronic Expansion Valve Installation . . . . . . . . . . . . . . . . . . . . . 8

■ Connecting the Refrigerant Pipe . . . . . . . . . . . . . . . . . . . . . . . . . . 9

■ Cutting/Flaring the Pipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

■ Performing Leak Test & Insulation . . . . . . . . . . . . . . . . . . . . . . . . 11

■ Drain Hose Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

■ Connecting the Connection Cord . . . . . . . . . . . . . . . . . . . . . . . . . 14

■ AssigningAddress to Indoor Unit . . . . . . . . . . . . . . . . . . . . . . . . . 15

■ Additional Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

■ Bio-pure Filter Installation(Optional) . . . . . . . . . . . . . . . . . . . . . . . 17

■ Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

WWAA

AAYY

YYCC

CCAA

AASS

SSSS

SSEE

EETT

TTTT

TTEE

EEII

IINN

NNSS

SSTT

TTAA

AALL

LLLL

LLAA

AATT

TTII

IIOO

OONN

Chapter

■Preparation for Installation . . . . . . . . . . . . . . . . 4

■Deciding on Where to Install the Indoor Unit . . . 5

■Indoor Unit Installation . . . . . . . . . . . . . . . . . . . . 7

■Purging the Unit . . . . . . . . . . . . . . . . . . . . . . . . 8

■Electronic Expansion Valve Installation . . . . . . . 8

■Connecting the Refrigerant Pipe . . . . . . . . . . . . 9

■Cutting/Flaring the Pipes . . . . . . . . . . . . . . . . . 10

■Performing Leak Test & Insulation . . . . . . . . . . 11

■Drain Hose Installation . . . . . . . . . . . . . . . . . . 12

■Connecting the Connection Cord . . . . . . . . . . 14

■Assigning Address to Indoor Unit . . . . . . . . . . 15

■Additional Functions . . . . . . . . . . . . . . . . . . . . 16

■Bio-pure Filter Installation(Optional) . . . . . . . . 17

■Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 18

WWAA

AAYY

YYCC

CCAA

AASS

SSSS

SSEE

EETT

TTTT

TTEE

EEII

IINN

NNSS

SSTT

TTAA

AALL

LLLL

LLAA

AATT

TTII

IIOO

OONN

Chapter

E-3

ENGLISH

Preparation for Installation

When deciding on the location of the air conditioner with the owner,

the following restrictions must be taken into account.

General

Do NOT install the air conditioner in a location where it will come into

contact with the following elements:

◆Combustible gases

◆Saline air

◆Machine oil

◆Sulphide gas

◆Special environmental conditions

If you must install the unit in such conditions, first consult your dealer.

E-4

Accessories

◆The following accessories are supplied with the indoor unit.

The quantities are indicated in parentheses.

Pattern sheet (1) Insulation drain (1)Insulation refrigerant

pipe (2)

Flexible hose (1)

Insulation drain hose

(1) Installation manual

(1)

OWNER’SINSTRUCTIONS

Splut-typeRoomAirConditioner

Rubber (8)

Deciding on Where to Install the Indoor Unit

Indoor Unit

◆There must be no obstacles near the air inlet and outlet.

◆Install the indoor unit on a ceiling that can support its weight.

◆Maintain sufficient clearance around the indoor unit.

◆Make sure that the water dripping from the drain hose runs away correctly

and safely.

◆The indoor unit must be installed in this way, that they are out of public

access. (Not touchable by the users)

E-5

ENGLISH

Space Requirements for Indoor Unit

Deciding on Where to Install the Indoor Unit (cont.)

E-6

Liquid pipe connection

Gas pipe connection

Drain pipe connection

Power supply connection

Air discharge grille

Air suction grille

6.35 Nipple

12.70 Flare

OD29 ID25

No. Name Description

Drawing of the indoor unit

Unit : mm

Indoor Unit Installation

It is recommended to install the refnet joint before installing the indoor unit.

Concrete

Suspension bolt(3/8" or M10)

Hole in anchor

Hole in plug

Insert

Ceiling support

1Place the pattern sheet on the ceiling at the spot where you want to

install the indoor unit.

2Insert bolt anchors, use existing ceiling supports or construct a suitable

support as shown in figure.

3Install the suspension bolts depending on the ceiling type.

4Screw eight nuts to the suspension bolts making space for hanging

the indoor unit.

5Check the level of the indoor unit by using a leveler or a vinyl tube filled

with water.

◆

A tilt of the indoor unit may cause malfunction of a built-in float switch and

water leaks.

6Adjust the height of the indoor unit by using the gauge of dimensions.

◆

The air inlet side should be slightly higher than the air outlet side

(approx. 5mm). The appropriate height from the ceiling surface is 25mm

for the air inlet and 20mm for the air outlet.

◆

You should adjust the gauge of dimensions and the pattern sheet to fit

the cutting dimensions of ceiling.

◆

Make sure that the indoor unit is installed at a level if the indoor unit

slants too much, there can be water leaks.

7Tighten the upper part nuts.

8Remove the gauge of dimensions after installing the indoor unit.

◆Ensure that the ceiling is strong enough to support

the weight of the indoor unit.

Before hanging the unit, test the strength of each

attached suspension bolt.

◆If the length of suspension bolt is more than 1.5m,

it is required to prevent vibration.

IMPORTANT

You must install the suspension bolts more than four

when installing the indoor unit.

IMPORTANT

◆Since the diagram is made of paper, it may shrink or stretch

slightly due to temperature or humidity. For this reason, before

drilling the holes maintain the correct dimensions between the

markings; refer to page 6.

NNoo

oott

ttee

Not supplied

Washer(supplied)

Rubber

Level

Vinyl tube

20mm

25mm

Gauge of Dimensions Ceiling

Air

inlet Air

outlet

Fasten the nut

E-7

ENGLISH

Purging the unit

Electronic Expansion Valve Installation

Nylon band

Electronic

Expansion

valve

body

◆To prevent dirt or foreign objects from getting into the pipes

during installation, do NOT remove the pinch pipe completely

until you are ready to connect the piping.

NNoo

oott

ttee

On delivery, the indoor unit is loaded with refrigerant gas.

All this gas must therefore be purged before connecting the assembly

piping. To purge the inert gas, proceed as follows.

Unscrew the pinch pipe at the end of each refrigerant pipe.

Result: All inert gas escapes from the indoor unit.

Fix the electronic expansion valve kit with 2 screws(TH4x12) as shown at

the figure.

Connect the "OUT" pipe to the liquid refrigerant pipe.

Insulate the connection piping. A joint part of pipe needs double thickness

of insulation.

Connect the electronic expansion valve cable to the main PCB of indoor

unit.

The expansion valve has to be installed that the user has no access to it.

(built-in type)

Connect a strainer to the "IN" pipe and fix it.

Liquid

refrigerant

port

Gas refrigerant port

E-8

Connecting the Refrigerant Pipe

There are two refrigerant pipes of differing diameters:

◆

A smaller one for the liquid refrigerant

◆

A larger one for the gas refrigerant

◆

The inside of copper pipe must be clean & has no dust.

Remove the pinch pipe on the pipes and connect the assembly pipes to

each pipe, tightening the nuts, first manually and then with a wrench, a

spanner applying the following torque.

Must use insulator which is thick enough to cover the refrigerant pipe to

protect the condensate water on the outside of pipe falling onto the floor

and the efficiency of the unit will be better.

Cut off any excess foam insulation.

Be sure that there must be no crack or wave on the bended area.

It would be necessary to double the insulation thickness(10mm or more)

to prevent condensation even on the insulator when if the installed area is

warm and humid.

◆

If the pipes must be shortened refer to page 10.

NNoo

oott

ttee

Outer Diameter Torque (kgf•cm)

6.35 mm (1/4") 144~176

9.52 mm (3/8") 333~407

12.70 mm (1/2") 504~616

15.88 mm (5/8") 630~770

19.05 mm (3/4") 990~1210

22.23 mm (7/8") 990~1210

Insulation

refrigerant pipe Clamp

Refrigerant oil

Insulation

refrigerant pipe

Liquid refrigerant pipe

Gas

refrigerant

pipe

Torque wrench

Flare nut

Union

Spanner

E-9

ENGLISH

Cutting/Flaring the Pipes

Outer Diameter Torque (kgf•cm)

6.35 mm (1/4") 144~176

9.52 mm (3/8") 333~407

12.70 mm (1/2") 504~616

15.88 mm (5/8") 630~770

19.05 mm (3/4") 990~1210

22.23 mm (7/8") 990~1210

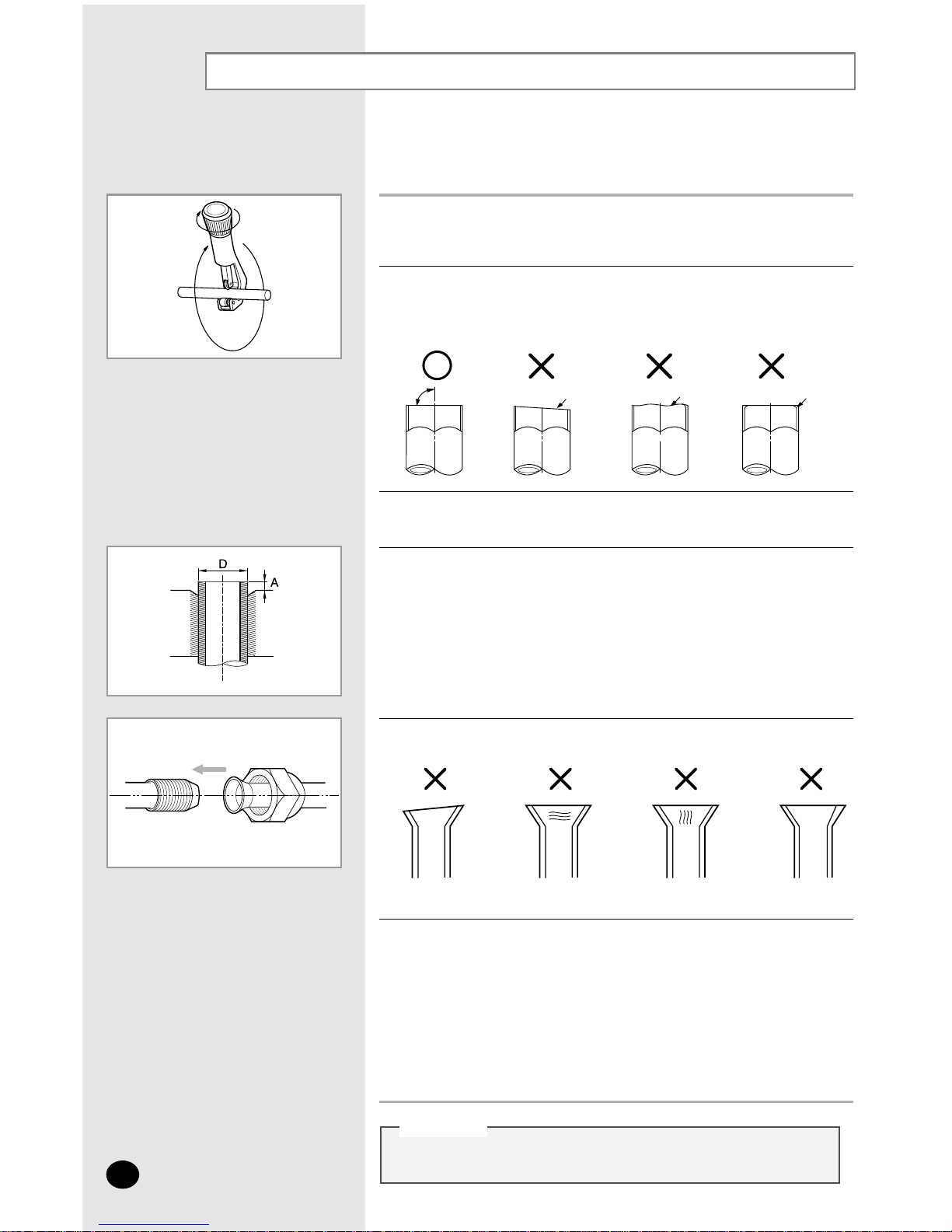

Make sure that you have the required tools available (pipe cutter, reamer,

flaring tool and pipe holder).

If you wish to shorten the pipes, cut it with a pipe cutter, taking care to

ensure that the cut edge remains at a 90°angle with the side of the pipe.

Refer to the illustrations below for examples of edges cut correctly and

incorrectly.

To prevent any gas from leaking out, remove all burrs at the cut edge of the

pipe, using a reamer.

Slide a flare nut on to the pipe and modify the flare.

Check that the flaring is correct, referring to the illustrations below for

examples of incorrect flaring.

Align the pipes and tighten the flare nuts first manually and then with

a wrench, applying the following torque.

Outer Diameter (D) Depth (A)

6.35 mm (1/4") 1.3mm

9.52 mm (3/8") 1.8mm

12.70 mm (1/2") 2.0mm

15.88 mm (5/8") 2.2mm

19.05 mm (3/4") 2.2mm

22.23 mm (7/8") 2.2mm

90O

Oblique Rough Burr

Inclined Damaged Surface Cracked Uneven Thickness

◆ CC

CCAA

AAUU

UUTT

TTII

IIOO

OONN

In case of welding the pipe, you must weld with nitrogen

gas blowing.

E-10

Other manuals for AVMKH020CA0

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung EH035CAV User manual

Samsung

Samsung AC36BTVA User manual

Samsung

Samsung AHT18F1MBA User manual

Samsung

Samsung AS09HPB User manual

Samsung

Samsung AR09RXPXBWKNEU User manual

Samsung

Samsung AHT18FGMBC User manual

Samsung

Samsung CH090EAV User manual

Samsung

Samsung ACC2400C User manual

Samsung

Samsung AS24A2RC User manual

Samsung

Samsung AS07A5(A6)MA User manual

Samsung

Samsung MIM-B19N User manual

Samsung

Samsung PC4NUNMAN User manual

Samsung

Samsung DH052EAMG User manual

Samsung

Samsung AM KN4DCH Series User manual

Samsung

Samsung AC024JXADCHA User manual

Samsung

Samsung AC018KN4DCH User manual

Samsung

Samsung AR09KSFPDWQN User manual

Samsung

Samsung AC024BXUPCH User manual

Samsung

Samsung AST18AJHD User manual

Samsung

Samsung AQV36JANKCV User manual

Samsung

Samsung AWH-1808ER User manual

Samsung

Samsung AR18NSWXCWKNCV User manual

Samsung

Samsung APH180HD User manual

Samsung

Samsung AR BSHUMGM Series User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
