Samsung AZ09A7KB User manual

Window-type Room Air Conditioner ( Cool and Heat )

Climatiseur de type Fenêtre ( Refroidissement et Chauffage )

AZ09F7KE

AZ09A7KE

AZ09F8KE

AZ09A8KE

ENGLISH

FRANÇAIS

OWNER’S INSTRUCTIONS

MANUEL D’UTILISATION

EFADB98-05458A(1)

The following safety precautions must be taken when installing

and using your air conditioner.

Safety Precautions

1The air conditioner must be plugged into its own specific power source, which must be

installed in compliance with national wiring, earthing and safety regulations.

Depending on national regulations and your specific installation, you may need to install:

◆ A circuit breaker

For further information on electrical requirements, contact a professional electrician.

This device must be installed according to the national electrical rules.

2Make sure that the unit is correctly ventilated at all times;

do NOT place clothing or other materials over it.

4Do NOT insert anything between the air outlet blades, as it may damage the inner fan

and you may be hurt. Keep children away from the unit.

5ALWAYS ensure that the power cable is in good condition.

If the power cord is damaged in any way, it must be replaced by the manufacturer or its

service agent or a similarly qualified person in order to avoid a hazard.

6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:

◆ An authorized service center

◆ The dealer from whom you purchased the air conditioner.

7Do NOT place any brocking objects in front of the unit.

3NEVER spill liquids of any kind into the unit.

Should this happen, unplug the unit and contact your installation specialist.

8If the remote control will not be used for a long time, remove the batteries.

9Before throwing out the device, it is necessary to pull back the battery cells

and get rid of them safely.

E-2

Contents

◆PREPARING YOUR AIR CONDITIONER

■Safety Precautions ......................................................................................... 2

■Air Conditioning Unit - Main Parts, Buttons and Display ............................... 4

■Remote Control Buttons ................................................................................. 5

■Getting Started ............................................................................................... 6

■Inserting the Remote Control Batteries .......................................................... 7

◆OPERATING YOUR AIR CONDITIONER

■Cooling Your Room ........................................................................................ 8

■Heating Your Room ........................................................................................ 9

■Airing Your Room ........................................................................................... 10

■Adjusting the Air Flow Direction Horizontally .................................................. 11

■Adjusting the Air Flow Direction Vertically ...................................................... 11

◆PROGRAMMING YOUR AIR CONDITIONER

■Switching the Unit Off Automatically (Off Timer) ............................................ 12

■Canceling the Off Timer .................................................................................. 12

◆RECOMMENDATIONS FOR USE

■Operating Recommendation ........................................................................... 13

■Temperature and Humidity Ranges ................................................................ 14

■Cleaning Your Air Conditioner ........................................................................ 15

■Solving Common Problems ............................................................................ 17

■Technical Specifications ................................................................................. 17

◆METHOD OF INSTALLATION .................................................................................... 18

E-3

ENGLISH

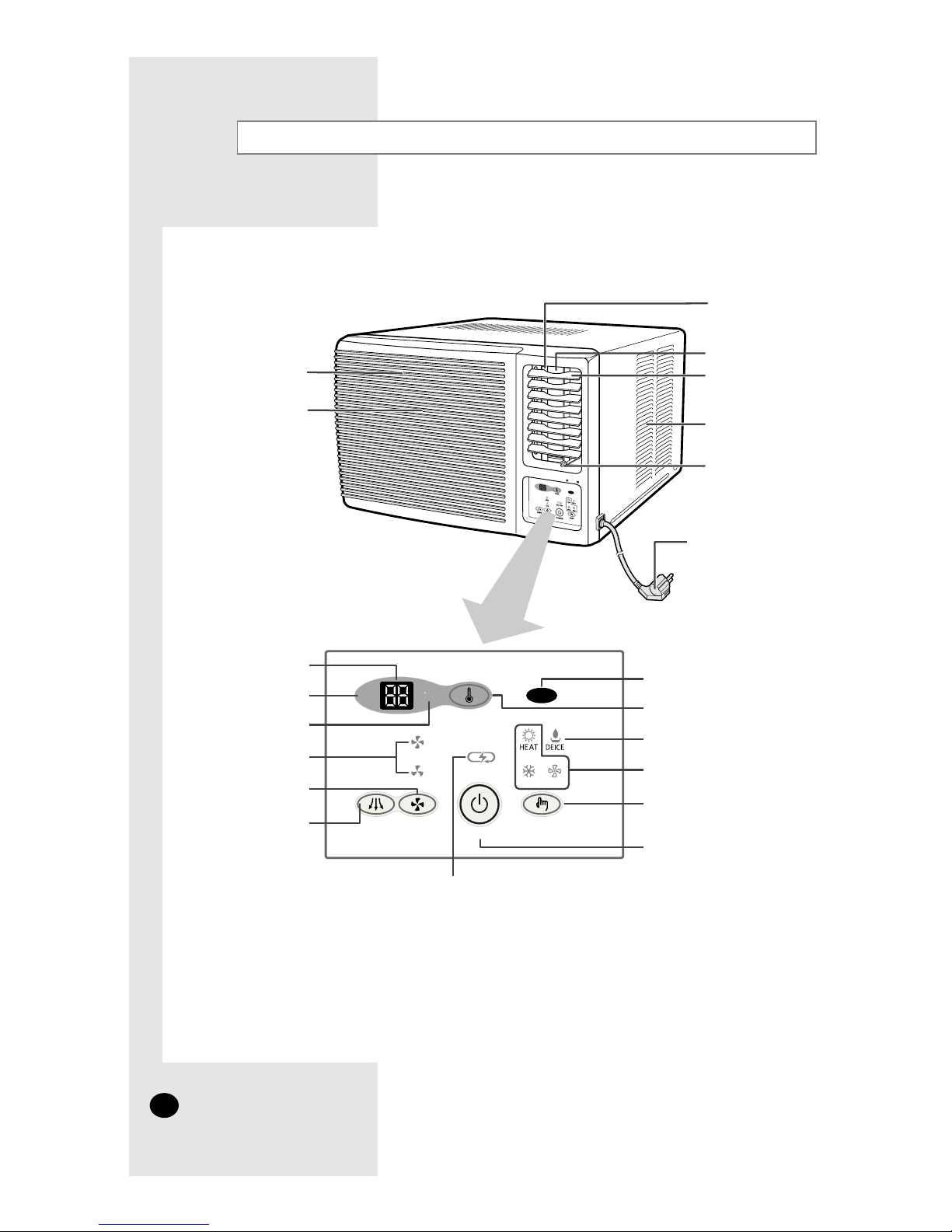

Air Conditioning Unit - Main Parts, Buttons and Display

MODE

FAN SPEED

HIGH

TEMP.

SWING

LOW FAN

COOL

POWER

CHr.

RESTART

FANSPEED

Hr.

Inner air flow blades

(right/left orientation)

Outer air flow blades

(up/down orientation)

Air inlet (inside)

Air filter

(The air filter is

located inside)

Ventilation lever

Air outlet

Air inlet (Outside)

Power plug

(The type of the power

plug may differ

according to the type of

local power supply.)

Temperature indicator

Fan speed indicators

Operating mode selection

button

Temperature

adjustment button

Deice indicator

Operating mode indicators

(HEAT, COOL, FAN)

Timer indicator

Temperature/Timer setting Remote control sensor

ON/OFF button

Restart Indicator

■When the power plug is connected,

the indicator comes on.

■If a power failure occurs when the air

conditioner is operating, the unit is switched off.

Then the power returns, the air conditioner

starts up again automatically and the restart

indicator blinkes. The indicator lights up

after 2 minutes.

(Only AZ09F8KE / AZ09A8KE)

Air flow blade swing button

Fan speed button

❄The design and shape are subject to

change according to the model.

E-4

Remote Control - Buttons

Timer setting buttons

Operating mode selection buttons

(FAN, HEAT, COOL)

Air flow blade swing button

Fan speed adjustment buttons

ON/OFF Button

Temperature adjustment buttons

E-5

ENGLISH

Getting Started

You have just purchased a window-type room air conditioner and it has been installed by your

installation specialist.

Your Owner’s Instructions contain valuable information on using your air conditioner.

Please take the time to read them as they will help you take full advantage of the unit’s functions.

The booklet is organized as follows.

◆The following figures are shown on pages 4 and 5:

-Air conditioning unit (main parts, buttons and display)

-Remote control (buttons)

They will help you find the buttons and understand the symbols displayed.

◆In the main part of the document, you will find a series of step-by-step procedures for each

function available.

The illustrations in the step-by-step procedures use four different symbols:

Moreover, applicable, wherever the illustrations show the positions of the buttons on both the

remote control and the unit itself.

For the... The illustrations have a...

Remote control Gray background.

Example:

Unit itself White background.

Example:

POWER

PRESS PUSH IMPORTANT NOTE

☛

➢

E-6

Inserting the Remote Control Batteries

You must insert or replace the remote control batteries when:

◆You purchase the air conditioner

◆The remote control does not work correctly

☛Use two LR03 (R03) 1.5 V batteries. Do not use old

batteries or different kinds of batteries together.

Batteries may be completely discharged after 12 months,

even if they have not actually been used.

Push the battery cover on the rear of the remote control with your thumb in

the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities:

◆+ on the battery with + on the remote control

◆– on the battery with – on the remote control

Close the cover by sliding it back until it clicks into place.

Result:

You can control all the functions on your air conditioning unit

directly from your seat, using the remote control.

E-7

ENGLISH

POWER

You must select the Cool mode if you wish to lower the temperature

in your room. You can also set the fan speed.

1If necessary, press the (On/Off) button.

Result: ◆The operating mode indicator (COOL, HEAT or FAN)

on the unit comes on.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The unit beeps twice.

☛The air conditioner is fitted with a protection mechanism to prevent

the unit from being damaged when it is started immediately after

being:

◆Plugged in

◆Stopped

It will start up automatically after a three-minute rest period.

If the COOL indicator is not lit up on the unit:

◆Press the button on the remote control

◆Press the MODE button on the unit one or more times until the COOL

indicator lights up

Result:◆The unit beeps each time you press MODE.

◆The air conditioner starts up in Cool mode.

➢You can change modes at any time.

To adjust the temperature, press the or buttons on the remote

control one or more times until the required temperature is displayed.

To adjust the temperature, press the TEMPERATURE button on the unit

one or more times until the required temperature is displayed.

◆ 24°C --> 25°C --> .... --> 29°C --> 30°C --> 18°C --> 19°C --> ....

Possible temperatures are between 18°C and 30°C inclusive.

Result:◆Each time you press the temperature buttons:

– The temperature is adjusted by 1°C and

displayed on the control panel

– The unit beeps

◆The air conditioner starts cooling if the room temperature

is higher than the selected temperature.

To set the fan speed to... Then...

High Press the button on the remote control.

Low Press the button on the remote control.

Result: Each time you press a button, the unit beeps.

To control the direction of the air flow, refer to page 11.

Cooling Your Room

Remote Control Control Panel

MODE

FAN

COOL

POWER

RESTART

TEMP.

CHr.

FAN SPEED

HIGH

LOW

E-8

Heating Your Room

You must select the Heat mode if you wish to heat your room to a

specific temperature. You can also set the fan speed.

1If necessary, press the (On/Off) button.

Result: ◆The operating mode indicator (COOL, HEAT or FAN)

on the unit comes on.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The unit beeps twice.

☛The air conditioner is fitted with a protection mechanism to prevent

the unit from being damaged when it is started immediately after

being:

◆Plugged in

◆Stopped

It will start up automatically after a three-minute rest period.

If the HEAT indicator is not lit up on the unit:

◆Press the button on the remote control

◆Press the MODE button on the unit one or more times until the HEAT

indicator lights up

Result:◆The unit beeps each time you press MODE.

◆The air conditioner starts up in Heat mode.

➢You can change modes at any time.

To adjust the temperature, press the or buttons on the remote

control one or more times until the required temperature is displayed.

To adjust the temperature, press the TEMPERATURE button on the unit

one or more times until the required temperature is displayed.

◆ 24°C --> 25°C --> .... --> 29°C --> 30°C --> 16°C --> 17°C --> ....

Possible temperatures are between 16°C and 30°C inclusive.

Result:◆Each time you press the temperature buttons:

– The temperature is adjusted by 1°C and

displayed on the control panel

– The unit beeps

◆The air conditioner starts heating if the room temperature

is lower than the selected temperature.

To set the fan speed to... Then...

High Press the button on the remote control.

Low Press the button on the remote control.

Result:◆ Each time you press a button, the unit beeps.

◆For the first three to five minutes, the fan operates very

slowly until the air has been sufficiently warmed.

Once the correct temperature has been reached, the

fan is automatically set to the required speed.

To control the direction of the air flow, refer to page 11.

POWER

Remote Control Control Panel

MODE

FAN

COOL

POWER

RESTART

TEMP.

CHr.

FAN SPEED

HIGH

LOW

E-9

ENGLISH

Airing Your Room

If the atmosphere in your room is stale, you can air it using the Fan

feature and if necessary, evacuate the stale air outside.

If you wish to evacuate stale air outside, pull the ventilation lever on the

front of the unit and the open position ( ).

Result: The air inside the room circulates and stale air is evacuated

outside.

Otherwise, push the ventilation lever and the closed position ( ).

Result: The air simply circulates inside the room.

If necessary, press the (On/Off) button.

Result: ◆The operating mode indicator (COOL, HEAT, or FAN)

on the unit comes on.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The unit beeps twice.

If the FAN indicator is not lit up on the unit:

◆Press the button on the remote control

◆Press the MODE button on the unit one or more times until the FAN

indicator lights up

Result: ◆The unit beeps each time you press MODE.

◆The air conditioner starts up in Fan mode.

➢◆You can change modes at any time.

◆When the air conditioner is in Fan mode, the

temperature is not displayed; in this case, you do not

need to set the temperature.

To set the fan speed to... Then...

High Press the button on the remote control.

Low Press the button on the remote control.

Result: Each time you press a button, the unit beeps.

To control the direction of the air flow, refer to page 11.

POWER

Remote Control Control Panel

MODE

COOL

POWER

RESTART

FAN

FAN SPEED

HIGH

LOW

Open

Position Closed

Position

FANSPEED

Hr.

E-10

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung EH035EAV User manual

Samsung

Samsung SH30ZA2 User manual

Samsung

Samsung AR BSHUMGM Series User manual

Samsung

Samsung HH105EZM User manual

Samsung

Samsung EH035CAV User manual

Samsung

Samsung AC026HBLDKH User manual

Samsung

Samsung IDH1800E User manual

Samsung

Samsung Duct Type Series User manual

Samsung

Samsung AJ038RCJ4EC User manual

Samsung

Samsung AST18WJWB/UMG User manual

Samsung

Samsung AM FNLD Series User manual

Samsung

Samsung SH09ZW8X User manual

Samsung

Samsung AW0893L User manual

Samsung

Samsung AW05M0YBA User manual

Samsung

Samsung AS24A2Q User manual

Samsung

Samsung AQ30C1(2)BC User manual

Samsung

Samsung AM***FNHDCH User manual

Samsung

Samsung AG026MN1DEH/EU User manual

Samsung

Samsung CH070CAV1 User manual

Samsung

Samsung AS07S2GE User manual

Samsung

Samsung AC026MN1DKH/EU User manual

Samsung

Samsung SH18ZP0B User manual

Samsung

Samsung SH07APG User manual

Samsung

Samsung AC NN4DKH Series User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
