Samsung AQ30C1(2)BC User manual

ENGLISH

OWNER’S INSTRUCTIONS &

INSTALLATION MANUAL

MANUAL DE INSTRUCCIONES &

MANUAL DE INSTALACIÓN

MANUEL D’UTILISATION &

MANUEL D’INSTALLATION

Split-type Room Air Conditioner (Cool and Heat)

Aire acondicionado doméstico sistema Split (Refrigeración y Calefacción)

Climatiseur de type Séparé (Refroidissement et Chauffage)

E S F

DB98-05110A(2)

ESPAÑOL

FRANÇAIS

AQ30C1(2)BC

Indoor Unit UQ30C1(2)BC

Outdoor Unit

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

1 Make sure that the indoor unit is correctly ventilated at all times; do NOT place clothing or other materials

over it.

2 NEVER spill liquid of any kind into the indoor unit. Should this happen, switch off the breaker used for your

air conditioner and contact your installation specialist.

3 Do NOT insert anything between the air flow blades, as the inner fan may become damaged and you may be

hurt. Keep children away from the indoor unit.

4 Do NOT place any obstacles in front of the outdoor unit.

5 If the remote control will not be used for a long time, remove the batteries.

6 Users of this product are cautioned not to attempt repair of this product at their own discretion.

Instead, they are requested to directly contact a designated service center or the outlet at which the

product was purchased.

7 If the supply cord is damaged, it must be replaced by a special cord or assembly available from the

manufacturer or its service centre.

8 This device must be installed according to the national electrical rules.

9 Before disposing of the remote control it is necessary to remove batteries.

10 The appliance is not intended for use by young children or infirm person without supervision;

young children should be supervised to ensure that they do not play with the appliance.

11 Max current is measured according to IEC standard for safety and current is measured according to

ISO standard for energy efficiency.

12 When the outdoor temperature is below 40°F(4°C), turn the main power off.

The manufacturer does not take any responsibility for any accidents that

occur because the air conditioner is not fixed firmly or installed securely,

during installing or using the product. In case you experience difficulty in

installation, you must use an installation specialist. An accident will occur

if the installation is not done as recommends in the installation guide.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

E-2

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . 6

■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . 8

■ Installing the Remote Control Holder . . . . . . . . . . . . . . . . . . . . 8

◆

PERATING YOUR AIR CONDITIONER

■ 5 Way Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . 10

■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

■ Heating Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . 13

■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . 14

■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . 16

■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . 17

◆

ROGRAMMING YOUR AIR CONDITIONER

■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . 21

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . 22

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . 23

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 24

■ Installing a Filter (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

◆

ECHNICAL SPECIFICATIONS

E-3

ENGLISH

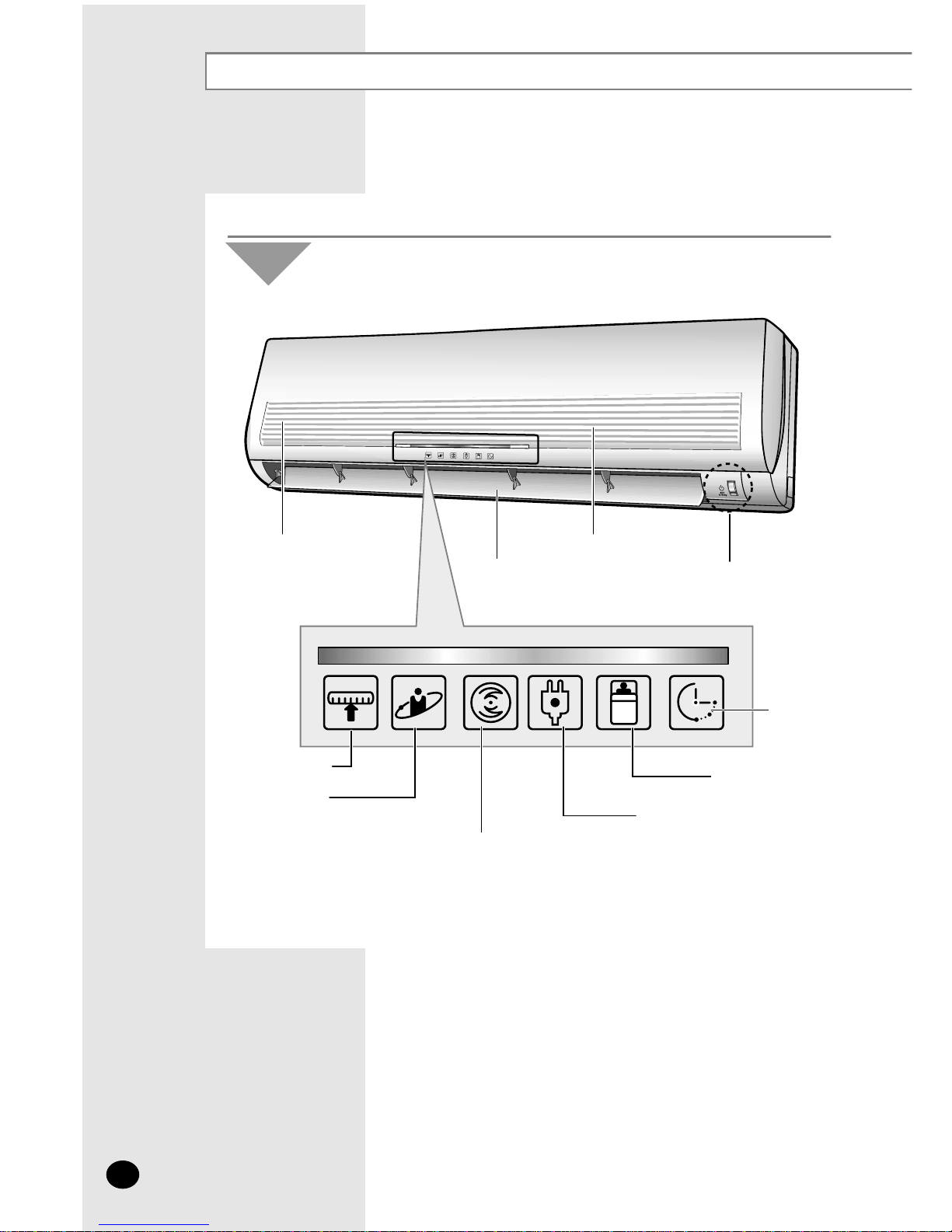

View of the Unit

Indoor Unit

Air filter

(under the grille) Air flow blades (outlet)

Air Inlet

Timer indicator

STANDARD indicator

NATURE indicator

POWER indicator

SILENCE indicator

SAVING indicator

On/Off & 5 Way

selection button/

Remote Control Sensor

◆For details on the 5 Way, refer to page 9.

NNoo

oott

ttee

E-4

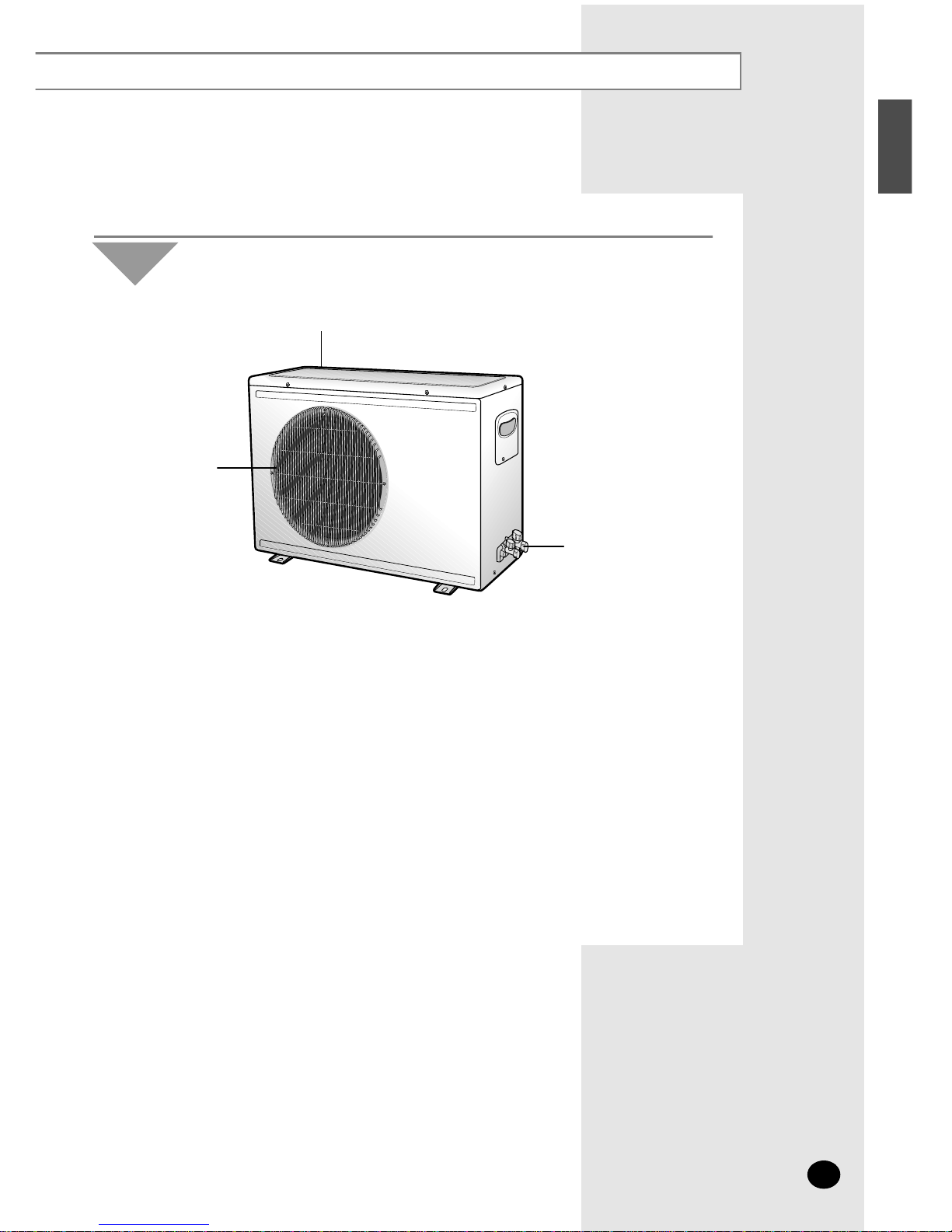

Air Inlet(Rear)

Air Outlet

Connection Valve

Outdoor Unit

E-5

ENGLISH

Remote Control - Buttons and Display

Operating mode

( AUTO, COOL, DRY,

FAN, HEAT)

Remote control

transmission indicator Mode selection button

(AUTO, COOL, DRY, FAN, HEAT)

Turbo/Sleep mode

selection button

Swing button

On Timer button

Off Timer button

On/Off &

Timer Set/Cancel button

Fan speed adjustment

button

Temperature adjustment

buttons

Temperature setting

Sleep mode

Turbo mode

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Battery discharge indicator

5 Way selection button

E-6

Getting Started

You have just purchased a split type air conditioner and it has been

installed by your installation specialist.

Your Owner’s Instructions contains valuable information on using your

air conditioner. Please take the time to read it as it will help you take full

advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages from 4 to 6 :

- Indoor and outdoor units

- Remote control(buttons and display)

They will help you find the buttons and understand the symbols displayed.

◆In the main part of the installation book, you will find a series of

step-by-step procedures for each function available.

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

E-7

ENGLISH

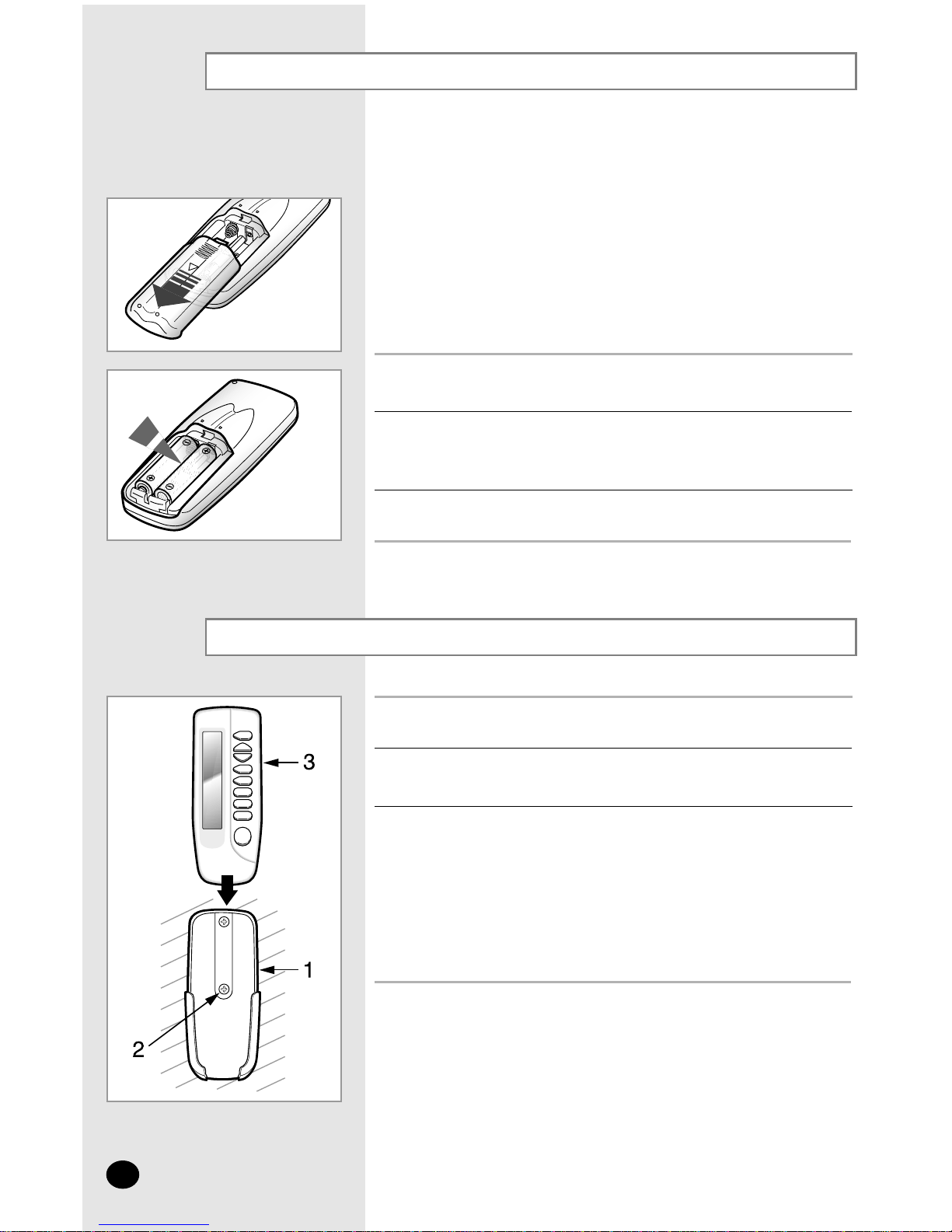

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

◆if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

NNoo

oott

ttee

E-8

Installing the Remote Control Holder

Place the remote control holder on the wall.

Fix the remote control holder by tightening the screws.

Put the remote control into the holder as shown in the figure.

◆If you want to install the holder easily, you had better install the holder

on the wooden frame.

5 Way Function

Press the (ON/OFF) button one time and then select the desired

mode.

To stop the operating, press the (ON/OFF) button until all indicators

turn off.

You can select the 5 Way function with operating mode of the air conditioner for

more comfortable circumstances. You can use the 5 Way function with the indoor

unit as well as the remote control. Thus, you can use this function

even though you have lost your remote control.

Using with the indoor unit

To select the 5 Way function with the remote control, press the 5 Way

button one or more times until the desired mode is selected.

◆Each time you press the 5 Way button:

Each 5 Way indicator on the indoor unit lights up in order.

Selecting with the Remote Control

Even if the air conditioner has been turned on via the ON/OFF

button on the unit, operations can still be controlled using the

remote control as usual.

NNoo

oott

ttee

To obtain a(n)...

Normal operating (STANDARD) mode

Then select...

(NATURE) mode

Reducing the uncomfortable

temperature gradually

(POWER) mode

High fan speed

(SAVING) mode

Compressor run time reduced

(SILENCE) mode

Fan speed reduces as the temperature

decreases

E-9

ENGLISH

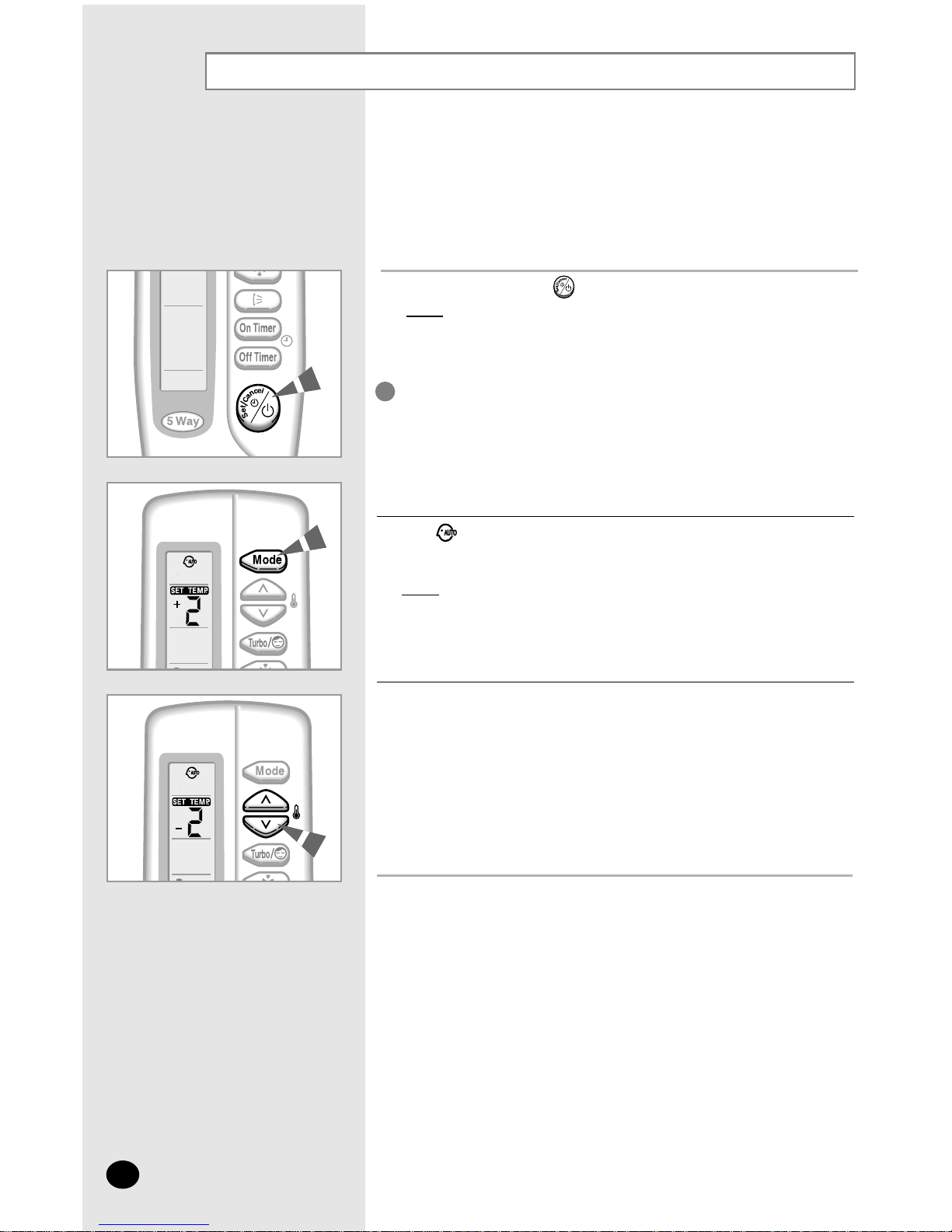

Selecting the Automatic Operating Mode

You can start the air conditioner in Automatic mode from your remote

control. In the Automatic mode, the standard temperature and the

optimum fan speed is selected automatically. You can adjust the

standard temperature but not the fan speed.

If the is not displayed at the top of the remote control,

press the MODE button on the remote control one or more times until it

appears.

Result:◆The indoor unit beeps each time you press the MODE button.

◆The air conditioner runs in AUTO mode.

You can change modes at any time.

If necessary, press the (On/Off) button.

Result:◆The 5 Way indicator on the indoor unit lights up.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

NNoo

oott

ttee

To adjust the standard temperature (The air conditioner automatically

set the standard temperature by the current room temperature.),

press the TEMPERATURE buttons one or more times.

SET TEMP. SET TEMP. - SET TEMP. SET TEMP.

-4°F/-2°C -2°F/-1°C Standard temperature +2°F/+1°C +4°F/+2°C

< When you feel hot > < When you feel chilly >

E-10
