Samsung EH035EAV User manual

Samsung Electronics

11. Operating Instructions

11-1 Name of Each Part

11-1-1 Indoor Unit

The figures are shwon in this instruction may differ from yours depending on the model.

■ EH035EAV

■ EH052EAV/EH070EAV

Air

Inlet

Air

outlet

Air

Inlet

Air

outlet

11-1

25888A(1)_1.indd 20 2006-04-14 ｿﾀﾈﾄ 2:25:47

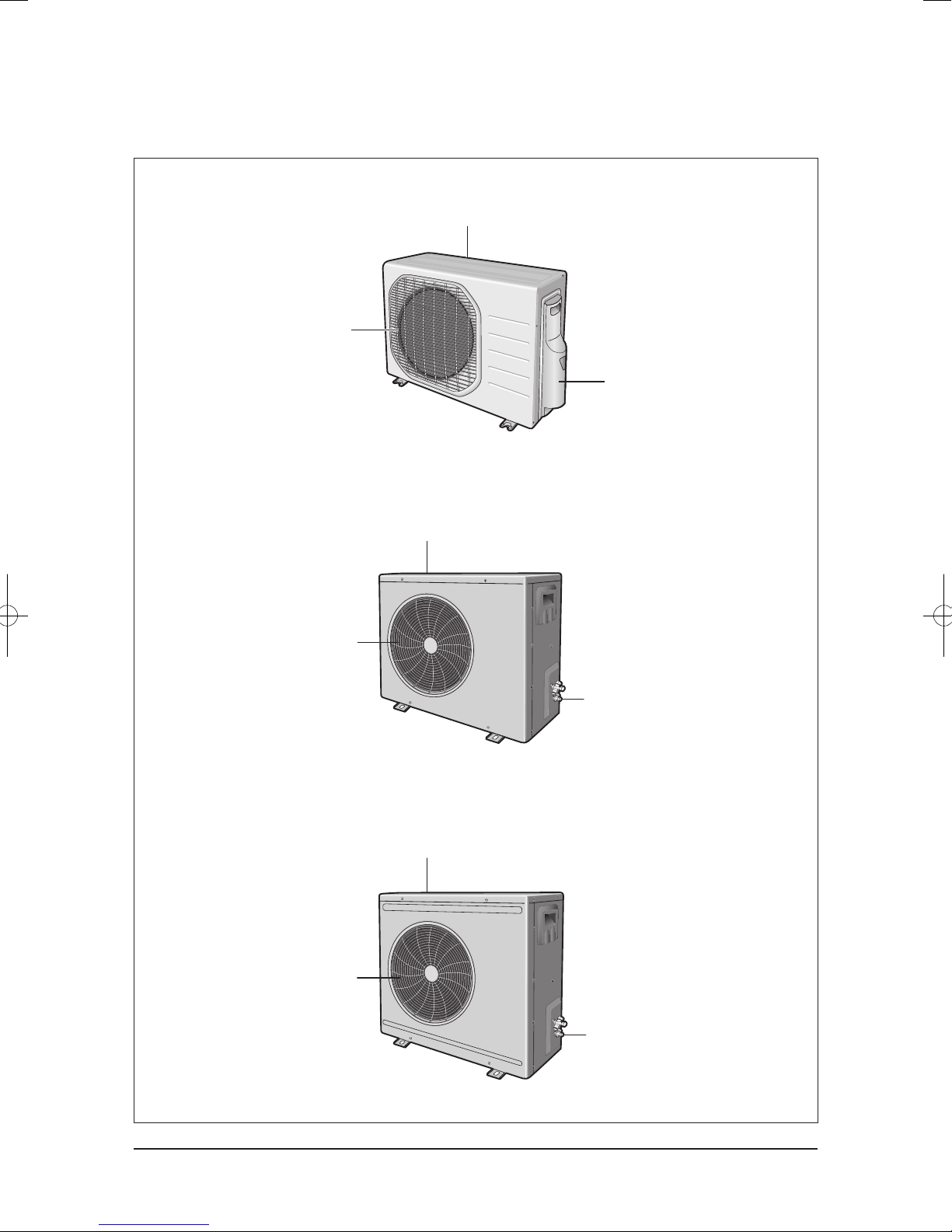

11-1-2 Outdoor Unit

■ UH035EAV

■ UH052EAV

Air Outlet

Air Inlet(Rear)

Connection Valve

(inside)

Air Outlet

Air Inlet(Rear)

Connection Valve

Air Outlet

Air Inlet(Rear)

Connection Valve

■ UH070EAV

11-2

Operating Instructions

Samsung Electronics

25888A(1)_1.indd 21 2006-04-14 ｿﾀﾈﾄ 2:25:49

Samsung Electronics

11-2 Main Function

11-2-1 Basic Function

Mode Explanation Remark

Selecting the

Automatic

Operating Mode

1. If necessary, press (On/Off) button.

2. To select the AUTO mode, press the button until is

displayed at the top of the wireless remote controller.

3. To adjust the temperature, press the buttons one or

more times until the required temperature is displayed.

Possible temperatures are between 18˚C and 30˚C inclusive.

Cooling Your Room 1. If necessary, press (On/Off) button.

2. To select the COOL mode, press the button until

is displayed at the top of the wireless remote controller.

3. To adjust the temperature, press the buttons one or more

times until the required temperature is displayed.

Possible temperatures are between 18˚C and 30˚C inclusive.

11-3

25888A(1)_1.indd 22 2006-04-14 ｿﾀﾈﾄ 2:25:51

Mode Explanation Remark

4. Select the fan speed by pressing the button one or

more times until the intended value is displayed :

Heating Your Room

(Except cooling only models)

1. If necessary, press (On/Off) button.

2. To select the HEAT mode, press the button until

is displayed at the top of the wireless remote controller.

3. To adjust the temperature, press the buttons

one or more times until the required temperature is displayed.

Possible temperatures are between 16˚C and 30˚C inclusive.

4. Select the fan speed by pressing the button one or

more times until the intended value is displayed :

Basic Function(cont.)

Automatic(rotated : ➔ ➔ )

Low

Medium

High

Automatic(rotated : ➔ ➔ )

Low

Medium

High

Operating Instructions

Samsung Electronics 11-4

25888A(1)_1.indd 23 2006-04-14 ｿﾀﾈﾄ 2:25:55

Samsung Electronics

Mode Explanation Remark

Removing Excess

Humidity

1. If necessary, press (On/Off) button.

2. To select the DRY mode, press the button until

is displayed at the top of the wireless remote controller.

3. To adjust the temperature, press the buttons one or

more times until the required temperature is displayed.

Possible temperatures are between 18˚C and 30˚C inclusive.

Airing Room 1. If necessary, press (On/Off) button.

2. To select the FAN mode, press the button until

is displayed at the top of the wireless remote controller.

3. Select the fan speed by pressing the button one or

more times until the intended value is displayed:

Low

Medium

High

Operating Instructions

Basic Function(cont.)

11-5

25888A(1)_1.indd 24 2006-04-14 ｿﾀﾈﾄ 2:25:58

Samsung Electronics

11-2-2 Wired Remote Controller

Mode Explanation Remark

Selecting the

Automatic

Operating Mode

1. If necessary, press (ON/OFF) button.

2. To select the AUTO mode, press the button until

is displayed at the top of the wired remote controller.

3. To adjust the temperature, press the buttons one

or more times until the required temperature is displayed.

Possible temperatures are between 18˚C and 30˚C inclusive.

Cooling Your Room 1. If necessary, press (ON/OFF) button.

2. To select the COOL mode, press the button until

is displayed at the top of the wired remote controller.

3. To adjust the temperature, press the buttons one

or more times until the required temperature is displayed.

Possible temperatures are between 18˚C and 30˚C inclusive.

Operating Instructions

11-6

25888A(1)_1.indd 25 2006-04-14 ｿﾀﾈﾄ 2:26:02

Samsung Electronics

Mode Explanation Remark

Cooling Your Room 4. Select the fan speed by pressing the button one or

more times until the intended value is displayed :

Heating Your Room

(Except cooling only models)

1. If necessary, press (On/Off) button.

2. To select the HEAT mode, press the button until

is displayed at the top of the wireless remote controller.

3. To adjust the temperature, press the buttons

one or more times until the required temperature is displayed.

Possible temperatures are between 16˚C and 30˚C inclusive.

4. Select the fan speed by pressing the button one or

more times until the intended value is displayed :

Automatic(rotated : ➔ ➔ )

Low

Medium

High

Automatic(rotated : ➔ ➔ )

Low

Medium

High

Operating Instructions

11-7

25888A(1)_1.indd 26 2006-04-14 ｿﾀﾈﾄ 2:26:05

Samsung Electronics

Mode Explanation Remark

Removing Excess

Humidity

1. If necessary, press (ON/OFF) button.

2. To select the DRY mode, press the button until

is displayed at the top of the wired remote controller.

3. To adjust the temperature, press the buttons one

or more times until the required temperature is displayed.

Possible temperatures are between 18˚C and 30˚C inclusive.

Airing Your Room 1. If necessary, press (ON/OFF) button.

2. To select the FAN mode, press the button until

is displayed at the top of the wired remote controller.

3. Select the fan speed by pressing the button one or more times

until the intended value is displayed:

Low

Medium

High

Operating Instructions

11-8

25888A(1)_1.indd 27 2006-04-14 ｿﾀﾈﾄ 2:26:08

Samsung Electronics

Operating mode Mode selection button

Filter Reset button

Swing button

On Timer button

Off Timer button

On/Off & Timer Set/

Cancel button

Fan speed adjustment

button

Temperature adjustment

buttons

Temperature setting

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Battery discharge indicator

11-3 Wireless Remote Control-Buttons and Display

Note : • After cleaning the air filter, press the button.

11-9

25888A(1)_1.indd 28 2006-04-14 ｿﾀﾈﾄ 2:26:10

Operating Instructions and Installation

Samsung Electronics

11-4 Wired Remote Controller-Buttons and Display

Mode selection button

Communication error indicator

On Timer setting

Off Timer setting

Test indicator

Timer button

Timer Set/Cancel button

Test button Filter Reset button

Temperature adjustment buttons

Removing frost indicator

Temperature setting

Fan speed

Air flow direction

Filter Sign indicator

On/Off button

Fan speed adjustment button

Swing button(Except Duct type)

On/Off indicator

Operating mode

Centralized controller indicator

(In case of installing the Centralized controller)

Note : • The button is for your installation specialist. You must not press it.

• After cleaning the air filter, press the button. Then the wired remote controller will display the

Filter Sign indicator when the time to clean the air filter.

11-10

25888A(1)_1.indd 29 2006-04-14 ｿﾀﾈﾄ 2:26:11
