Samsung AVMPC060EA0MID User manual

OWNER’S

INSTRUCTIONS

System Air Conditioner

AVMPH060EA0

AVMPH070EA0

AVMPH082EA0

Heat pump

AVMPC060EA0

AVMPC070EA0

AVMPC082EA0

Cooling only

EDB98-07286A(1)

Safety Precautions

◆If the power supply cord of this air conditioner is damaged,

it must be replaced by the manufacturer or its authorized

service personnel only in order to avoid a safety hazard.

WARNING

◆Do not attempt to install this air conditioner by yourself.

◆This unit contains no user-serviceable parts. Always consult authorized

service personnel for repairs.

◆When moving, consult authorized service personnel for disconnection

and installation of the unit.

◆Do not become over-exposed to cold air by staying in the direct path of

the airflow of the air conditioner for extended periods of time.

◆Do not insert fingers or objects into the outlet port or intake grilles.

◆Do not start and stop air conditioner operation by disconnecting the

power supply cord and so on.

◆Take care not to damage the power supply cord.

◆In the event of a malfunction (burning smell, etc.), immediately stop

operation, turn off the electrical breaker, and consult authorized

service personnel.

DANGER

◆Provide occasional ventilation during use.

◆Do not direct air flow at fireplaces or heating apparatus.

◆Do not climb on, or place objects on, the air conditioner.

◆Do not hang objects from the indoor unit.

◆Do not set flower vases or water containers on top of air conditioners.

◆Do not expose the air conditioner directly to water.

◆Do not operate the air conditioner with wet hands.

◆Do not pull power supply cord.

◆Turn off power source when not using the unit for extended periods.

◆Check the condition of the installation stand for damage.

◆Do not place animals or plants in the direct path of the air flow.

◆Do not drink the water drained from the air conditioner.

◆Do not use in applications involving the storage of foods, plants or

animals, precision equipment, or art works.

◆Do not apply any heavy pressure to radiator fins.

◆Operate only with air filters installed.

◆Do not block or cover the intake grille and outlet port.

◆Ensure that any electronic equipment is at least one metre away from

either the indoor or outdoor units.

◆Avoid installing the air conditioner near a fireplace or other heating

apparatus.

◆When installing the indoor and outdoor unit, take precautions to prevent

access to infants.

◆Do not use inflammable gases near the air conditioner.

◆Max input power & current is measured according to IEO standard and

input power & current is measured according to ISO standard.

CAUTION

E-2

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Wireless Remote Controller-Buttons and Display . . . . . . . . . . . 6

■ Centralized Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Using the Control Panel on the Indoor Unit . . . . . . . . . . . . . . . . 8

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . 9

■ Cleaning YourAir Conditioner . . . . . . . . . . . . . . . . . . . . . . . . 10

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . 12

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 13

◆

ECHNICAL SPECIFICATIONS

E-3

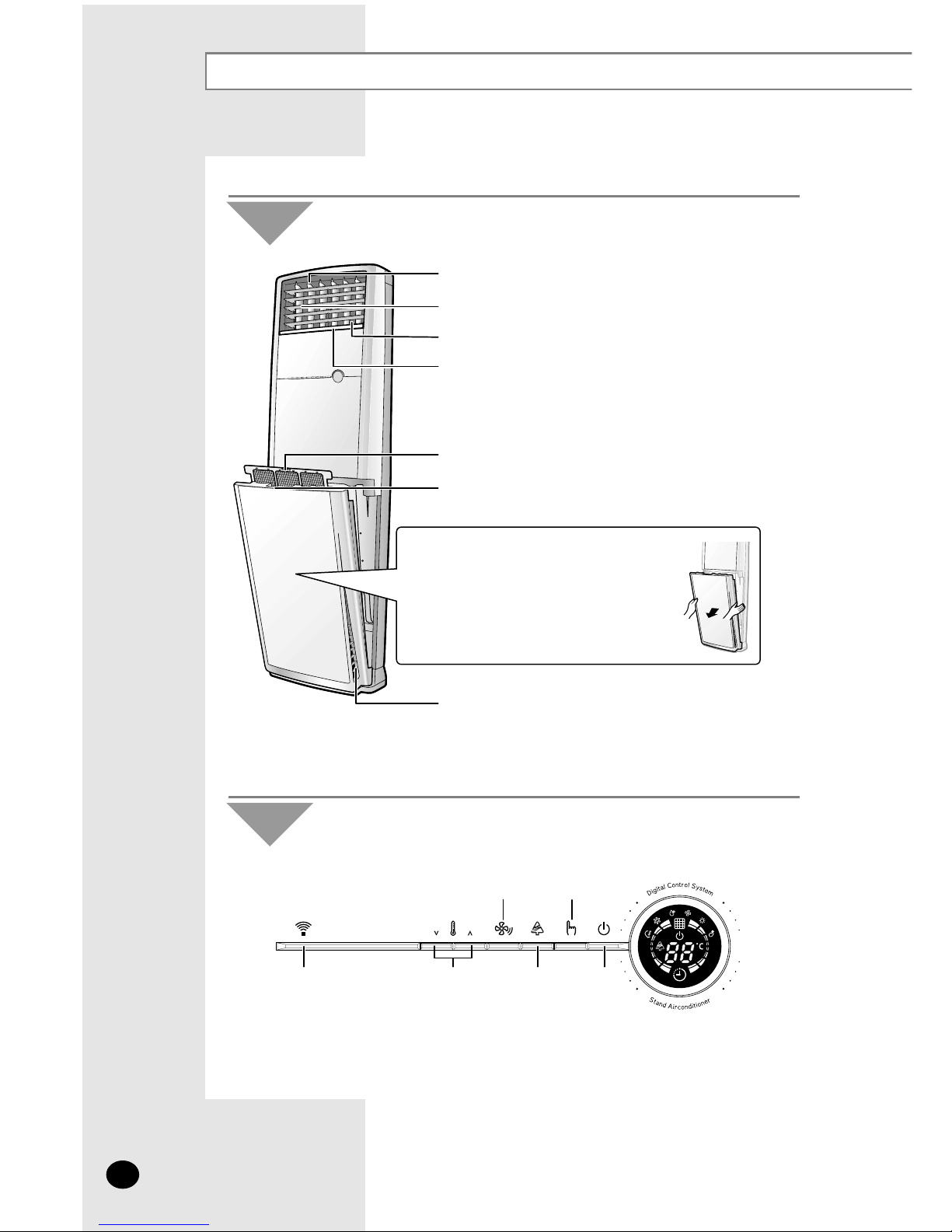

View of the Unit

The figures are shown in this instruction may differ from yours depending on the model.

Air flow blade(up/down orientation)

Air flow blade(right/left orientation)

Air outlet

Air inlet

Remote Control

Sensor Temperature

adjustment

buttons

Air Cleaning

button

Fan Speed

adjustment button Mode Selection

button

On/Off

button

Automatic shutter

Air filter

Remote control holder

Indoor Unit

E-4

Control Panel

You can operate the air conditioner with the control panel when you can’t or

don’t want to operate the air conditioner with the remote control. Refer to page 8.

To open the grille

◆

Hold the upper part of the grille, then pull it

slightly forward.

◆

Don’t open the grille when it is operating. It may

cause a malfunction or an electrical hazard.

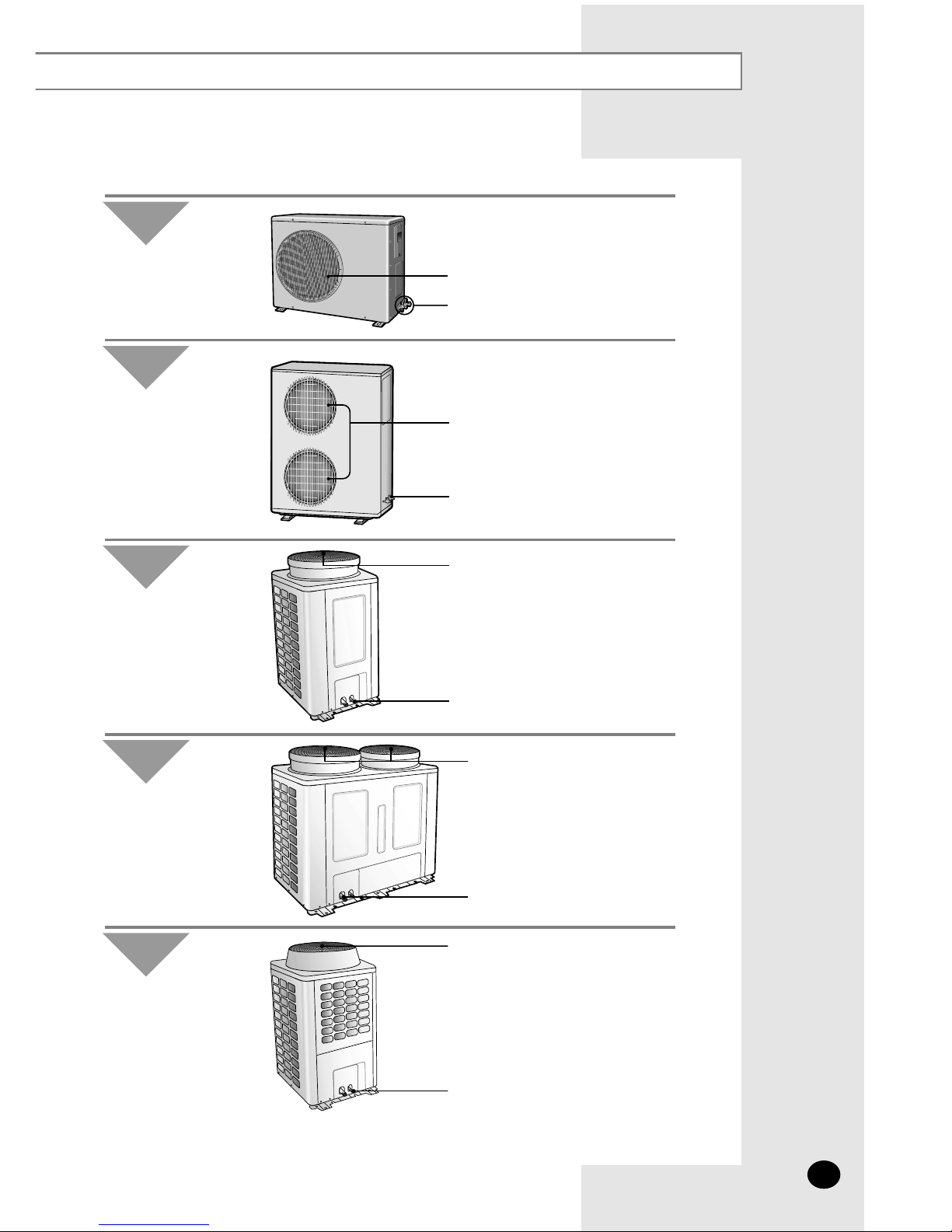

Air outlet

Connection valve

TYPE A

Outdoor Unit

Air outlet

Connection valve

TYPE B

Outdoor Unit

Air outlet

Connection valve

TYPE C

Outdoor Unit

Air outlet

Connection valve

TYPE D

Outdoor Unit

Air outlet

Connection valve

TYPE E

Outdoor Unit

E-5

If the heat exchanger in the outdoor unit gets dusty, cooling efficiency may fall. So clean the heat exchanger with water

when it becomes dirty. However, be careful when you wash the surface of the heat exchanger because it is very sharp.

NNoo

oott

ttee

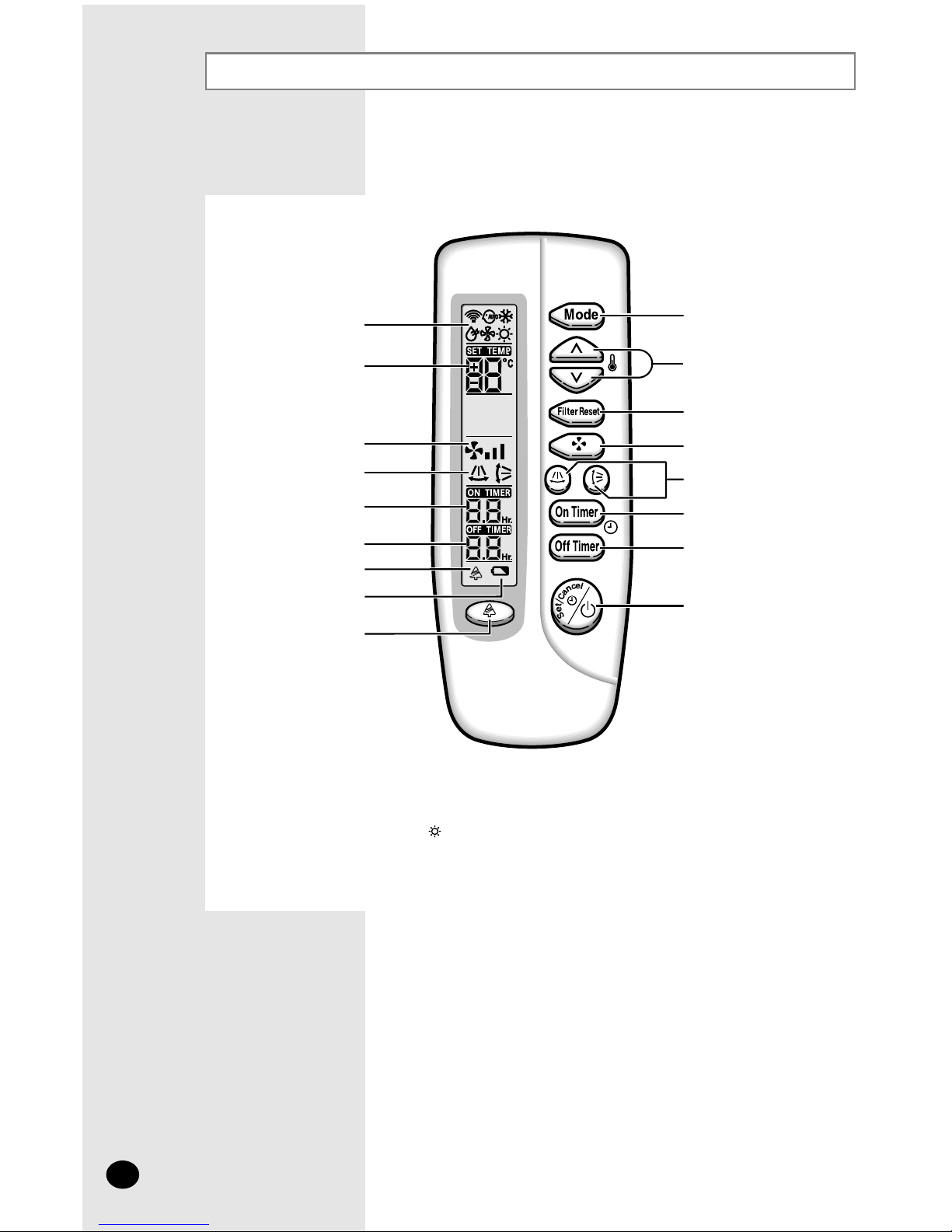

Wireless Remote Controller-Buttons and Display

Operating mode Mode selection button

Filter Reset button

Swing buttons

On Timer button

Off Timer button

On/Off & Timer

Set/Cancel button

Fan speed adjustment

button

Temperature adjustment

buttons

Temperature setting

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Clean mode

Air cleaning button

Battery discharge indicator

E-6

The wireless remote controller is an optional accessory.

To use the wireless remote controller, refer to an appropriate manual.

- After cleaning the air filter, press the filter reset button.

- The heating mode( ) is not selected in the Cooling Only models.

NNoo

oott

ttee

E-7

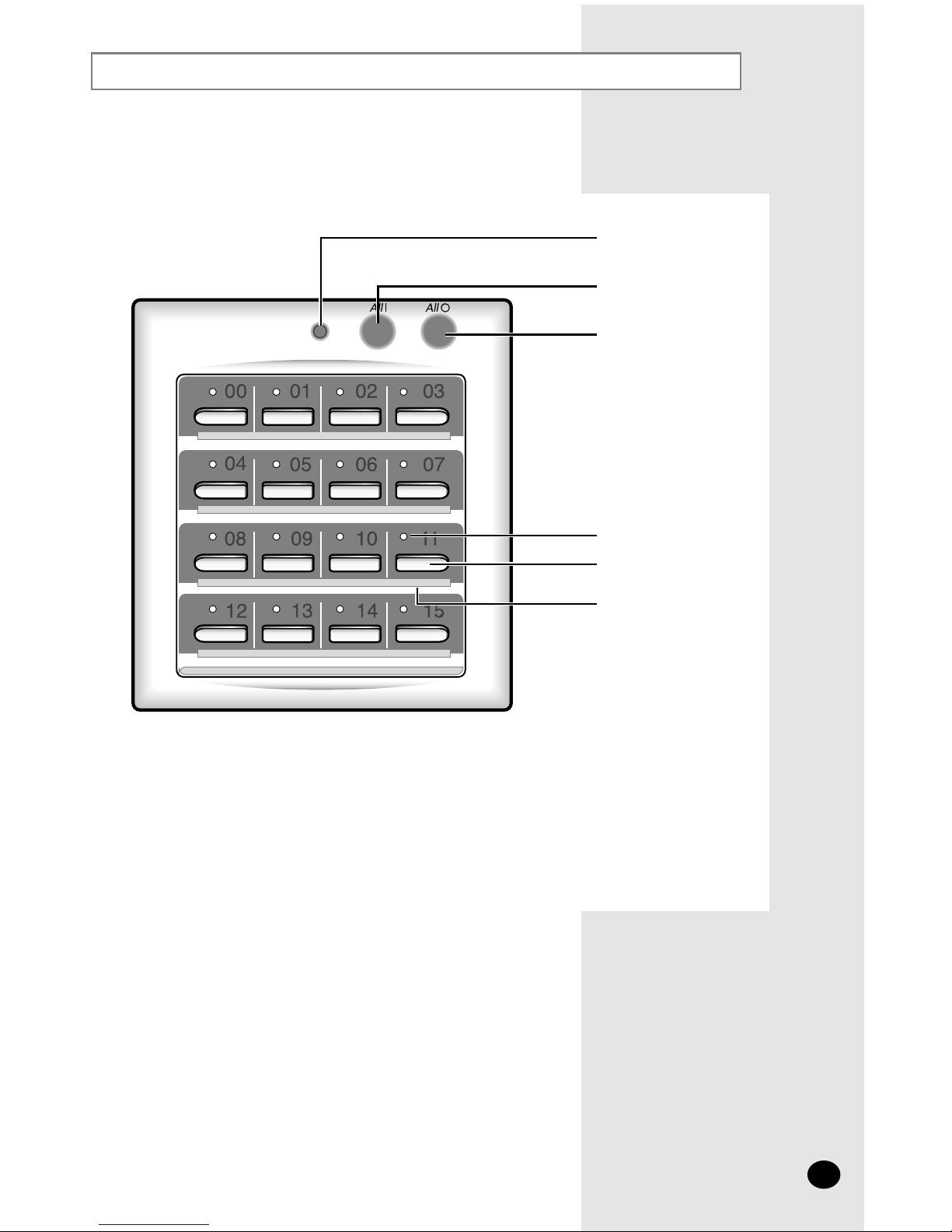

Centralized Controller

The centralized controller is an optional accessory and it is installed on the wall.

To use the centralized controller, refer to an appropriate manual.

Operating lamp

All On button

All Off button

On/Off indicators

On/Off buttons

Index

Operating lamp comes on when at least one air conditioner connected to the

centralized controller is operating.

NNoo

oott

ttee

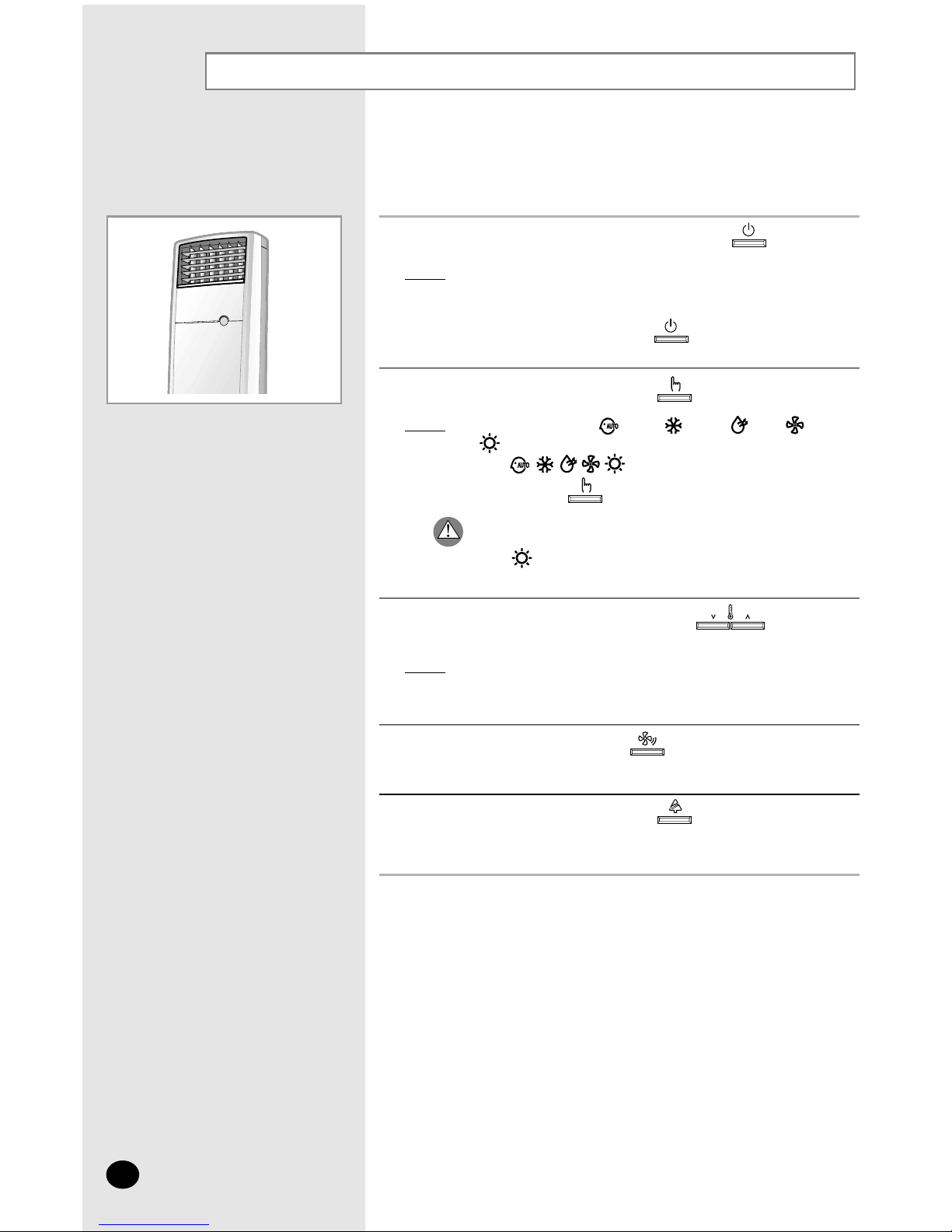

Using the Control Panel on the Indoor Unit

You can operate the air conditioner with the control panel when you can't or don't want to operate the

air conditioner with the remote control.

E-8

1If you want to operate the air conditioner, press the (On/Off) button.

2To adjust the mode you want, press the button.

Result: ◆You can select each (Auto), (Cool), (Dry), (Fan),

(Heat) mode.

◆The , , , , indicator is displayed in turn each time

you press the button.

Result: ◆If you finish setting the temperature, the current temperature

indicates on the control panel.

3To adjust your desired temperature, press the buttons once

or more times.

4To adjust the Fan speed, press the button.

5To adjust the air clean mode, press the button.

You can select this mode at anytime while the air conditioner is operating.

Result: ◆The air conditioner starts up in the mode which was last selected

and used.

◆The indoor unit beeps

◆If you want to stop, press the (On/Off) button once again.

◆The mode is selected only in the Heat Pump models.

Caution

Operating Recommendations

E-9

Here are a few recommendations that you should follow when operating

your air conditioner.

Topic Recommendation

The heat pump function of the air conditioner absorbs heat

from

outside air and brings it indoors. As the temperature of the

outside

air drops, the heating performance of air conditioner will

decrease. If you find that the room is not warm enough, using

an additional heating appliance is recommended.

Heating

performances

When outside temperature is low but humidity is high,

frost may form on the outdoor unit at HEAT mode.

If this happens:

◆ The heating operation stops.

◆ The defrost mode will be triggered automatically for about ten

minutes and the (defrost) indicator lights up.

No intervention is required ; after about ten minutes, the air

conditioner operates again normally.

Frost

If both indoor and outdoor temperatures are high and the air

conditioner is running at HEAT mode, the outdoor unit’s fan

and compressor may stop at times.

This is normal ; simply wait until the air conditioner switches

on again.

High indoor

and outdoor

temperatures

If a power failure occurs while the air conditioner is operating,

the unit will be switched off. When the power returns, the air

conditioner starts up again automatically.

Power failure

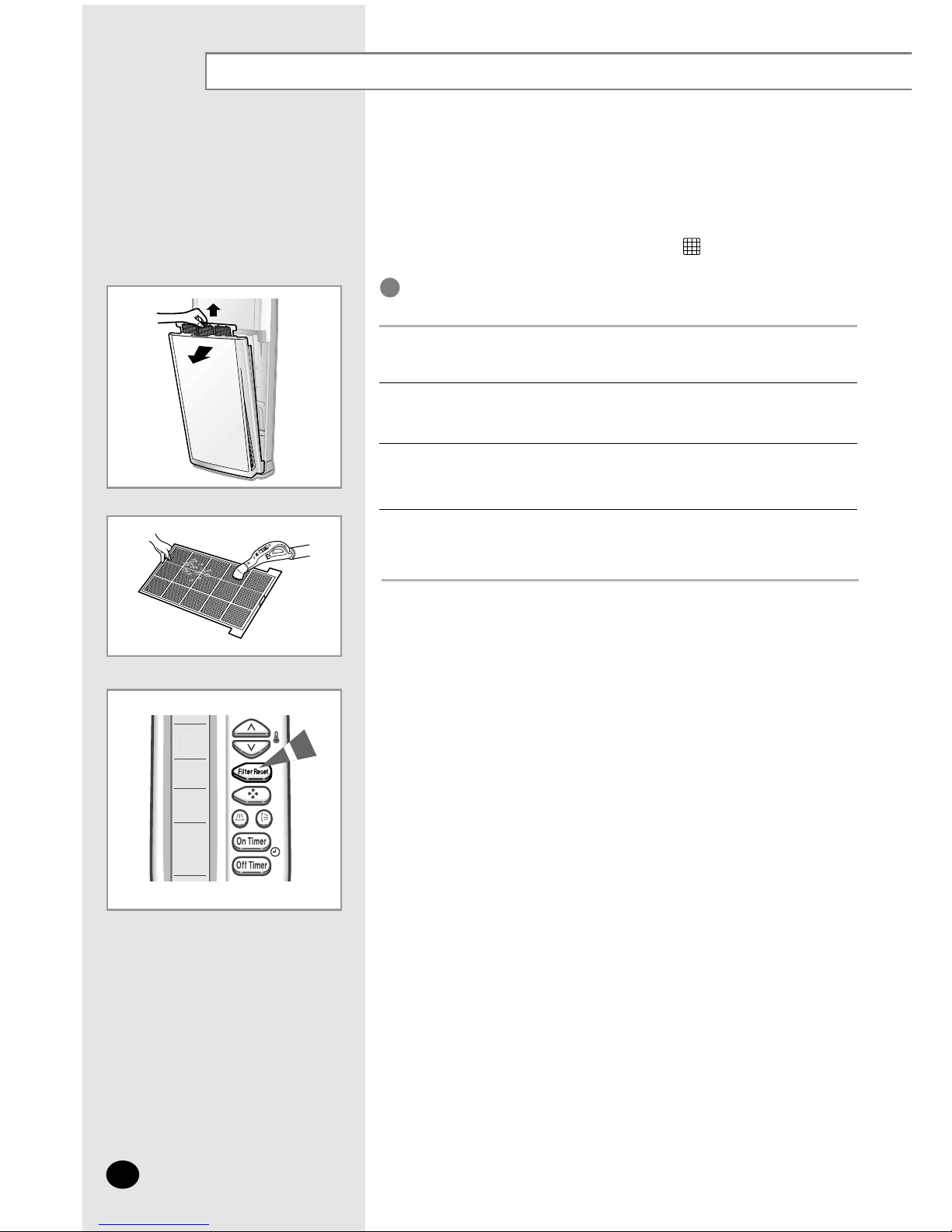

Cleaning Your Air Conditioner

E-10

To get the best possible use out of your air conditioner, you must clean it

regularly to remove the dust that accumulates on the air filter.

While you are cleaning the air conditioner, the (filter) indicator lights

up on the control panel.

Open the front grille, then pull out the air filter.1

Before cleaning your air conditioner, ensure that you have switched

off the breaker for the unit.

IMPORTANT

Remove all dust on the air filter with a vacuum cleaner or brush.2

When you have finished, insert the air filter into the original position and

close the front grille.

Clean the unit with a damp cloth and mild detergent (do NOT use benzene,

solvents or other chemicals).

◆

If you have not used the air conditioner for a long period of time,

set the fan going for three to four hours to dry the inside of the

air conditioner thoroughly.

◆

After cleaning the air conditioner, press the Filter Reset button.

NNoo

oott

ttee
