Samsung AVMWH020CA0 User manual

E§§HNIKA

INSTALLATION MANUAL

MANUAL DE INSTALACIÓN

MANUEL D’INSTALLATION

MANUALE D’INSTALLZIONE

MANUAL DE INSTALAÇÃO

INSTALLATIONS-HANDBUCH

E°XEIPI¢IO E°KATA™TA™H™

àçëíêìäñàü èé ìëíÄçéÇäÖ

System Air Conditioner

Aire acondicionado sistemático

Climatiseur numérique multifonctionnel

Sistema Aria Condizionata

Sistema Ar Condicionado

Klimaanlage System

™‡ÛÙËÌ· ∫ÏÈÌ·ÙÈÛÌÔ‡

ëËÒÚÂÏÌ˚ ÇÓÁ‰Û¯Ì˚ äÓÌ‰ËˆËÓÌÂ

E S F I P D G R DB98-05180A(2)

AVMWH020CA0

AVMWH032CA0

AVMWH040CA0

AVMWH052CA0

AVMWH072CA0

AVMWH020EA(B)0

AVMWH026EA(B)0

AVMWH035EA(B)0

AVMWH052EA(B)0

AVMWH070EA(B)0

Heat pump

AVMWC020CA0

AVMWC032CA0

AVMWC040CA0

AVMWC052CA0

AVMWC072CA0

AVMWC020EA(B)0

AVMWC026EA(B)0

AVMWC035EA(B)0

AVMWC052EA(B)0

AVMWC070EA(B)0

Cooling only

ENGLISH

ESPAÑOL

FRANÇAIS

ITALIANO

PORTUGUÊS

DEUTSCH

RUSSIAN

■ Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

OOPP

PPTT

TTII

IIOO

OONN

NNAA

AALL

LLAA

AACC

CCCC

CCEE

EESS

SSSS

SSOO

OORR

RRII

IIEE

EESS

Chapter

Contents

E-2

■ Preparation for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Deciding on Where to Install the Indoor Unit . . . . . . . . . . . . . . . . . 5

■ Fixing the Installation Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

■ Electronic Expansion Valve Kit Installation . . . . . . . . . . . . . . . . . . . 9

■ Connecting the Refrigerant Pipe . . . . . . . . . . . . . . . . . . . . . . . . . 12

■ Cutting / Flaring the Pipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

■ Performing Leak Test & Insulation . . . . . . . . . . . . . . . . . . . . . . . . 14

■ Drain Hose Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

■ Connecting the Connection Cord . . . . . . . . . . . . . . . . . . . . . . . . . 16

■ AssigningAddress to Indoor Unit . . . . . . . . . . . . . . . . . . . . . . . . . 17

■ Additional Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

■ Bio-pure Filter Installation (optional) . . . . . . . . . . . . . . . . . . . . . . . 19

■ Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

WWAA

AALL

LLLL

LL--

--MM

MMOO

OOUU

UUNN

NNTT

TTEE

EEDD

DDTT

TTYY

YYPP

PPEE

EEII

IINN

NNSS

SSTT

TTAA

AALL

LLLL

LLAA

AATT

TTII

IIOO

OONN

Chapter

■Preparation for Installation . . . . . . . . . . . . . . . . 4

■Deciding on Where to Install the Indoor Unit . . . 5

■Fixing the Installation Plate . . . . . . . . . . . . . . . . 8

■Electronic Expansion Valve Kit Installation . . . . 9

■Connecting the Refrigerant Pipe . . . . . . . . . . . 12

■Cutting / Flaring the Pipes . . . . . . . . . . . . . . . . 13

■Performing Leak Test & Insulation . . . . . . . . . 14

■Drain Hose Installation . . . . . . . . . . . . . . . . . . 15

■Connecting the Connection Cord . . . . . . . . . . 16

■Assigning Address to Indoor Unit . . . . . . . . . . 17

■Additional Functions . . . . . . . . . . . . . . . . . . . . 18

■Bio-pure Filter Installation (optional) . . . . . . . . 19

■Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 20

WWAA

AALL

LLLL

LL--

--MM

MMOO

OOUU

UUNN

NNTT

TTEE

EEDD

DDTT

TTYY

YYPP

PPEE

EEII

IINN

NNSS

SSTT

TTAA

AALL

LLLL

LLAA

AATT

TTII

IIOO

OONN

Chapter

E-3

ENGLISH

Preparation for Installation

When deciding on the location of the air conditioner with the owner,

the following restrictions must be taken into account.

General

Do NOT install the air conditioner in a location where it will come into

contact with the following elements:

◆Combustible gases

◆Saline air

◆Machine oil

◆Sulphide gas

◆Special environmental conditions

If you must install the unit in such conditions, first consult your dealer.

E-4

Accessories

◆The following accessories are supplied with the indoor unit.

The quantities are indicated in parentheses.

Installation plate (1) Insulation refrigerant

pipe (1)

Cement nail (6)

Cable tie (4)

Tapped screw (6) Putty (1) Owner’s instructions

(1) Installation manual

(1)

OWNER’SINSTRUCTIONS

Splut-typeRoomAirConditioner

OWNER’SINSTRUCTIONS

Splut-typeRoomAirConditioner

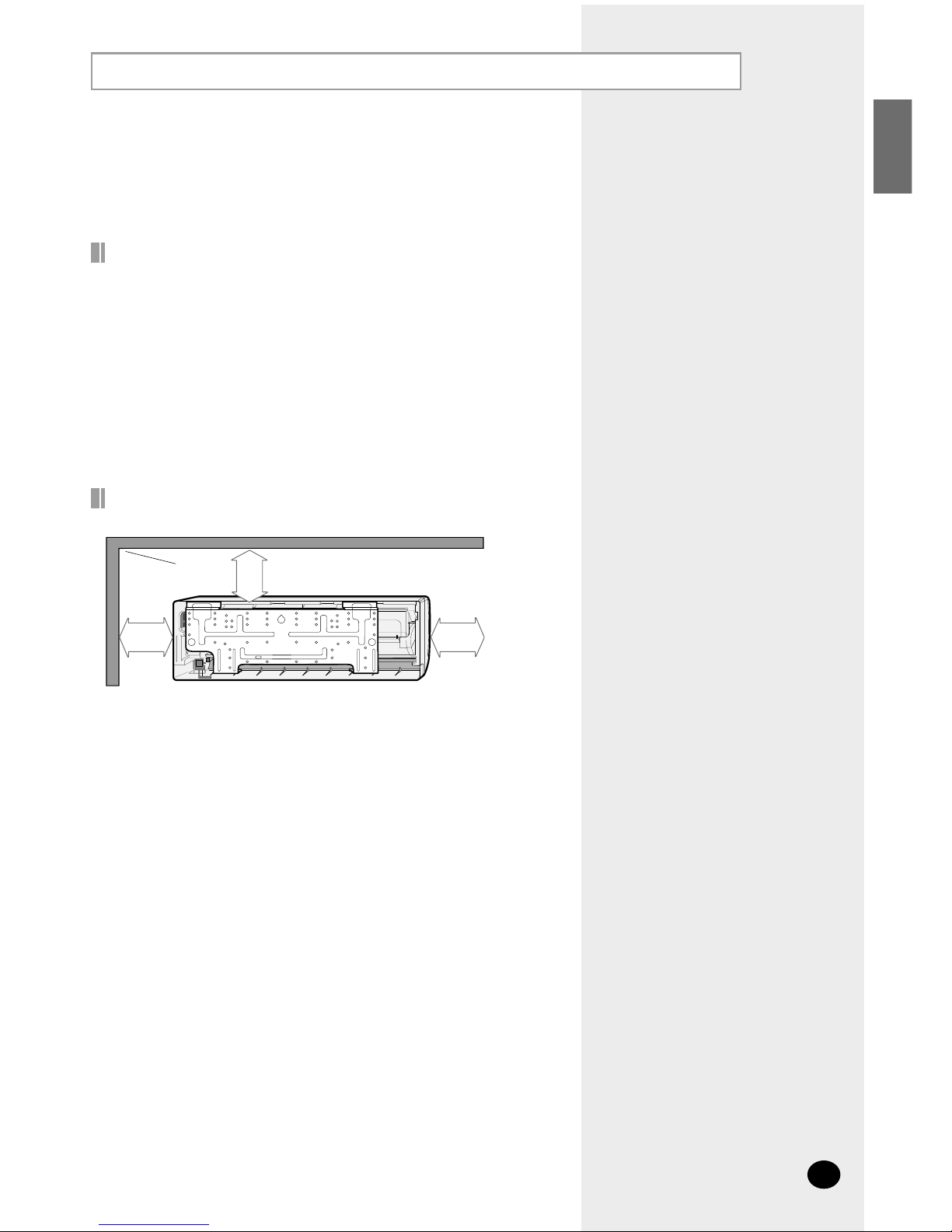

Deciding on Where to Install the Indoor Unit

Indoor Unit

◆There must be no obstacles near the air inlet and outlet.

◆Install the indoor unit on a wall that can support its weight.

◆Maintain sufficient clearance around the indoor unit.

◆Make sure that the water dripping from the drain hose runs away correctly

and safely.

◆The indoor unit must be installed in this way, that they are out of public

access. (Not touchable by the users)

E-5

ENGLISH

Space Requirements for Indoor Unit

125mm

or more

125mm

or more

30mm

or more

E-6

Deciding on Where to Install the Indoor Unit (cont.)

Drawing of the indoor unit

✴✴

020/026/032/035/040

✴✴

Unit : mm

Air In

Front view

Rear view

Air out

E-7

ENGLISH

✴✴

052/070/072

✴✴

Drawing of the indoor unit

Front view

Rear view

Unit : mm

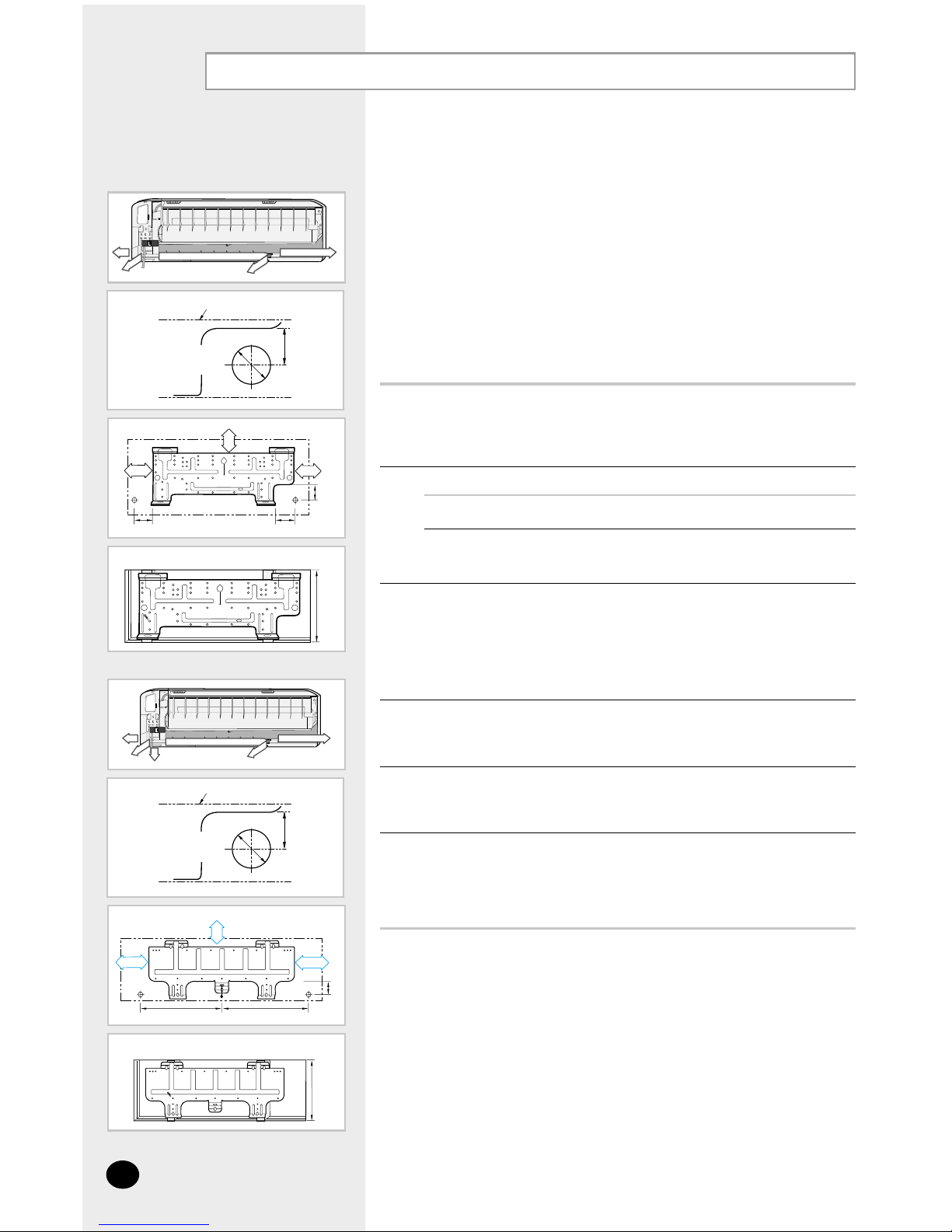

Fixing the Installation Plate

E-8

252 275

14090

410~730

Before fixing the installation plate to a wall or window frame, you

must determine the position of the 65 mm hole through which the

cable, piping and hose pass to connect the indoor unit up to the

outdoor unit. When facing the air conditioner in position on the wall,

the piping and cable can be connected from the:

◆Right

◆Left

◆Underside;

✴✴

052/070/072

✴✴

◆Rear (right or left)

1Determine the position of the pipe and drain hose hole using the right

figure and drill the hole with an inner diameter of 65 mm so that it slants

slightly downwards.

2 If you are fixing the indoor unit to a... Then follow Steps...

Wall 3.

Window frame 4to 6.

3Fix the installation plate to the wall in a manner appropriate to the weight

of the indoor unit.

➢If you are mounting the plate on a concrete wall with anchor

bolts, the anchor bolts must not project by more than 20 mm.

4Determine the positions of the wooden uprights to be attached to the

window frame.

5Attach the wooden uprights to the window frame in a manner appropriate

to the weight of the indoor unit.

6Using tapped screws, attach the installation plate to the wooden uprights,

as illustrated in the last figure opposite.

✴✴

020/026/032/035/040

✴✴

30mm

Installation plate

Pipe hole

(

65mm)

(Unit : mm)

255 325

415512

410~730

✴✴

052/070/072

✴✴

45mm

Installation plate

Pipe hole

(

65mm)

(Unit : mm)

Electronic Expansion Valve Kit Installation

1Decide an installation place that can support the electronic expansion

valve kit.

2Connect the “IN”refrigerant pipe to the outdoor unit.

3Connect the “OUT”refrigerant pipe to each indoor unit(A, B and C).

◆The liquid and gas pipes should not be crossed when piping connection.

4Insulate the connection piping. A joint part of pipe needs double

thickness of insulation.

5The expansion valve has to be installed that the user has no access

to it. (built-in type)

Nylon band

Electronic

Expansion

valve

body

E-9

ENGLISH

Connection of refrigerant piping & Insulation

Electronic Expansion Valve Kit Installation (cont.)

E-10

Wiring & Assigning address

1Connect the AC power cable and communication cable from the outdoor

unit to terminal, then connect the cable to another electronic expansion

valve kit.

Room A

Room B

Outdoor

unit

Another

distributor kit

Room C

2Connect the AC power cable and communication cable to each indoor

unit (A, B and C).

3Align the SW51, SW52 and SW53’s addresses with A, B and C indoor

units’.

SW51

SW52

SW53

CN63(Yellow)

CN62(Blue)

CN61(White)

Switch No. Appropriate indoor unit

(Electronic expansion valve) Connector No.
