Samsung MH026FKEA User manual

ENGLISH

ESPAÑOLFRANÇAISITALIANOPORTUGUÊS

USER’S MANUAL

Cassette Type Series

1 Way cassette :

AVMKH(C)/AVXC1/ KH(C)EAM/

KHEAV/MHFK

Slim 1Way cassette :

AVXCS/SHEAV/MHFS

2 Way cassette :

AVMGH(C)/AVXC2/GH(C)EAM

4 Way cassette :

AVMCH(C)/AVMC4/ AVXC4/

CH(C)EAM/ CH(C)EZM/CHEAV

mini 4 Way cassette :

AVXCM/THEAV/MHFM

System Air Conditioner

4 Way cassette

mini 4 Way cassette

Slim 1 Way cassette

1 Way cassette

2 Way cassette

DEUTSCHEΛΛHNIKARUSSIAN

DB98-26442A(8)SE F I DP G R

Cassette Type_E_26442.indd 17 2008-08-20 ｿﾀﾈﾄ 12:55:09

E-2

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes

at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste

disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of

material resources.

Household users should contact either the retailer where they purchased this product, or their local government office,

for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

Contents



PREPARING YOUR AIR CONDITIONER



Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3



View of the Indoor unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8



RECOMMENDATIONS FOR USE



Periodical Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9



Protections enabled by the Unit control system. . . . . . . . . . . . . . . . . . . . . . . 9



Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10



Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11



Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12



Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

This product has been determined to be in compliance with the Low Voltage Directive (2006/95/EC),

and the Electromagnetic Compatibility Directive (2004/108/EEC) of the European Union.

Cassette Type_E_26442.indd 2 2008-08-20 ｿﾀﾈﾄ 12:55:08

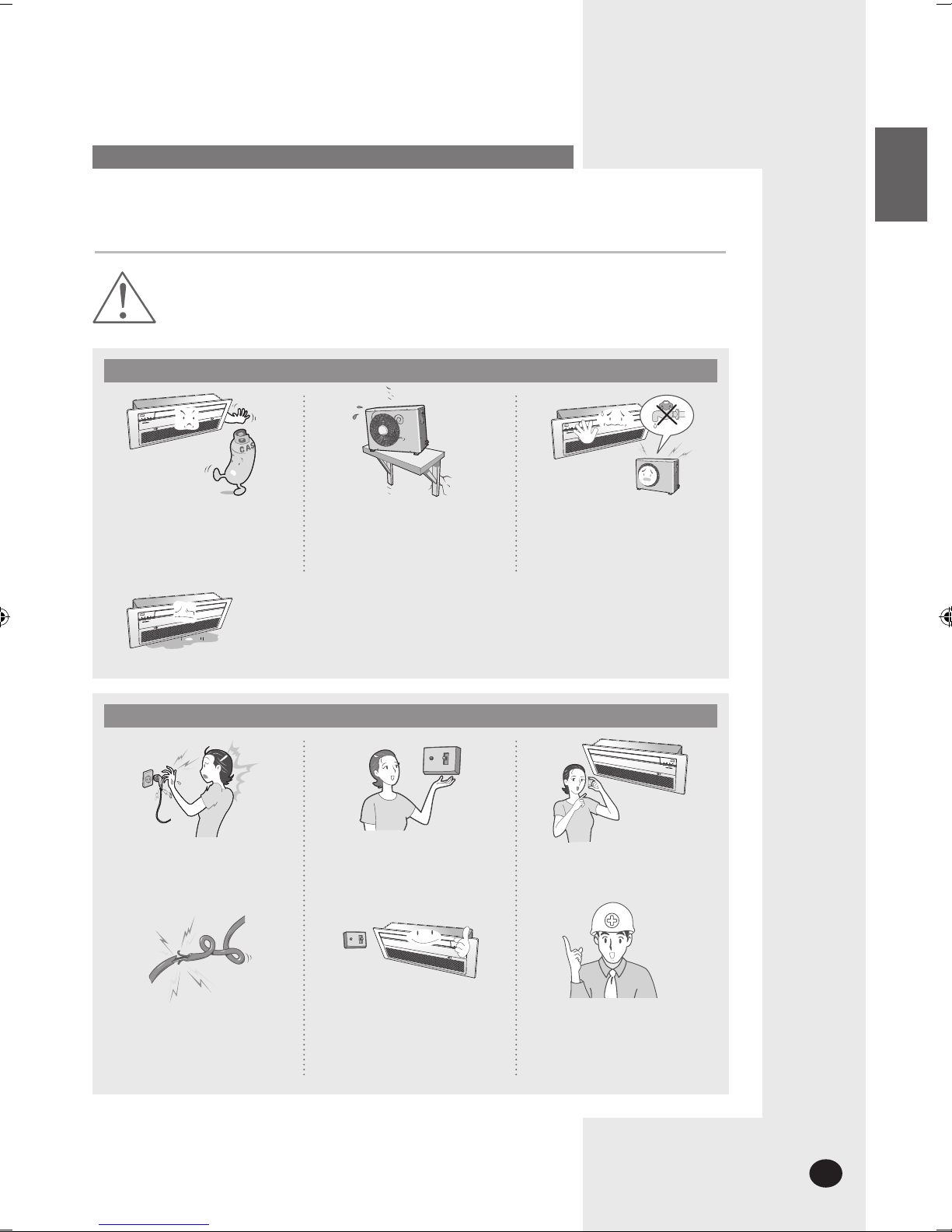

E-3

ENGLISH

• Risk of electric shock can cause injury or death.

•

Disconnect all remote electric power supplies before servicing, installing or cleaning.

• Installation must be done by the manufacturer or service agent or a similar

qualified person in order to avoid a hazard.

WARNING



Do not install the air

conditioner where there’s

combustible gas.



Do not install the outdoor

unit where there’s the risk of

dropping such as on high

outer wall or outside of the

terrace.



Earth the ground conductor

and do not connect it to the

gas pipe, water pipe or

telephone wire.

WHEN INSTALLING



Contact the service center if the air conditioner

is under water.

Safety Precautions

You should take the following safety precautions when using your air conditioner.



Do not pull the electric wire or

touch the power plug with the

wet hands.



Install the switch and circuit

breaker only for

air conditioner.



Use the rated current fuse.

REGARDING POWER SOURCE



Do not bend the electric wire

by force or weigh down the air

conditioner not to be out of

order.



Use the power source with

separate wiring only for air

conditioner.



If the power plug is

damaged, replace it by the

manufacturer or qualified

personal to avoid the risk.

Cassette Type_E_26442.indd 3 2007-12-07 ｿﾀﾈﾄ 6:18:36

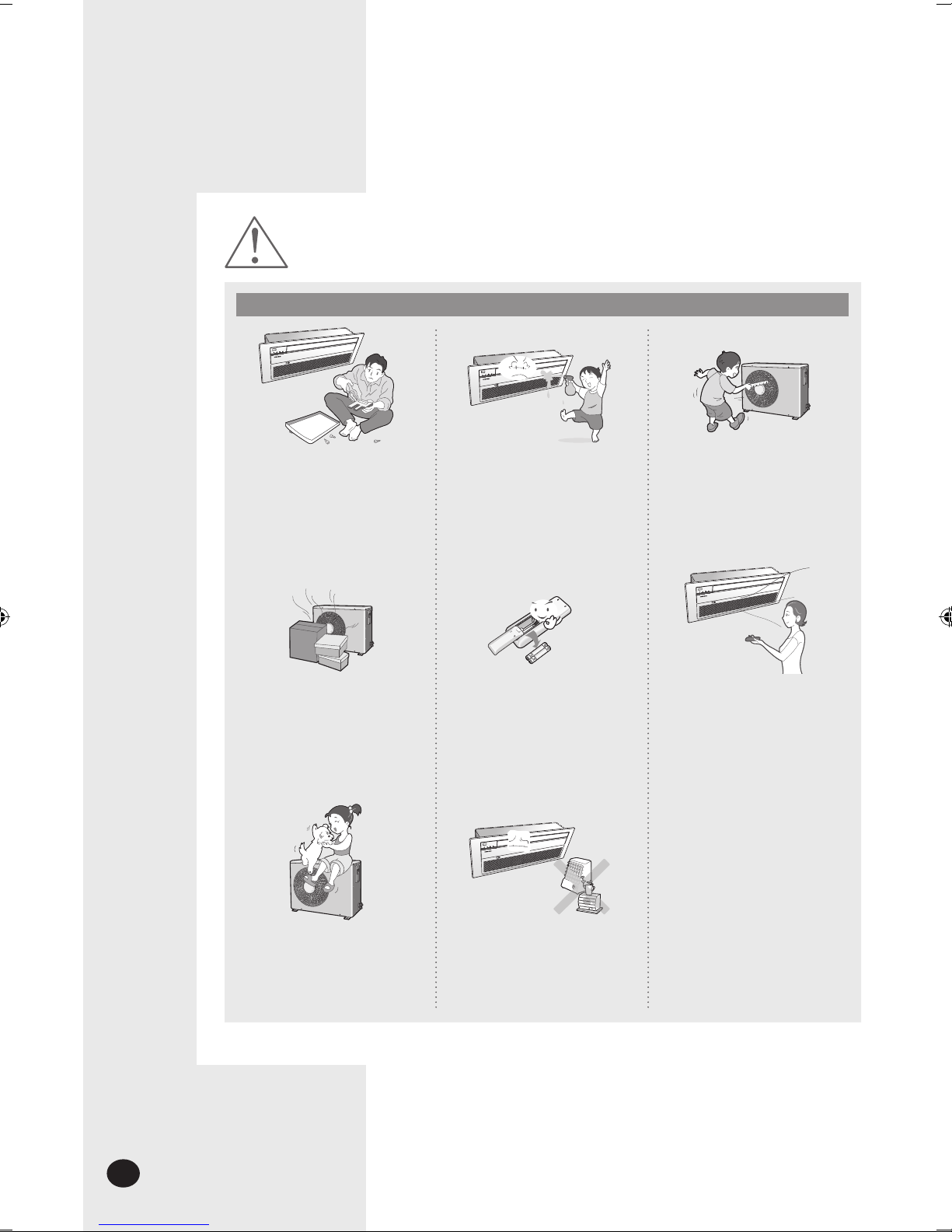

E-4

WARNING



Users of this product are

cautioned not to attempt

repair of this product at their

own discretion. Instead, they

are requested to directly

contact a designated service

center or the outlet at which

the product was purchased.



Never spill any kind of liquid

into the unit. Should this

happen, unplug or main

switch off the unit and

contact an authorized

service center.



Do not insert anything

between the air outlet blades

because the inner fan may

be damaged and could cause

injury. Keep children away

from the unit.

DURING OPERATION



Do not place any obstacles in

front of the unit.

Make sure that the unit is

correctly ventilated at all times.

Do not place clothing or other

materials over it.



If the wireless remote

control is not used for

a long time, remove the

batteries. (If applicable)



When using a wireless remote

control, the distance should

not be more than 7m(23ft)

from the air conditioner.

(If applicable)



Do not place any materials so

that children cannot step on it.



Do not connect the electric

heater to the air conditioner

or repair it with your

discretion.

Cassette Type_E_26442.indd 4 2007-12-07 ｿﾀﾈﾄ 6:18:49

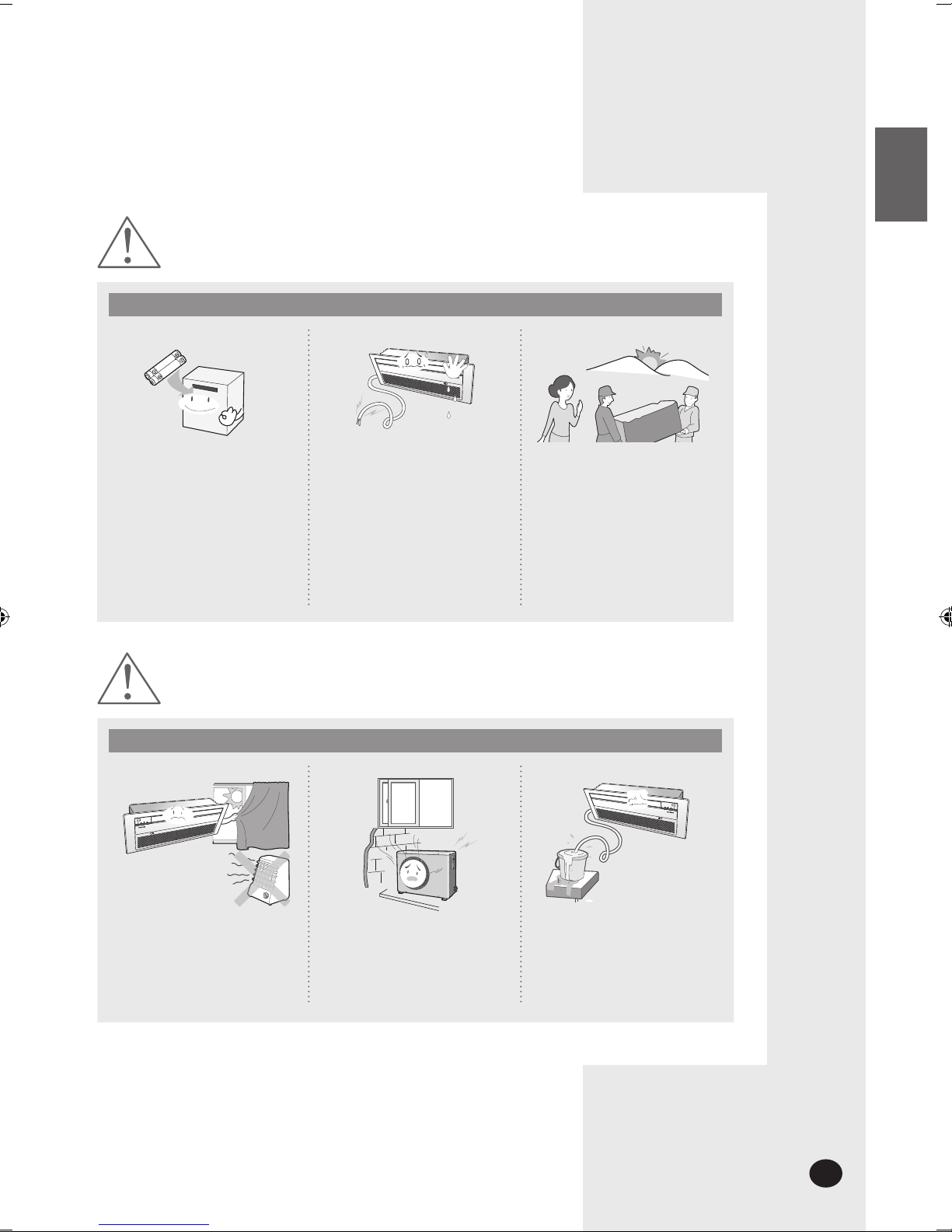

E-5

ENGLISH



Before throwing out the

device, it is necessary to pull

back the battery cells and get

rid of them safely for recycling

reasons.



When you need to dispose of

the unit, consult your dealer.

If pipes are removed

incorrectly, refrigerant may

blow out and come into

contact with your skin, causing

injury. Releasing refrigerant

into the atmosphere also

damages the environments.



Please recycle or dispose

of the packaging material

for this product in an

environmentally responsible

manner.

DISPOSING THE UNIT

WARNING



Install the air conditioner

avoiding direct sunlight or

heater, especially water.



Install the outdoor unit so as

to let the discharged air out

properly. Avoid a place that

may disturb your neighbor by

noise.



Install the drain hose to let

the water run safely and

correctly.

WHEN INSTALLING

CAUTION

Cassette Type_E_26442.indd 5 2007-12-07 ｿﾀﾈﾄ 6:18:52

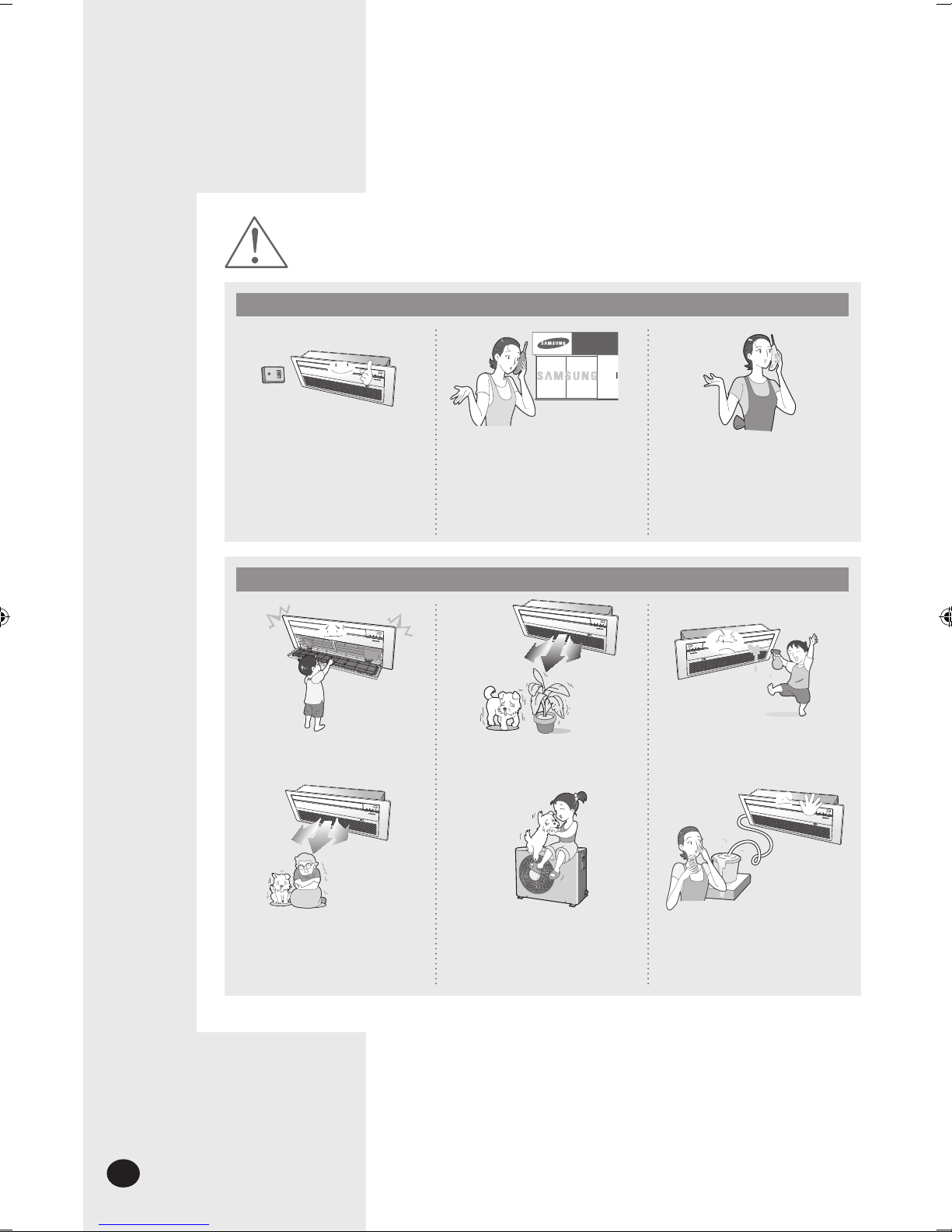

E-6



Disconnect the circuit breaker

when you don’t use

the air conditioner for a long

time to save energy.



Contact the service center or

manufacturer if you want to

repair the air conditioner.



Contact the service center

after turning off the air

conditioner if strange noise

is heard, burning smell or

smoke blows.

REGARDING POWER SOURCE



Do not open the front grille

during operation.



Avoid cold and hot air

reaching to person, pet or a

plant directly for a long time.



Avoid the water from

getting into the

air conditioner.

DURING OPERATION



Do not use the air conditioner

for a long time in a closed

room or in a place where

there’s a baby or an old person.



Do not step on the air

conditioner or put heavy

object on it.



Do not drink the water from

the air conditioner.

CAUTION

Cassette Type_E_26442.indd 6 2007-12-07 ｿﾀﾈﾄ 6:18:54

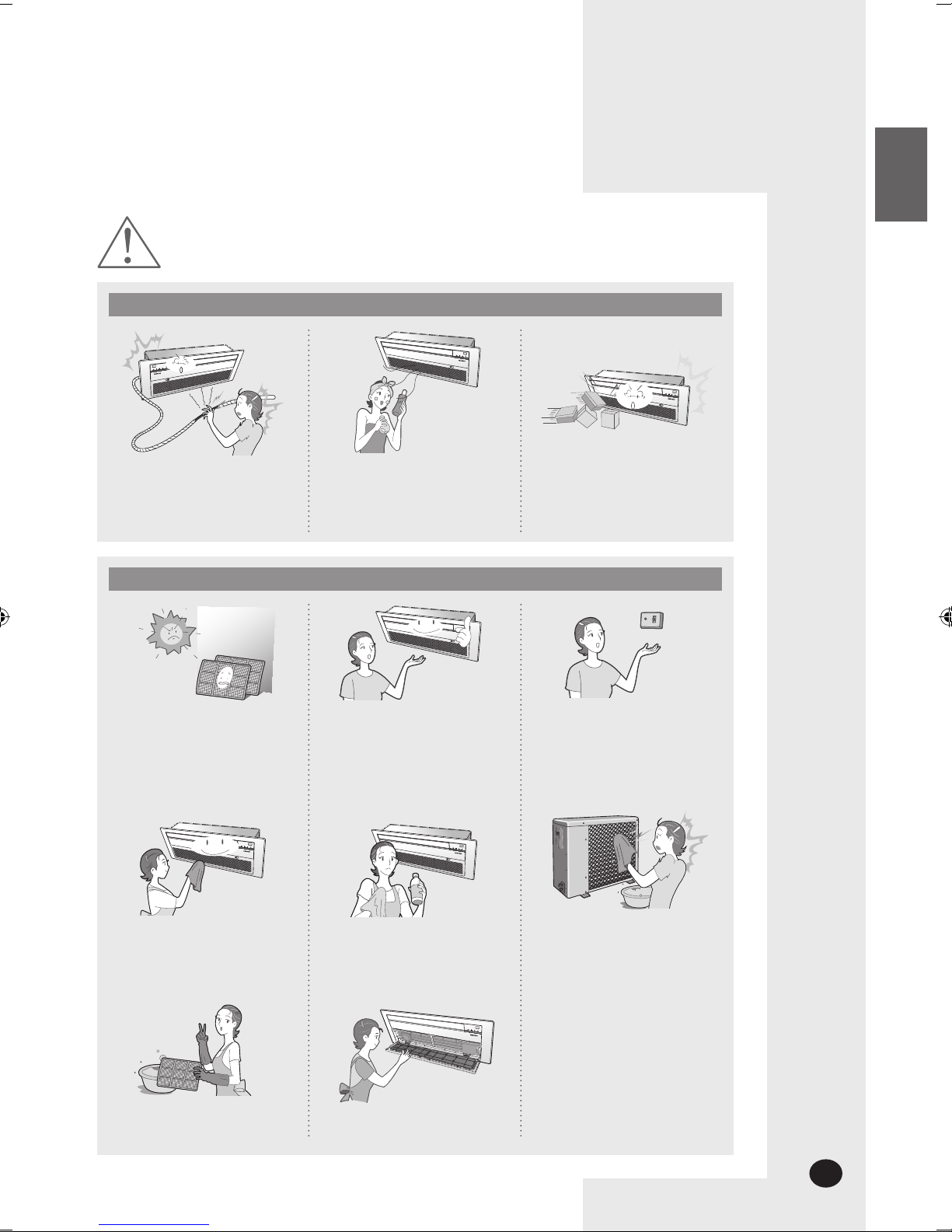

E-7

ENGLISH



Do not touch the pipes

connected to the air

conditioner.



Do not use the air conditioner

to maintain the machine, food,

pet, plant or cosmetics.



Do not give excessive shock

to the air conditioner.

DURING OPERATION



The appliance is not intended

for use by young children or

infirm persons without

supervision: Young children

should be supervised to

ensure that they do not play

with the appliance.



Max current is measured

according to IEC standard for

safety and current is

measured according to ISO

standard for energy efficiency.

OTHERS



Be sure that the air filter not to

be exposed to direct sunlight.



Do not clean the air

conditioner by spraying water

directly or with benzene,

thinner or alcohol.



The surface of the heat

exchanger is sharp, so be

careful of it when cleaning.



Turn off the air conditioner

and if the fan stops operating,

clean the air conditioner.



Clean the air filter every

2 weeks.



Be sure to insert the air filter.

CAUTION

Cassette Type_E_26442.indd 7 2007-12-07 ｿﾀﾈﾄ 6:19:00

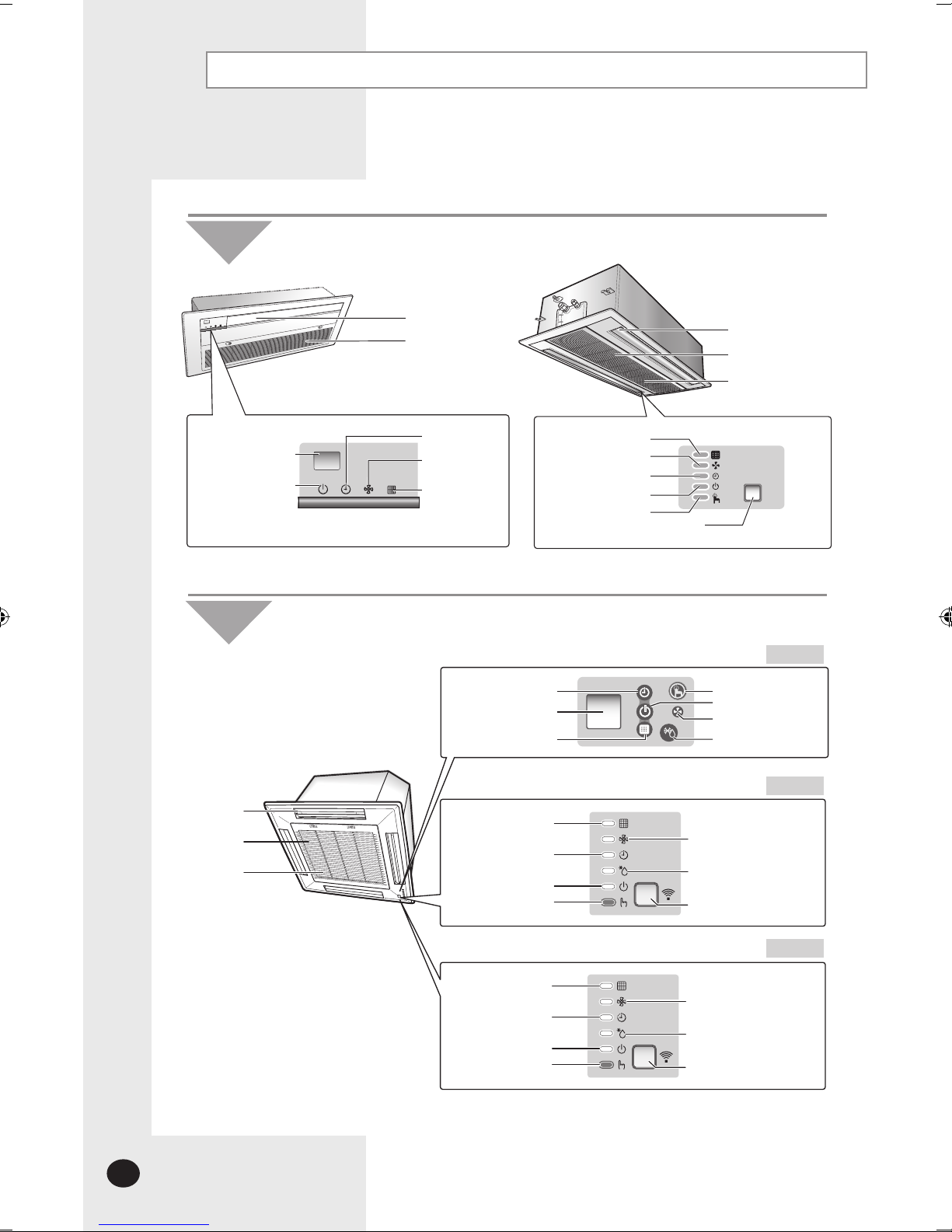

E-8

Air flow blade

Air inlet

Timer indicator

Fan indicator

Filter sign indicator

Remote control sensor

- Heat Pump Models :

On/Off indicator(Green)

& Removing frost

indicator(Red)

- Cooling Only Models :

On/Off indicator

Indoor Unit

The figures are shown in this instruction may differ from yours depending on the model.

Indoor Unit

4 way & mini 4 way cassette

Air flow blades(outlet)

Timer indicator

Fan indicator

Remote control sensor

On/Off indicator

On/Off button

Filter Sign indicator

Air inlet

Air filter(inside the grille)

1 way & Slim 1 way cassette 2 way cassette

Air flow blades

(outlet)

Air inlet

Air filter

(under the grille)

Timer indicator

Remote control sensor

On/Off button

On/Off indicator

Fan indicator

Removing frost indicator

Filter Sign indicator

Timer indicator

Remote control sensor

On/Off button

On/Off indicator

Fan indicator

Removing frost indicator

Filter Sign indicator

Timer indicator

Remote control sensor

Filter Sign indicator

On/Off button

On/Off indicator

Fan indicator

Removing frost indicator

View of the Indoor Unit

Type A

Type B

Type C

Cassette Type_E_26442.indd 8 2007-12-07 ｿﾀﾈﾄ 6:19:03

E-9

ENGLISH

Periodical Checks

Type Description Monthly Every 4 months Once a year

Indoor unit

Clean the air filter (1)

Clean the condensate drain pan (2) 

Thoroughly clean the heat exchanger (2) 

Clean the condensate drain pipe (2) 

Replace the remote control batteries 

Outdoor unit

Clean the heat exchanger on the outside

of the unit (2) 

Clean the heat exchanger on the inside

of the unit (2) 

Clean the electric components with jets

of air (2) 

Verify that all the electric components

are firmly tightened (2) 

Clean the fan (2) 

Verify that all the fan assembly is firmly

tightened (2) 

Clean the condensate drain pan (2) 

 The checks and maintenance operations described are essential to guarantee the efficiency of the air conditioner.

The frequency of these operations varies according to the characteristics of the area, the amount of dust, etc.

(1) The described operations should be performed more frequently if the area of installation is very dusty.

(2) These operations must always be performed by qualified personnel. For more detailed information, see the

Installation Manual.

Protections enabled by the Unit control system

Type of protection Description Operation When it enables

Protection against cold air The internal fan is off Heating on

heat pump During operation

Defrost cycle The internal fan is off Heating on

heat pump During operation

Anti-frost protection

of internal battery The compressor is off Cooling During

operation

Delayed start of compressor The start of the

compressor is delayed.

Cooling or Heating

on heat pump

At start-up or during

the selection

of the operating mode

CAUTION If the air conditioner is operating in heat pump mode, it performs several defrost cycles in order

to remove the frost that may have deposited on the outdoor unit (at low temperatures).

In this case, the internal fan is switched off automatically and restarted only after the defrost

cycle is completed.

Cassette Type_E_26442.indd 9 2007-12-07 ｿﾀﾈﾄ 6:19:05

E-10

Operating Recommendations

Here are a few recommendations that you should follow when using your air

conditioner.

Topic Recommendation

Heating performances

The heat pump function of the air conditioner

absorbs heat from

outside air and brings it indoors.

As the temperature of the outside

air drops,

the heating performance of air conditioner will decrease.

If you find that the room is not warm enough,

using an additional heating appliance is

recommended.

Frost & Defrost When outside temperature is low but humidity is high,

frost may form on the outdoor unit at HEAT mode.

If this happens:

The heating operation stops.



The defrost mode will be triggered automatically for

about 10 minutes.



The steam produced on the outdoor unit in the defrost

mode is safe. (Only for Heat pump)

No intervention is required ; after about ten minutes,

the air conditioner operates again normally.

High indoor and outdoor

temperatures

If both indoor and outdoor temperatures are high

and the air conditioner is running at HEAT mode,

the outdoor unit’s fan and compressor may stop

at times. This is normal ; simply wait until the air

conditioner switches on again.

Power failure

If a power failure occurs while the air conditioner is

operating, the unit will be switched off. When the power

returns, the air conditioner starts up again automatically.

The simultaneous

operation

When you use the heat pump model, it is impossible to

operate HEAT and COOL mode of several indoor units at

the same time.

Cassette Type_E_26442.indd 10 2007-12-07 ｿﾀﾈﾄ 6:19:05

Other manuals for MH026FKEA

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung SH30ZA2 User manual

Samsung

Samsung SH18BW6 Series User manual

Samsung

Samsung MH020FPEA User manual

Samsung

Samsung AC035MNLDKH User manual

Samsung

Samsung PC4SUFDAN User manual

Samsung

Samsung AVXWHH028EA User manual

Samsung

Samsung AM028NN1DEH/TL User manual

Samsung

Samsung AM TNVD Series User manual

Samsung

Samsung AS09WHWE/XCH User manual

Samsung

Samsung DB98-32786A User manual

Samsung

Samsung AW06FBNAA User manual

Samsung

Samsung AM080FX A Series User manual

Samsung

Samsung AC BNJDCH Series User manual

Samsung

Samsung Split-type Room Air Conditioner User manual

Samsung

Samsung AM18B1C09 User manual

Samsung

Samsung AR24CSDADWKNCV User manual

Samsung

Samsung AQV18UGAX User manual

Samsung

Samsung AC BN4PKG Series User manual

Samsung

Samsung NS Series Guide

Samsung

Samsung ADC4400TB User manual

Samsung

Samsung AQV07P Series User manual

Samsung

Samsung AQ07**SER Series User manual

Samsung

Samsung AW07P2 Series User manual

Samsung

Samsung AQ09A5(6)MAF User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
