Salus VS20WRF User manual

4 in 1 Digital Thermostat RF

Models:VS20WRF and VS20BRF

VS10WRF and VS10BRF

INSTALLER / USER MANUAL

iT600 VS20W - Installer - User Manual 011_Layout 1 07.07.2014 10:35 Stron

02 VS20WRF and VS20BRF Installer Manual

Contents

1 x Installer / User manual VS10WRF

4x AAA Batteries

VS20BRFFixing screws

Contents

Box contents

Introduction

Product Compliance

System options overview

Installation

Parameter Settings

Error Codes

User Guide

Installers notes

Warranty

Box Contents

Icons used in this manual:

Safety

Important info

Your benet

For latest PDF installation

guide please go to

www.salus-controls.com

iT600 VS20W - Installer - User Manual 011_Layout 1 07.07.2014 10:35 Stron

Product Compliance & Safety Information

INTRODUCTION

Thank you for purchasing the SALUS 4 in 1 room

thermostat it must be used with the CO10RF

Zigbee Coordinator.The Zigbee coordinator

allows communication with other devices in the

iT600 RF system range. Other Zigbee devices

include wiring centre, system receiver &TRV.

iT600RF Range

Product Compliance

This product is CE compliant and meets the

following EC Directives Electro-Magnetic

Compatibility directive 2004/108/EC

Low voltage Directive 2006/95/EC

Safety Information

Use in accordance with the regulations

The SALUSVS10/20RF is to be used for room

control of heating and hot water systems

inside the house.

SALUSWiring Centre KL10RF

RX10RF TRV10RF

We hope you enjoy this product...

VS20WRF and VS20BRF Installer Manual 03

VS20 Thermostat

CO10RF

iT600 VS20W - Installer - User Manual 011_Layout 1 07.07.2014 10:35 Stron

Product Compliance & Safety Information

Sources of danger

The thermostat must be disconnected from mains

supply before removing the cover.

Emergency

Switch o the voltage to the individual thermostat

wring centre or complete system.

Installer parameter settings

The SALUS VS10 and VS20 are equipped with

installer parameter section (see page 57) this

must only be entered by the installer or

competent person. Changing these

parameters can have a serious eect on your

heating system

For the installer

Please enter any parameter changes in the

installer notes section (pages 90)

230V AC

04 VS20WRF and VS20BRF Installer Manual

These instructions are applicable to the SALUS

model stated on the front cover of this manual only.

Warning

This product must be tted by a competent person,

and installation must comply with the guidance,

standards and regulations applicable to the city,

country or state where the product is installed.

Failure to comply with the requirements of the

relevant guidance, standards and regulations could

lead to injury, death or prosecution.

Warning

Always isolate the AC Mains supply before

installing or working on any components that

require 230 VAC 50Hz supply.

iT600 VS20W - Installer - User Manual 011_Layout 1 07.07.2014 10:35 Stron

VS20WRF and VS20BRF Installer Manual 05

System Overview - Conguration Options

Programmable Room

Thermostat (PRT)

The unit can be congured to

either one of the following

* Grouping and timer option only available

when used with wiring centre.

UFH Manifold

Wiring Centre

Radiator

Boiler

Hot Water

TRV

Towel Rails

Group Control

Thermostat*

Group

Thermostat*

Timer

SYSTEM

OVERVIEW

iT600 VS20W - Installer - User Manual 011_Layout 1 07.07.2014 10:35 Stron

System Overview - Conguration Options

06 VS20WRF and VS20BRF Installer Manual

Programmable Room Thermostat (PRT)

When congured for PRT (see page 32) it mainly works by itself and allows the user to have separateTime

andTemperature control of each zone on the wiring centre, radiator valve or system receiver. Features like

Vacation , Party frost mode have to set on each individual thermostat. All PRTs paired with a wiring centre

can also use the global heat/cool changeover function if the your system supports this.This is achieved by

using the heat/cool changeover connection on the wiring centre (see note 8 on wiring centre guide).

Group Control Thermostat

When congured for a PRT (see page 32) it can operate as a group control thermostat by assigning a group

when pairing with the wiring centre this allows central control of up to 7 group thermostats see below,

there can be a maximum of 2 groups per 8 zone wiring centre. Permanent temperature override, Holiday,

Party, Frost modes, can be selected centrally from the Group Control Thermostat. Holiday will also be

applied to a timer if applicable. The group thermostats can be also globally changed from heating to

cooling thermostats if you system supports this by using the switched input connection on the WC (see

note 8 on the wiring centre guide).

Group Thermostat

When congured as a digital thermostat and assigning a group when pairing with aWC it can operate as

a group thermostat (see page 31), in group mode the group thermostat will follow the time schedule and

any override modes of the group control thermostat. At least one group control thermostat is required for

grouping see above.The group thermostat can have its own programmed temperatures, manual override

and also be removed from the group temporarily or permanently.

Timer

When congured to timer (see page 32) the unit will operate as a timer with no temp control.This can be

used for hot water control. The timer will also follow Holiday mode from the group control thermostat if

applicable.

iT600 VS20W - Installer - User Manual 011_Layout 1 07.07.2014 10:35 Stron

System Overview - Zigbee Coordinator

VS20WRF and VS20BRF Installer Manual 07

Zigbee coordinator required for communication between these devices.

KL10RF

VS10 / VS20RF

TRV10RF

RX10RF

CO10RF

SYSTEM

OVERVIEW

iT600 VS20W - Installer - User Manual 011_Layout 1 07.07.2014 10:36 Stron

08 VS20WRF and VS20BRF Installer Manual

System Overview - iT600 System

The thermostat can communicate with all these iT600 devices

System Receiver congured to boiler receiver.

Refer to system receiver manual RX10RF.

System Receiver

congured to one

room receiver RX2.

Refer to system

receiver RX10RF.

Max 3 TRV per thermostat

iT600 VS20W - Installer - User Manual 011_Layout 1 07.07.2014 10:36 Stron

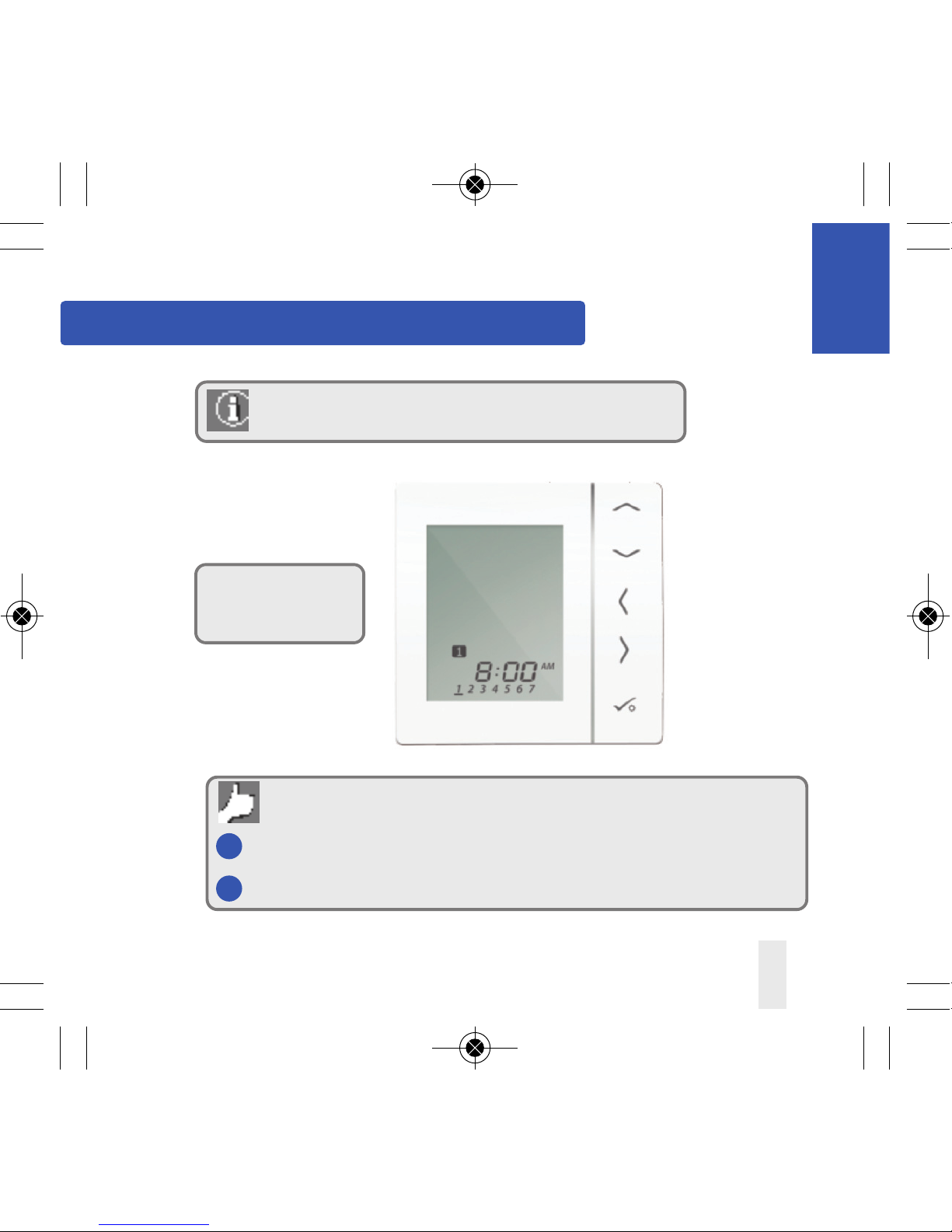

System Overview - HotWater Option

When the unit is congured as a hot water timer (see page 32)

there are two methods of connecting the cylinder thermostat.

Unit congured to

Hot Water Timer.

Cylinder thermostat options

1Connected direct toWC (Default)

2Connected direct toVS10/20RF (requires additional parameter change. See page 57)

VS20WRF and VS20BRF Installer Manual 09

SYSTEM

OVERVIEW

iT600 VS20W - Installer - User Manual 011_Layout 1 07.07.2014 10:36 Stron

System Overview - HotWater Option

1Connected direct toWC (Default)

For convenience there is a unique built in option allowing the cylinder

thermostat to be connected to either the HWTimer orWiring Centre.

Please refer to note 1 on Wiring Centre guide and pages 15 and 20 for more information.

10 VS20WRF and VS20BRF Installer Manual

2Connected direct toVS10RF/20RF

(requires additional parameter change see page 37)

iT600 VS20W - Installer - User Manual 011_Layout 1 07.07.2014 10:36 Stron
