RS PRO ICM A5 User manual

Instruction Manual

ICM A5

Clamp Meter

EN DE ES IT FR



EN - 2

Safety Information

Read and understand this Instruction

Manual completely before using this

instrument. Failure to observe the warnings

and cautions in this Instruction Manual may

result in injury or death, or damage to the

instrument and other equipment or

property.

If this instrument is used in a manner not

specified in these instructions, the protec-

tion provided by the instrument may be

impaired.

WARNING

-Examine the instrument and probes and

leads before use. Do not use the instru-

ment if it is wet or damaged, or if you

suspect it is not operating correctly.

-When using the instrument, test leads or

probes, keep your fingers behind the

finger guards.

-Remove the test lead from the instrument

before opening the battery cover or instru-

ment case.

-Always use the correct terminals, switch

position and range for measurements.

-Verify the instrument is operating correctly

by measuring a known voltage before

use. If in doubt, have the instrument

serviced.

-Do not apply more than the rated voltage

as marked on the instrument between

terminals, or between any terminal and

earth ground.

-Use caution when measuring voltages

above 30 Vac rms or 60 Vdc. These

voltages pose a shock hazard.

-To avoid incorrect readings that can lead

to electric shock, replace the battery as

soon as low battery indicator appears

in the display.

-Disconnect the circuit power and

discharge all high-voltage capacitors

before making resistance, continuity, or

diode measurements.

EN - 3

-Do not use the instrument in a Hazardous

Area or around explosive gasses or

vapours.

-Wear suitable Personal Protective

Equipment when working around or near

hazardous Live conductors which could

be accessible.

Caution

-Disconnect the test leads from the test

points before changing the position of the

function rotary switch.

-Never connect the instrument to a source

of voltage with the function rotary switch in

Ω/ ;/Aposition.

- If possible, do not work alone, so

assistance can be given if required.

-Do not expose the instrument to extremes

of temperature or high humidity.

The following symbols may appear on

the instrument and in this Instruction

Manual:

Risk of electric shock

Refer to Instruction Manual

Alternating Current (ac)

<Battery

Earth

Equipment protected throughout by

double or reinforced insulation

Conforms to EU directives

Dispose of this equipment in

accordance with local regulations.

EApplication around and removal

from hazardous Live conductors is

permitted.

EN - 4

Maintenance

Do not attempt to repair this Instrument. It

contains no user-serviceable parts. Repair

or servicing should only be performed by

qualified personnel. This instrument

should be calibrated yearly, or more

frequently if used in harsh conditions or if

it is suspected of being inaccurate.

For calibration and repair contact RS

Components - the address is given at the

end of these instructions.

Cleaning

Periodically wipe the case with a damp

cloth and detergent. Do not use abrasives

or solvents.

EN - 5

Power On / Off

Auto Power Off

The instrument will automatically turn off

approximately 10 minutes after the last

operation.

AC V / DC V

EN - 6

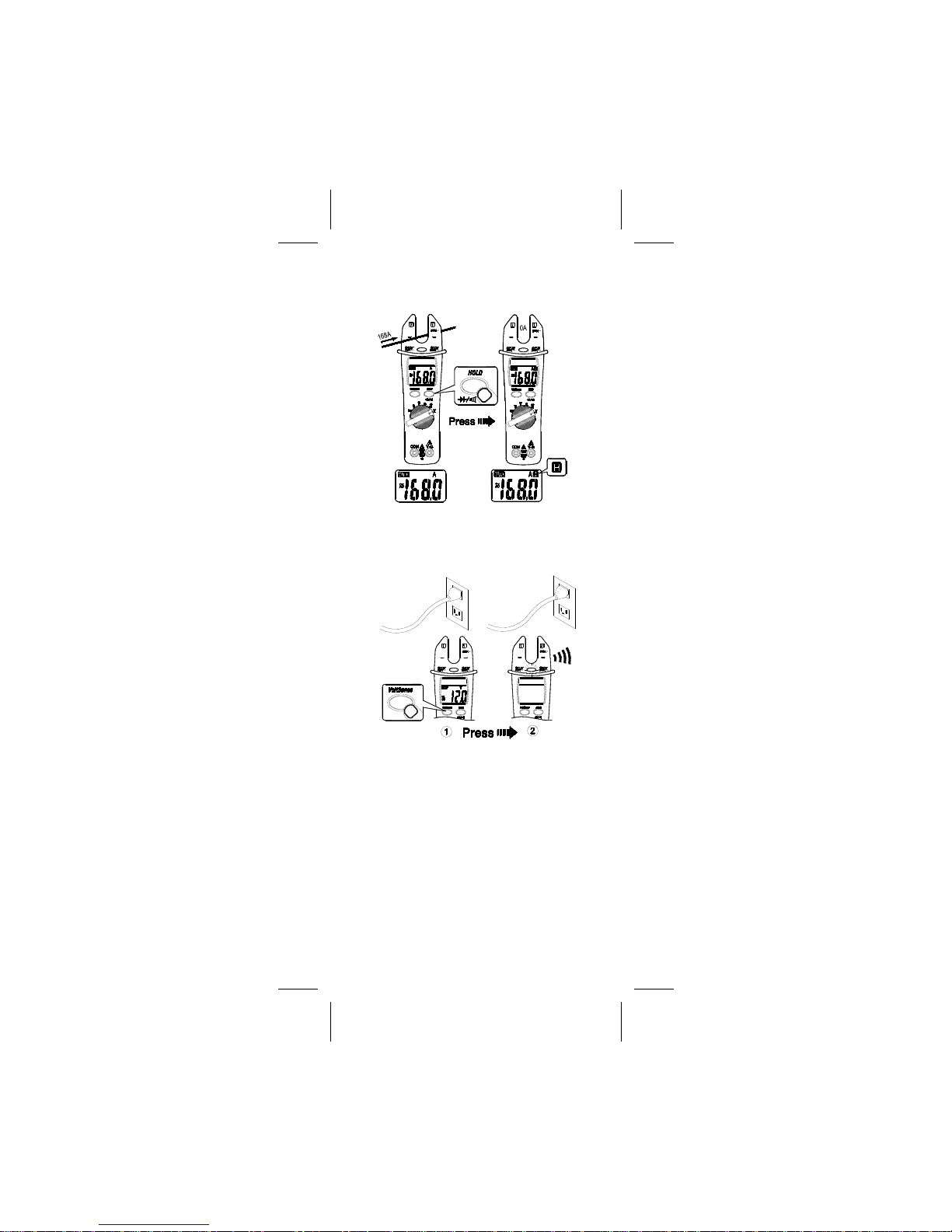

Data Hold

Non-Contact Voltage Sensing:

VoltSenseTM

1. The VoltSense function will operate

irrespective of the position of the

function rotary switch, including the

OFF position.

2. Remove the test leads from the

instrument as they are not used for the

VoltSense test.

3. Press and hold the VoltSense button.

The LCD display will go blank, a tone will

sound and the red LED will illuminate

momentarily to confirm the instrument is

operational.

EN - 7

4. Hold the Volt sense button down and

move the instrument over the area

where detection is required. The buzzer

will sound and the LED will illuminate

when a live conductor is detected.

Release the VoltSense button to return

to normal operation.

Diode / Continuity

EN - 8

ACA

Resistance

CAT.Ⅳ.600V

with respect to

earth for the jaw.

Tactile Barrier for

hand guard.

Do not hold

the meter across

the Tactile Barrier.

EN - 9

Battery Replacement

When the low battery indicator "<"

appears on the LCD, replace the batteries

with the type given in the specifications.

WARNING

Disconnect the test leads from the circuit

and the instrument before removing the

battery cover.

Refer to the following figure to replace the

batteries:

EN - 10

Specifications

1-1 General Specifications

LCD display :

31/2digit large scale LCD readout.

Display resolution : 2000 counts.

Measuring rate : 1.5 times / sec.

Overrange display :

“OL” is displayed for “Ω” functions,

The real value is shown for the “A” and “V”

functions.

Automatic power off time :

Approximately 10 minutes after power on.

Low battery indicator : <is displayed.

Power requirement : 1.5V x 2 batteries

Battery life : Approximately 250 hours with

Alkaline batteries.

1-2 Environmental Conditions

Indoor use only.

Calibration : One year calibration cycle.

Operating temperature :

0°C to 30°C (32°F to 86°F) @ ≦80% RH

30°C to 40°C (86°F to104°F) @≦75% RH)

40°C to 50°C (104°F to 122°F) ≦45%RH

Storage temperature : -20 to + 60°C

(-4°F to 140°F) @ 0 to 80% RH with

batteries removed from the instrument.

Dimensions (W x H x D) :

54mm x 193mm x 31mm

Weight: 280g including battery.

Accessories: Battery (installed), Carrying

case and User manual.

Measurement Category (Installation

Category) :

per IEC 61010-1:2001: CAT.Ⅲ1000V.

CAT.Ⅳ600V. Pollution Degree 2

Measurement Category l is for measure-

ments performed on circuits not directly

connected to mains. Examples include :

Measurements on battery powered equip-

ment and specially protected (internal)

mains-derived circuits.
