Rohde & Schwarz EFL110 User instructions

1

> 1 sec. > 3 sec.

2

ON OFF

ANTENNA CONFIGURATION

LOADING A CHANNEL PLAN (only necessary if outside USA  default setting is FCC channel plan)

12

12

3

4

5

(Only before first use. The R&S®EFL110/210 ill keep these settings)

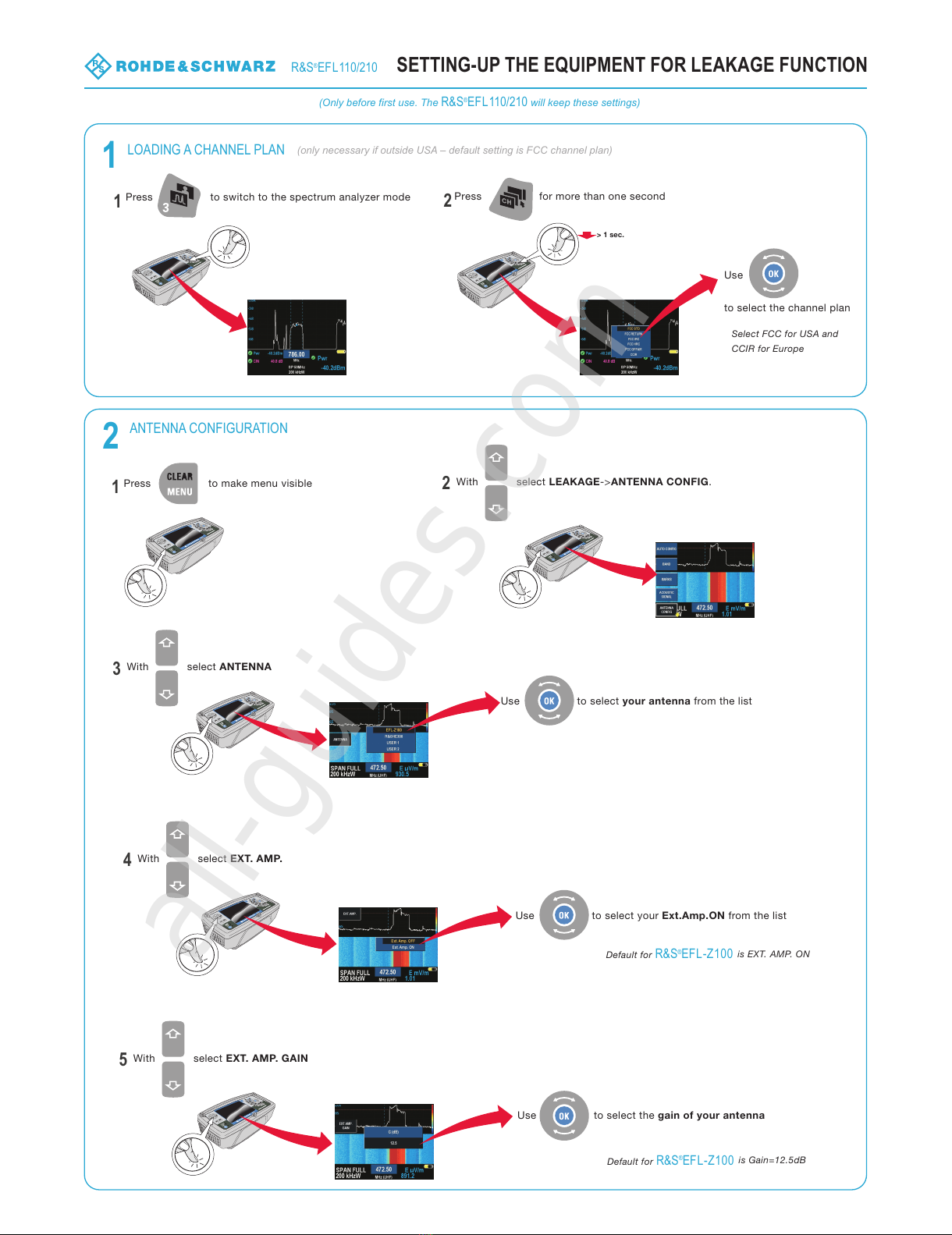

R&S®EFL110/210 SETTING-UP THE EQUIPMENT FOR LEAKAGE FUNCTION

Press to switch to the spectrum analyzer mode Press for more than one second

> 1 sec.

Use

to select the channel plan

Select FCC for USA and

CCIR for Europe

Press to make menu visible With select LEAKAGE->ANTENNA CONFIG.

With select ANTENNA

Use to select your antenna from the list

With select EXT. AMP.

Use to select your Ext.Am .ON from the list

With select EXT. AMP. GAIN

Use to select the gain of your antenna

Default for R&S®EFL-Z100 is Gain=12.5d

Default for R&S®EFL-Z100 is EXT. AMP. ON

All manuals and user guides at all-guides.com

all-guides.com

Four customizable profiles

LOCALIZING THE LEAKAGE

12

1

1

2

1GETTING READY

34

2SEARCHING FOR LEAKAGE

2

&S®EFL110/210 htt ://www.rohde-schwarz.com

Connect the antenna to the F input of the

&S®EFL110/210: Press to switch on the amplifier of the R&S®EFL-Z100

antenna

Press to activate the Search Leakage Mode Move the antenna (or drive your car) until the R&S®EFL110/210

detects a leak:

After the alarm, press button. The R&S®EFL110/210 zooms

ont the frequency of the leak and activates the tone generator function

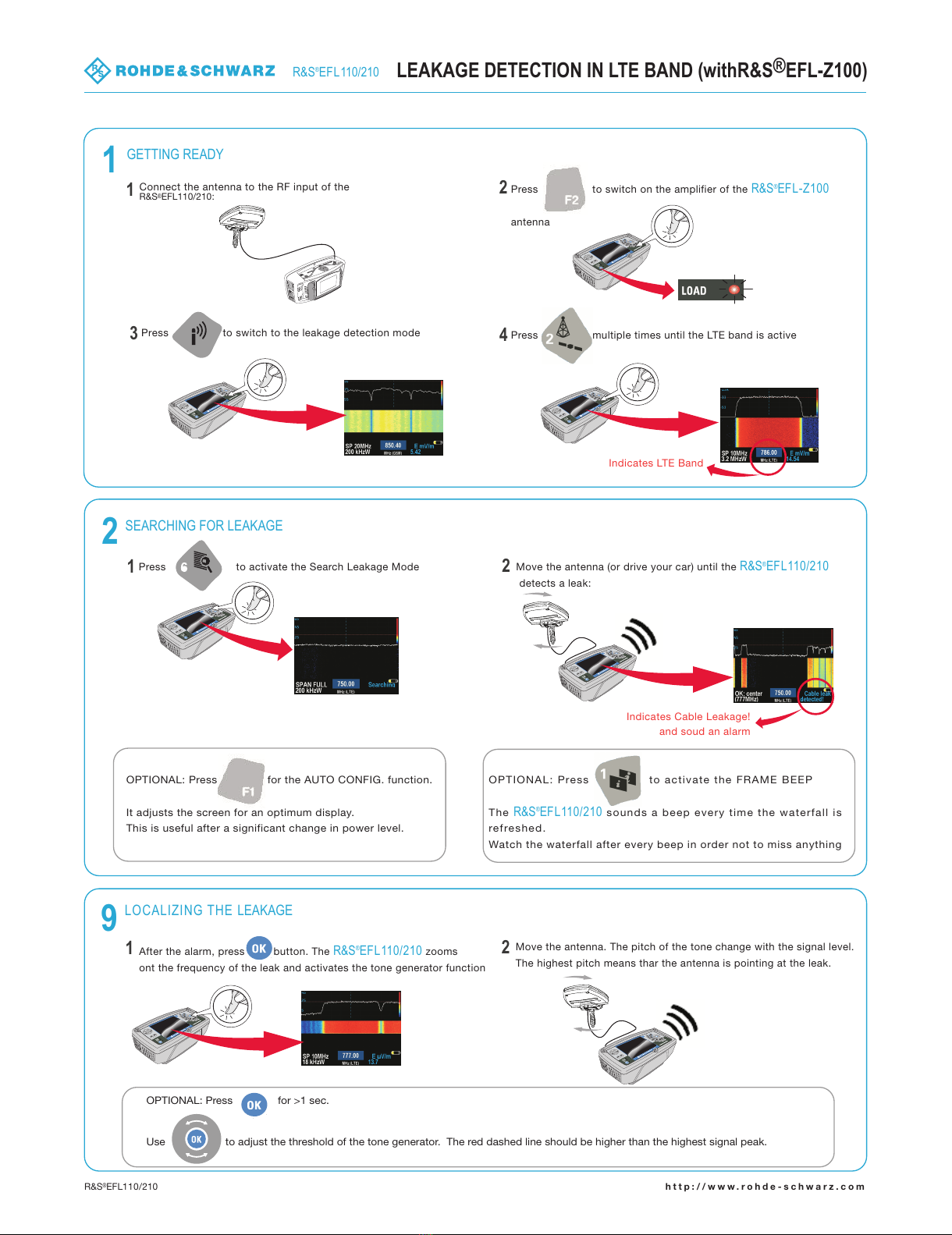

R&S®EFL110/210 LEAKAGE DETECTION IN LTE BAND (withR&S®EFL-Z100)

Press to switch to the leakage detection mode Press multiple times until the LTE band is active

Indicates LTE Band

Indicates Cable Leakage!

and soud an alarm

OPTIONAL: Press for the AUTO CONFIG. function.

It adjusts the screen for an optimum display.

This is useful after a significant change in power level.

OPTIONAL: Press to activate the F AME BEEP

The

R&S®EFL110/210

sounds a beep every time the waterfall is

refreshed.

Watch the waterfall after every beep in order not to miss anything

Move the antenna. The pitch of the tone change with the signal level.

The highest pitch means thar the antenna is pointing at the leak.

OPTIONAL: Press for >1 sec.

Use to adjust the threshold of the tone generator. The red dashed line should be higher than the highest signal peak.
