Raritan PM
User Guide
Copyright © 2008 Raritan, Inc.
RPM-0A-E
May 2008
255-80-6090-00
This document contains proprietary information that is protected by copyright. All rights reserved.
No part of this document may be photocopied, reproduced, or translated into another language
without express prior written consent of Raritan, Inc.
© Copyright 2008 Raritan, Inc., CommandCenter®, Dominion®, Paragon® and the Raritan company
logo are trademarks or registered trademarks of Raritan, Inc. All rights reserved. Java® is a registered
trademark of Sun Microsystems, Inc. Internet Explorer® is a registered trademark of Microsoft
Corporation. Netscape® and Netscape Navigator® are registered trademarks of Netscape
Communication Corporation. All other trademarks or registered trademarks are the property of their
respective holders.
FCC Information
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a commercial installation. This equipment generates, uses, and can
radiate radio frequency energy and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. Operation of this equipment in a residential
environment may cause harmful interference.

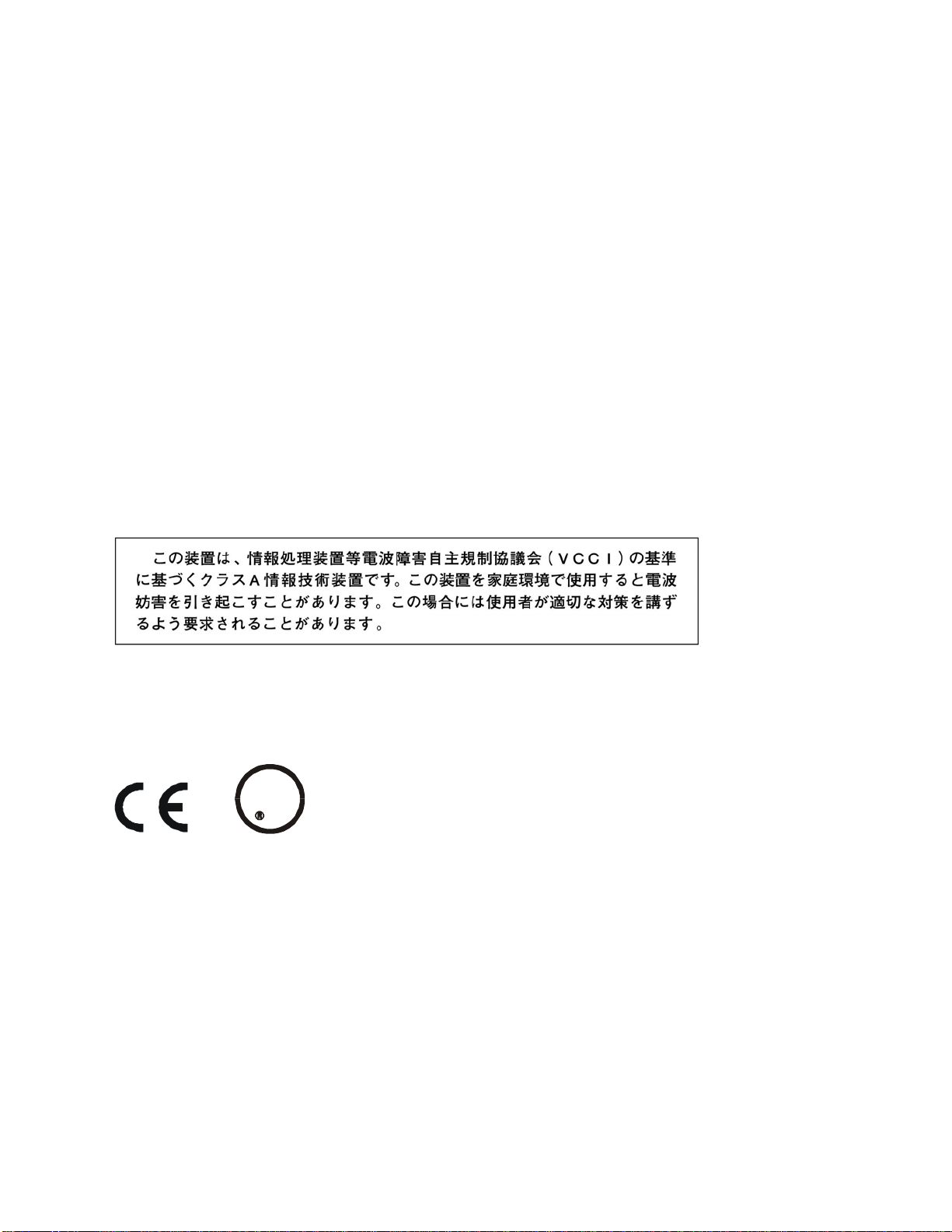

VCCI Information (Japan)
Raritan is not responsible for damage to this product resulting from accident, disaster, misuse, abuse,
non-Raritan modification of the product, or other events outside of Raritan's reasonable control or not
arising under normal operating conditions.
LISTED
CUS
L
U
1F61
I.T.E.
iii
Contents
Chapter 1 Introduction 1
Safety Guidelines........................................................................................................................................i
Chapter 2 Installation Guidelines: 3
Installation 4
Mounting .................................................................................................................................................... 4
In-Rack Raritan PM Units ............................................................................................................. 4
Zero-U Raritan PM Units .............................................................................................................. 5
Button Mounting of Zero-U Raritan PM Units .......................................................................... 6
Powering On .............................................................................................................................................. 6
Connecting Raritan PM to a Computer for Setup................................................................................. 6
Configuring Your Computer for Local Access...................................................................................... 7
Configuring the Raritan PM..................................................................................................................... 8
Connecting Raritan PM to the Network................................................................................................. 8
Chapter 4 Using the Raritan PM 9
Plug In Devices .......................................................................................................................................... 9
View Raritan PM Status............................................................................................................................ 9
SNMP/XML .............................................................................................................................................. 10
LED Display ............................................................................................................................................. 10
Viewing the IP Address from the LED Display....................................................................... 11
Reseting the IP Address from the LED Display....................................................................... 11
Rebooting the Raritan PM from the LED Display ................................................................... 11
Contents
iv
Chapter 5 Maintenance 12
Service and Maintenance:....................................................................................................................... 12
Firmware Updates................................................................................................................................... 12
Chapter 6 Technical Support 13
Appendix A Specifications 14
Meter Specifications: ............................................................................................................................... 14
Unit Specifications:.................................................................................................................................. 14
Default Network Settings....................................................................................................................... 15
Index 17
1
The Raritan PM is a Web-enabled Power Distribution Unit (PDU) with
the ability to display the current locally and remotely over Ethernet. The
meter consumes less than 5 Watts of power and has a +/-2% accuracy*.
Some units support outlet-level metering, while others only support
unit-level metering. Check the description of your model for details.
* Accuracy of +/-2% with Full Scale 60Hz sine wave input.
In This Chapter
Safety Guidelines ............................................................................................... i
Safety Guidelines
To avoid potentially fatal shock hazard and possible damage to Raritan
equipment:
SYSTEMS SHOULD ONLY BE CONFIGURED BY A COMPETENT
PERSON.
IT IS ESSENTIAL THAT THIS EQUIPMENT IS CONNECTED TO
AN ELECTRICAL SUPPLY THAT HAS A PROTECTIVE GROUND
CONDUCTOR
WARNING: TO ISOLATE THIS EQUIPMENT DISCONNECT
POWER SUPPLY PLUG.
ATTENTION: AFIN D'ISOLER TOTALEMENT CET APPAREIL
DEBRANCHER FICHE D'ALIMENTATION.
CAUTION: USE ONLY IN DRY LOCATIONS.
ATTENTION: UTILISER UNIQUEMENT DANS DES
EMPLACEMENTS SECS.
Do not use a 2-wire power cord in any product configuration.
Test AC outlets at your computer and monitor for proper polarity
and grounding.
Use only with grounded outlets at both the computer and monitor.
When using a backup UPS, power the computer, monitor and
appliance off the supply.
Chapter 1 Introduction
Safety Guidelines
ii
The installation socket outlet used for the power supply to this
equipment must be installed near the equipment and must be easily
accessible.
When installing this product, it is essential that the distribution
circuit supplying the product is protected by a branch circuit
protection device with a maximum rating to suit the product
maximum rating.
This power distribution unit is intended for power supply provision
to equipment only. Secondary (Satellite) power strips shall not be
connected to the receptacles
This product has been designed to conform to the latest safety
requirements. In addition to compliance with standards for general
use, it has been factory configured for use in rack mounting
environments aiding the installer to provide systems compliant with
relevant standards.
Provide an earthing connection before the mains plug is connected to
the mains. And, when disconnecting the earthing connection, be sure
to disconnect after pulling out the mains plug from the mains.
3
•If the PDU is installed in a cabinet the ambient temperature of the
rack should be no greater than 45 degrees C.
•Install the PDU such that airflow required for safe operation of
equipment is not compromised.
•Mount the PDU so that uneven mechanical loading does not cause a
hazardous condition.
•Follow nameplate ratings when connecting equipment to the branch
circuit. Take into consideration the effect that overloading of the
circuits might have on overcurrent protection and supply wiring.
•The PDU relies on the building installation for protection from
overcurrent. A Listed or Certified overcurrent protection device is
required in the building installation. The Overcurrent protection
device should be sized according to the PDU's nameplate ratings and
the local electrical code.
•Maintain reliable earthing of rack-mount equipment. Particular
attention should be given to supply connections other than direct
connections to the branch circuit.
•PDU is intended for Restricted Access Location. Only service
personnel should install and access the PDU.
•For pluggable equipment, install the PDU so the input plug may be
disconnected for service.
•Caution: Disconnect all power cords before servicing.
Chapter 2 Installation Guidelines:
4
In This Chapter
Mounting ............................................................................................................4
Powering On.......................................................................................................6
Connecting Raritan PM to a Computer for Setup .........................................6
Configuring Your Computer for Local Access ..............................................7
Configuring the Raritan PM.............................................................................8
Connecting Raritan PM to the Network.........................................................8
Mounting
Use one of the following methods to mount your Raritan PM to the rack
or cabinet.
In-Rack Raritan PM Units
1. Determine where to mount the Raritan PM in the rack or cabinet.
2. Use rack screws to fasten Raritan PM in place through the mounting
plate.
Chapter 3 Installation
Chapter 3: Installation
5
Zero-U Raritan PM Units
1. Use rack screws to mount the full length bracket in the in rack or
cabinet.
2. Fasten the Raritan PM unit to the bracket using supplied 10-32
screws.
Powering On
6
Button Mounting of Zero-U Raritan PM Units
1. Determine appropriate spacing for the mounting buttons in your
rack or cabinet (all Raritan PM vertical PDUs have standard spacing
of 61.25 in. and 64.75 in. center to center).
2. Fasten the button mounts to the back of the Raritan PM.
3. Align the buttons with the mounting holes in the rack or cabinet,
ensuring that both buttons can engage their mounting holes
simultaneously.
4. Press the Raritan PM forward through the mounting holes, and then
let the PDU drop about 5/8ths of an inch to complete installation.
Powering On
1. Plug the PDU into an appropriately rated and protected branch
circuit receptacle.
2. When a Raritan PM is powered on, the LED Display will come on.
Note that all outlets are now LIVE.
Connecting Raritan PM to a Computer for Setup
1. Connect a crossover cable to the LAN port on the Raritan PM.
