Prorack K712 User manual
K712
Fitting Kit
EN Fitting Instructions for Basic Carrier

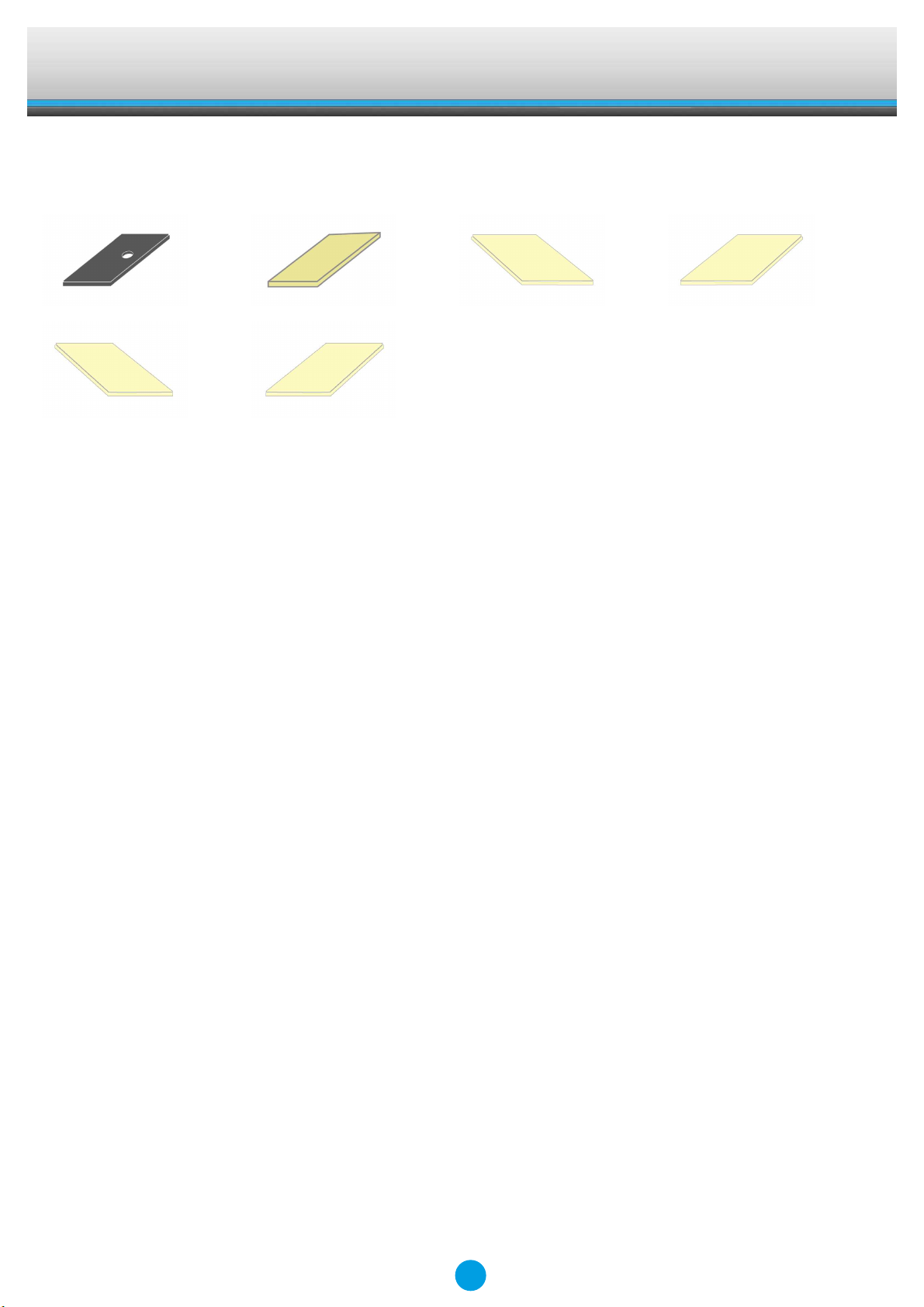

x 1 x 1 x 2 x 1
x 1 x 2 x 2 x 1
Revision No: 2B 1
Fitting Kit K712
x 1 x 4 x 1 x 1
x 1 x 1
2
Fitting Kit K712
MAX kgs (lbs)
W/P WHD
Skoda
Citigo , 3dr Hatch 12-+ EU 50 kgs (110 lbs) 50 kgs (110 lbs)
Seat
Mii , 3dr Hatch 12-+ EU 50 kgs (110 lbs) 50 kgs (110 lbs)
Volkswagen
UP! , 3dr Hatch Jan 12-+ EU 50 kgs (110 lbs) 50 kgs (110 lbs)
UP! , 3dr Hatch Oct 12-+ AU 50 kgs (110 lbs) 50 kgs (110 lbs)
3
Fitting Kit EN
K712
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4
Fitting Kit EN
K712
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5
Fitting Kit EN
K712
●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●A = Clear
B = Grey
●It is important to put the clamps in the
correct position on the vehicle.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = 042A
B = 043A
C = 044A
6
Fitting Kit EN
K712
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Refer to the underside of the pad for the
part number.
7
Fitting Kit EN
K712
●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 241
B = 293
C = 294
●Place rubber pads (supplied with fitting kit)
on the vehicle roof. Pad may vary in shape
to that shown.
●Make sure the pad fits into the holes
underneath the foot.
8
Fitting Kit EN
K712
Fitment
●Clamps directly to edge of roof under the
doors
●Please check the rear of this manual for
information relating specifically to your
vehicle.
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Locate vehicle's fixed points.
●Clamps directly to edge of roof under the
doors, pin locates in hole on vehicle on
front clamps
●Locate vehicle's fixed points for the front
bar.
9
Fitting Kit EN
K712
●Locate vehicle fixed point for the rear bar
as indicated on rear window.
●Install front clamp as shown.
●Install rear clamp as shown.
