Promax RANGER mini User manual
Find the user's manual on the download area at: www.promaxelectronics.com
ON:
OFF:
FRONT VIEW
Trademark of the
DVB - Digital Video
Broadcasting Project
INDICATIVE ICONS
TOUCH ICONS
Low battery
Cable measurements
Fibre optics measurements
Edit value
123
Select parameter
abc
1TFT Touch screen
RANGER
mini
QUICK REFERENCE GUIDE
1
Screenshot
Back to previous screen
Back to main screen
Access to screenshots
Access to dataloggers
Access to settings menu
Switch off
USB flashdrive connected and detected
Connected to Ethernet network
Batery charging
Batery not charging. Green
level indicates battery left
RANGER
mini
MAIN SETTINGS MENU
FRONT VIEW
BOTTOM VIEW
Edit channel plan
Language
Date
Time
Sound
Auto power off
Equipment
information
Ethernet
Configuration
Test & Go
configuration
2
2
3
3
ETHERNET connector for network
4
5
6
5
46
*
*
(Optional)
*
2
QUICK REFERENCE GUIDE
SC-APC connector (fibre optics signal input)
Universal connector for F/F or F/BNC adapter (RF input signal)
USB connector for flashdrive device
12 V DC power input connector
Configuration Menu
RANGER
mini
DOWNSTREAM SPECTRUM ANALYZER
1 Selected channel. When pressing on it deploys a list of available channels.
2 Frequency selected. When pressing on it pops up a virtual numeric keypad to edit frequency.
3 DOCSIS Bonding Group selected and carrier.
4 According to signal type:
5 Carrier/Noise ratio of the channel.
6 Full band RF cable power.
7 Marker for selected channel / frequency.
8 Arrows to change reference level.
9 Span lower frequency.
10 Arrows to increase / decrease span. Current span.
11 Bandwidth resolution.
12 Span upper frequency.
Digital signal: Power for channel bandwidth or frequency.
Analogue signal: Level for channel or frequency selected.
1
8
234
11 12
10
9
56
7
3
QUICK REFERENCE GUIDE
RANGER
mini

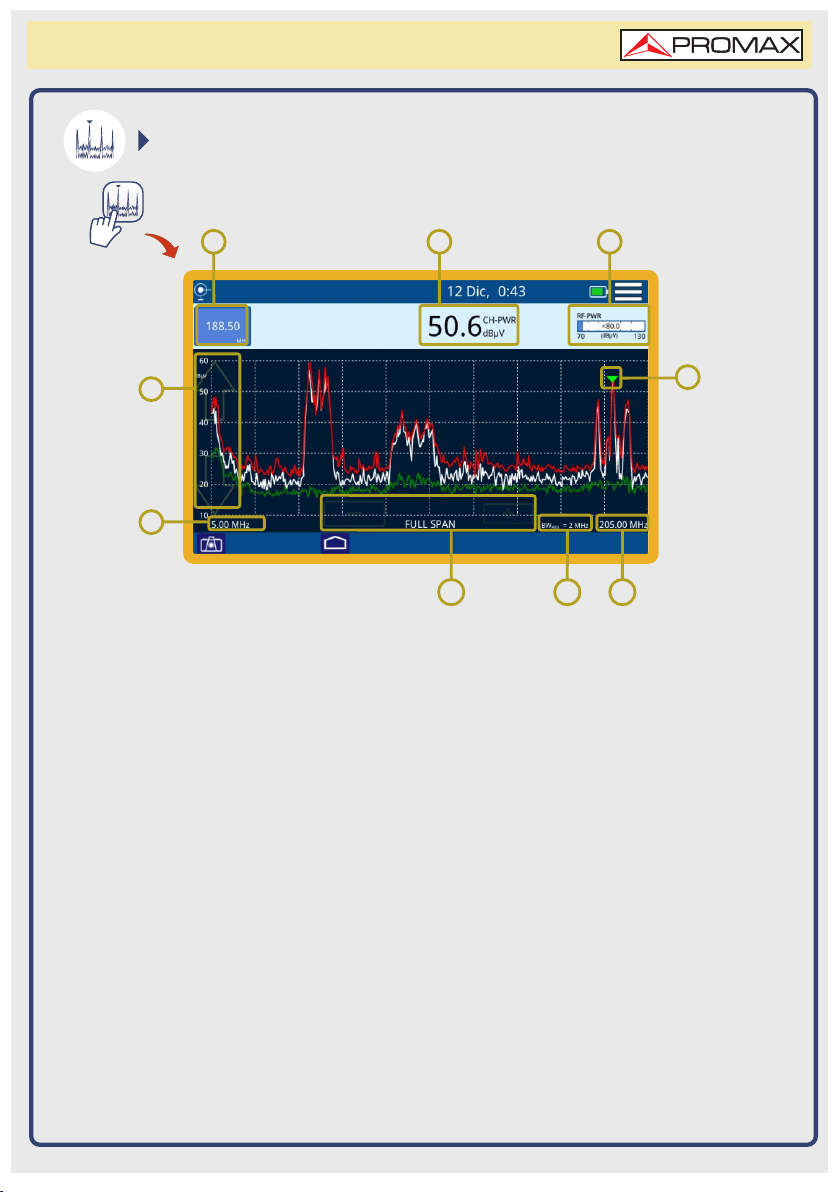

UPSTREAM
1 Frequency selected. When pressing on it pops up a virtual numeric keypad
to edit frequency.
2 Level for the selected frequency.
3 Full band RF cable power.
4 Marker in the selected frequency.
5 Arrows to change reference level.
6 Span lower frequency.
7 Arrows to increase / decrease span. Current span.
8 Bandwidth resolution.
9 Span upper frequency.
4
QUICK REFERENCE GUIDE
1
5
2
89
7
6
3
4
UPSTREAM
RANGER
mini

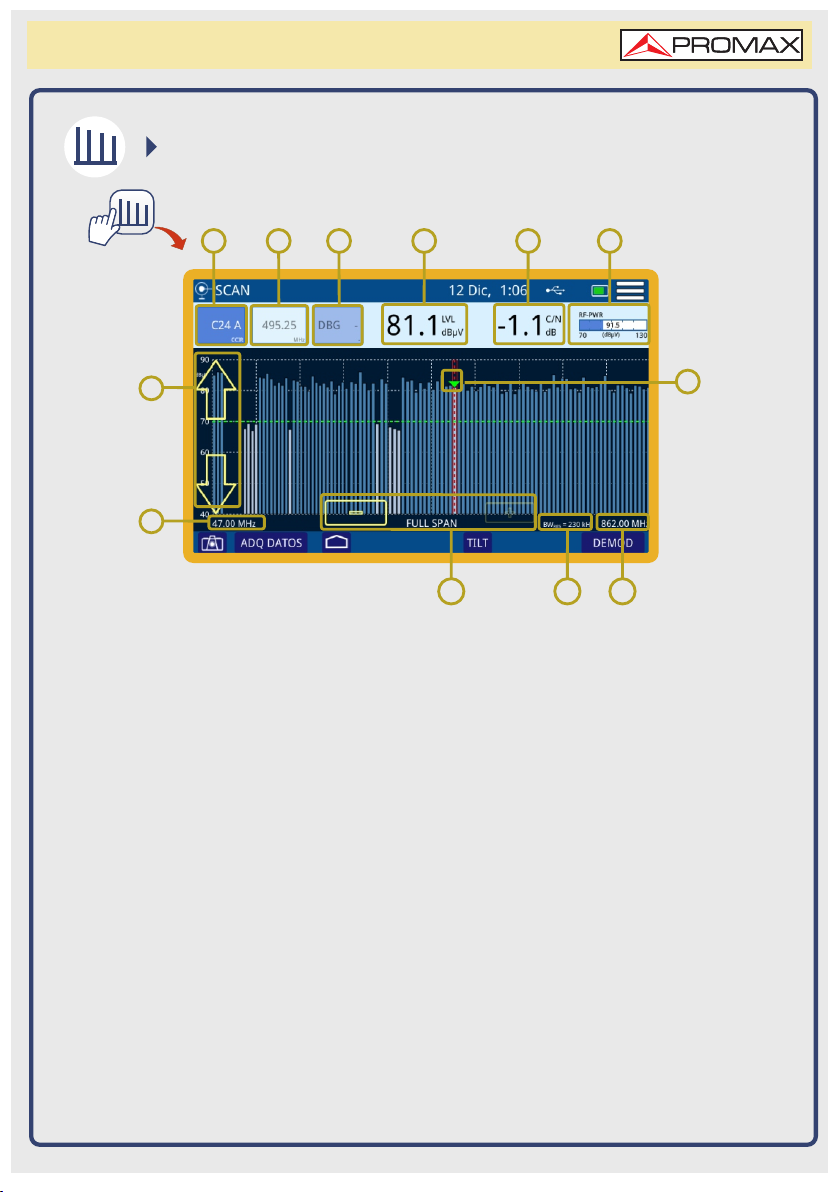

SCAN
1 2 3
8
45
11 12
10
9
6
7
1 Selected channel. When pressing on, it deploys a list of available channels.
2 Frequency selected. When pressing on, it pops up a virtual numeric keypad
to edit frequency.
3 DOCSIS Bonding Group selected and carrier (if any).
4 According to signal type:
5 Carrier/Noise ratio of the channel.
6 Full band RF cable power.
7 Marker for selected channel / frequency.
8 Arrows to change reference level.
9 Span lower frequency.
10 Arrows to increase / decrease span. Current span.
11 Bandwidth resolution.
12 Span upper frequency.
5
QUICK REFERENCE GUIDE
Digital signal: Power for channel bandwidth or frequency.
Analogue signal: Level for channel or frequency selected.
RANGER
mini
TILT
1 It shows pilot signals frequency and power. Press on frequency to change its value.
P1/P4: End pilot signals.
P2/P3: Intermediate pilot signals.
2 Power difference between P1 and P4.
3 TILT: Inclination rate in dB per MHz.
4 Full band RF cable power.
5 Arrows to change reference level.
6 Bar graph showing signal level for each pilot signal and TILT.
1
6
5
3 42
6
QUICK REFERENCE GUIDE
RANGER
mini
VOLTMETER
7
QUICK REFERENCE GUIDE
1 RF-PWR: Full bandwidth power.
2 Vin DC: DC input voltage.
3 Vin AC: AC input voltage and frequency.
4 Iout: Current out
5 Voltage supply for the LNB:
1
2
3
4
5
ON Voltage: Check the box to enable voltage supply.
(0 kHz=low; 22 kHz=high).
(vertical=13 V; horizontal=18V).
22 kHz: Commutation tone. Check the box to change band
13 Volts / 18 Volts: Check the box to select between polarization
RANGER
mini
USER MANUAL
DOWNLOAD
Find the user's manual on the download area at:
www.promaxelectronics.com
RANGER
mini
PDF
v10.0.1 30-08-2018 (0 DG0341)
QUICK REFERENCE GUIDE
