PRECISION DIGITAL Helios PD2-6200 User manual

Thank you for your purchase of the

Helios PD2-6200 large display meter!

This quick start guide will briey

describe some of the common setup

procedures for this meter.

This guide includes:

Installing MeterView Pro......................

Basic Wiring for Helios Meter...............

Program and Scale the Input...............

Program Relays for Automatic Reset...

Program 4-20 mA Analog Output.........

Reset Meter to Factory Defaults..........

Additional information about the Helios

PD2-6200 meter can be found in the

instruction manual included on the CD

or available at www.predig.com.

Menu Button – Access Programming

Mode and to return to Run Mode.

Note: If you think you have made a mistake while

programming the meter, use this button to

return the meter to Run Mode without saving.

Right/Reset Button – Change the

selected digit while inputting nu-

meric values in Programming Mode.

Up/Max Button – Increment the se-

lected digit while inputting numeric

values in Programming Mode.

Enter Button – Access a menu or

accept an option while in Program-

ming Mode.

Programming buttons are located

under the bottom door panel. They can

be accessed by loosening the securing

screw and lifting the door panel.

233 South Street

Hopkinton MA 01748-2208 USA

Tel. (508) 655-7300 www.predig.com

MeterView Pro

USB Install

Helios PD2-6200 Analog Input Rate/Totalizer

Quick Start Guide

The meter can be programmed using MeterView Pro. This software can be installed on

any Microsoft® Windows® (2000/XP/Vista/7/8/10) computer by connecting to the meter’s

onboard USB. The meter is powered by the USB connection, so there is no need to wire

anything prior to programming the meter.

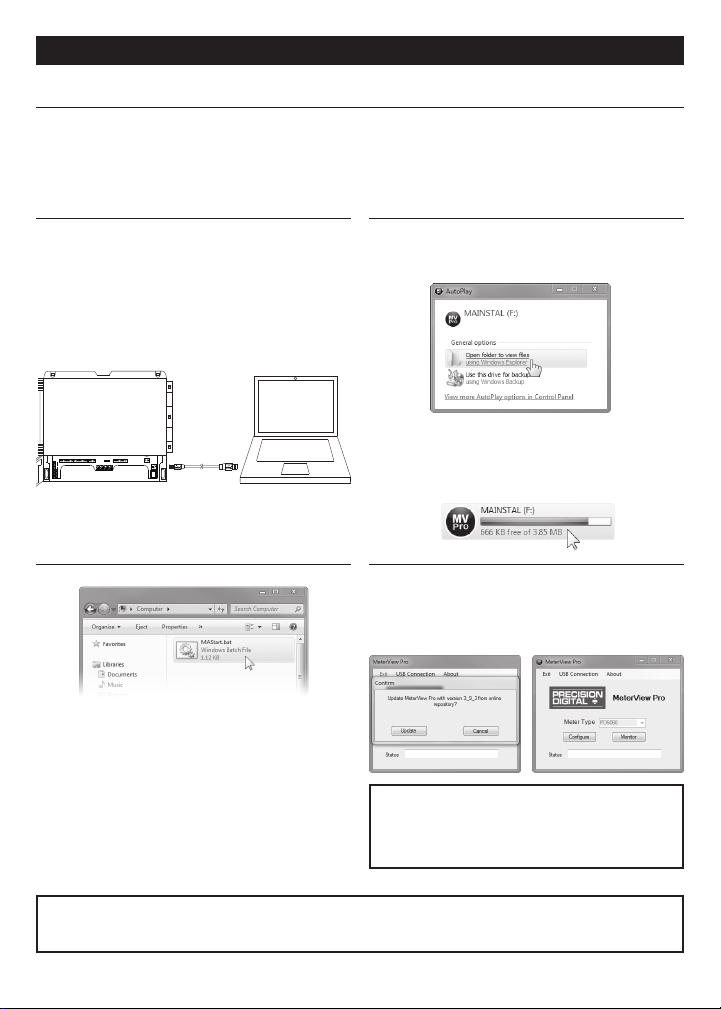

Installing MeterView®Pro

Connect the provided USB cable to the

meter and the computer as shown. The

computer will automatically install the driver

software it needs to talk to the meter.

Note: Only one meter may be connected at a time.

Attaching multiple meters will cause a conict

with the meter software.

Once the driver is installed, an AutoPlay dialog

should appear for the drive “MAINSTAL.” Click

“Open folder to view les.”

If the computer does not display an AutoPlay

dialog for the drive “MAINSTAL,” you should

open My Computer and double-click on the

drive labeled “MAINSTAL.”

Double-click on the le named “MAStart.”

The program will open a few windows and

install two programs on your computer. Simply

follow the onscreen instructions until you see

one of the dialogs below.

Note: If you receive a User Account Control

warning, click “Yes.”

If there is an update available, click the

“Update” button to install the new version.

Otherwise, click “Congure” to begin program-

ming your meter.

Note: When you update your MeterView Pro soft-

ware, you will be asked if you want to update

the setup les located on the meter itself.

This way, you will always have the most cur-

rent version on the meter for future installs.

Note: The remainder of this guide will explain how to congure your meter using either the MeterView Pro

software or the conguration menus in the meter itself. It is only necessary to perform one of these

options in order to congure the meter for a desired setting.

1 2

Front Door

RI- I+

MAOUT

13 2

P- COMP+ V+mA +

3 41 2 5

C NONO NC NC C

RELAY4 RELAY3

4 36 5 2 1

C NONO NC NC C

RELAY2 RELAY1

4 36 5 2 1

P+/P-

24V10V 5V

M-LINK

USB

MENU RIGHT UP ACK

POWER

SIGNAL

MENU RESET

MAX

ENTER

RS-485

DIGITALI/O

PWR TX RX

DI DIDO DO

O1O2 O3 O4 G

I1I2I3I4+5

__ __

Helios PD2-6200 Rate/Totalizer Quick Start Guide

The connectors label, a󰀩xed to the inside of the front door panel, shows the location of all

available connectors. Run wires through conduit holes at the base of the meter, connect to

the provided screw terminals, and plug into the meter as indicated.

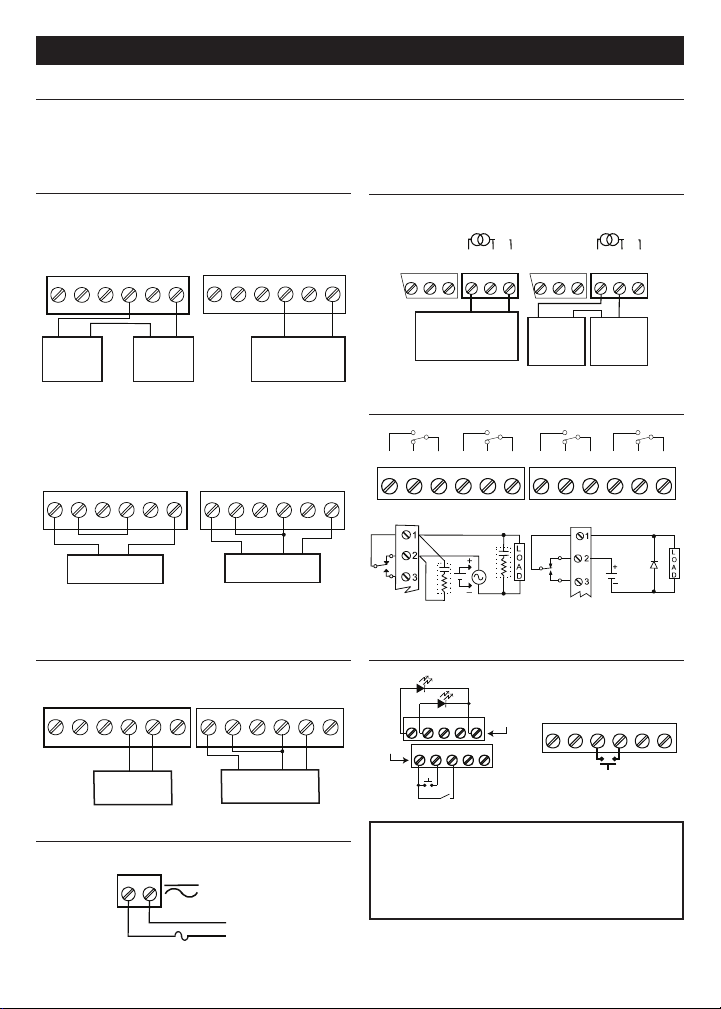

Basic Wiring for Helios Meter

4-20 mA Input Wiring

Wiring for a 4-20 mA input using either an external

power supply or self powered transmitter.

Wiring for a 4-20 mA input using internal power

supply.

0-10 V Input Wiring

4-20 mA Output Wiring1

Relay Connections2

AC and DC

Loads Protection

Low Voltage DC

Loads Protection

Digital Inputs and Outputs3

Power Connection

1Helios models with 4-20 mA output option (PD2-6200-xH7)

2Helios models with relay option (PD2-6200-xH7)

3If accessible pushbuttons are required once initial programming is

complete, the use of digital inputs is recommended.

Consult the PD2-6200 instruction

manual located on the included CD

or available online at www.predig.com

for additional wiring diagrams.

Active

(Self-Powered)

Passive

(Externally Powered)

+ -- +

External

Power

Supply

2-Wire

4-20 mA

Transmitter

INPUT SIGNAL

- +

INPUT SIGNAL

2-Wire 4-20 mA

Self-Powered

Transmitter

P- COMP+ V+ mA+

3 41 2 5

P- COMP+ V+ mA+

3 4

12 5

INPUT SIGNAL

3-Wire 4-20 mA

Transmitter

Signal

2-Wire 4-20 mA

Transmitter

INPUT SIGNAL

P- COMP+ V+ mA+

3 41 2 5

P- COMP+ V+ mA+

3 41 2 5

Voltage

Signal

INPUT SIGNAL INPUT SIGNAL

3-Wire Voltage

Transducer

Signal

P- COMP+ V+ mA+

3 41 2 5

P- COMP+ V+ mA+

3 41 2 5

12-35 VDC

Power

Supply

4-20 mA

Input Meter

RI- I+

13 2

RELAY1

3 2 1

24 V

4-20 mA Input

Remote Display,

Chart Recorder, Etc.

RI- I+

MA OUT

13 2

RELAY1

3 2 1

24 V

MA OUT

C NONO NC NC C

RELAY4 RELAY3

4 36 5 2 1

C NONO NC NC C

RELAY2 RELAY1

4 36 5 2 1

P- COMP+ V+ mA+

3 41 2 5

AC or DC

POWER

Required External Fuse:

5 A max, 250 V Slow Blow

POWER

O1 O2 O3 O4 G

I1I2I3I4+5

Ground

5 VDC

Helios PD2-6200 Rate/Totalizer Quick Start Guide

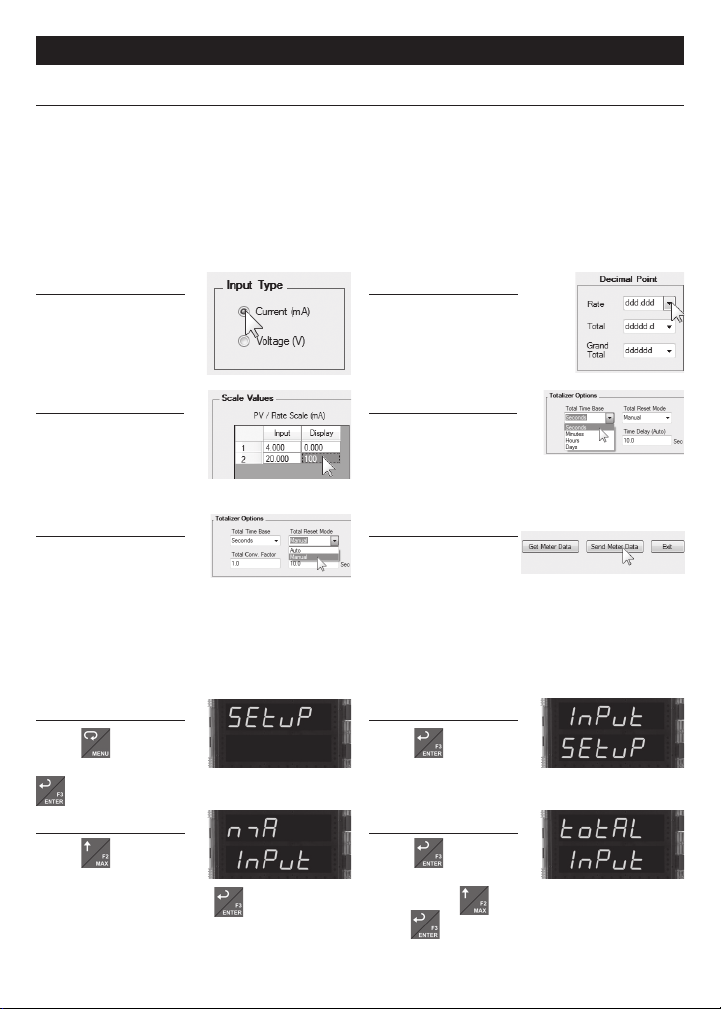

Program and Scale the Input

Program the Helios meter to accept a 4-20 mA or 0-10 V input and display a value associated with that

range. When the meter is receiving a 4 mA or 0 V input, it will display the low end of the display range;

when receiving a 20 mA or 10 V input, it will display the high end of the display range. The input values

can be changed if needed, but the default values are su󰀩cient for most transmitter types.

For example: If the meter were setup to accept a 4-20 mA input and display the ow of a pipe whose

rate of ow will only ever be between 0 and 100 gal/s, the transmitter would send a 4 mA signal when

there is zero ow and a 20 mA signal when there is max ow. The meter should be programmed to inter-

pret these inputs so that at 4 mA the meter will display 0 and at 20 mA the meter will display 100.

Press to enter Pro-

gramming Mode, press

to access the SEtup (Setup) menu.

Press to access

the InPut (Input) menu.

Press to select ei-

ther mA or voltage (nma

or volt) and then press to accept.

Press to access

the totAL (Totalizer)

menu, press to select yes or no, then

press .

Note: Most applications will require the totalizer to be

active (select YES).

======== MeterView Pro Software ========

On the Setup tab, un-

der Input Type, select

the desired input.

On the Programming tab,

select the desired decimal

point location for Rate,

Total and Grand Total.

Under Scale Values,

enter the desired

low and high display

values in the Display column.

Click the Send

Meter Data button

to send your programmed settings to the

meter.

======== Meter Conguration Menus ========

Under Totalizer

Options, select the

appropriate time base for your rate mea-

surement (such as gallons per second).

Select whether the

total should reset au-

tomatically or manually. If Auto is selected,

use the Time Delay eld below to input the

amount of time (in seconds) until it resets.

3 4

1 2

Helios PD2-6200 Rate/Totalizer Quick Start Guide

Press three times,

until dis 1 (Low

Display Value) is displayed. Press to

change which digit is selected, press

to increment the selected digit, and

press when done.

Press three times,

until dis 2 (High

Display Value) is displayed. Using and

, select your desired value. When done,

press . The display will show saved

(Saved) momentarily.

Press until the

dec pt (Decimal Point)

menu is displayed and press .

Press to access

the dEc Pt (Decimal

Point) menu for the rAtE (Rate) parameter.

Press until the

desired decimal point

location is displayed and press .

Continue to press to assign decimal

point locations to the total and grand total.

Press to access the

ProG (Program) menu.

Press to access the

INCAL (Input Cal) menu.

Press to access the

SCALE (Scale) menu.

Press to access

the t tb (Total Time

Base) menu.

Note: This menu will allow you to set the time base

for rate measurement (i.e. units per second,

per minute, per hour, or per day).

Press to select the

appropriate time base

and press to accept.

Press three times,

until t rst (Total Re-

set) is displayed. Press to access.

Press to select

either nmAn (Manual) or

Auto (Automatic) total reset and press

to accept.

Note: If Auto (Automatic) is chosen, an additional

menu will be displayed: t dLy (Time De-

lay). This menu will allow you to set a delay

time (in seconds) before the total is reset.

Note: Time base and total reset may also be set for

the grand total. These menus are Gt tb and

Gt rSt and are accessible directly following

the total menus.

11 12

5 6

9 10

13 14

15 16

Helios PD2-6200 Rate/Totalizer Quick Start Guide

Press until the ap-

propriate relay number

is displayed (rly 1-4) and then press .

Press to accept

Auto (Automatic

Reset).

Press to access

the Act (Relay Action)

menu.

Program Relays for Automatic Reset

Program the Helios meter to turn the relays on at programmable set points and turn them

o󰀨 at reset points.

Note: Only relays assigned to rate (Rate) will require a reset point value. If the set point is higher than

the reset point, the relay will be a high alarm. If the set point is lower than the reset point, the

relay will be a low alarm.

======== MeterView Pro Software ========

Select “Auto” from the

Action drop down list.

Note: See PD2-6200

Instruction Manual

for details on addi-

tional relay actions.

Enter the set and

reset point values in

the provided elds.

Click the Send

Meter Data button

to send your programmed settings to the

meter.

Press to enter Pro-

gramming Mode, press

to access the SEtup (Setup) menu.

Press until the

relay (Relay) menu is

displayed and then press to access.

======== Meter Conguration Menus ========

On the Relays tab, in

the desired relay sec-

tion, assign the relay

to a desired parameter

(i.e. rate, total, grand total, or Modbus®).

Press to access

the ASSiGn (Relay

Assignment) menu.

Press to select the

relay you wish to assign

(ASSiGn 1-4) and then press to access.

Press until the ap-

propriate parameter is

displayed and then press to accept.

Note: Once the assignment has been programmed

for relay 1, you can continue to assign re-

lays by accessing the subsequent menus.

3 4

1 2

3 4

Helios PD2-6200 Rate/Totalizer Quick Start Guide

Press to access the

set 1 (Relay 1 Set

Point) menu.

Using to change the

selected digit and

to increment that digit, enter the desired set

point value. Press when done.

Press to access the

rst 1 (Relay 1 Reset

Point) menu.

Note: The reset menu will only be displayed is the

relay has been assigned to rate (Rate).

total (Total) and Gtotal (Grand Total)

relays do not have reset points.

Using and

as above, select your

desired reset value. Press when done to

accept the new set point value. Press to

return to Run Mode.

Note: Use to select a di󰀨erent relay during step 3. If you need to program more relays,

simply repeat steps 3-9 for each additional relay. Consult the Instruction Manual for

information on additional relay action types.

Program 4-20 mA Analog Output

Program the Helios meter to output an analog signal based on its display value. This signal

is commonly output to a PLC or chart recorder.

Note: By default, the analog output will output the rate value as it is displayed on the meter. It is possible

to output the total, grand total or some other value. Please refer to the PD2-6200 Instruction

Manual for information on programming the analog output source.

======== MeterView Pro Software ========

On the Setup tab,

under Analog Out

Scale, enter your

desired display values in the provided elds.

Click the Send

Meter Data button to send your programmed

settings to the meter.

Press to enter Pro-

gramming Mode, press

to access the SEtup (Setup) menu.

Press until the

aout (Analog Out)

menu is displayed and then press .

======== Meter Conguration Menus ========

109

11 12

1 2

Helios PD2-6200 Rate/Totalizer Quick Start Guide

LIM2-6200QS_A - 06/168

Press to access

the dis 1 (Display 1)

menu. This is the display value at which the

low range of the output will be transmitted.

Use to change the

selected digit and to

increment that digit. Press when done to

accept the new value.

Press to access the

Out 1 (Output 1) menu.

This is the output signal which represents

the value set for diS 1.

The default value of

04.000 (4.000 mA)

should be su󰀩cient for most applications.

Press to accept the default value.

Press twice to ac-

cess the dis 2 (Display

2) menu. Use and to enter a value

and when done.

Press twice to ac-

cess the Out 2 (Display

2) menu. Press to accept the default

value (20 mA).

Reset Meter to Factory Defaults

If a mistake has been made while programming the meter and it is unclear where the error

occurred, the best option may be to perform a factory reset of the meter and begin again.

Press and hold for

ve seconds to enter

the Advanced Features Menu.

Press until the

diAG (diagnostics)

menu is displayed.

Press and hold

until the meter ashes

rESEt (reset). Immediately press to

reset the meter.

The meter will ash all

of the LED segments

and then display ProcES (Process). The

meter has been reset to factory defaults.

======== Meter Conguration Menus ========

======== MeterView Pro Software ========

On the Advanced Features

tab, in the bottom left-hand corner, click the

Reset Meter Factory Defaults button.

In the conrmation win-

dow that appears, click

OK. The meter will reset to factory defaults.

3 4

5 6

7 8

1 2

3 4

Helios PD2-6200 Rate/Totalizer Quick Start Guide

Other manuals for Helios PD2-6200

Table of contents

Other PRECISION DIGITAL Measuring Instrument manuals

PRECISION DIGITAL

PRECISION DIGITAL PD213 User manual

PRECISION DIGITAL

PRECISION DIGITAL Loop Leader Series User manual

PRECISION DIGITAL

PRECISION DIGITAL ProVu Series User manual

PRECISION DIGITAL

PRECISION DIGITAL pd663 User manual

PRECISION DIGITAL

PRECISION DIGITAL PD6800 User manual

PRECISION DIGITAL

PRECISION DIGITAL ProtEx PD6820 User manual

PRECISION DIGITAL

PRECISION DIGITAL Sabre Series User manual

PRECISION DIGITAL

PRECISION DIGITAL Javelin D PD644 User manual

PRECISION DIGITAL

PRECISION DIGITAL PD603 User manual

PRECISION DIGITAL

PRECISION DIGITAL PD686 User manual

PRECISION DIGITAL

PRECISION DIGITAL Javelin D PD644 User manual

PRECISION DIGITAL

PRECISION DIGITAL PD755 User manual

PRECISION DIGITAL

PRECISION DIGITAL PROVU PD6001 User manual

PRECISION DIGITAL

PRECISION DIGITAL Protex Pro PD6801 User manual

PRECISION DIGITAL

PRECISION DIGITAL PD6000-6R0 User manual

PRECISION DIGITAL

PRECISION DIGITAL ProVu Series User manual

PRECISION DIGITAL

PRECISION DIGITAL ProtEx Pro PD6800-0L1 User manual

PRECISION DIGITAL

PRECISION DIGITAL PD6060 User manual

PRECISION DIGITAL

PRECISION DIGITAL ProVu PD7000 User manual

PRECISION DIGITAL

PRECISION DIGITAL PD677 User manual

PRECISION DIGITAL

PRECISION DIGITAL ProVu Series User manual

PRECISION DIGITAL

PRECISION DIGITAL Loop Leader PD683 User manual

PRECISION DIGITAL

PRECISION DIGITAL PD686 User manual

PRECISION DIGITAL

PRECISION DIGITAL SABRE T PD743 User manual

Popular Measuring Instrument manuals by other brands

Suaoki

Suaoki D40 user manual

Elster

Elster BK-G1.6 operating instructions

Endress+Hauser

Endress+Hauser Deltabar FMD71 technical information

Duratool

Duratool D03128 manual

Vega

Vega VEGAPULS 65 Quick setup guide

Tonghui

Tonghui TH2618B Operation manual

Tenmars

Tenmars TM-801 user manual

MSR

MSR 145 user manual

TPS

TPS WP-82 manual

ELMETRON

ELMETRON CP-511 user manual

PCB Piezotronics

PCB Piezotronics 003C30 Installation and operating manual

Tenma

Tenma 72-10465 manual

Endress+Hauser

Endress+Hauser Proline Promag 50 Brief operating instructions

Siemens

Siemens SITRANS F Coriolis FCT030 Function manual

KLINGER

KLINGER CMF V Series instruction manual

EXFO

EXFO FTB-2 Notice

Keysight

Keysight M8290A Getting started guide

ADTEK

ADTEK MW-5 operating manual
