Precision Digital Corporation PD6000 User manual

Congratulations on your purchase of

the ProVuPD6000 process meter!

This quick start guide will briey

describe some of the common setup

procedures for this meter.

This guide includes:

Basic Wiring for ProVuMeter..............

Program and Scale 4-20 mA Input.......

Program and Scale 0-10 V Input..........

Program Relays for Automatic Reset...

Program Pump Alternation Control......

Program Custom Unit Tags..................

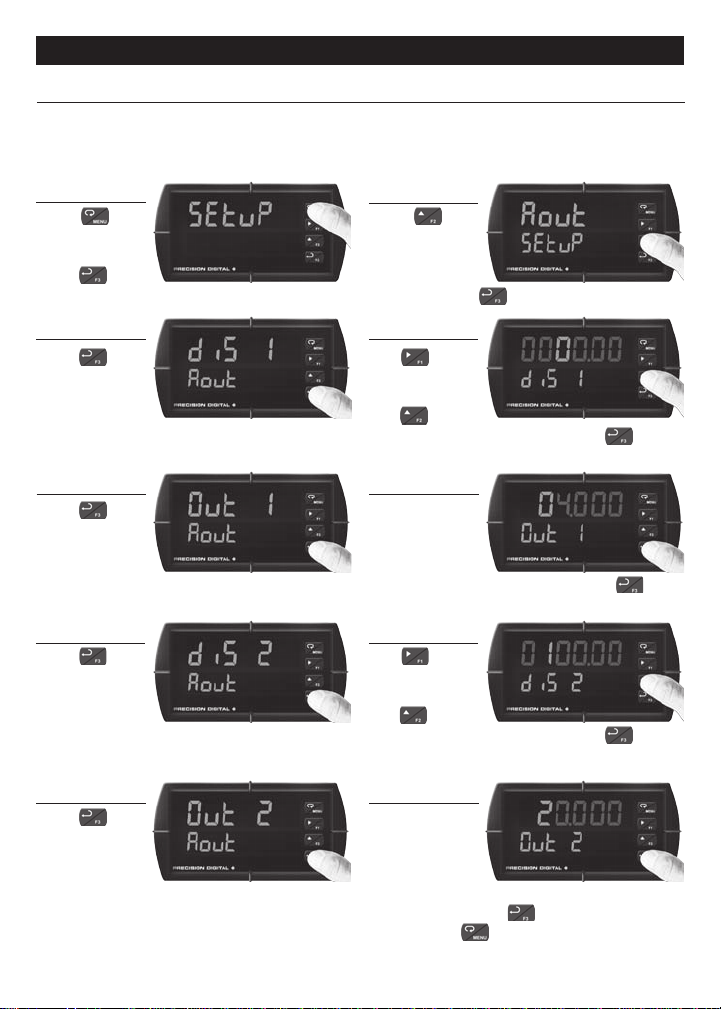

Program 4-20 mAAnalog Output.........

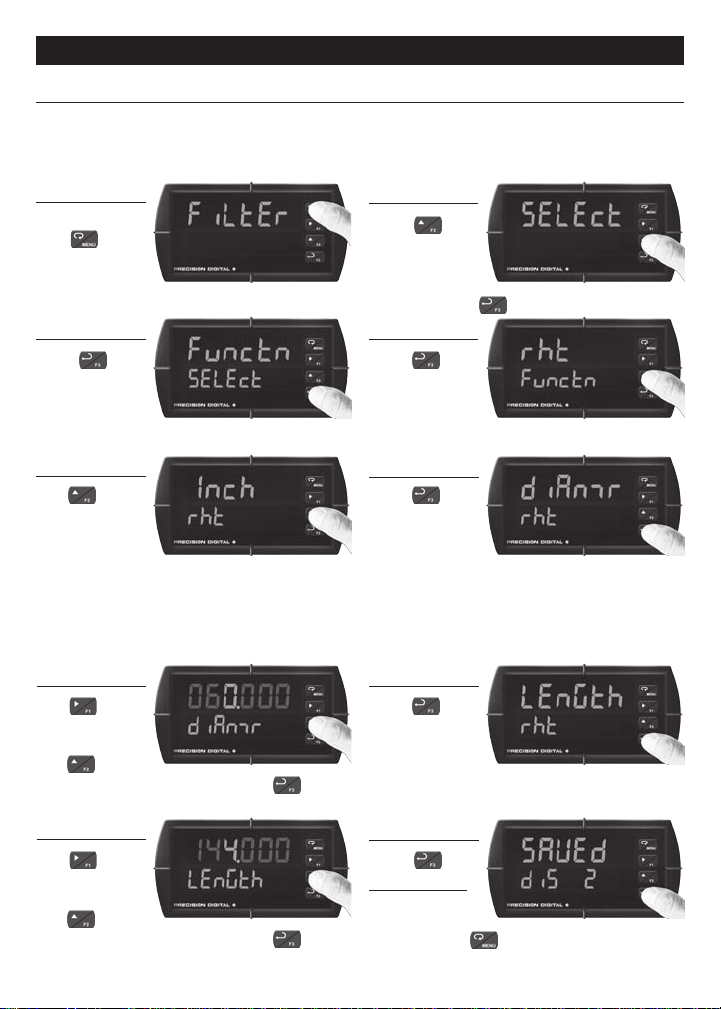

Program Round Horizontal Tank..........

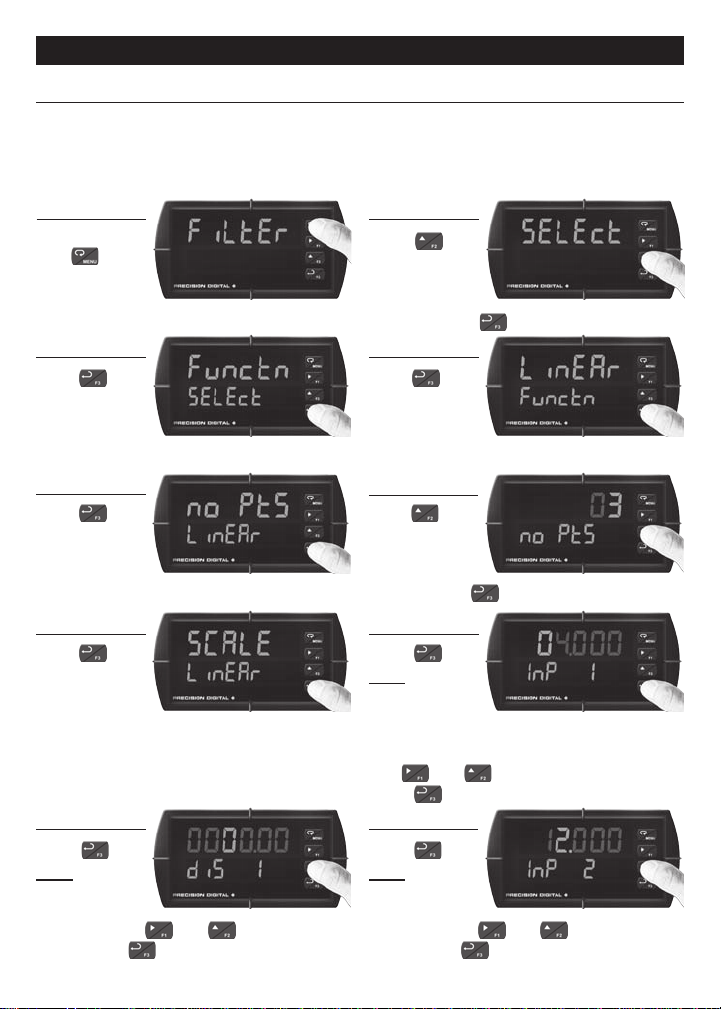

Program Multi-Point Linearization......

Program Noise Filter...........................

Program Process Rounding................

Setup Password Protection................

Return Meter to Factory Defaults.......

Menu Button – Use this button to

access Programming Mode and to

return to Run Mode.

Note: If you think you have made a mistake while

programming the meter, use this button to

return the meter to Run Mode without saving.

Right/F1 Button – Use this button to

change the selected digit while input-

ting a numeric value in Programming Mode.

Up/F2 Button – Use this button to

increment the selected digit while

inputting a numeric value in Programming

Mode.Enter/F3 Button – Use this but-

ton to access or accept a menu

item while in Programming Mode.

For additional information about the

ProVuPD6000 meter not covered in

this quick start guide, please consult

the instruction manual included on the

CD or available at www.predig.com.

ERIES

233 South Street

Hopkinton MA 01748-2208 USA

Tel. (508) 655-7300 www.predig.com

ProVuPD6000 Process Meter

Quick Start Guide

The connectors label, afxed to the top of the meter, shows the location of all available con-

nectors. Connect your wires to the provided connectors and plug into the meter as indicated.

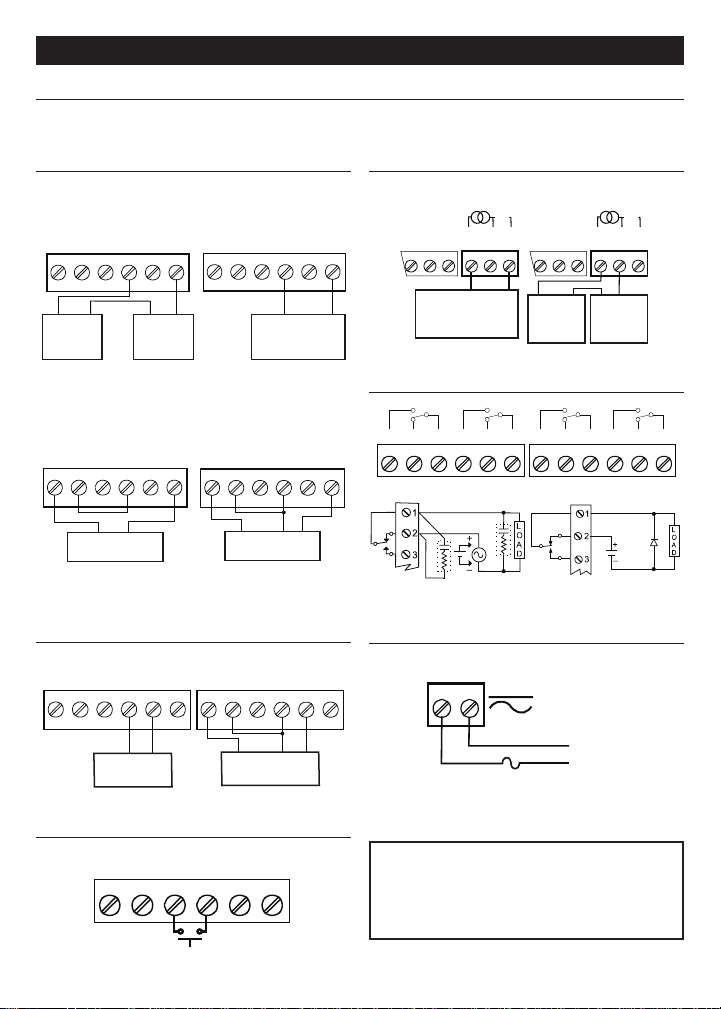

Basic Wiring for ProVuMeter

4-20 mA Input Wiring

Wiring for a 4-20 mA input using either an external

power supply or self powered transmitter.

Wiring for a 4-20 mA input using internal power

supply.

0-10 V Input Wiring

4-20 mA Output Wiring1

Relay Connections2

AC and DC

Loads Protection Low Voltage DC

Loads Protection

F4 Digital Input Connection

Power Connection

1ProVumodels with 4-20 mA output option (PD6000-XX3/5/7)

2ProVumodels with relay option (PD6000-XX2/4/5/7)

Consult the PD6000 instruction

manual located on the included CD

or available online at www.predig.com

for additional wiring diagrams.

Active

(Self-Powered) Passive

(Externally Powered)

+ -- +

External

Power

Supply

2-Wire

4-20 mA

Transmitter

INPUT SIGNAL

- +

INPUT SIGNAL

2-Wire 4-20 mA

Self-Powered

Transmitter

P- COMP+ V+ mA+

3 41 2 5

P- COMP+ V+ mA+

3 4

12 5

INPUT SIGNAL

3-Wire 4-20 mA

Transmitter

Signal

2-Wire 4-20 mA

Transmitter

INPUT SIGNAL

P- COMP+ V+ mA+

3 41 2 5

P- COMP+ V+ mA+

3 41 2 5

Voltage

Signal

INPUT SIGNAL INPUT SIGNAL

3-Wire Voltage

Transducer

Signal

P- COMP+ V+ mA+

3 41 2 5

F4 6P- COMP+ V+ mA+

3 41 2 5

F4 6

12-35 VDC

Power

Supply

4-20 mA

Input Meter

RI- I+ 13 2

RELAY1

3 2 1

24 V

4-20 mA Input

Remote Display,

Chart Recorder, Etc.

RI- I+

MA OUT

13 2

RELAY1

3 2 1

24 V

MA OUT

C NONO NC NC C

RELAY4 RELAY3

4 36 5 2 1

C NONO NC NC C

RELAY2 RELAY1

4 36 5 2 1

P- COMP+ V+ mA+

3 41 2 5

AC or DC

POWER

Required External Fuse:

5 A max, 250 V Slow Blow

POWER

ProVuPD6000 Process Meter Quick Start Guide

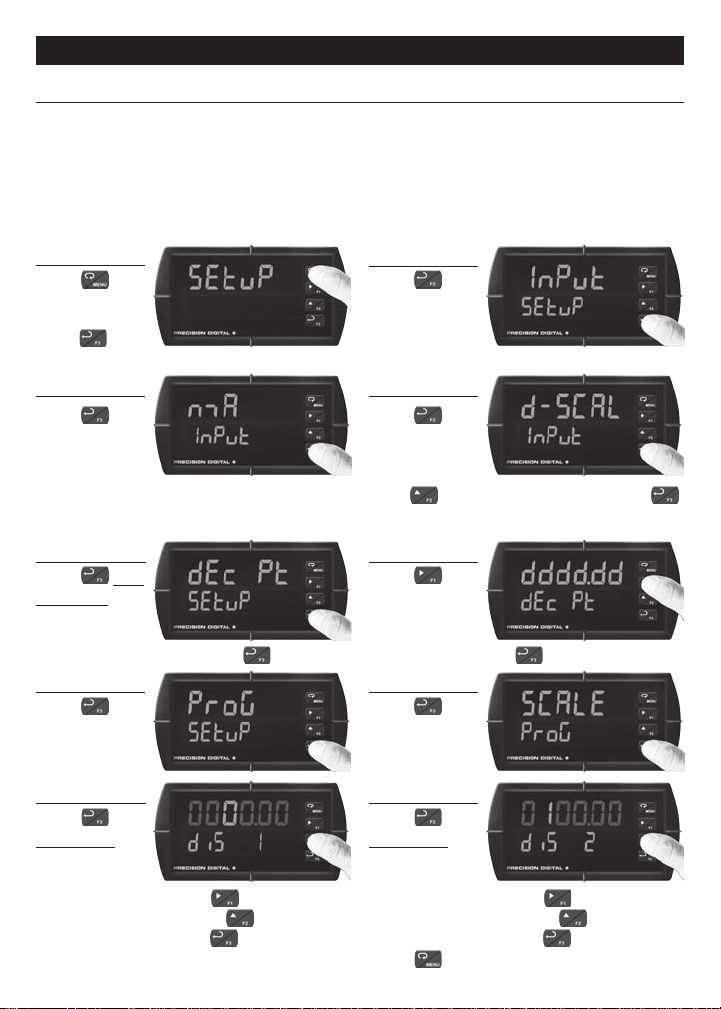

Program and Scale 4-20 mA Input

These instructions show you how to program the ProVumeter to accept a 4-20 mAinput and display a value

associated with that range. When the meter is receiving a 4 mAinput, it will display the low end of the display

range; when receiving a 20 mAinput, it will display the high end of the display range. The input values (InP

1& InP 2) can be changed if needed, but the steps to do this have been omitted for this quick start guide.

For example: If the meter were used to display the level of a 100 ft tall tank, the transmitter should send

a 4 mA signal when the tank is empty and a 20 mA signal when the tank is full. The meter should be

programmed to interpret these inputs on a display range of 0-100, so that at 4 mA the meter will display

0.00 and at 20 mA the meter will display 100.00.

Press to

enter Program-

ming Mode,

press to

access the SEtup (Setup) menu.

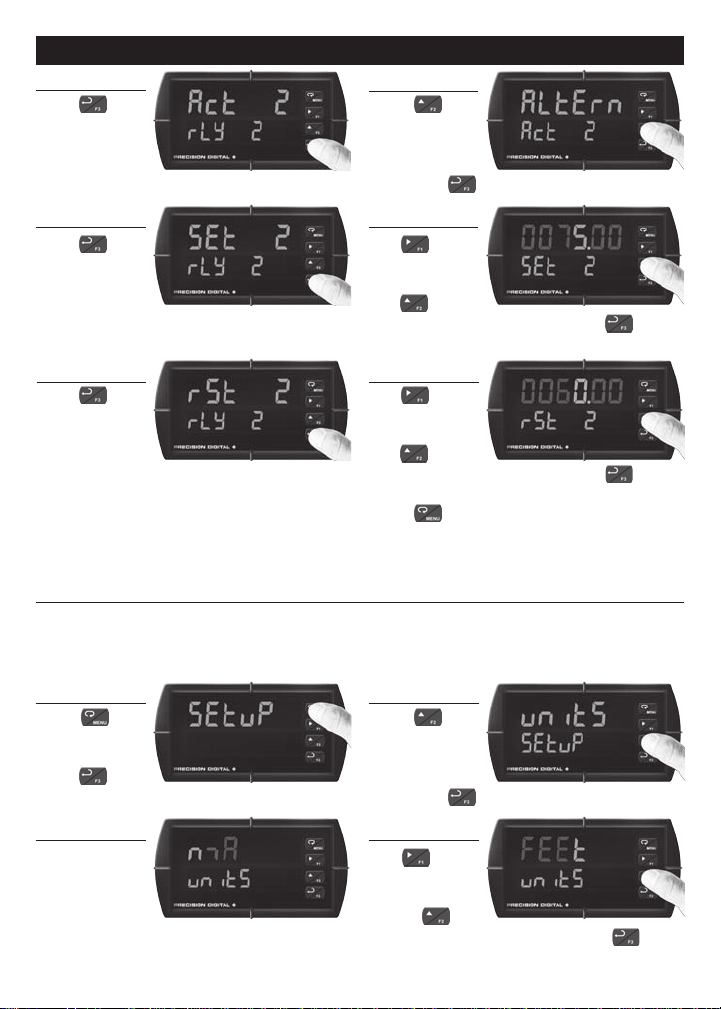

Press to

access the

InPut (Input)

menu.

Press to

accept nma

(Milliamp) as

the input type.

Press mul-

tiple times, until

the dec pt

(Decimal Point)

menu is displayed and press to access.

Press until

the desired

decimal point

location is

displayed and press to accept.

Press to

access the

ProG (Program)

menu.

Press to

access the

SCALE (Scale)

menu.

Press

three times,

until dis 1

(Low Display

Value) is displayed. Use to change

which digit is selected and to increment

the selected digit. Press when done.

Press

three times,

until dis 2

(High Display

Value) is displayed. Use to change

which digit is selected and to increment

the selected digit. Press when done.

Press to return to Run Mode.

Press to

access the

d-SCAL (Dual

Scale) menu,

press to select yes or no, then press .

Note: Most applications only require one scaling

point (select no).

1 2

9 10

ProVuPD6000 Process Meter Quick Start Guide

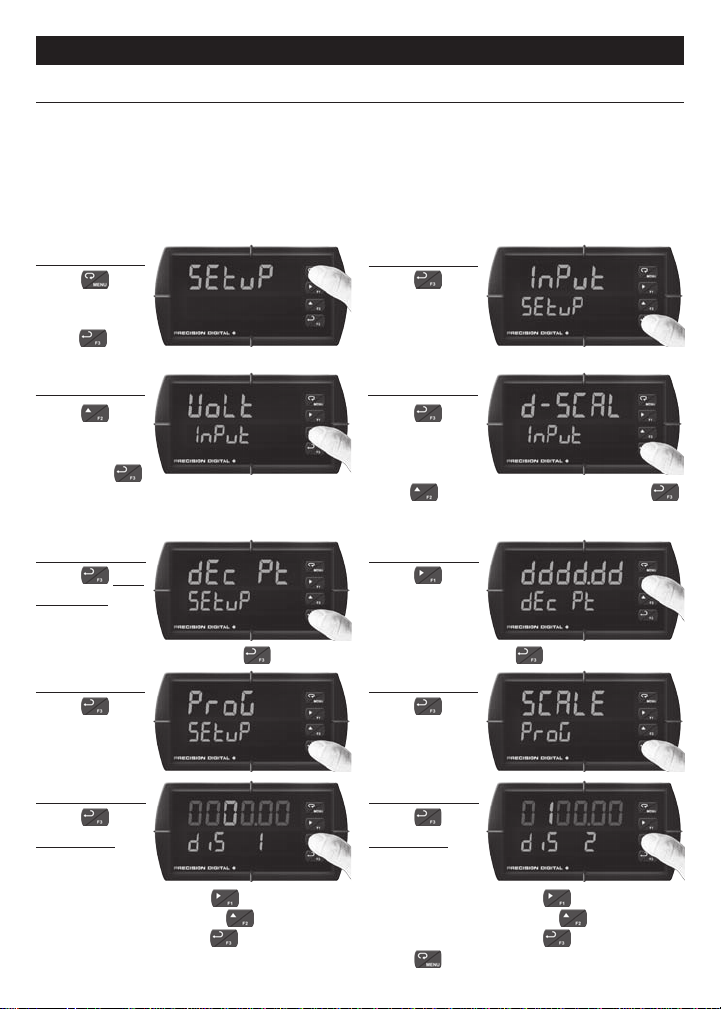

Program and Scale 0-10 V Input

These instructions show you how to program the ProVumeter to accept a 0-10 V input and display a value

associated with that range. When the meter is receiving a 0 V input, it will display the low end of the display

range; when receiving a 10 V input, it will display the high end of the display range. The input values (InP 1

& InP 2) can be changed if needed, but the steps to do this have been omitted for this quick start guide.

For example: If the meter were used to display the level of a 100 ft tall tank, the transmitter should

send a 0 V signal when the tank is empty and a 10 V signal when the tank is full. The meter should be

programmed to interpret these inputs on a display range of 0-100, so that at 0 V the meter will display

0.00 and at 10 V the meter will display 100.00.

Press to

enter Program-

ming Mode,

press to

access the SEtup (Setup) menu.

Press to

access the

InPut (Input)

menu.

Press until

volt (Volt) is

displayed and

then press

to accept as the input type.

Press mul-

tiple times, until

the dec pt

(Decimal Point)

menu is displayed and press to access.

Press until

the desired

decimal point

location is

displayed and press to accept.

Press to

access the

ProG (Program)

menu.

Press to

access the

SCALE (Scale)

menu.

Press

three times,

until dis 1

(Low Display

Value) is displayed. Use to change

which digit is selected and to increment

the selected digit. Press when done.

Press

three times,

until dis 2

(High Display

Value) is displayed. Use to change

which digit is selected and to increment

the selected digit. Press when done.

Press to return to Run Mode.

Press to

access the

d-SCAL (Dual

Scale) menu,

press to select yes or no, then press .

Note: Most applications only require one scaling

point (select no).

1 2

9 10

ProVuPD6000 Process Meter Quick Start Guide

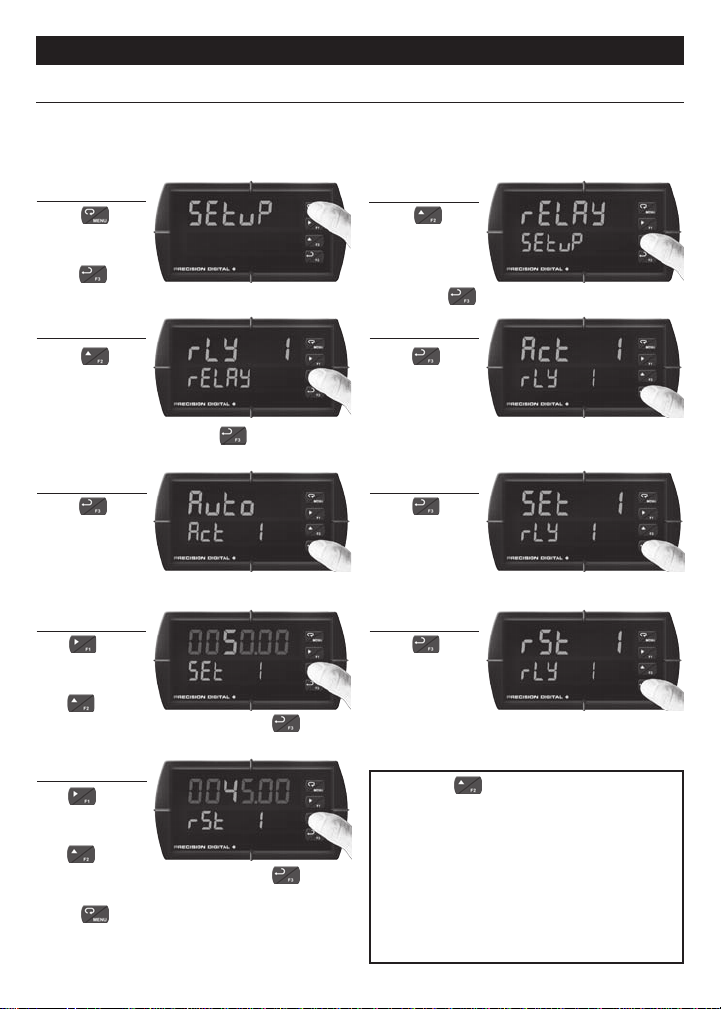

Program Relays for Automatic Reset

These instructions show you how to program the ProVumeter to turn on the relays at

programmable set points and turn off the relays at reset points.

Note: If the set point is higher than the reset point, the relay will be a high alarm. If the set point is

lower than the reset point, the relay will be a low alarm.

Press to

enter Program-

ming Mode,

press to

access the SEtup (Setup) menu.

Press

until the relay

(Relay) menu is

displayed and

then press to access.

Press until

the appropriate

relay number is

displayed

(rly 1-8) and then press to access.

Press to

accept Auto

(Automatic

Reset).

Note: See PD6000 Instruction Manual for details

on additional relay actions.

Press to

access the

set (Relay Set

Point) menu.

Use to

change which

digit is selected

and to in-

crement the selected digit. Press when

done to accept the new set point value.

Press to

access the

rst (Relay

Reset Point)

menu.

Use to

change which

digit is selected

and to in-

crement the selected digit. Press when

done to accept the new set point value.

Press to return to Run Mode.

Press to

access the

Act (Relay Ac-

tion) menu.

Note: Use to select a different

relay during step 3. If you need

to program more relays, simply

repeat steps 3-9 for each additional

relay. Up to eight (8) relays can be

installed using the ProVumeter.

Consult the ProVuPD6000 Instruc-

tion Manual for information on

additional relay action types.

1 2

ProVuPD6000 Process Meter Quick Start Guide

Program Pump Alternation Control

These instructions show you how to program the ProVumeter to alternate between relays

when the set point is reached. This relay action is most commonly used to alternate be-

tween primary and backup sump pumps so that they wear evenly over their life spans.

Note: With pump alternation active, when the rst set point is reached the meter will alternate between the

relays set up with the altern relay action. The other relays will be activated in turn if the subsequent

relay set points are reached. They will also be deactivated in turn as their reset points are reached.

Press to

enter Program-

ming Mode,

press to

access the SEtup (Setup) menu.

Press

until the relay

(Relay) menu is

displayed and

then press to access.

Press until

the appropriate

relay number is

displayed

(rly 1-8) and then press to access.

This will be the relay that will activate the

primary sump pump.

Press until

altern (Pump

Alternation) is

displayed and

then press to accept.

Press to

access the

set (Relay Set

Point) menu.

Use to

change which

digit is selected

and to in-

crement the selected digit. Press when

done to accept the new set point value.

Press to

access the

rst (Relay

Reset Point)

menu.

Press to

access the

Act (Relay Ac-

tion) menu.

Use to

change which

digit is selected

and to in-

crement the selected digit. Press when

done to accept the new reset point value.

Press to

access the

next relay (rly)

menu. This will

be the relay that activates the backup sump

pump.

1 2

9 10

ProVuPD6000 Process Meter Quick Start Guide

Press to

access the

Act (Relay Ac-

tion) menu.

Press until

altern (Pump

Alternation) is

displayed and

then press to accept.

Press to

access the

set (Relay Set

Point) menu.

Note: The second relay set point must differ from the

rst relay set point value.

Press to

access the

rst (Relay

Reset Point)

menu.

Note: The second relay reset point must differ from

the rst relay reset point value.

Use to

change which

digit is selected

and to in-

crement the selected digit. Press when

done to accept the new set point value.

Press to return to Run Mode.

Use to

change which

digit is selected

and to in-

crement the selected digit. Press when

done to accept the new set point value.

Program Custom Unit Tags

These instructions show you how to program the ProVumeter to display custom unit tags

for the process value. The secondary (little) display shows this custom unit tag by default.

Note: The custom unit tag has no bearing on the meter’s operation or the process value. Displaying a

custom unit tag is simply for ease of reading.

Press to

enter Program-

ming Mode,

press to

access the SEtup (Setup) menu.

Press

until the units

(Units) menu is

displayed and

then press to access.

The meter will

display the

default unit tag

(mA). Notice

here that the letter 'm' uses two 7 segment

LEDs. This is true of the letter 'w' as well.

Use to

change which

letter is select-

ed and to

increment to the next letter. Press when

done to accept the new custom unit tag.

15 16

11 (pump alt. cont.)

1 2

3 4

ProVuPD6000 Process Meter Quick Start Guide

Program 4-20 mA Analog Output

These instructions show you how to program the ProVumeter to output an analog signal

based on its display value. This signal is commonly output to a PLC or chart recorder.

Note: The display values programmed for 4-20 analog output do not need to be the same as those

programmed as input scale values, though they most commonly will be.

Press to

enter Program-

ming Mode,

press to

access the SEtup (Setup) menu.

Press until

the aout (Ana-

log Out) menu

is displayed

and then press to access.

Press to

access the

dis 1 (Display

#1) menu. This

is the display value at which the low range

of the output will be transmitted.

Press to

access the

Out 1 (Output

#1) menu. This

is the output signal which represents diS 1.

The default

value of 04.000

(4.000 mA)

should be suf-

cient for most applications. Press to

accept the default value.

Press to

access the

dis 1 (Display

#1) menu. This

is the display value at which the high range

of the output will be transmitted.

Use to

change which

digit is selected

and to in-

crement the selected digit. Press when

done to accept the new display value.

Press to

access the

Out 2 (Output

#2) menu. This

is the output signal which represents diS 2.

The default

value of 20.000

(20.000 mA)

should be suf-

cient for most

applications. Press to accept the default

value. Press to return to Run Mode.

Use to

change which

digit is selected

and to in-

crement the selected digit. Press when

done to accept the new display value.

1 2

9 10

ProVuPD6000 Process Meter Quick Start Guide

Program Round Horizontal Tank

These instructions show you how to program the ProVumeter to display the volume of

a cylindrical tank that is laid horizontally. In level applications, the Round Horizontal Tank

feature will automatically account for the non-linear increase in volume as a function of tank

height. Just provide the diameter and length of the tank and the meter will do the rest.

Press and

hold for

ve seconds

to enter the

Advanced Features Menu.

Press until

the SELEct

(Select) menu

is displayed

and then press to access.

Press to

access the

Functn (Func-

tion) menu.

Press to

access the

rth (Round

Horizontal

Tank) menu.

Use to

select whether

to use Inch

(Inches) or Cnm

(Centimeters) for the diameter and length

measurements.

Note: This selection will determine whether the

volume is measured in gallons or liters and

will set the unit tag accordingly.

Press to

access the

dianmr (Diam-

eter) menu.

Use to

change which

digit is selected

and to in-

crement the selected digit. Press when

done to accept the diameter measurement.

Press to

access the

length

(Length) menu.

Use to

change which

digit is selected

and to in-

crement the selected digit. Press when

done to accept the length measurement.

Press

multiple times,

until SAvEd

(Saved) is dis-

played. Press to return to Run Mode.

1 2

3 4

5 6

7 8

9 10

ProVuPD6000 Process Meter Quick Start Guide

Program Multi-Point Linearization

These instructions show you how to program the ProVumeter to linearize the display

for non-linear signals such as those from level transmitters used to measure volume in

odd-shaped tanks. Meters are set up with 2-point linearization by default (meaning that the

measurement scale is completely linear). This is a more advanced version of the Round

Horizontal Tank feature described on the previous page.

Press and

hold for

ve seconds

to enter the

Advanced Features Menu.

Press until

the SELEct

(Select) menu

is displayed

and then press to access.

Press to

access the

Functn (Func-

tion) menu.

Press

to access

the linear

(Linearization)

menu.

Press to

access the

no PtS

(Number of

Linearization Points) menu.

Press to se-

lect the number

of linearization

points (2-32)

and then press .

Press to

access the

SCALE (Scale)

menu.

Press

twice, InP 1

(First Input

Value) is dis-

played. This is the input value (in mAor V)

which represents the lowest display value.

Use and to change the value.

Press when done.

Press

twice, diS 1

(First Display

Value) is

displayed. Use and to change the

value. Press when done.

Press

twice, InP 2

(Second

Input Value) is

displayed. Use and to change the

value. Press when done.

1 2

3 4

5 6

7 8

9 10

ProVuPD6000 Process Meter Quick Start Guide

Table of contents

Other Precision Digital Corporation Measuring Instrument manuals

Precision Digital Corporation

Precision Digital Corporation Loop Leader PD6600 Series User manual

Precision Digital Corporation

Precision Digital Corporation ProVu PD6200 User manual

Precision Digital Corporation

Precision Digital Corporation Trident PD765 User manual

Precision Digital Corporation

Precision Digital Corporation ProtEX PD663-SS User manual

Precision Digital Corporation

Precision Digital Corporation HELIOS PD2-620 User manual

Precision Digital Corporation

Precision Digital Corporation Survivor PD662 User manual

Precision Digital Corporation

Precision Digital Corporation PD663 User manual

Precision Digital Corporation

Precision Digital Corporation PD690 Series User manual

Precision Digital Corporation

Precision Digital Corporation PD6820 User manual

Precision Digital Corporation

Precision Digital Corporation Sabre P PD603 User manual

Precision Digital Corporation

Precision Digital Corporation PROVU Series User manual

Precision Digital Corporation

Precision Digital Corporation ProtEX-MAX PD8-606 User manual

Precision Digital Corporation

Precision Digital Corporation vantageview PD6700-0L1 User manual

Precision Digital Corporation

Precision Digital Corporation Helios PD2-6363 User manual

Precision Digital Corporation

Precision Digital Corporation ProtEx PD6870-SS User manual

Precision Digital Corporation

Precision Digital Corporation PD750 User manual

Precision Digital Corporation

Precision Digital Corporation ProtEX-MAX PD8-6060-6H0 User manual

Precision Digital Corporation

Precision Digital Corporation PD6908 User manual

Precision Digital Corporation

Precision Digital Corporation Trident PD765 User manual

Precision Digital Corporation

Precision Digital Corporation Loop Leader+ Series User manual

Precision Digital Corporation

Precision Digital Corporation ProtEX-MAX PD8-6300 User manual

Precision Digital Corporation

Precision Digital Corporation Loop Leader PD6600 Series User manual

Precision Digital Corporation

Precision Digital Corporation Loop Leader PD6602/6 User manual

Precision Digital Corporation

Precision Digital Corporation Loop Leader+ Series User manual

Popular Measuring Instrument manuals by other brands

Suaoki

Suaoki D40 user manual

Elster

Elster BK-G1.6 operating instructions

Endress+Hauser

Endress+Hauser Deltabar FMD71 technical information

Duratool

Duratool D03128 manual

Vega

Vega VEGAPULS 65 Quick setup guide

Tonghui

Tonghui TH2618B Operation manual

Tenmars

Tenmars TM-801 user manual

MSR

MSR 145 user manual

TPS

TPS WP-82 manual

ELMETRON

ELMETRON CP-511 user manual

PCB Piezotronics

PCB Piezotronics 003C30 Installation and operating manual

Tenma

Tenma 72-10465 manual

Endress+Hauser

Endress+Hauser Proline Promag 50 Brief operating instructions

Siemens

Siemens SITRANS F Coriolis FCT030 Function manual

KLINGER

KLINGER CMF V Series instruction manual

EXFO

EXFO FTB-2 Notice

Keysight

Keysight M8290A Getting started guide

ADTEK

ADTEK MW-5 operating manual
