POK 29342 User manual

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Flowmeter 2012
Reference : 29342, 39383, 29390, 29396, 30287
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.
Presentation
Overall dimensions
Exploded view
Bill of materials
Warning
User manual
Maintenance
Stickers
Option
Would you please read this note before using the equipment

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
1
Presentation
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.
Diameter DN40 (1.5") DN65 (2.5") DN80(3") DN100 (4")
Reference 29342 29383 29390 29396
Note : references without coupling, any type available, has to be precised when the order is placed.
Characteristics Details
Construction • Body in aluminium alloy
• Case in grivory charge with glass
Maximum pressure of use 16 bar / 230 PSI
Working temperature -10°C to 70°C (14°F to 158°F)
Waterproofness IP65
Working ow rates limits
•DN 40 (1.5") : 100 l/min to 1000 l/min (26GPM to 260 GPM)
•DN 65 (2.5") : 300 l/min to 2500 l/min (80 GPM to 660 GPM)
•DN 80 (3") : 500 l/min to 3000 l/min (130 GPM to 800 GPM)
•DN 100 (4") : 1000 l/min to 5000 l/min (260GPM to 1350 GPM)
Accuracy About 3% (if use within the working ow rate limits)
Flow rate results shown in GPM or l/min (parameter dened in factory
Pressure results shown in PSI or bar (parameter dened in factory)
Power supply 9V Battery (6LR61)
Bluetooth Connection kit sold separately
USB 5m USB Cable sold separately
Software Software for PC (Windows XP, Vista, Seven only) sold only with
the USB or Bluetooth® kit.
Bluetooth version 2.0

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Option
2
Example with a DN65 owmeter
Construction :
Stabilizing legs in technical plastic
Holding system in aluminium
Axis and fastenings in stainless steel
Security : Automated locking system
Note : This option is the same for any model of owmeter (DN40/65/80/100). It can't be removed
easily.
Ref : 30287
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Overall dimensions
3
Diameter A (mm) B (mm) Weight (kgs)
DN40 146 250 3
DN65 169 254 3.5
DN80 185 262 3.8
DN100 205 268 4.2
Note : dimension and weight without coupling or accessories
Flowmeter
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Overall dimensions
4
Stand
•Fold:
•Unfold:
Weights : 2.36 Kgs
Doc 1822 Fr
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Exploded view
5
Flowmeter
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
6
Bill of materials
REP QTY DESCRIPTION REF
1 1 Stand for electronic parts 29453
2 1 Stand for ow rate sensor 29339
3 1 Nut for ow rate sensor 229389
4 1 Seal Ø30xØ2 16833
5 1 Flow rate sensor 26624
6 1 Pressure sensor 26631
7 1 Electronic part 29449
8 1 Waterproof cap 26537
9 4 Washer W3 RGW3
10 4 Screw CHC M8-30 VTCHC 8x30
11 1 Viewer 29336
12 1 Case 29382
13 1 4 pins female binder plug 26653
14 1 Case for 9V battery 38023
15 1 Seal Ø48x2 26848
16 2 Screw FHC M3-10 FTFHC 3x10
17 1 Battery cap 29335
18 1 Screw M3-10 26634
19 1 Sticker "user manual"
--- French 30004
--- English 30005
--- German 30006
20 1 Push-buton 26651
21 1 Sticker "case"
--- French 29497
--- English 29498
--- German 30007
22 4 Washer W6 RGW6
23 4 Screw CHC M6-20 VTCHC 6x20
24 1 Seal R26 8226
25 1 Seal R13 8213
26 1 Cut seal ep.03 29901
27 1 Stand
--- DN40 29347
--- DN65 29388
--- DN80 29395
--- DN100 29401
28 1 Seal Ø175x2,5 6245
29 1 Screw TBHC M3x8 VTBHC 3x8
- 2 Plug Mollex Male 2c 38043
- 2 Plug Mollex female 2c 38042
- 1 Cable for ow rate sensor 26625
Flowmeter
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE

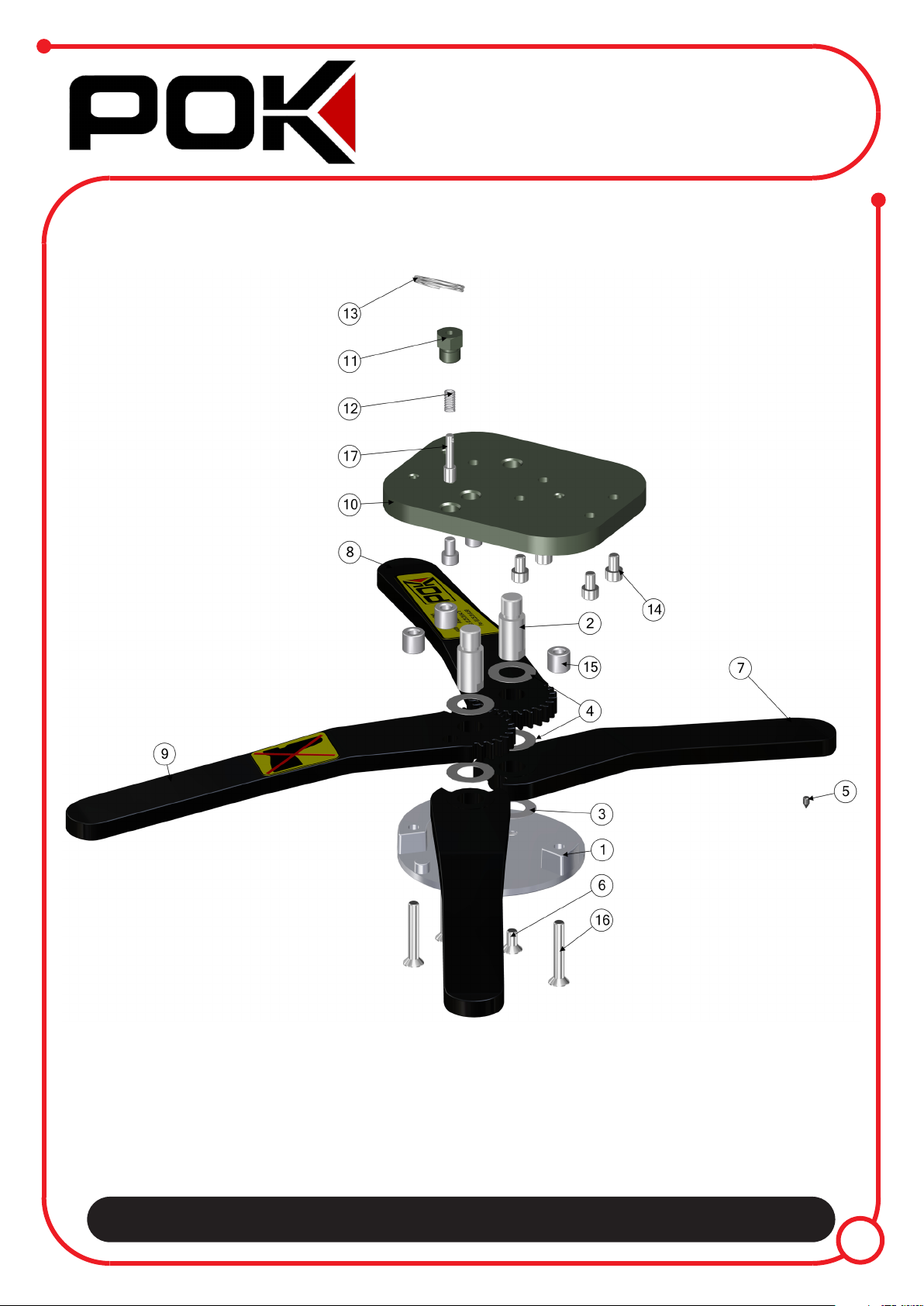

Exploded view
7
Stand
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
8
Bill of materials
Stand
REP QTY DESCRIPTION REF
1 1 Stand 13735
2 2 Stabilizing leg axis 13736
3 2 Spring washer -
4 4 Wedge washer 10916
5 4 Tip 10868
6 2 Screw FHC M8-16 VTFHC 8x16
7 2 Back leg 13734
8 1 Front right leg 13732
9 1 Front left leg 13733
10 1 Stand 30290
11 1 Locking axis holder 10918
12 1 Spring for locking system 10919
13 1 Ring -
14 6 Screw CHC M8-12 VTCHC 8x12
15 3 Cylindrical wedge 30331
16 3 Screw FHC M8-50 VTFHC 8x50
17 1 Locking system axis 30332
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.

POK SA - ZI Les Guignons - 10400 Nogent-sur-Seine - FRANCE
Stickers
9
1 2
1
Ref : 29118
2
Ref : 18102
Doc 1822 EN
Rev-A : 20/02/12 The technical informations included in this document might change without any warning. Contact our sales service for further details.
This manual suits for next models
4
