Philips FWD17/21M User manual

FWD 17

Quick start guide

What’s in the Box?

You should find these items upon opening the box.

Quick Start Guide

User Manual

CompositeVideo Cable MW antenna Remote Control

User Manual

Quick Start Guide Plug adapter

Audio Cable

Component video cables

FWD17 QUG_Eng 2005.5.25, 2:38 PM1

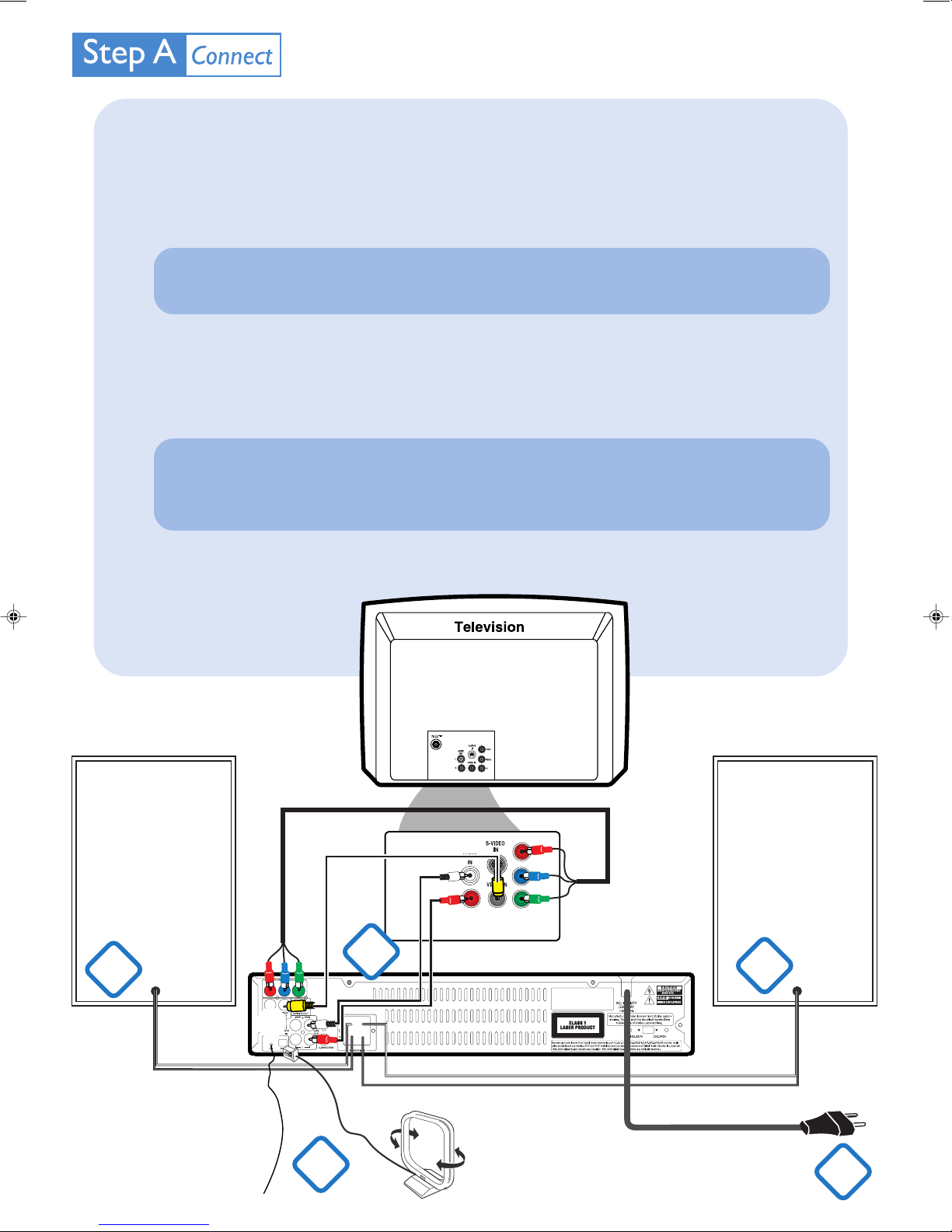

Connect the speaker wires to the SPEAKERS terminals, right speaker to "R" and left speaker to "L", coloured

(marked) wire to "+" and black (unmarked) wire to "–". Fully insert the stripped portion of the speaker wire into

the terminal as shown.

For radio reception, connect the supplied MW loop antenna to the "AM aerial" terminal.

Use the composite video cable (yellow) to connect the system’s VIDEO OUT jack to the video input jack (or

labeled as A/V In,Video In, Composite or Baseband) on the TV set. (Option A)

Use the component video cables (red/blue/green) to connect the system’s Pr/Cr Pb/CbY jacks to the

corresponding Component video input jacks on the TV set. (Option B)

Connect the power cord of the DVD system to the AC power outlet.

Speaker

(Right)

Speaker

(Left)

FM antenna

AC power cord

MW loop

antenna

Tip

It is unnecessary to connect the FM pigtail antenna since it is fixed to the main unit.

Tip

–Set the VIDEO OUT (put) to ‘Cr Cb Y’ if you select Option B.

–See the User Manual for otherTV connection options.

FWD17 QUG_Eng 2005.5.25, 2:38 PM2

Setting up the TV

Turn the SOURCE control knob to select DISC.

Switch on the TV set and set to the correct video-in channel until the blue Philips DVD background screen

appears on the TV.

Tip

See your TV manual for more details.

Setting language and video preferences

In the disc mode, stop playback and press SET UP.

Press 1,2 on the remote to enter 'Language'.Then, select the preferred OSD menu, subtitle, audio, and menu

languages using 1,2 ,3 ,4 and OK on the remote.

Press 1,2 on the remote to enter 'Video'.Then, select the TV shape, color system matching the connected TV

set and the video output mode.

Press SET UP to exit the menu.

ON/OFF

Language

OSD Menu

Subtitle

Audio

English

Fran ais

Espa ol

Portugu s

Video Audio Rating

Language

TV Shape

TV System

Video out

Video

4:3 LB

4:3 PS

16:9

Auto

S-VIDEO

Audio Rating

FWD17 QUG_Eng 2005.5.25, 2:38 PM3

Loading a disc

Press OPEN•CLOSEç(or EJECT on the remote) to open the disc tray.

Load in a DVD disc with the label side facing up.

A disc menu pops up.

Playback

Use 1,2 ,3 ,4 and OK or Numeric Keypad (0-9) on the remote to

select a playback feature or item.

Press PLAY•PAUSE 2; (or PLAY 2on the remote) to start playback.

Press STOP9to stop playback.

Types of Discs used

on this DVD System

1Tip

Refer to the User Manual for

playback of other types of

discs.

Type

DVD VIDEO

AUDIO CD

VIDEO CD

MP3-CD

Record Playback Edit

DVD+RW

Super VCD

VIDEO CD

2005 © Koninklijie Philips Electronics N.V.

www.philips.com

ON/OFF

FWD17 QUG_Eng 2005.5.25, 2:38 PM4
