PEERLESS SmartMount SA750P Guide

3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

ISSUED: 03-08-07 SHEET #: 095-9264-1

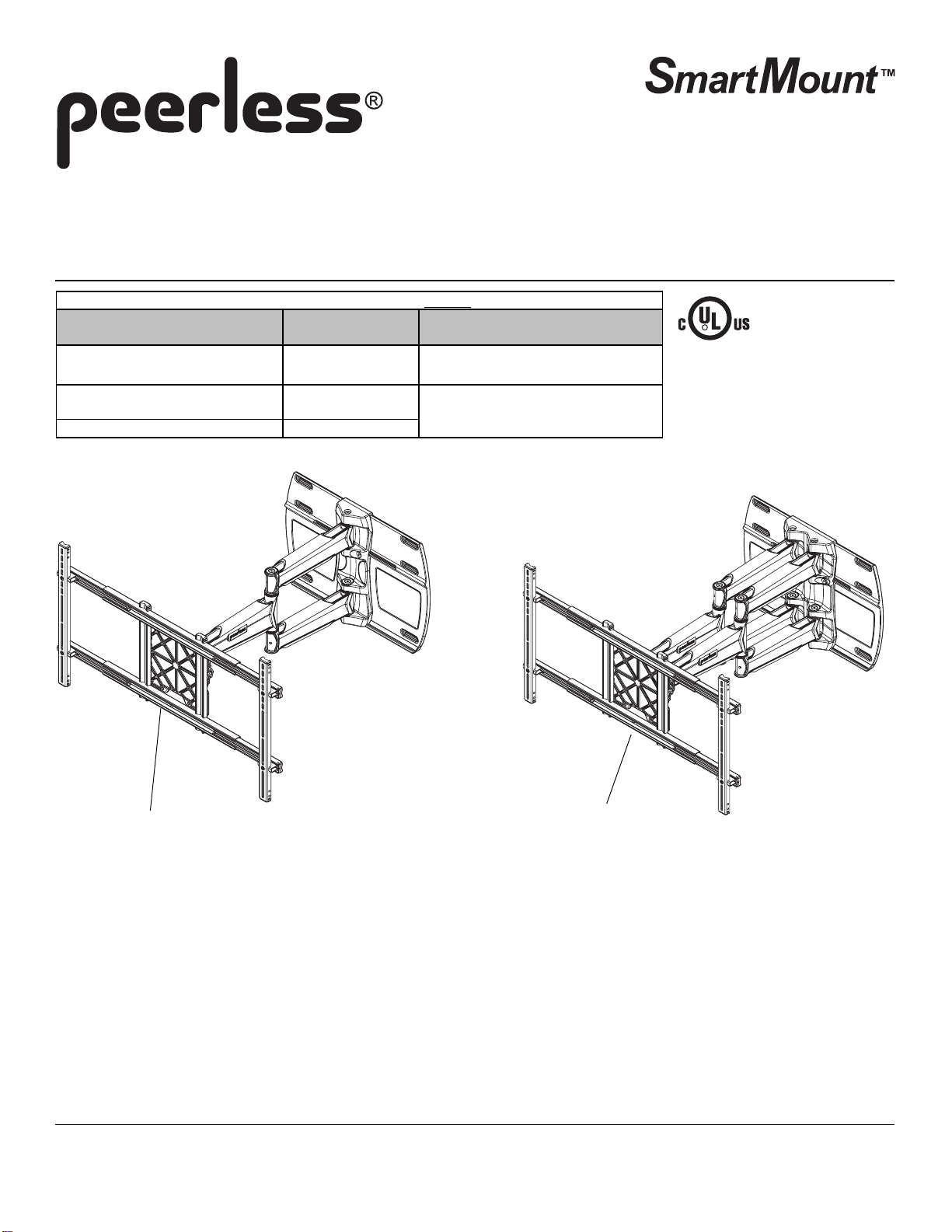

Features:

•U-groove and U-cap system for clean and simple cable management

•Up to 10.75" (7.75” for dual-arm models) total horizontal adjustment for ideal screen positioning

•+15°/-5° of easy one-touch tilt

•Two knockouts for optimal electrical access

•Three pivot points with up to 180° swivel

Installation and Assembly:

SmartMount™ Articulating Flat Panel Wall Mounts for

32" to 71 " screens

This product is UL Listed.

It must be installed by a

qualified professional

installer.

UNIVERSALADAPTERBRACKET

INCLUDEDWITHRTFPA50U,

RTFPA50US,SA750PU,SA750PU-S

UNIVERSALADAPTERBRACKET

INCLUDEDWITHRTFPA63U,

RTFPA63US,SA760PU,SA760PU-S

SA760P, SA760P-S

Product is UL rated for screen size range and load capacity per chart below

Model # Screen Size Range Max. UL Load Capacity

150 lbs (68 kg)32"-50"

37"-71"

RTFPA50U, RTFPA50US, SA750P,

SA750P-S, SA750PU, SA750PU-S

200 lbs (91 kg)

37"-63"

RTFPA63U, RTFPA63US,

SA760PU, SA760PU-S

2 of 42 ISSUED: 03-08-07 SHEET #: 095-9264-1

Note: Read entire instruction sheet before you start installation and assembly.

Forcustomercarecall(800)729-0307or(708)865-8870.

Table of Contents

Parts List.......................................................................................................................................................................... 3, 4

Adjustment of Arm ................................................................................................................................................................ 5

Installation to Double Wood Stud Wall.................................................................................................................................. 6

Installationto Solid Concrete and Cinder Block .................................................................................................................... 7

InstallingUniversalAdapterBracket...................................................................................................................................... 8

Attaching Adapter Plate to Screen with VESA®Mounting Patterns .................................................................................... 12

InstallingandRemovalofFlatPanelScreen ....................................................................................................................... 13

Adjustment of Flat Panel Screen ........................................................................................................................................ 13

CordManagement .............................................................................................................................................................. 14

Tools Needed for Assembly

• studfinder ("edge to edge" stud finder is recommended)

• phillipsscrewdriver

• pencil

• drill

• 3/16" drill bit for wood studs, 5/16" drill bit for concrete

• 7/16" socket wrench or bitdriver for wood screws

• level

• tapemeasure

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, call

Peerless customer service at 1-800-729-0307.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardwareand components.

• NeverexceedtheMaximum ULLoad Capacity.

• If mounting to wood wall stud wall construction, make sure that mounting screws are anchored into the center of the

studs. Use of an "edge to edge" stud finder is highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.See suggested torque values where applicablewithintheseinstructions.

WARNING

3 of 42 ISSUED: 03-08-07 SHEET #: 095-9264-1

Qty.

XX Aarm (single arm) 1 201-0275 201-0275-S

XX (double arm) 201-0276 201-0276-S

XXB

universal adapter bracket 1 201-P1367 201-C4367

XXC

screen bracket 2 201-P1396 201-C4396

XXXXD

wall plate 1 201-0244 201-0244-S

XXXX

E6 520-1243 520-2243

XXXX

F6 590-1025 590-1025

XXG

M10 x15 mm socket screw 4 520-9262 520-9534

XXH

M5 x10 mm flat head phillips screw 4 520-1573 520-2573

XXXXI

5/16-18 x1.75" flat head socket screw 2 520-1332 520-2332

XXXXJ

5/16"-18 nut 2 530-1034 530-2034

XXK

6 mm allen wrench 1 560-9716 560-9716

XXXXL

3/16" allen wrench 1 560-9713 560-9713

XXM 1 560-0073 560-0073

XXXXN

4 mm allen wrench 1 560-9646 560-9646

XXXXO

cable ties 12 590-1168 590-1168

3 mm allen wrench

SA750P, SA750P-S

SA760P, SA760P-S

with your product.

Parts may appear slightly different than illustrated.

alligator® anchor

5/16 x3" wood screw

Gloss

Silver

Part #

RTFPA50U, RTFPA50US

SA750PU, SA750PU-S

RTFPA63U, RTFPA63US

SA760PU, SA760PU-S

Before you begin, make sure all parts shown are included

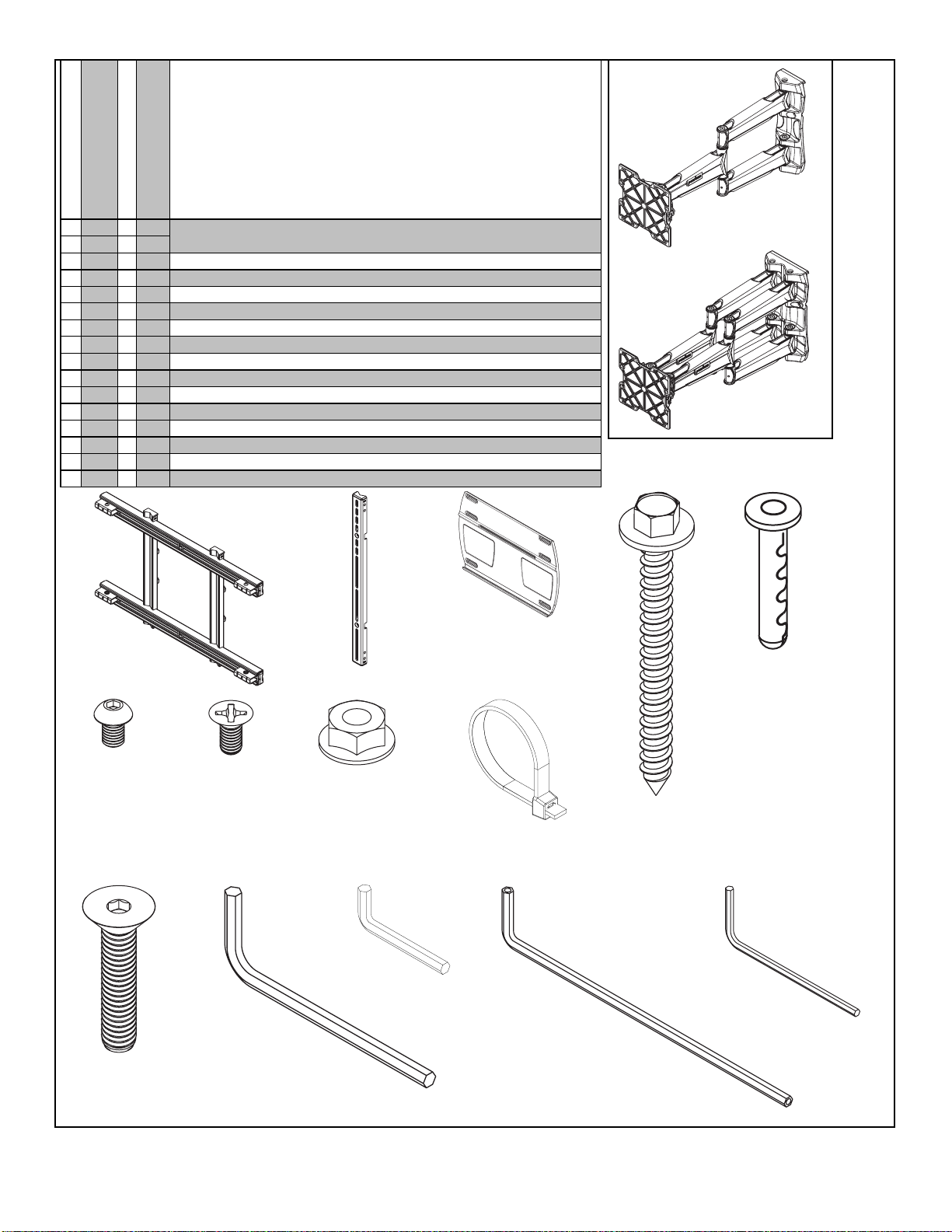

Parts List

Description

Gloss

Black

Part #

4 of 42 ISSUED: 03-08-07 SHEET #: 095-9264-1

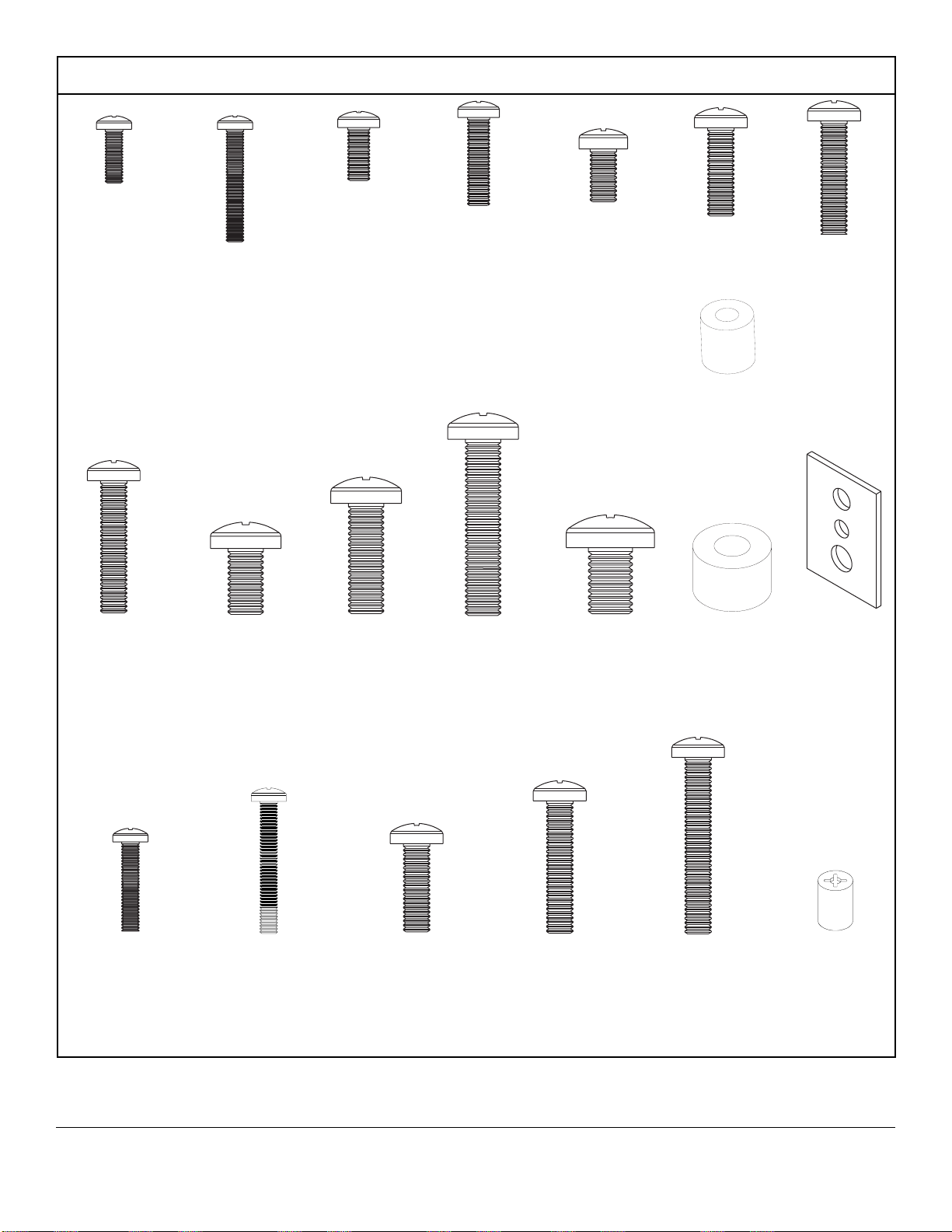

Adapter Bracket Fasteners

M4 x 12 mm (6)

(504-9013)

M4 x 25 mm (4)

(504-1015)

M5 x 12 mm (4)

(520-1027) M5 x 25 mm (4)

(520-9543)

M8 x 16 mm (6)

(520-9257) M8 x 40 mm (4)

(520-1136)

M8 x 25 mm (4)

(520-1031) I.D..34"(4)

(540-1059)

M10 x 15 mm (4)

(520-9262)BLK

(520-9534)SLV

I.D..22"(4)

(540-1057)

M6 x 30 mm (4)

(510-9109)

M6 x 12 mm (4)

(520-1128) M6 x 25 mm (4)

(520-1208)

M6 x 20 mm (4)

(520-9402)

multi-washer(6)

(580-1036)

M4 x 20 mm (4)

(504-9020)BLK

(504-2020)SLV

M4 x 30 mm (4)

(520-1133)BLK

(520-2133)SLV

M6 x 20 mm (4)

(520-9402)BLK

(520-2407)SLV

M6 x 30 mm (4)

(510-9109)BLK

(510-2109)SLV

M6 x 40 mm (4)

(520-1584)BLK

(520-1207)SLV

ID.128"(4)

(590-5005)BLK

(590-5003)SLV

5 of 42 ISSUED: 03-08-07 SHEET #: 095-9264-1

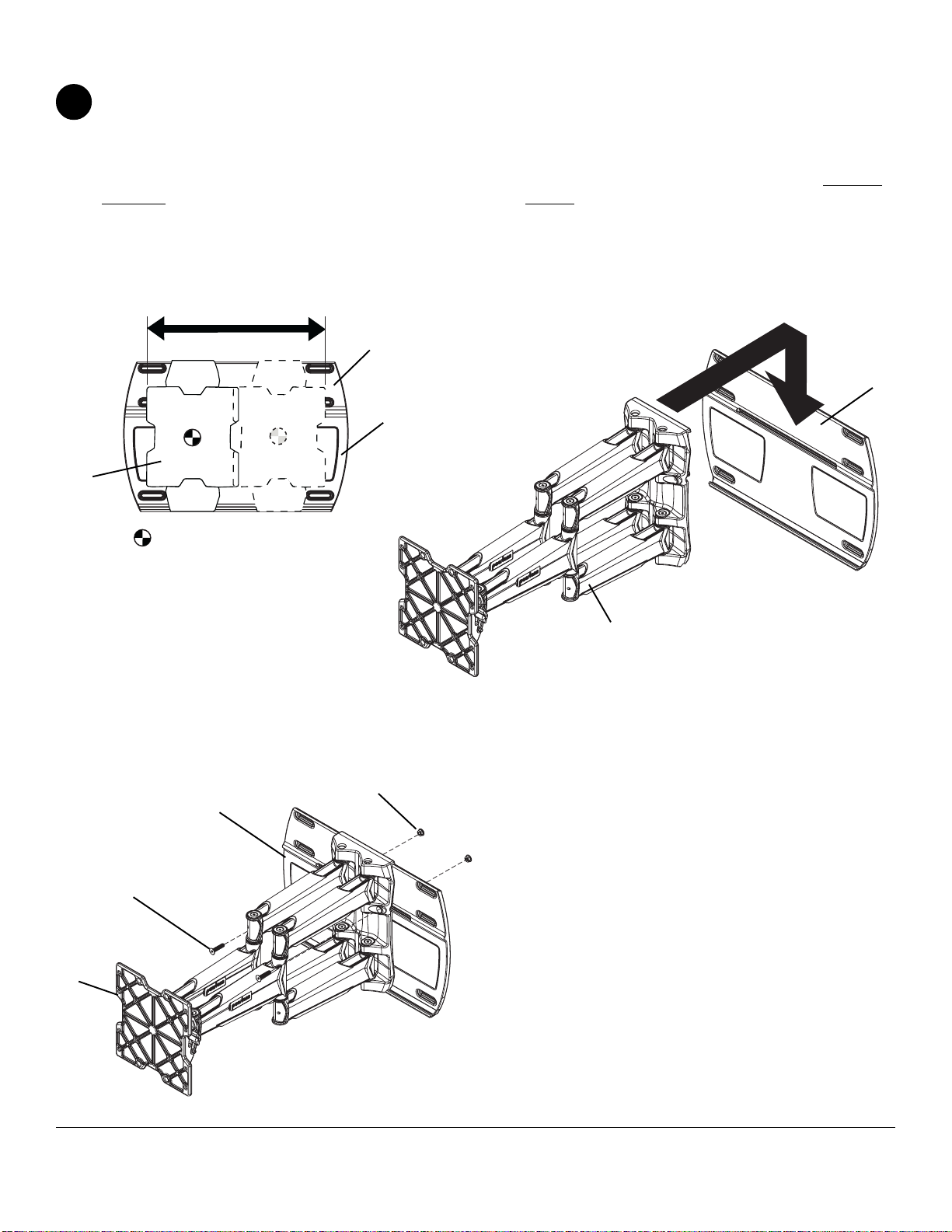

NOTE: If mounting wall plate (D) to wood stud wall surface, slots on wall plate (D) must align to studs.

Determine desired location of screen center (refer to step 2) as shown in fig. 1.1, then hook arm onto wall plate (D)

as shown in fig. 1.2.

Using 3/16" allen wrench (L), secure arm (A) to wall plate (D) using two 5/16-18 x 1.75" flat head socket screws (I)

and two 5/16"-18 nuts (J) as shown in fig. 1.3. NOTE: BOTH 5/16-18 x 1.75" flat head socket screws (I) must be

fastened to to wall plate securely using 5/16"-18 nuts (J). Do not adjust arm while screen is attached.

Adjustment of Arm on Wall Plate

fig. 1.1

fig. 1.3

fig. 1.2

CS = center of screen

Slots will align

on studs

6 of 42 ISSUED: 03-08-07 SHEET #: 095-9264-1

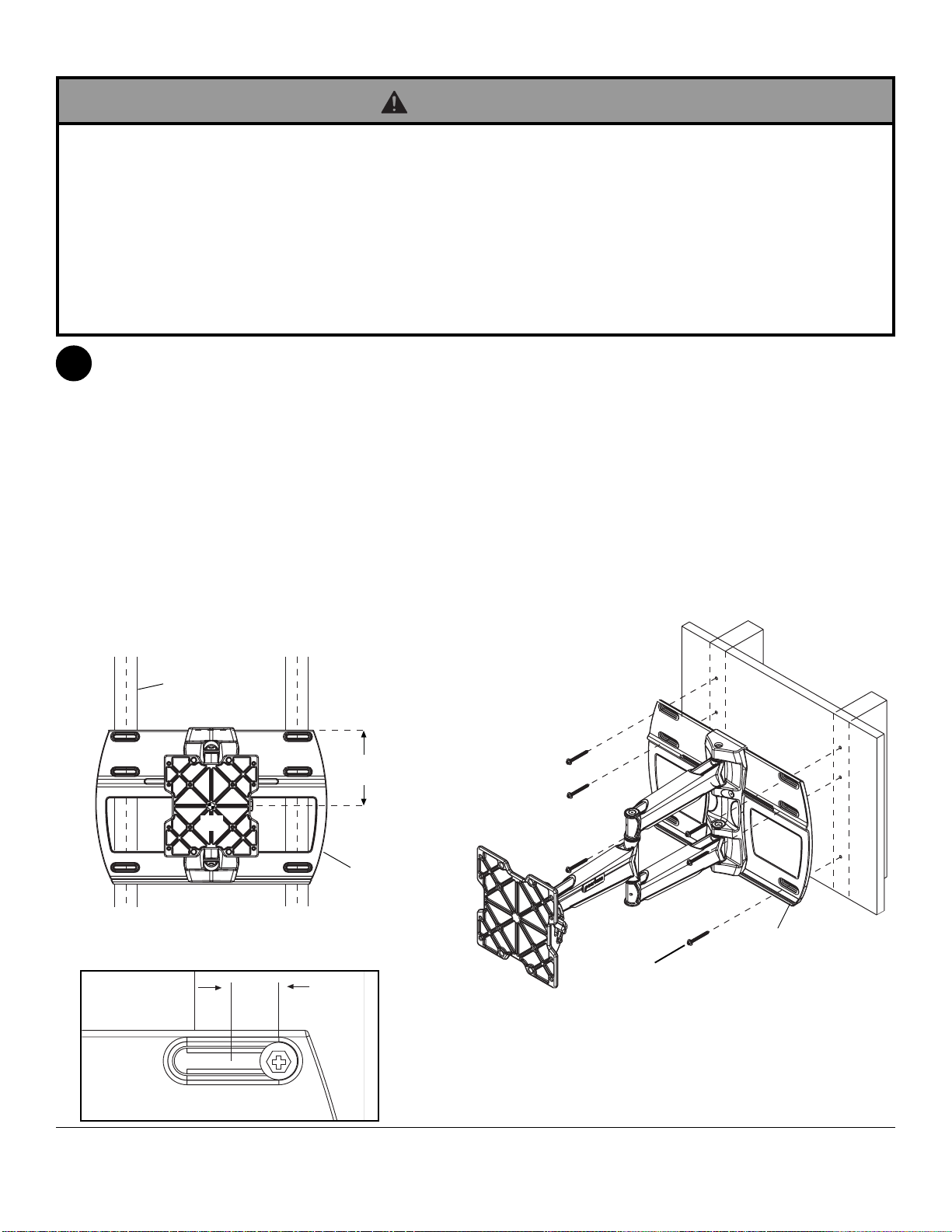

Installation to Double Wood Stud Wall

Determine and mark with a pencil, the desired center of screen on wall. Measure 7" (177 mm) above desired center

of screen and draw a horizontal line to locate placement of wall plate template. Wall plate (D) can be mounted to two

studs that are 16" apart. Use a stud finder to locate the edges of the studs. Use of an edge to edge stud finder is

highly recommended. Based on their edges, draw a vertical line down each stud’s center. Align top of template (top

of wall plate) with horizontal line and align slots of wall plate template with wood stud center lines. Level template

(wallplate) on wall and mark center of six mounting holes making sure that mounting holes are on the stud

centerlines. Drill six 3/16" (5mm) dia. pilot holes 3" (76 mm) deep. Level and secure wall plate (D) on wall using six

5/16" x 3" wood screws (E) as shown in fig. 2.2.

NOTE: Wall plate (slot) may be adjusted .875" in either direction off center of wood screw (E) and stud as shown in

detail 1.

Skip to step 3.

• Installermustverifythatthesupportingsurfacewillsafelysupport the combined load of the equipment and all attached

hardwareand components.

• Tightenwoodscrewssothatwallplateisfirmlyattached,butdonotovertighten.Overtighteningcandamagethe

screws,greatlyreducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is

highlyrecommended.

• Hardwareprovidedisfor attachment of mount through standard thickness drywall or plaster into wood studs. Installers

areresponsible to provide hardware for othertypesofmounting situations.

WARNING

fig. 2.2

.875"

DETAIL 1

STUD

fig. 2.1

CS = center of screen

STUD

(177 mm)

7 of 42 ISSUED: 03-08-07 SHEET #: 095-9264-1

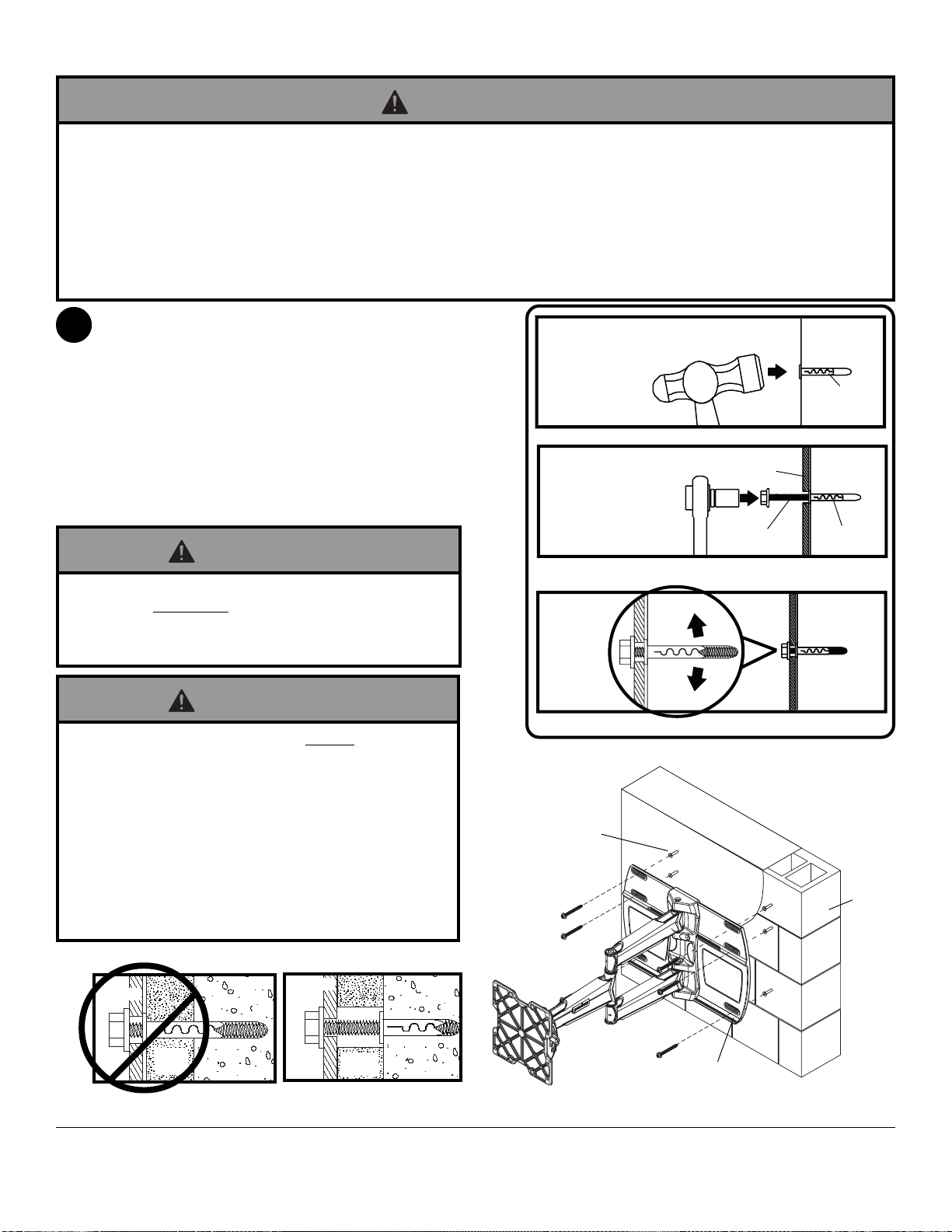

Installation to Solid Concrete or Cinder Block

Determine and mark with a pencil, the desired center

ofscreenon wall. Measure 7" (177 mm) above desired

center of screen and draw a horizontal line to locate

placement of wall plate template.Align top of template

(topof wall plate) with horizontal line. Leveltemplate

(wallplate) on wall and mark center of six mounting

holes. Drill six 5/16" (8 mm) dia. holes 3" (76.2 mm)

deep. Insert anchors (F) in holes flush with wall as

shown(right).Placewallplate (D) over anchors and

secure with six 5/16" x 3" screws (E) as shown in fig.

2.3. Level wall plate, then tighten all fasteners.

• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete

thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid

part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifications.

It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to avoid

breakingoutthebackoftheholewhenenteringa void or cavity.

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Makesure that the supporting surface will safely supportthe combined load of the equipment and allattached hard-

wareand components.

WARNING

CUTAWAYVIEW

INCORRECT

concrete

surface

Drill holes and insert anchors (F).

CORRECT

Place wall plate (D) over anchors (F) and secure with

screws (E).

Tighten all fasteners.

wallplate

plaster/

drywall

concrete wallplate concrete

plaster/

drywall

• Always attach concrete anchors directly to load-

bearingconcrete.

• Neverattach concrete anchors toconcretecovered

withplaster, drywall, or other finishing material. If

mountingtoconcrete surfaces covered with a finishing

surfaceisunavoidable, the finishing surface must be

counterboredasshown below. Be sure concrete

anchorsdonotpullawayfrom concrete when tighten-

ing screws. If plaster/drywall is thicker than 5/8",

custom fasteners must be supplied by installer.

(Notevaluated byUL)

WARNING

solid concrete

cinder

block

fig. 2.3

• Tighten screws so that wall plate is firmly attached,

butdo not overtighten.Overtighteningcan damage

screws,greatlyreducing their holding power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

WARNING

8 of 42 ISSUED: 03-08-07 SHEET #: 095-9264-1

Remove two M5 x 20 mm screws from the rollbrake. Lift

adapter plate out from tilt bracket as shown.

NOTE: M5 X 25 mm screw may need to be loosened a

fewturns to allow adapter bracket to be removed using

4mm allen wrench (N).

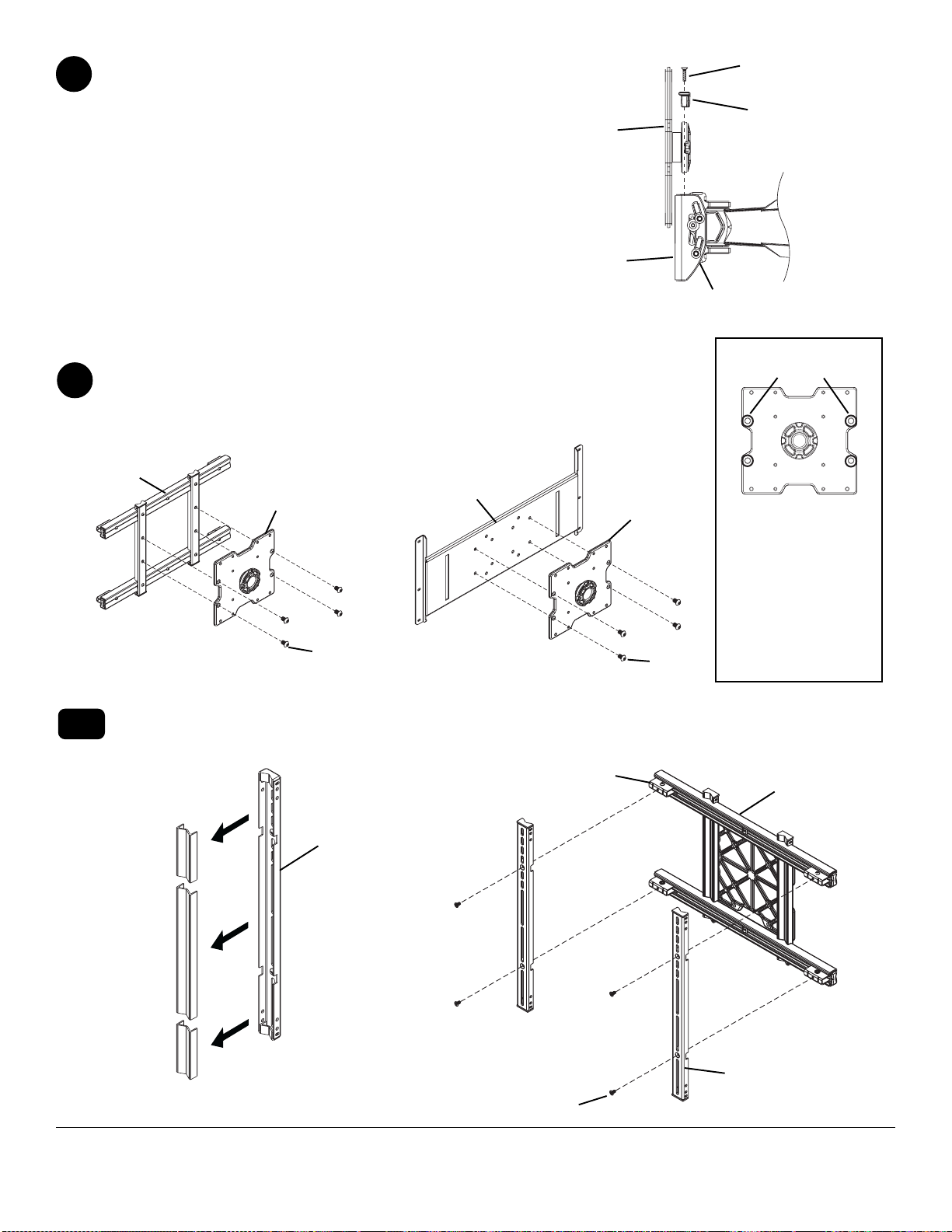

Remove bracket covers from screen brackets (C) as shown in fig. 4.1. Fasten two screen brackets (C) to the

gliders on universal adapter bracket (B) using four M5 x 10 mm flat head phillips screws (H) as shown in fig. 4.1.2.

4-1

BRACKET

COVER

GLIDERS

fig. 4.1.2

NOTE: If your screen has a VESA hole pattern skip to page 12.

Using the hole pattern shown in detail 2, attach the adapter plate to universal adapter

bracket (B) or dedicated adapter plate with four M10 x 15 mm screws (G) as shown.

Tighten screws using 6 mm allen wrench (K).

Installing Universal Adapter Bracket to Screen

ADAPTER

PLATE

ROLLBRAKE

TILT

BRACKET

M5 X 20 MM

SCREW

M5 X 25 MM

SCREW

HOLE PATTERN

FOR USE WITH

UNIVERSAL

ADAPTER

BRACKET OR

DEDICATED

ADAPTER PLATE

DETAIL 2

LARGE

HOLES

ADAPTERPLATE

DEDICATED

ADAPTERPLATE

fig. 4.1

9 of 42 ISSUED: 03-08-07 SHEET #: 095-9264-1

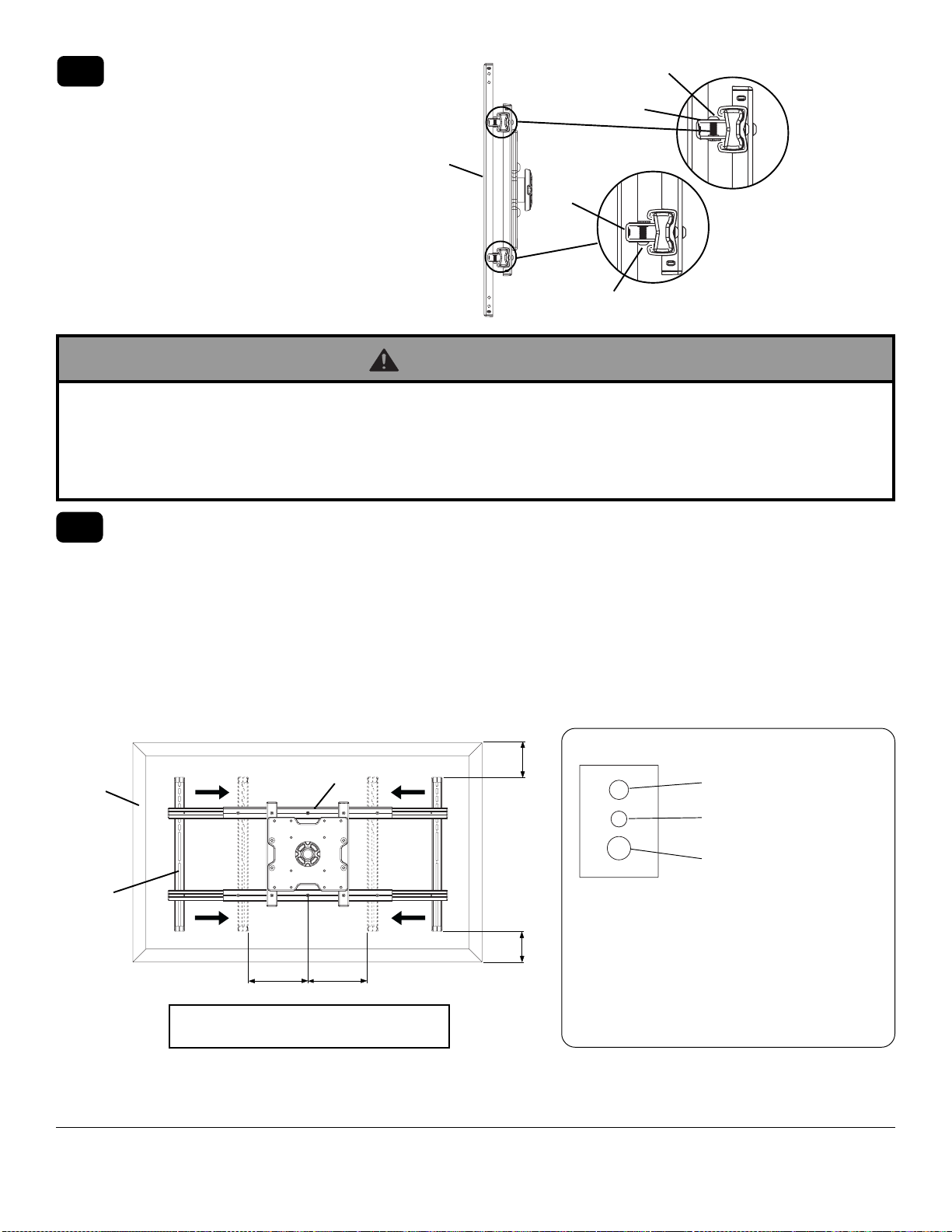

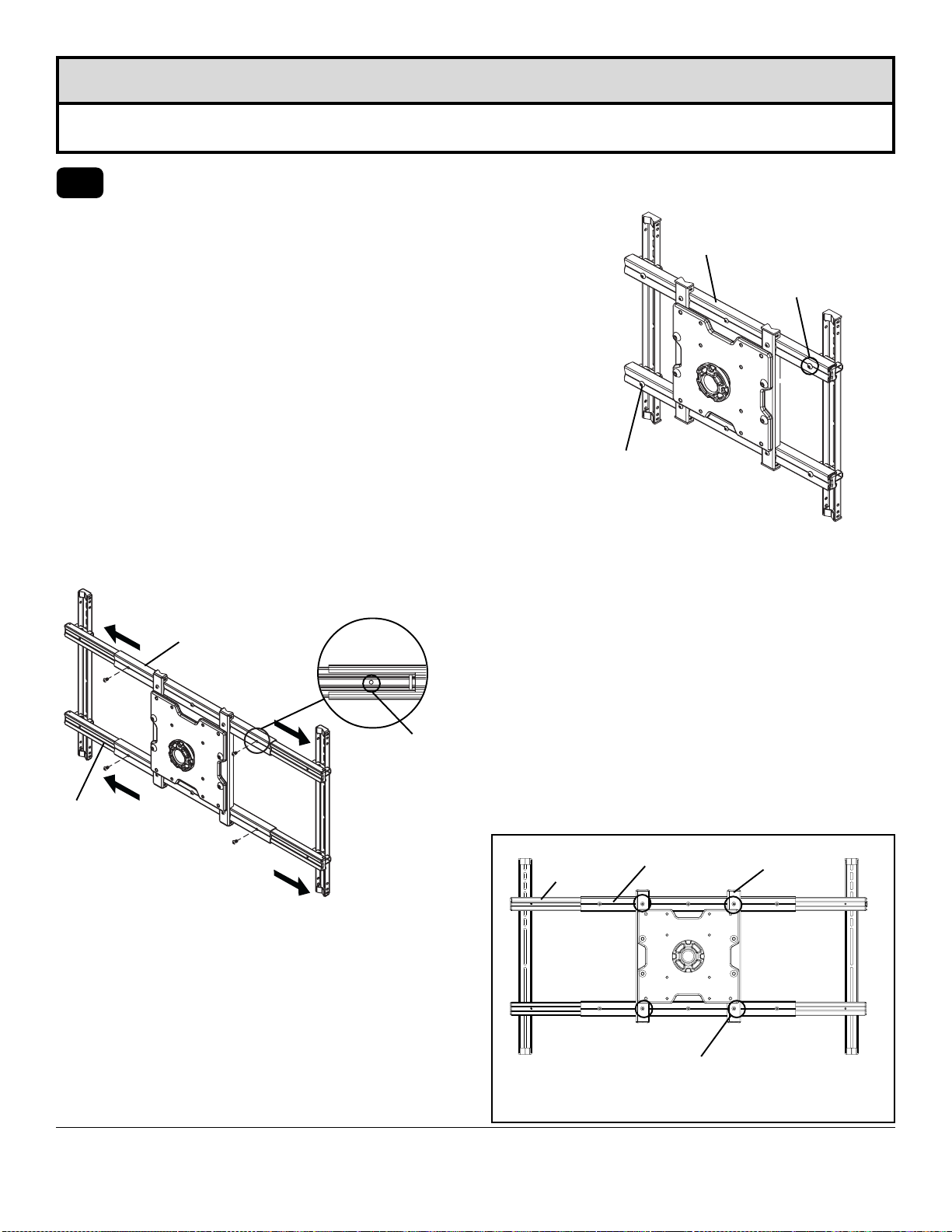

4-2 The universal adapter bracket has two fixed stop positions

which lock the extension brackets in the retracted position

(shown right) or extended position (shown below) using the

M5 x 9mm screws.

If the distance between mounting holes on the back of your screen

measure 17.5” (445mm) wide or lesskeep universal adapter

bracket in the retracted position. Skip to step 4-3.

If the distance between mounting holes on the back of your screen

measure wider than 17.5” (445 mm), remove four M5 x 9 mm

socketbutton head screws from universal adapter bracket using

3 mm allen wrench (M), as shown below. NOTE: You may need to

loosen four M5 x 9 mm vertical support screws, as shown in

detail 3, one full turn to adjust extension brackets. Extend both

extension brackets out to the fixed stop positions (threaded hole

showninreverse view below). Secure extension bracket to the

horizontal support by fully tightening M5 x 9 mm socket button

head screws into the fixed stop positions of the extension brackets

using 3 mm allen wrench (M) as shown in the reverse view.

Retighten M5 x 9 mm vertical support screws as shown in detail 3.

• Do not tighten screws with excessive force. Overtightening can cause damage to mount. Tighten M5 x 9 mm vertical

support screws and M5 x 9mm socket button head screws to 35 in. • lb (3.95 N.M.) maximum torque.

CAUTION

DETAIL 3

LOOSENVERTICALSUPPORT

SCREWSFOREXTENSION

BRACKETADJUSTMENT

THENTIGHTEN

VERTICAL

SUPPORT

HORIZONTAL

SUPPORT

EXTENSION

BRACKET

REVERSE

VIEW

EXTENSION

BRACKET

HORIZONTAL

SUPPORT

EXTENDED

POSITION

FIXEDSTOPPOSITION

(THREADEDHOLE)

M5X 9 MM BUTTON

SOCKETHEADSCREW

HORIZONTAL

SUPPORT

RETRACTED

POSITION

RETRACTED

FIXEDSTOP

POSITION

10 of 42 ISSUED: 03-08-07 SHEET #: 095-9264-1

NOTE:Refertopage9foradjustments ofuniversaladapterbracket(B)extensionbrackets.

To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place

screenfacesidedown.Refer toscreen manufacturersinstructionsforremovalofknobs,base,cover,or screw(s)onthe

back of the screen to prepare for mounting screen brackets (C) to screen.Adjust screen brackets (C) to align with

screen mounting holes as shown in fig. 4.4. Select the small, medium, large or extra large screws from the baffled

fastener pack then attach screen brackets (C) to screen following figure 4.5 or 4.6 on page 11. Retighten M5 x 16 mm

glider screws as shown in fig. 4.3.

NOTE:Top and bottommountingholesmustbeusedforattachingscreen brackets.Middle holes should also be used

wherethe fasteners and screens allow. Verifythatallholes are properly aligned, andthentightenscrews using a phillips

screwdriver.

NOTE: For flat back screens proceed to step 4-5. For bump-out or recessed back screen skip to step 4-6

4-4

NOTES:

• Always use multi-washers when attaching

screen brackets (C) to your screen when using

small, medium or large screws. No multi-washer

is required for extra large (M8) screws.

• Use the corresponding hole in the multi-washer

that matches your screw size as shown.

MULTI-WASHER

MEDIUMHOLEFORM5SCREWS

LARGEHOLEFORM6SCREWS

SMALLHOLEFORM4SCREWS

Using 3 mm allen wrench (M), loosen screws

ofeachglideronthe universal adapter bracket

untilscreen brackets (C) can move with ease

within extension bracket.

fig. 4.3

4-3

M5X 16MM SOCKET

BUTTONHEADSCREW

GLIDER

M5X 16MM SOCKET

BUTTONHEADSCREW

GLIDER

CENTERSCREENBRACKETS(C)VERTICALLYONBACKOFSCREEN

SCREEN

"Y" dimensions should be equal.

fig. 4.4 NOTE: "X"dimensionsshouldbe equal.

• Tighten screws so screen brackets are firmly attached to screen. Do not tighten with excessive force.

Overtighteningcancausestressdamagetoscrews,greatlyreducingtheirholding power and possibly causing

screw heads to become detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.

• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly

secured, damage may occur to screen or product may fail.

WARNING

This manual suits for next models

Table of contents

Languages:

Other PEERLESS Rack & Stand manuals

PEERLESS

PEERLESS SmartMount ST 630P Guide

PEERLESS

PEERLESS Paramount PSP2 Guide

PEERLESS

PEERLESS PLT BLK Guide

PEERLESS

PEERLESS IB40 Guide

PEERLESS

PEERLESS PARAMOUNT PA730 Instruction Manual

PEERLESS

PEERLESS DS415 Guide

PEERLESS

PEERLESS PARAMOUNT PP740 User manual

PEERLESS

PEERLESS Solid-Point PS 1 Guide

PEERLESS

PEERLESS PM 47 Guide

PEERLESS

PEERLESS PARAMOUNT PSP2-S Guide

PEERLESS

PEERLESS AEC0609 Guide

PEERLESS

PEERLESS SOLID-POINT PLCM1CP Instruction Manual

PEERLESS

PEERLESS SF630P-S and assembly Guide

PEERLESS

PEERLESS Slimline OP-LWB 530 Guide

PEERLESS

PEERLESS HCACC502 User manual

PEERLESS

PEERLESS PARAMOUNT PA730 Guide

PEERLESS

PEERLESS WSP 716 User manual

PEERLESS

PEERLESS Solid-Point PLCM 1 CP Guide

PEERLESS

PEERLESS PARAMOUNT PA730 Guide

PEERLESS

PEERLESS FPZ-600 Guide

PEERLESS

PEERLESS PARAMOUNT PT650 and assembly Guide

PEERLESS

PEERLESS LCT Series Guide

PEERLESS

PEERLESS Paramount PT650 Guide

PEERLESS

PEERLESS MSA-301 Guide

Popular Rack & Stand manuals by other brands

Salamander

Salamander Acadia AC/W/L400/WH Assembly instructions

Fohhn

Fohhn VAT-09 Mounting instruction

ricoo

ricoo FS0522 quick start guide

AMSOIL

AMSOIL BMK-22 Installation and service instructions

Kargo Master

Kargo Master 48220 installation guide

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 installation instructions

ricoo

ricoo S1222 installation instructions

Ready-Set-Mount

Ready-Set-Mount RSMCM602 instruction manual

VidaBox

VidaBox VB MNT FFS2 installation guide

Welch Allyn

Welch Allyn 48960 Assembly instructions

Arkon

Arkon CM035-ST-2 installation instructions

PROEL

PROEL PLWIN60C user manual

Agilent Technologies

Agilent Technologies E2609B installation guide

Mustang

Mustang MV-ARM4 installation guide

Mounting Solutions

Mounting Solutions WRM-320 manual

Pyle

Pyle PMKSPAD1 manual

ShelterIt

ShelterIt 21208 installation instructions

SPL

SPL RackPack?4 1040 manual
