PEERLESS WMJ 018 Guide
ISSUED: 5-19-95 SHEET #: 128-9003-8 08-04-09
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
1 of 3
Installation and Assembly - Wall Arm for Jumbo Mounts
Before you start make sure all parts shown
below are included with your bracket.
For use only to support Jumbo Mount TV Brackets or
other products as specified by Peerless. Combine only
as specified (see specifications below).
Note: Read entire instruction sheet before
you start installation and assembly.
For customer service
call 1-800-729-0307
or 708-865-8870.
Wall Arms include #14 x 2.5" wood screws. For attachment to solid
concrete, cinder block, or brick order accessory kit ACC 204 (wood screw
included with ACC 204 for mounts WMJ018 and WMJ022). For concrete
block and solid concrete a CB type arm is recommended.
Flush
Mount
Tube A
From the top thread the Flush Mount Tube
(included with your Jumbo Mount Bracket)
through threaded fitting in wall arm (A).
Note:If you are installing to a metal stud
wall, please refer to the accompanying metal
stud instruction sheet.
B
A
Models:
WMJ 018,
WMJ 022
R
This product is intended for use with UL
Listed products and must be installed by a
qualified professional installer.
WMJ 018 WMJ 022
Description Qty. Part # Part #
Awall arm 1 128-1059 128-1069
B#14 x 2.5" wood screw 3 5S1-015-C03 5S1-015-C03
Parts List
125 lb
125 lb
Reach
18"
22.5"
(457 mm)
(572 mm)
(56.7 kg)
(56.7 kg)
(68 kg)
(68 kg)
150 lb
150 lb
Concrete Wood
Model
Number
WMJ 018
WMJ 022
Max. Load Capacity Reach
Compatible Jumbo Mount Models
JM 2630, JM 2640, JM 2640D
JM 2630, JM 2640, JM 2640D, JM
2650, JM 2650D, JM 2655
WALL ARM FOR JUMBO MOUNTS - SPECIFICATIONS
• Installer must verify that the supporting surface will safely support the combined weight of all attached equipment and
hardware.
• Do not attach directly to a metal stud wall. Use of a WSP wall plate is required for attachment to metal studs (contact
customer care). Metal stud installation is not UL evaluated.
• Weight of TV or screen shall not exceed maximum load capacity.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal
injury.
WARNING
ISSUED: 5-19-95 SHEET #: 128-9003-8 08-04-09
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
2 of 3

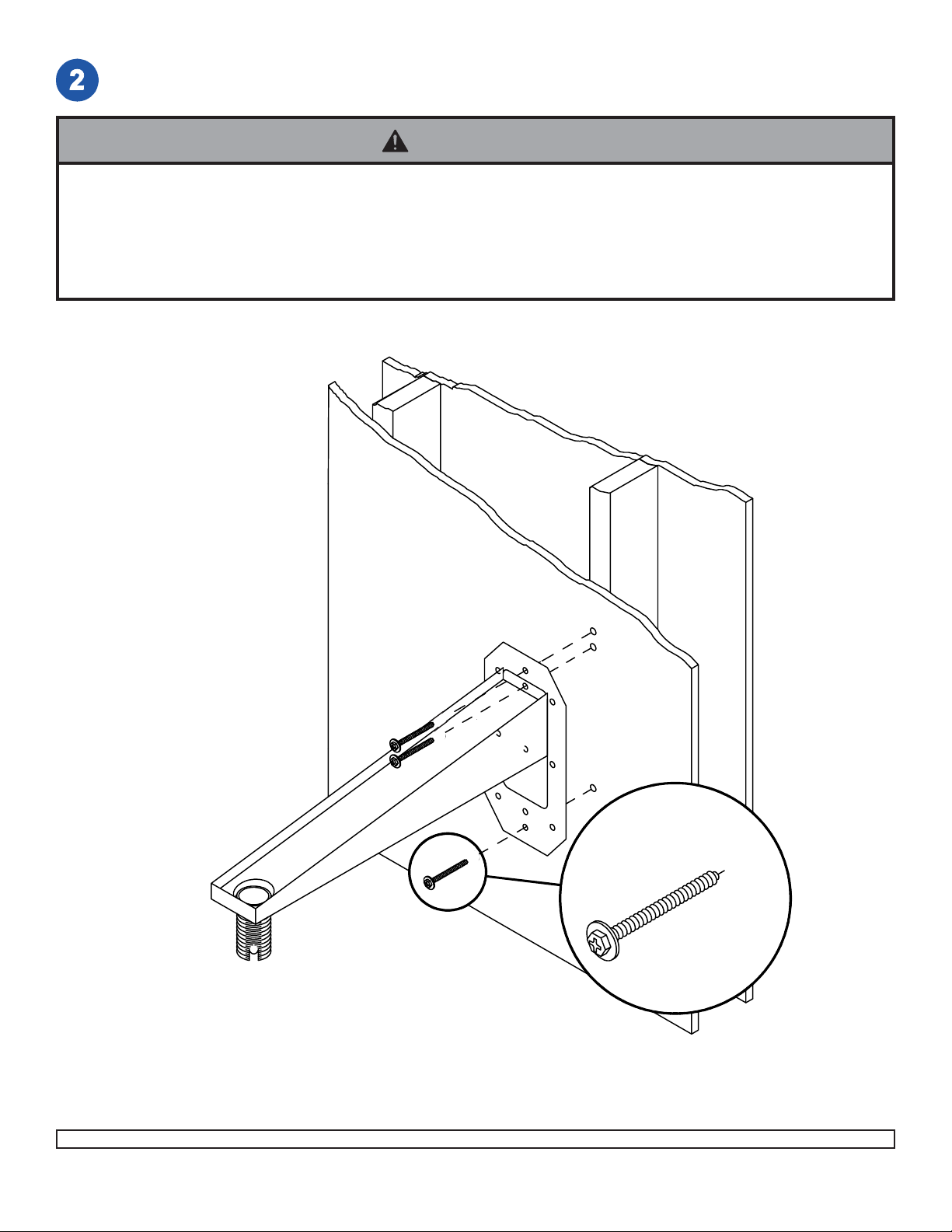

For Wood Stud Walls drill three 5/32" (4 mm) dia. holes to a minimum depth of 2.5" (64 mm) into stud center.
Attach wall arm using three #14 x 2.5" wood screws (B).
A
B
• Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the
screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the studs. The use of an "edge to edge" stud finder is
highly recommended.
WARNING
ISSUED: 5-19-95 SHEET #: 128-9003-8 08-04-09
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
3 of 3

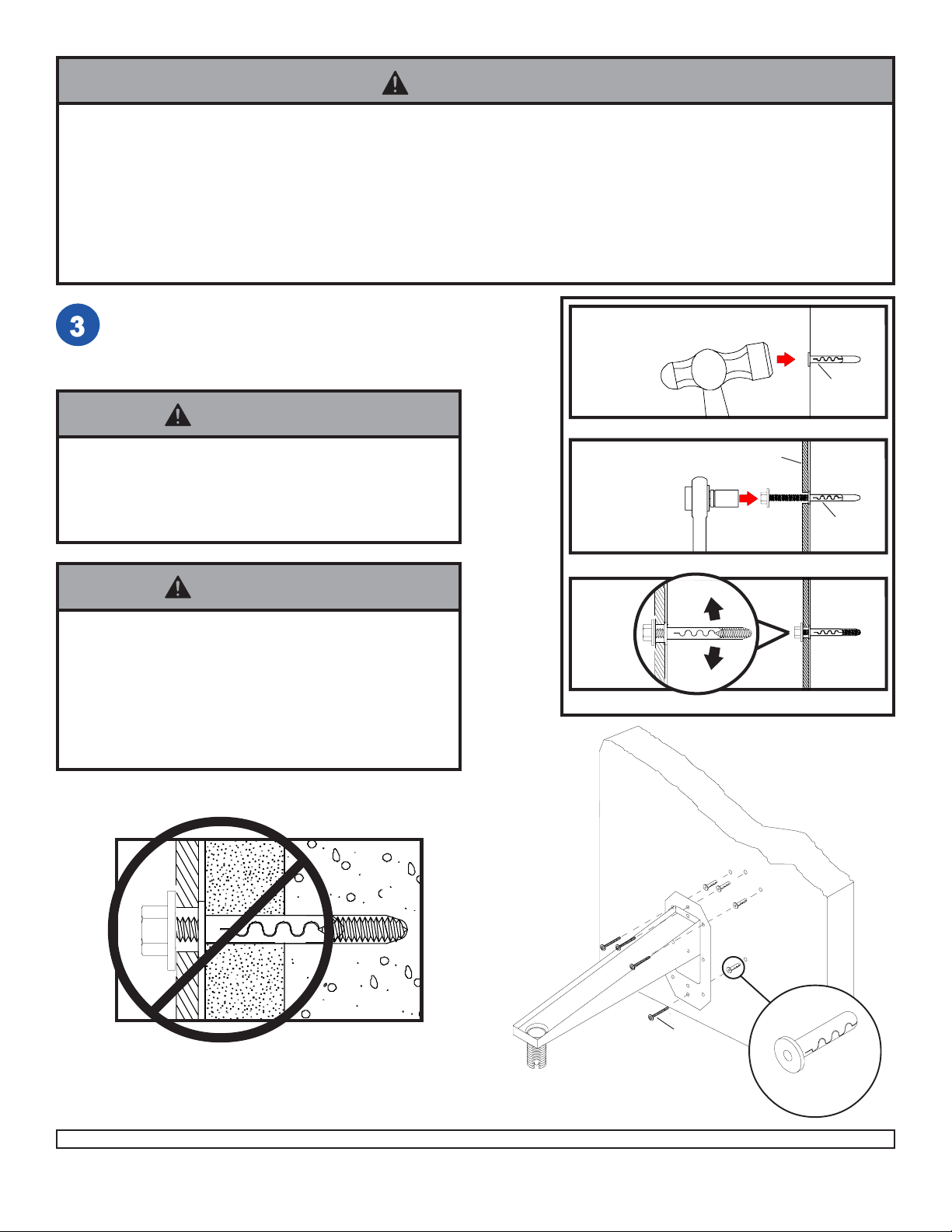

For Concrete Walls Order ACC 204 drill four 1/4"
(6 mm) dia. holes to a minimum depth of 2.5" (64
mm). Attach using concrete expansion anchors as
shown in 1, 2, and 3 (right).
• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete
surface in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part
of the block, generally 1" minimum from the side of the block. Cinder block must meet ASTM C-90 specifications. It is
suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to avoid
breaking out the back of the hole when entering a void or cavity.
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-
ware and components.
WARNING
wall bracket
1
3
2
Drill holes and insert anchors.
Place wall plate over anchors and secure with screws.
concrete
surface
Tighten all fasteners.
anchor
anchor
• Concrete anchors are not intended for attachment to
concrete wall covered with a layer of plaster, drywall,
or other finishing material. If mounting to concrete wall
covered with plaster/drywall is unavoidable, plaster/
drywall (up to 5/8" thick) must be counterbored. If
plaster/drywall is thicker than 5/8", custom fasteners
must be supplied by installer.
• Tighten wood screws firmly, but do not overtighten.
Overtightening can damage the bolts, greatly reducing
their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
WARNING
WARNING
CUTAWAY VIEW
A
Concrete anchor
(ACC 204)
B
© 2007, Peerless Industries, Inc. All rights reserved.
All other brand and product names are trademarks or registered trademarks of their respective owners.
