PEERLESS DS246 Guide

ISSUED:02-03-09 SHEET#:202-9308-1

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.

1 of 5

Installation and Assembly - WIDE SCREEN WALL MOUNT

FOR LGM3800S and LGM2900S Model: DS246

Some parts may appear slightly different than illustrated.

Before you start make sure all parts listed are included with your product.

IMPORTANT! Read instruction sheet before you start installation and assembly.

• Thisproductwasdesignedandintendedtobemountedtothefollowingsupportingsurfacescheckedbelowwiththe

hardware included in this product as specified in the installation sheet. To mount this product to an alternative support-

ingsurface,contactPeerlesscustomercareat1-800-865-2112.

• This product was designed to be installed on the following wall construction only;

WALLCONSTRUCTION ADDITIONALHARDWAREREQUIRED

xWoodStud None

xWoodBeam None

xSolidConcrete None

xCinderBlock None

xMetalStud Do not attach except with Peerless accessory kitACC415 for metal studs;

Contact Customer Service for Peerless accessory kit for metal studs.

Brick ContactCustomerService

Otherorunsure? ContactCustomer Service

WARNING

BCD

Max Load Capacity: 50 lb (22.6 kg)

Description Qty. Part #

Atilt plate adapter bracket 1 201-1652

Bwall plate 1 201-1653

CM5 x 1" penta pin driver 1 520-9249

DM10 x 15 mm penta pin screw 4 520-9263

EM5 x 12 mm socket pin serrated washer head screw 6 510-1064

F#14 x 2.5 phillips hex head wood screw 4 5S1-015-CO3

Galligator anchor 4 590-0097

H4 mm Allen wrench 1 560-1131

Parts List

ISSUED:02-03-09 SHEET#:202-9308-1

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.

2 of 5

Note: For concrete walls skip to step 5 on the

followingpage.

Note: For metal studs installation, please order

metal stud fastener kit ACC415.

For Single Stud Wood Walls drill four 5/32" (4 mm)

dia. holes to a minimum depth of 2.5" (64 mm).

Attach wall bracket (B) to center of wood stud using

four #14 x 2.5" wood screws (F). Use a stud finder to

locate center of stud.

1Attach PLP adapter plate (sold separately) onto back

ofscreen using four screws provided byPLP plate. For portrait installation skip to Step 3.

Attach tilt plate (A) to PLP adapter plate in the

landscape position using four M10 x 15 mm penta-pin

screws(D)usingpenta-pindriver(C)

Attach tilt plate (A) to adapter in the portrait position

using four M10 x 15 mm penta-pin screws (D) using

penta-pindriver(C).

PLP PLATE

PLP-V4X2 PLATE

(SOLD SEPARATELY)

SCREWS PROVIDED WITH PLP PLATE

(SOLD SEPARATELY)

PLP PLATE

ISSUED:02-03-09 SHEET#:202-9308-1

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.

3 of 5

For Concrete Walls drill one 1/4" (6 mm) dia. hole

to a minimum depth of 2.5" (64 mm). Insert anchor

(G) in hole flush with wall as shown (fig. 5.1). Place

wallplate(B)overanchor(G)and secure with#14x

2.5" wood screw (F) as shown in fig. 5.2 through

5.4. Make sure adapter bracket is level, mark other

holesandrepeat stepswithotherfasteners.Tighten

allfasteners.

CUTAWAYVIEW

• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete

surface in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part

of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifications. It is

suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to avoid

breakingoutthebackof the hole when entering a void or cavity.

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Make sure that the wall will safely support four times the combined load of the equipment and all attached hardware

andcomponents.

WARNING

• Tighten screws so that wall plate is firmly attached,

butdonotovertighten.Overtightening can damage the

screws,greatlyreducingtheirholdingpower.

• Never tighten in excess of 80 in • lb (9 N.M.).

WARNING

• Concreteanchorsarenot intendedforattachmentto

concretewallcoveredwithalayerofplaster,drywall,

orotherfinishingmaterial.Ifmountingtoconcretewall

coveredwithplaster/drywallisunavoidable, plaster/

drywall (up to 5/8" thick) must be counterbored. If

plaster/drywall is thicker than 5/8", custom fasteners

must be supplied by installer.

WARNING

concrete

wall

Drill holes

and insert

anchors.

Place wall

bracket over

anchor and

secure with

screw.

After

repeating

figure 5.1

tighten all

fasteners.

ADAPTERBRACKET

fig 5.1

fig 5.2

fig 5.3

fig 5.4

ISSUED:02-03-09 SHEET#:202-9308-1

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.

4 of 5

Attaching Mounting Bracket Using Hook On Option

Attach four M5 x 12 mm socket pin serrated washer

head screws (E) to the holes on the sides of wall

plate (B) using the 4mm security allen wrench (H)

provided.

6-1

Position slots of tilt plate (A) onto the four M5 x 12

mm socket pin serrated washer head screws (E)

attached to wall plate (B).

SLOT

6-2

To secure tilt plate (A) to wall plate (B), attach two M5 x 12 mm socket pin serrated washer head screws (E) through

the slots on the sides of wall plate (B), and into the threaded holes of tilt plate (A). Tighten with the 4mm security

allenwrench(H).

TOPHOLE

For tilt option skip to Step 8

ISSUED:02-03-09 SHEET#:202-9308-1

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.

5 of 5

Detail 1

Attaching Mounting Bracket Using Tilt Option

Loosely fasten (E) in slot as shown in Detail 1. Remove top two M5 x 12 mm socket pin serrated washer head

screws (E) attached to wall plate (B). Tighten two M5 x 12 mm socket pin serrated washer head screws (E) in slots

at desired tilt as shown in Detail 1.

PeerlessisaregisteredtrademarkofPeerlessIndustries,Inc.

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.

SLOT

This manual suits for next models

Table of contents

Other PEERLESS Rack & Stand manuals

PEERLESS

PEERLESS SUT632P Guide

PEERLESS

PEERLESS PRS-KIT0811 Guide

PEERLESS

PEERLESS HL4UN-002 Guide

PEERLESS

PEERLESS PLA 60-UNL Guide

PEERLESS

PEERLESS SUF650P and assembly Guide

PEERLESS

PEERLESS LDM233K Guide

PEERLESS

PEERLESS WBK100-W Guide

PEERLESS

PEERLESS SmartMount D-FPF-320 Guide

PEERLESS

PEERLESS Smartmount Guide

PEERLESS

PEERLESS SAL730P Guide

PEERLESS

PEERLESS SGLS01 User manual

PEERLESS

PEERLESS PM 47 Guide

PEERLESS

PEERLESS ESA746PU Guide

PEERLESS

PEERLESS CMJ450 Guide

PEERLESS

PEERLESS Smartmount ST670 Guide

PEERLESS

PEERLESS Paramount PPF Guide

PEERLESS

PEERLESS SmartMount ST 630P Guide

PEERLESS

PEERLESS PARAMOUNT PA740 User manual

PEERLESS

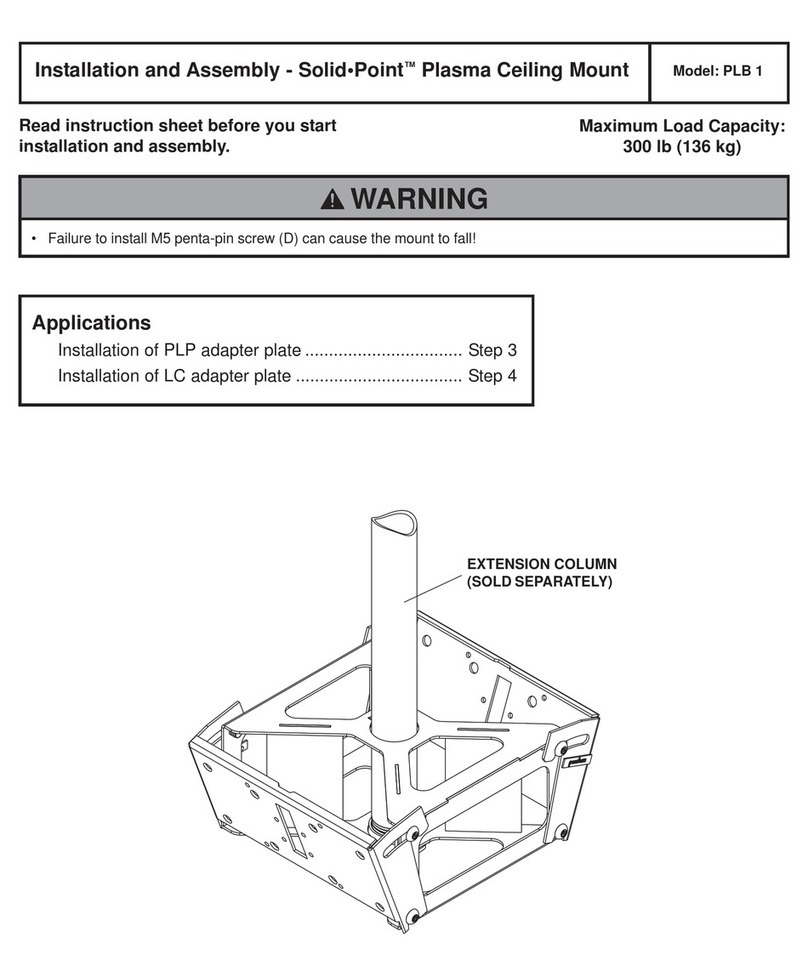

PEERLESS Solid-Point PLB 1 Guide
